OWC ThunderBay 8 Eight-Bay Thunderbolt 3 External Storage Enclosure with SoftRAID
OWC ThunderBay 8 is an eight-bay Thunderbolt 3 external storage enclosure with SoftRAID support, providing high-capacity storage and professional-grade data management for demanding workflows.
Key features
- Eight-bay external storage enclosure for high-capacity professional storage
- Thunderbolt 3 connectivity for fast data access and transfer
- SoftRAID support for configurable performance, redundancy and data protection
- Supports multiple HDDs or SSDs for scalable storage solutions
- Ideal for 4K/8K video editing, photography, audio and creative production
- Suitable for backups, archives, media servers and workstation storage
- Designed for Mac and Windows computers with Thunderbolt connectivity
- OWC model: ThunderBay 8

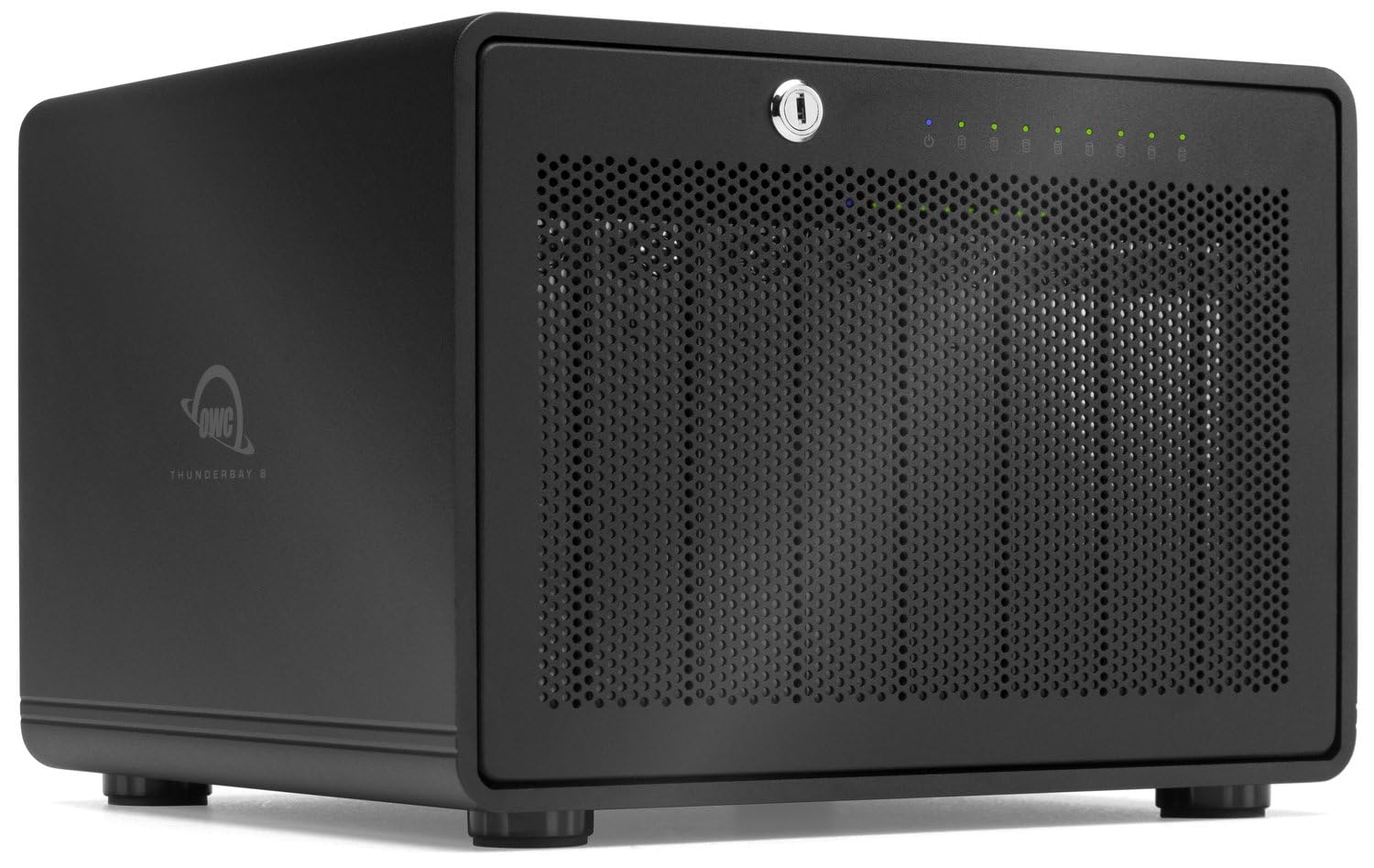

OWC ThunderBay 8 Eight-Bay Thunderbolt 3 Storage Enclosure
Build a high-capacity desktop storage workflow with the OWC ThunderBay 8. This professional eight-bay enclosure accepts 2.5-inch and 3.5-inch SATA HDDs or SSDs, combines them with dual Thunderbolt 3 connectivity, and gives editors, studios and data-heavy teams a flexible foundation for fast shared project storage, backups and archives.
Install the drives that suit your workflow, configure the storage with compatible software RAID tools, and keep each project close at hand in a robust desktop enclosure designed for demanding creative and production environments.
Buy OWC ThunderBay 8 from NationalPC

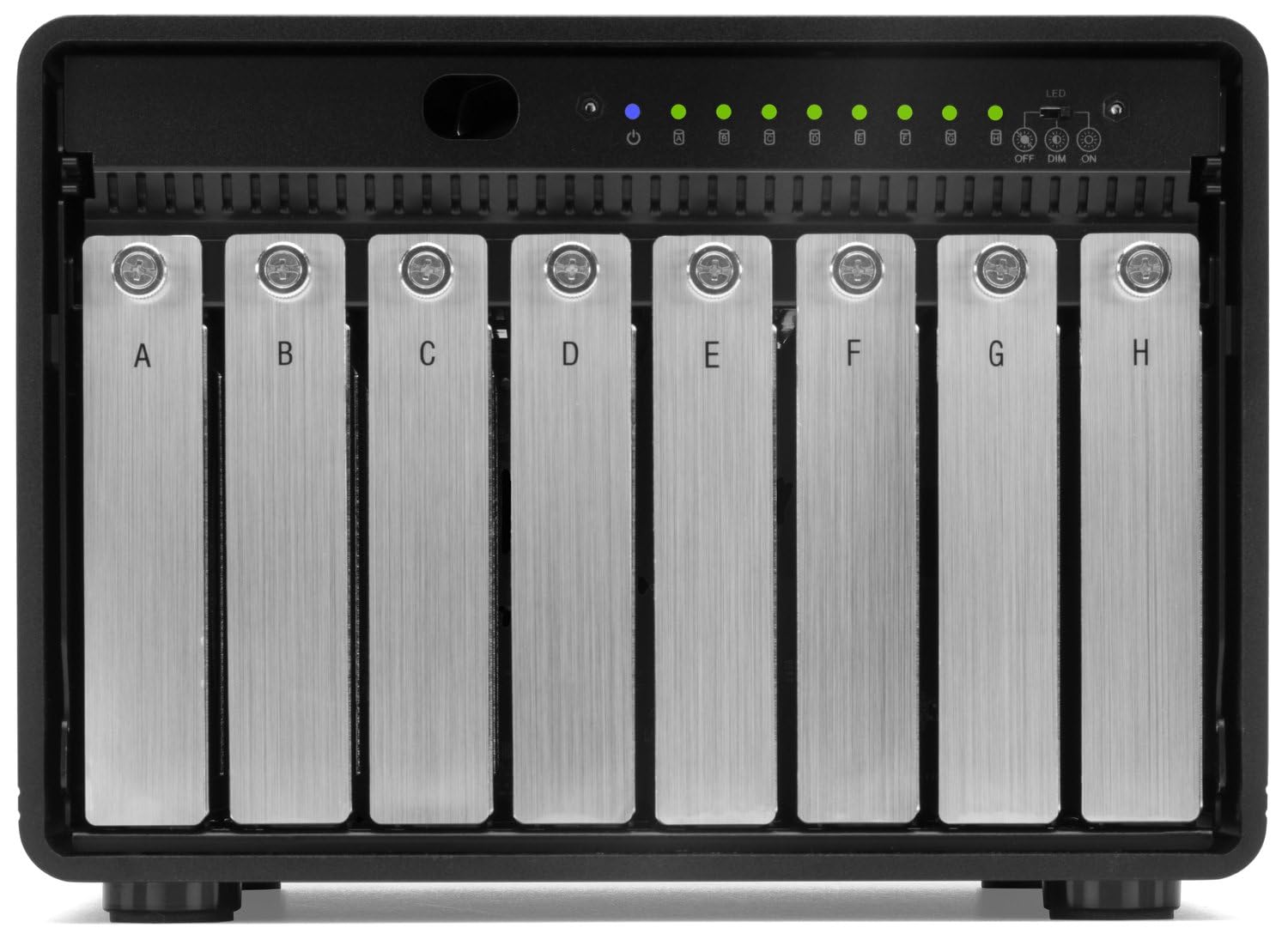

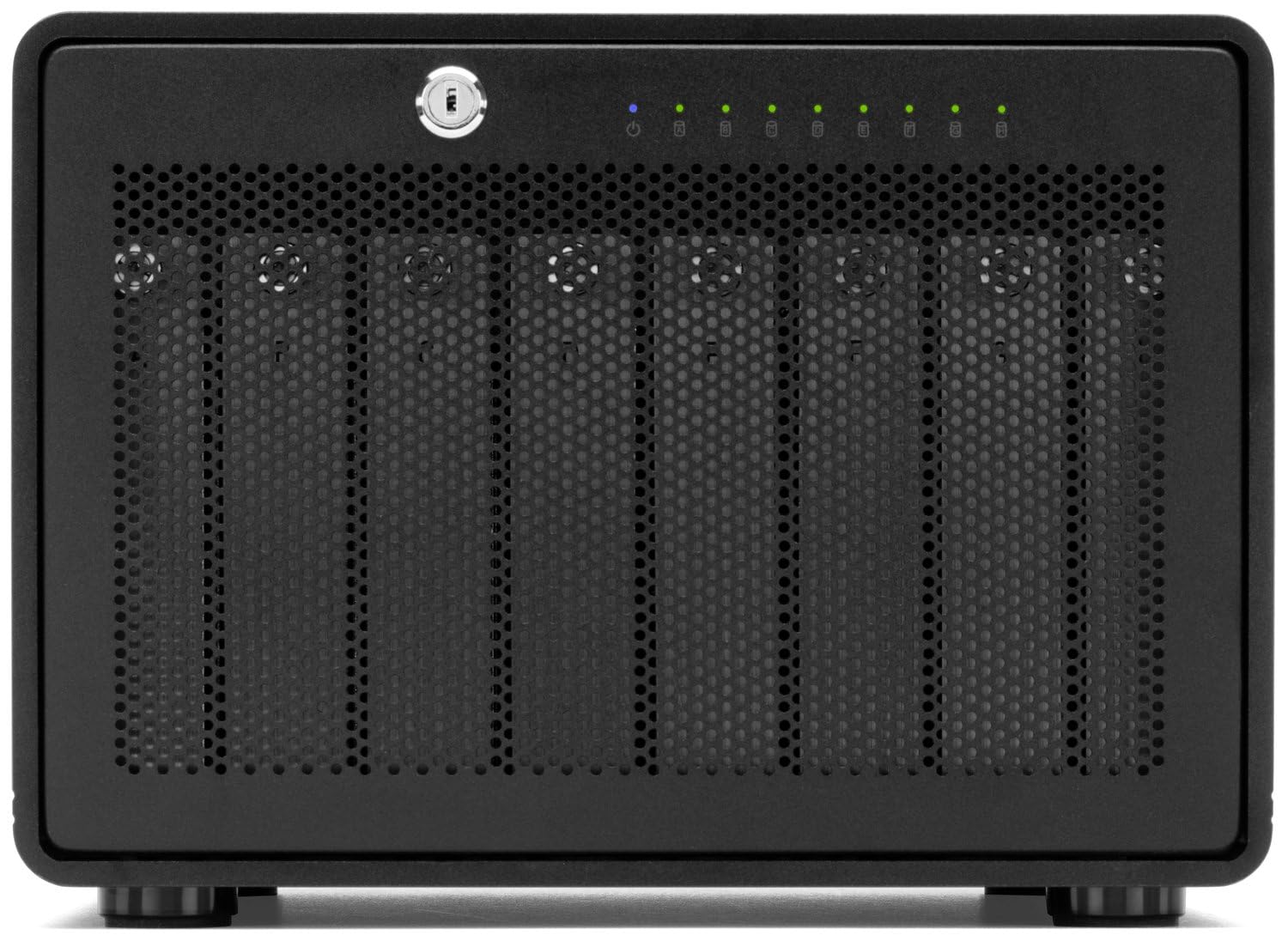

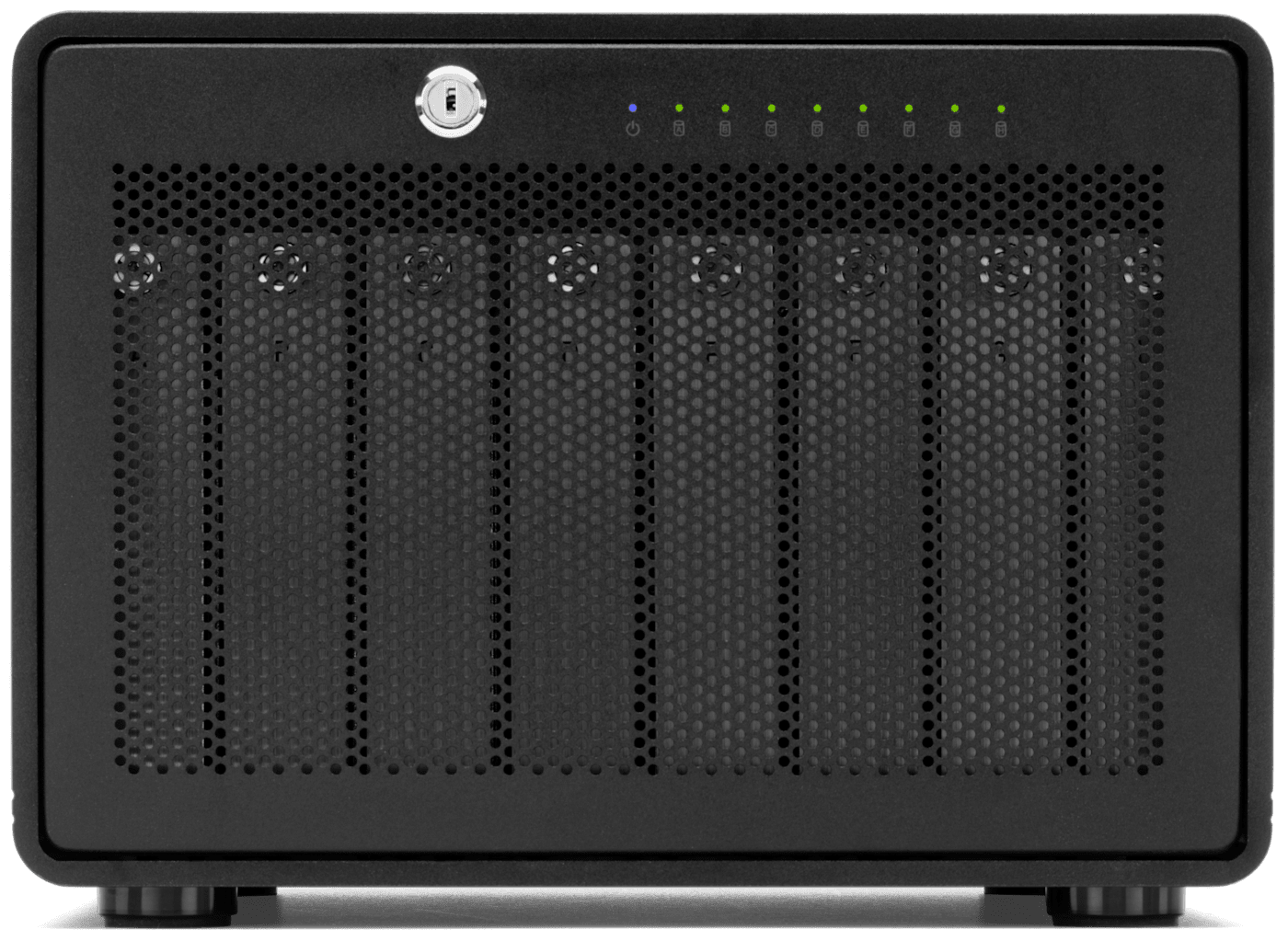

Eight Hot-Swappable SATA Bays for Flexible Storage
ThunderBay 8 gives you eight universal drive bays in one desktop enclosure, making it easy to tailor capacity, media type and RAID layout to the job. Use hard drives for large archives and backup sets, SSDs for faster active projects, or a mix of both where your software RAID configuration supports it.
Each bay is front accessible and hot-swappable for practical drive management. The locking front door, aluminum enclosure, security-key design and cooling system help make the ThunderBay 8 a polished fit for edit suites, production rooms and high-volume desktop storage setups.

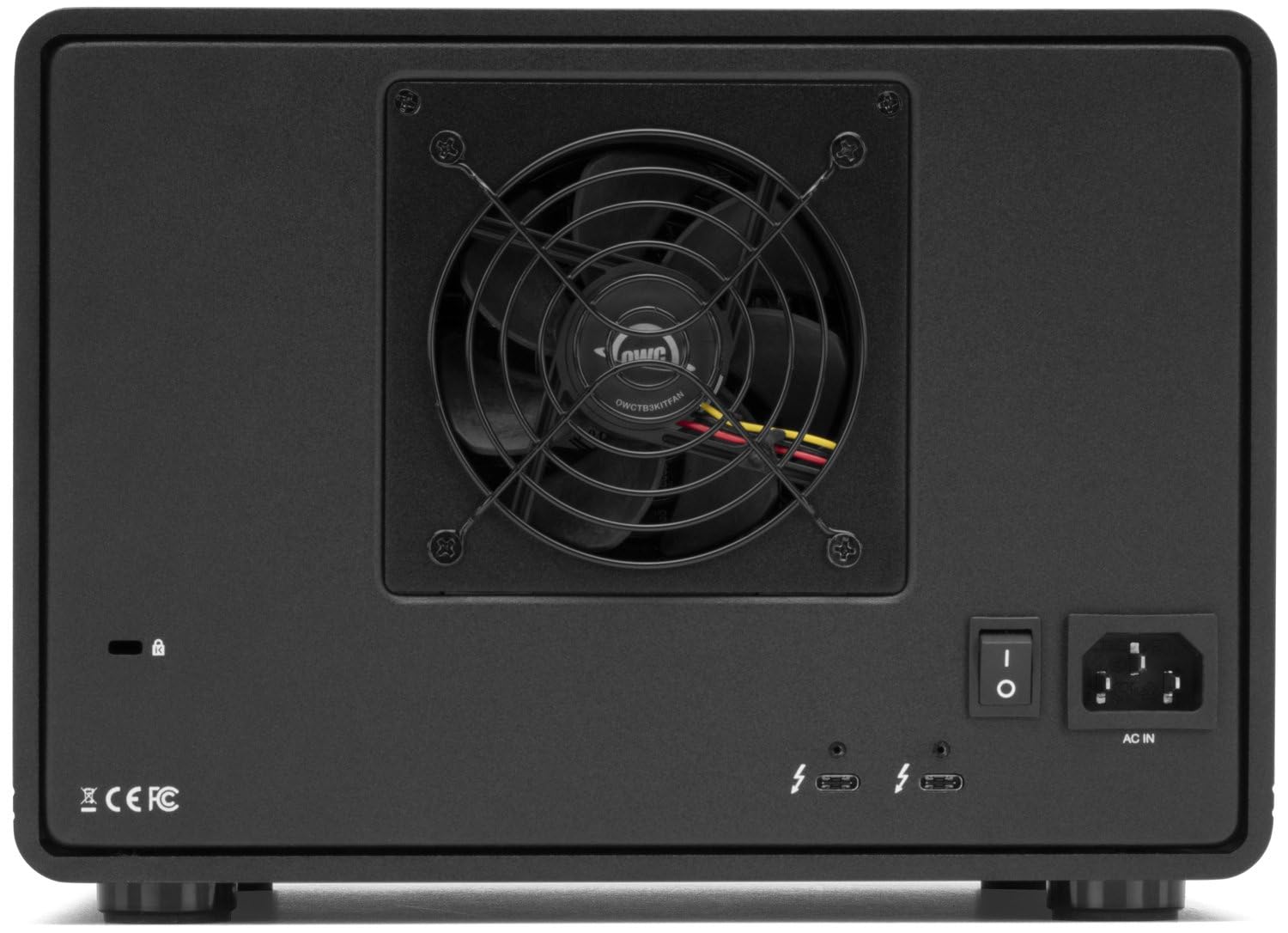

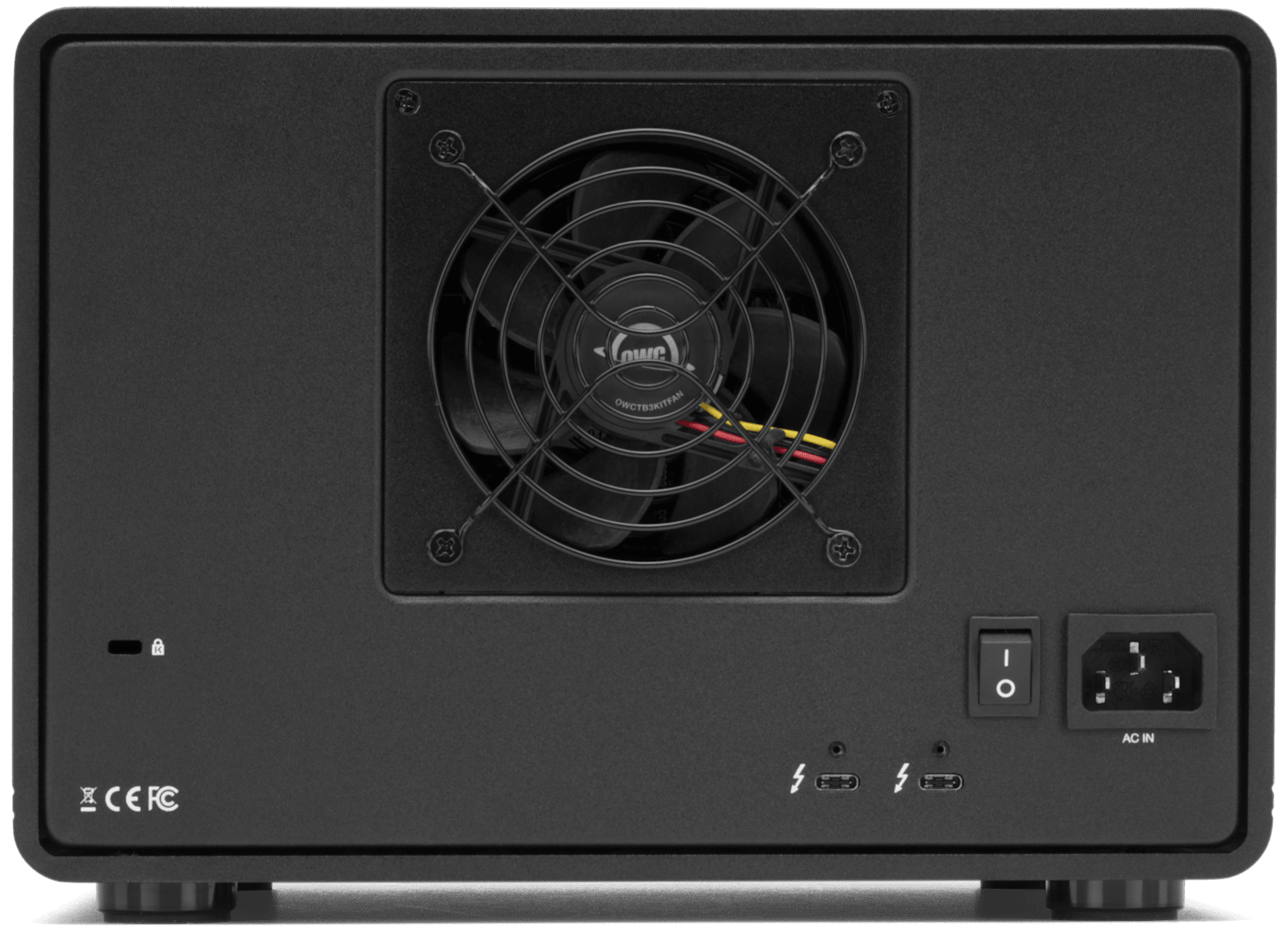

Dual Thunderbolt 3 Connectivity for a Cleaner Workstation

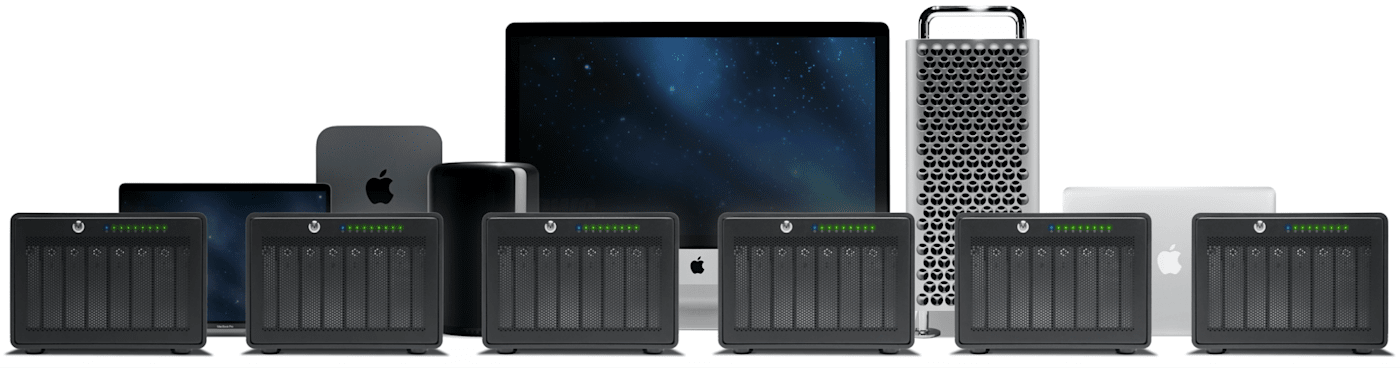

Two Thunderbolt 3 ports provide up to 40Gb/s host connectivity and help keep a professional workstation organized. Connect the enclosure to a compatible Mac or Windows PC, then use the second Thunderbolt port to expand a compatible daisy chain with additional Thunderbolt storage or supported displays.
For editors working with large video files, RAW photo libraries, multitrack audio sessions and graphics projects, this streamlined connection can simplify external storage without filling every port on the computer.
40Gb/s Interface
Thunderbolt 3 bandwidth for high-throughput storage workflows.
Two TB3 Ports
Connect to the host and continue a compatible Thunderbolt chain.
DisplayPort 1.2
Display output support for a more efficient desktop setup.

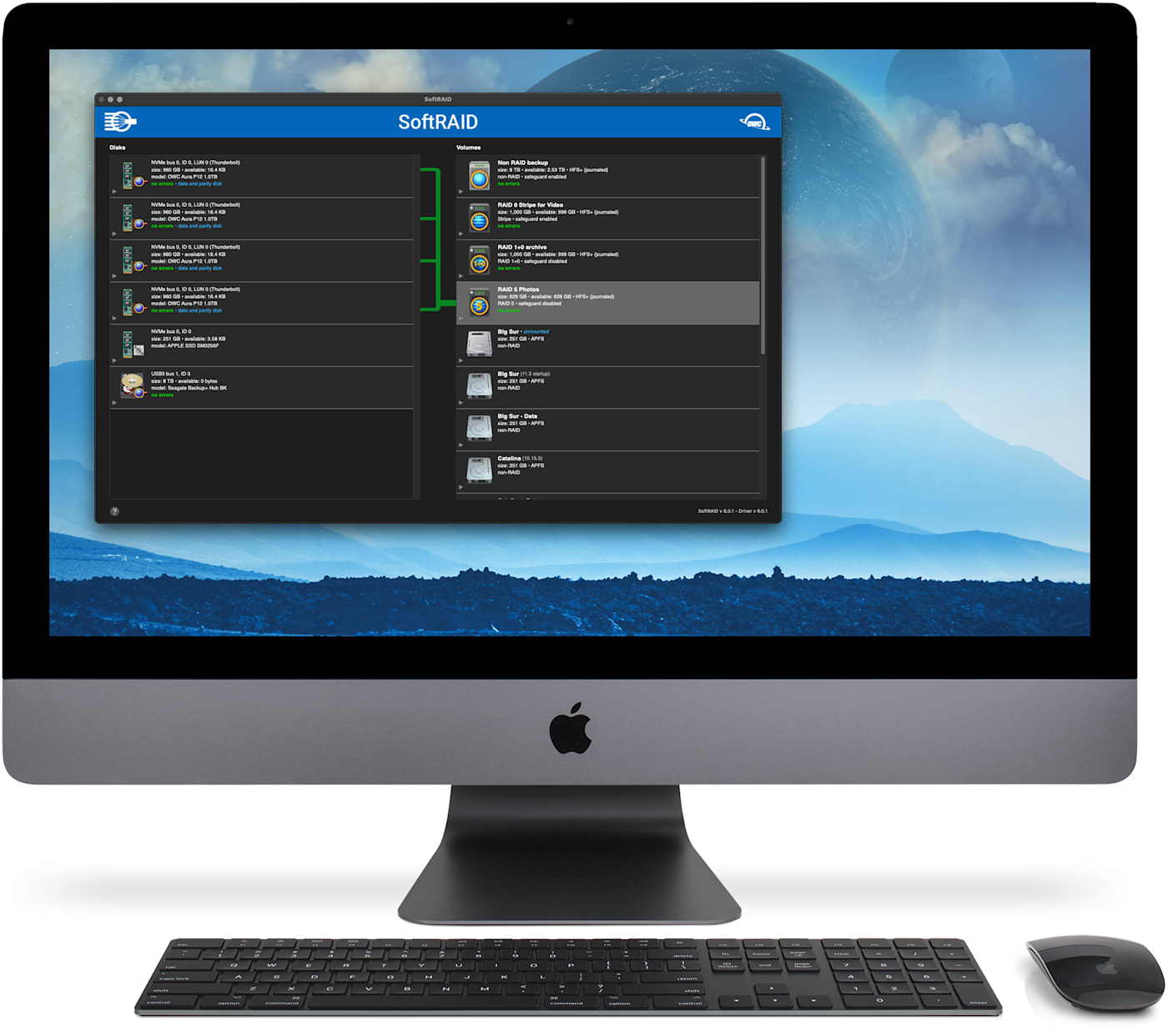

Software RAID Capability for Speed, Capacity or Protection
Choose a suitable RAID strategy for the work you do. ThunderBay 8 is software RAID-capable and can be paired with compatible RAID management tools such as OWC SoftRAID, enabling workflow-specific options including striped, mirrored and parity-based RAID layouts where supported.
Use a performance-focused array for active media work, a higher-capacity array for completed-project storage, or a protected configuration for important production assets. Your final RAID mode, usable capacity and fault tolerance depend on the drives, operating system and RAID software selected.

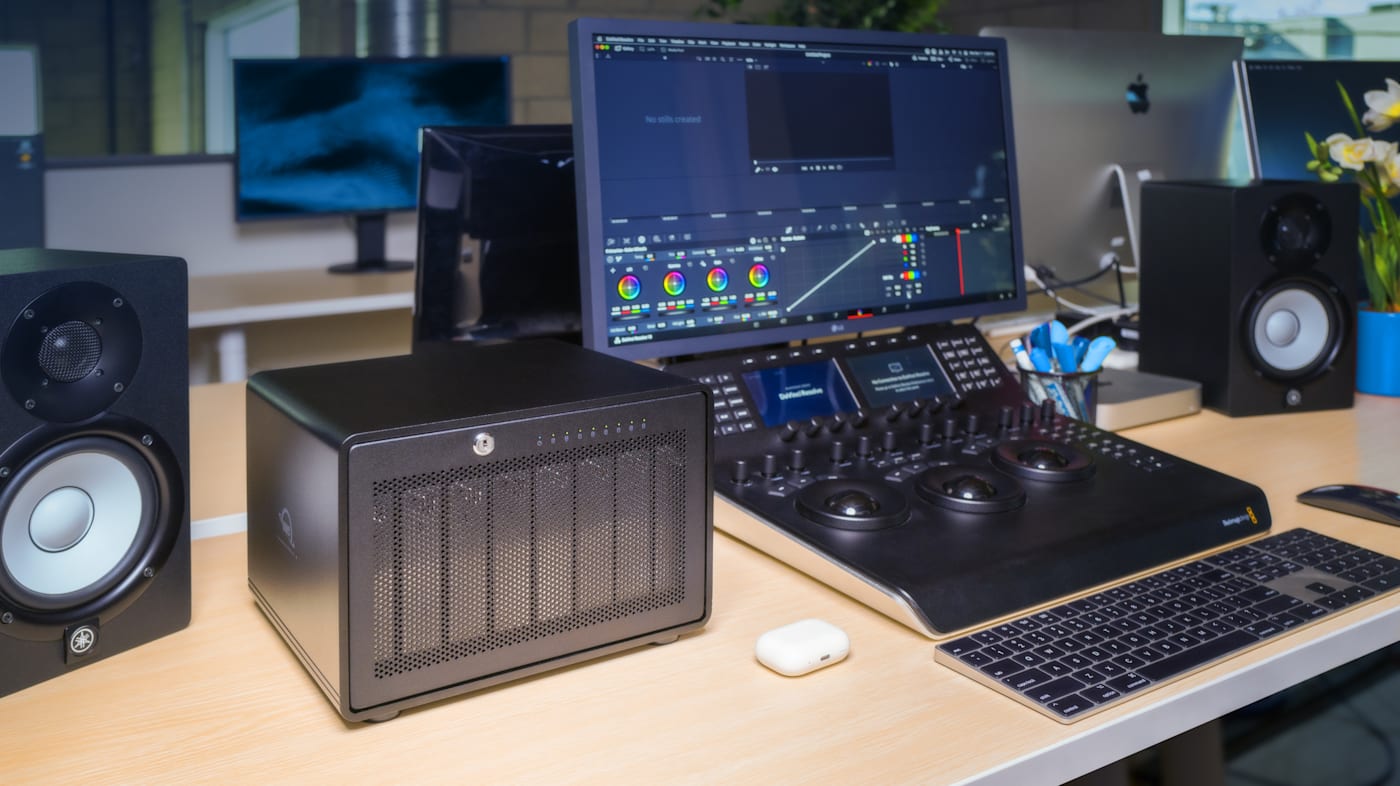

Made for Editing, Production, Backup and Archive Workflows
The OWC ThunderBay 8 is designed for creators and professionals who need far more than a single portable drive. Its eight-bay design gives video editors, photographers, audio engineers, small studios and business teams a scalable local storage platform for active projects and long-term media retention.
Video Production
Store high-bitrate footage, multicamera media, proxies and project files in one desktop enclosure.
Photo and Audio
Keep RAW image catalogs, sample libraries and multitrack sessions available locally.
Backup and Archive
Create a drive configuration built around the capacity, redundancy and retention needs of your workflow.
OWC ThunderBay 8 Specifications
| Product | OWC ThunderBay 8 eight-bay Thunderbolt 3 storage enclosure |
|---|---|
| Drive Bays | 8 front-accessible, hot-swappable universal SATA bays |
| Supported Drive Types | 2.5-inch and 3.5-inch SATA HDDs and SSDs |
| Host Connectivity | 2 x Thunderbolt 3 (USB-C), up to 40Gb/s |
| Performance | Up to 2,586MB/s real-world tested speed; final performance depends on installed drives and configuration |
| Storage Capacity | Up to 160TB with compatible installed drives and selected RAID configuration |
| RAID | Software RAID-capable; RAID choices depend on the operating system and compatible RAID software |
| Expansion | Thunderbolt daisy-chain capability for compatible storage devices and displays |
| Display Output | DisplayPort 1.2 output |
| Construction | Aluminum enclosure with locking front door, security keys and active cooling |
| Cooling | 92mm fan |
| Dimensions | Approx. 10.2 x 9.4 x 7.1 inches (25.9 x 23.9 x 18 cm) |
| Compatibility | Compatible Mac and Windows computers with suitable Thunderbolt support |
| In the Box | ThunderBay 8 enclosure, Thunderbolt cable, power cable, two security keys, getting-started material and support documentation |
| Warranty | 1-year OWC limited enclosure warranty |

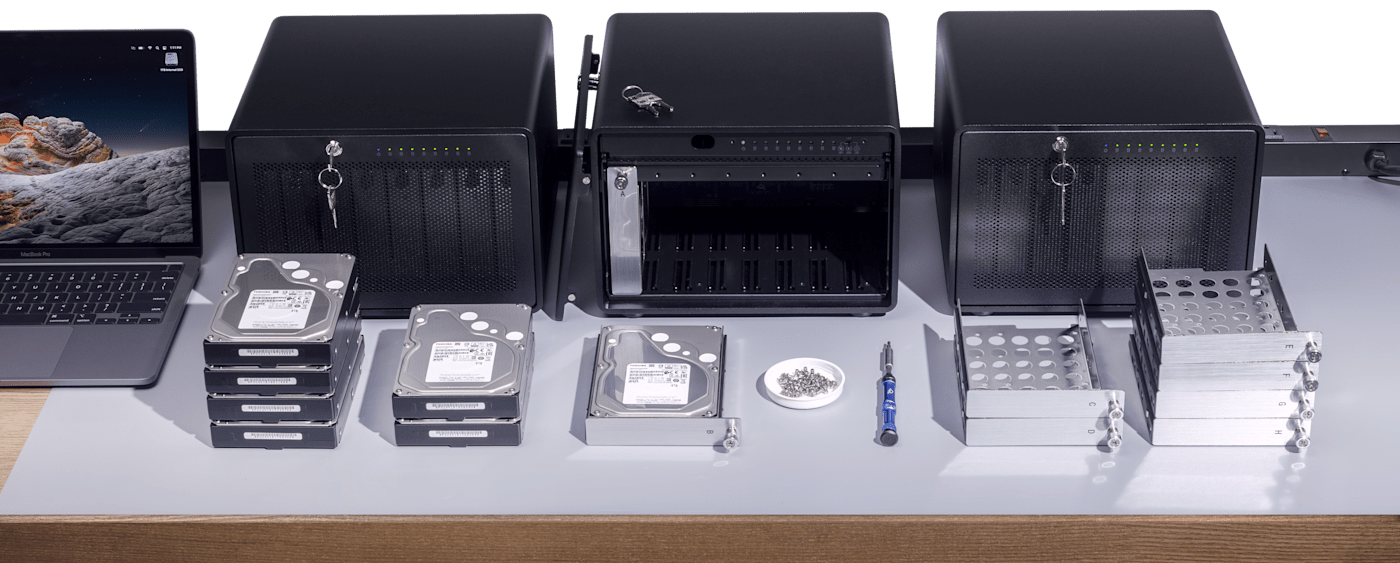

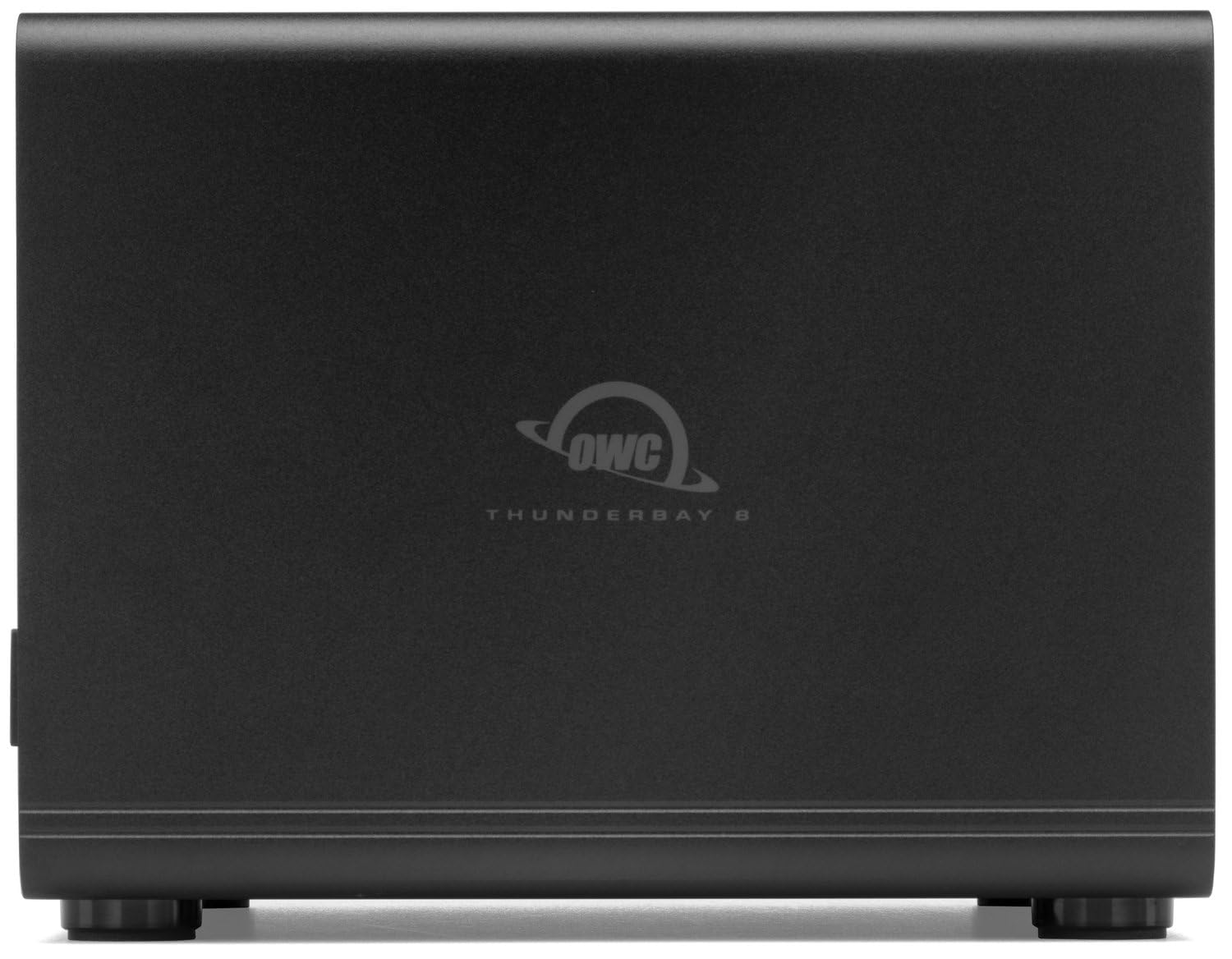

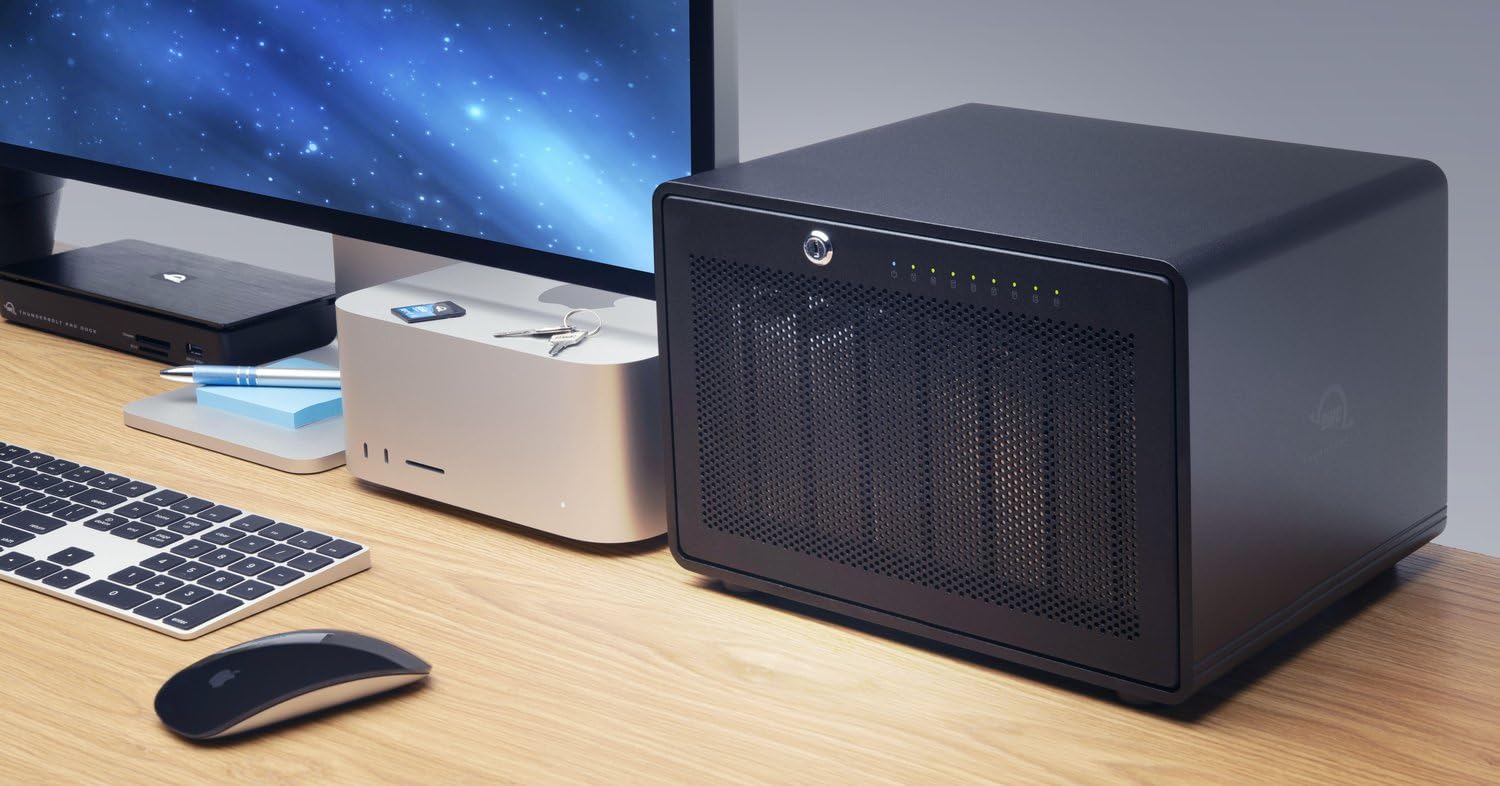

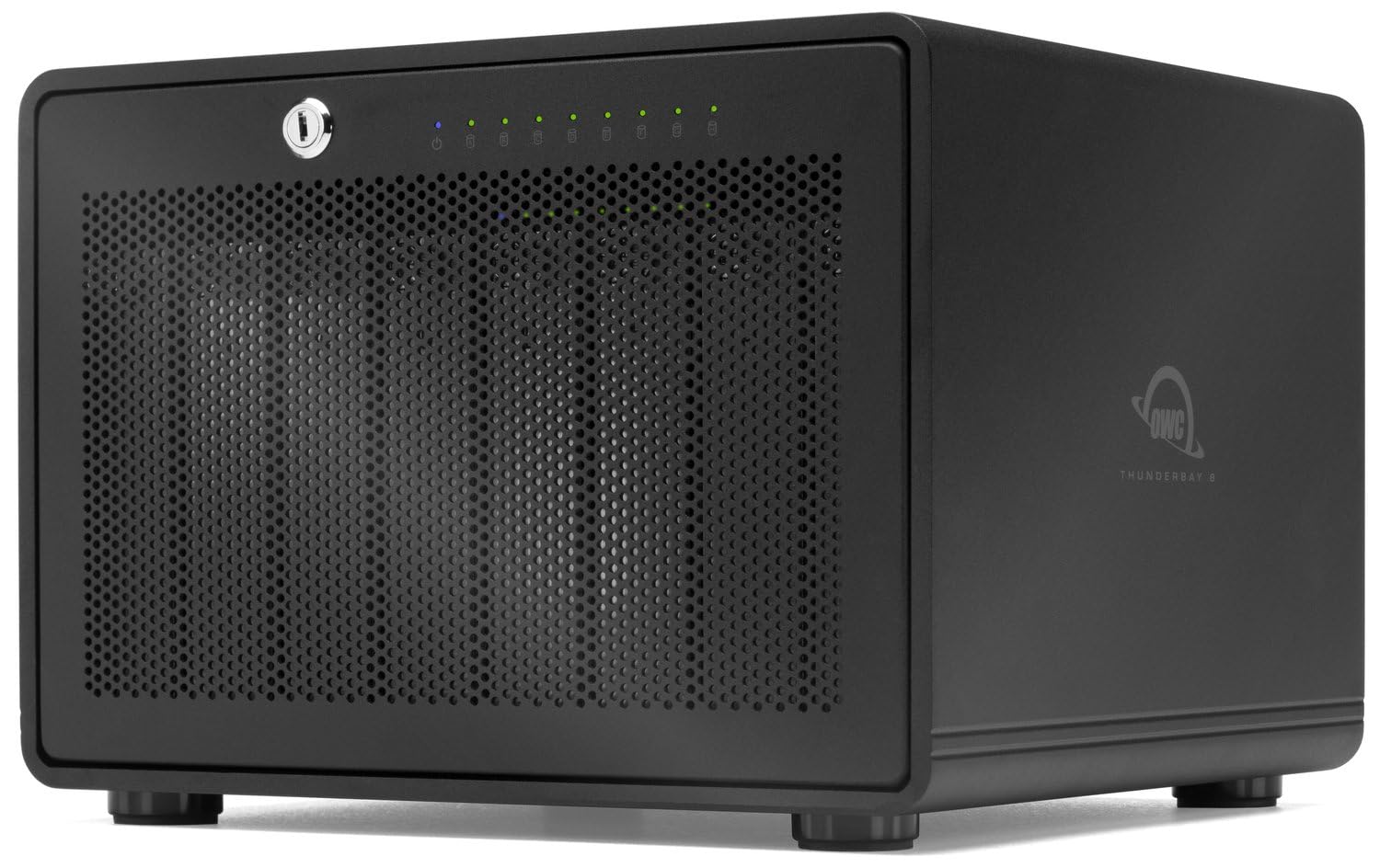

OWC ThunderBay 8 Product Gallery
Official OWC product visuals showing the ThunderBay 8 enclosure, connectivity and professional desktop-storage use cases.
OWC ThunderBay 8 FAQ
Are drives included with the OWC ThunderBay 8 enclosure?
This enclosure is designed for your selected 2.5-inch or 3.5-inch SATA HDDs and SSDs. Confirm the exact package contents on the NationalPC product page before purchase.
Can ThunderBay 8 use SSDs as well as hard drives?
Yes. The eight universal SATA bays support compatible 2.5-inch and 3.5-inch SATA drives, allowing HDD, SSD or workflow-appropriate mixed-drive configurations.
Does ThunderBay 8 have hardware RAID built in?
ThunderBay 8 is software RAID-capable. Choose compatible RAID software and an array type suited to your capacity, speed and protection requirements.
Can I use this enclosure for video editing?
Yes. With suitable drives and configuration, its eight-bay design and Thunderbolt 3 connectivity are well suited to high-resolution video, large creative-project libraries and demanding transfer workflows.
Is the ThunderBay 8 compatible with Windows?
It is compatible with suitable Mac and Windows computers that provide appropriate Thunderbolt support. Confirm your computer, operating system and RAID software compatibility before configuring the array.
