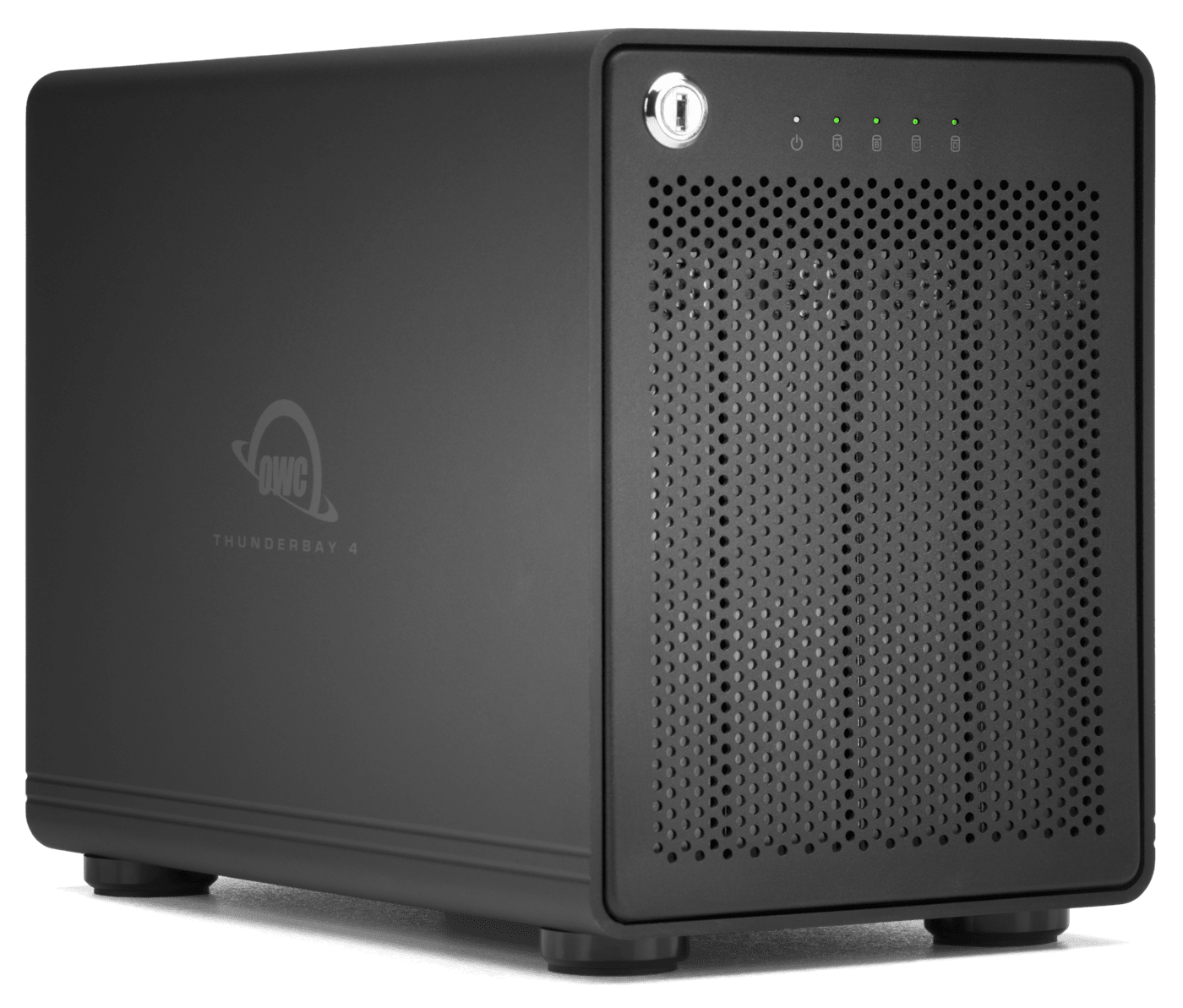

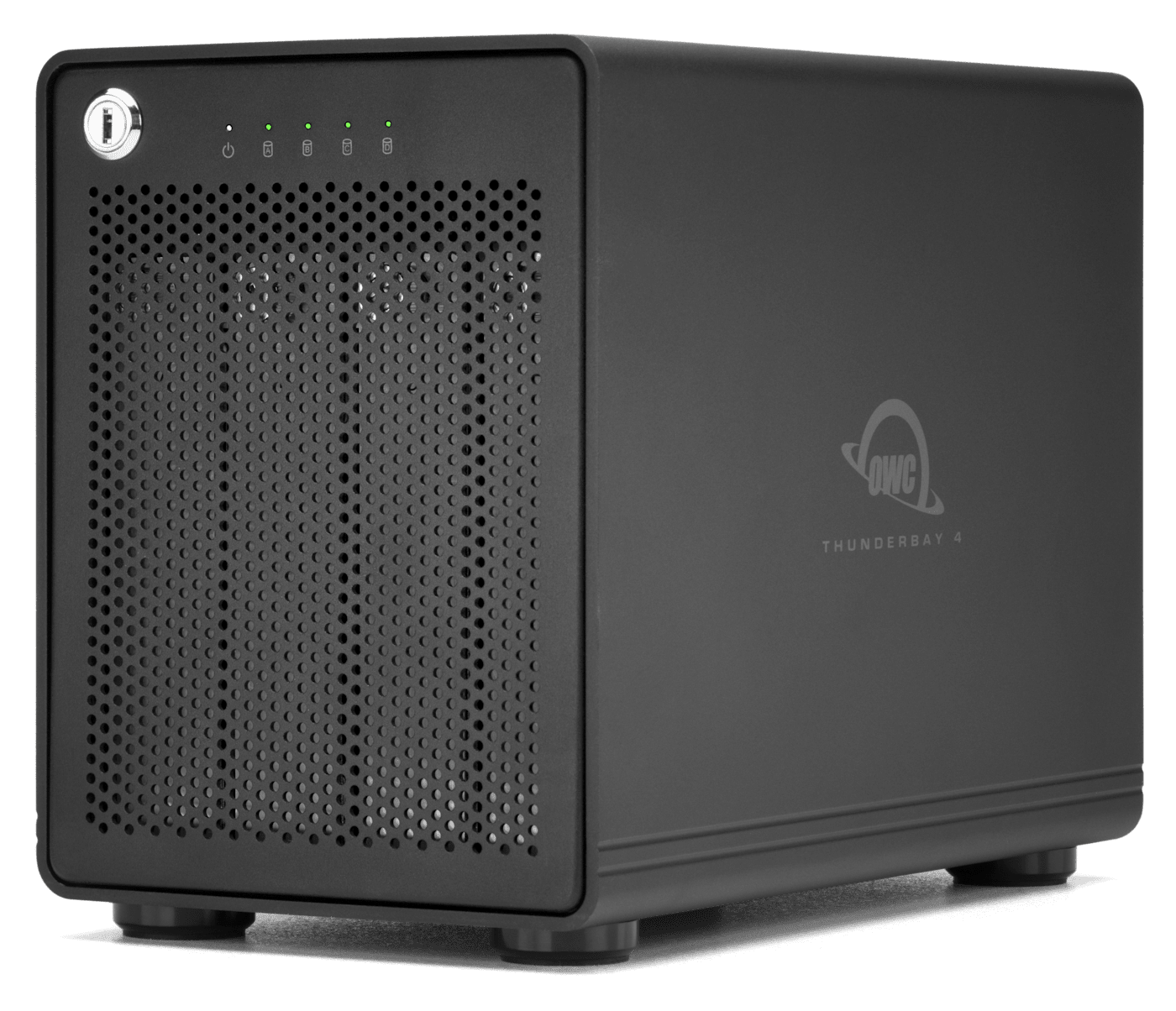

OWC ThunderBay 4 Four-Bay Thunderbolt 3 External Storage Enclosure
OWC ThunderBay 4 is a four-bay Thunderbolt 3 external storage enclosure for 2.5-inch and 3.5-inch SATA drives, delivering high-speed storage, RAID flexibility and reliable expansion for professional Mac and Windows workflows.
Key features
- Four-bay external storage enclosure for 2.5-inch and 3.5-inch SATA HDDs or SSDs
- Thunderbolt 3 connectivity with data transfer speeds up to 40Gb/s
- Up to 1527MB/s real-world performance with compatible SSD RAID configurations
- Supports RAID 0, 1, 4, 5, 6, 6+, 10 and JBOD configurations
- Compatible with OWC SoftRAID, Apple RAID and Windows Disk Management
- Supports up to 80TB of HDD or SSD storage, depending on drive configuration
- Second Thunderbolt port enables daisy-chaining of additional storage devices and displays
- Designed for video editing, photography, audio production, backups and content creation
- Aluminium enclosure with flow-through ventilation and low-turbulence cooling fan
- Vibration-absorbing feet and locking faceplate for secure desktop operation
- Compatible with Intel and Apple Silicon Mac computers, Windows PCs and Thunderbolt-enabled systems
- OWC Thunderbolt cable included
- Pre-tested with multi-hour burn-in performance certification
- Model: OWC ThunderBay 4
OWC ThunderBay 4 Four-Bay Thunderbolt 3 Storage Enclosure
OWC ThunderBay 4 is a high-performance four-bay Thunderbolt 3 storage enclosure for photographers, videographers, audio professionals, studios and demanding creative workflows. Install up to four 2.5-inch or 3.5-inch SATA hard drives or SSDs, configure the storage for speed or redundancy, and centralize important footage, photo libraries, sessions and project archives in one professional desktop solution.
Buy OWC ThunderBay 4 from NationalPC
High-Capacity Storage Built for Creative Workflows
From large 4K and 6K video projects to RAW photo catalogues, multi-track audio sessions and long-term archives, ThunderBay 4 brings large capacity and fast direct-attached storage into a compact desktop enclosure. Choose the drives and RAID configuration that suits your workflow, then scale your setup as the project library grows.
Four Universal SATA Bays - Your Drives, Your Workflow

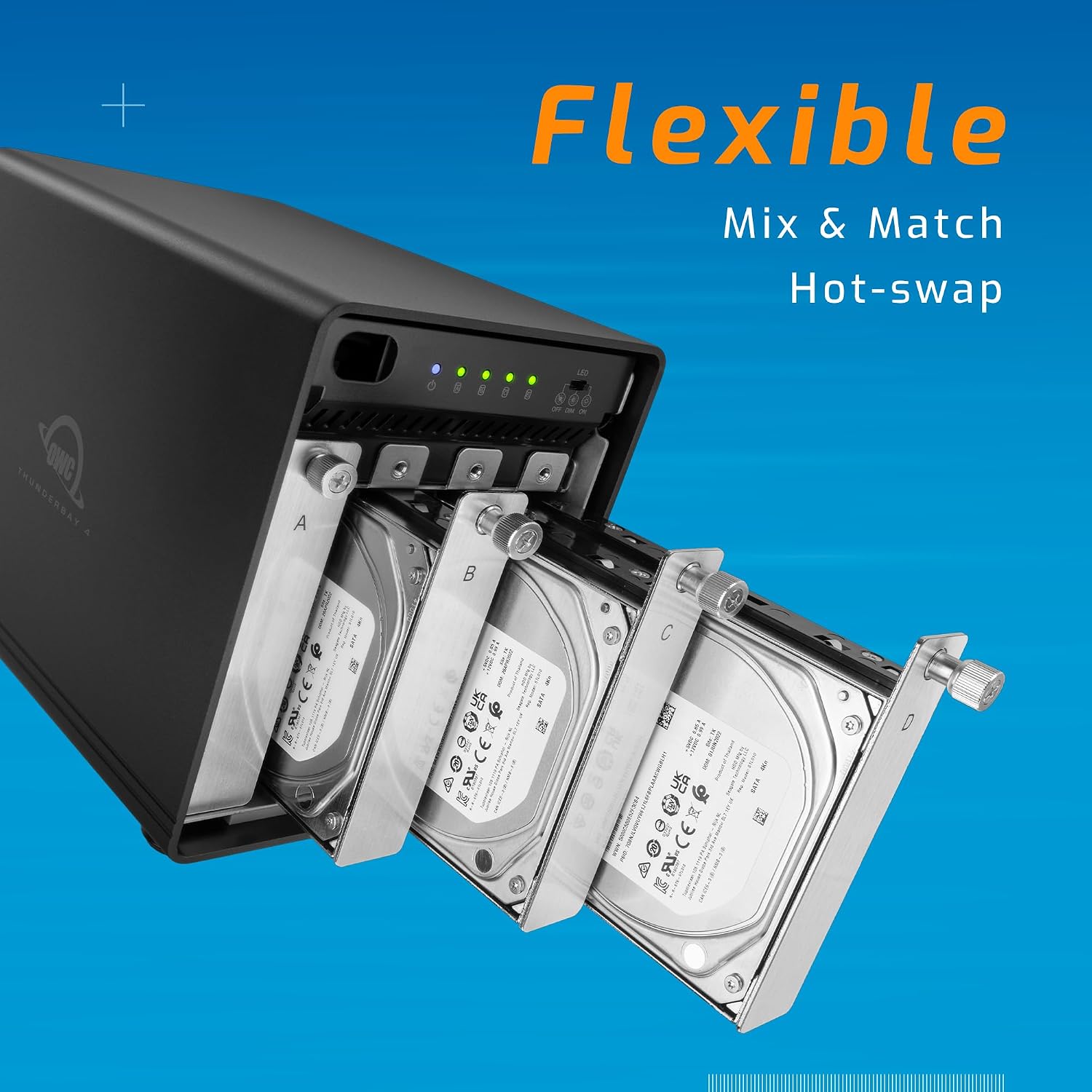

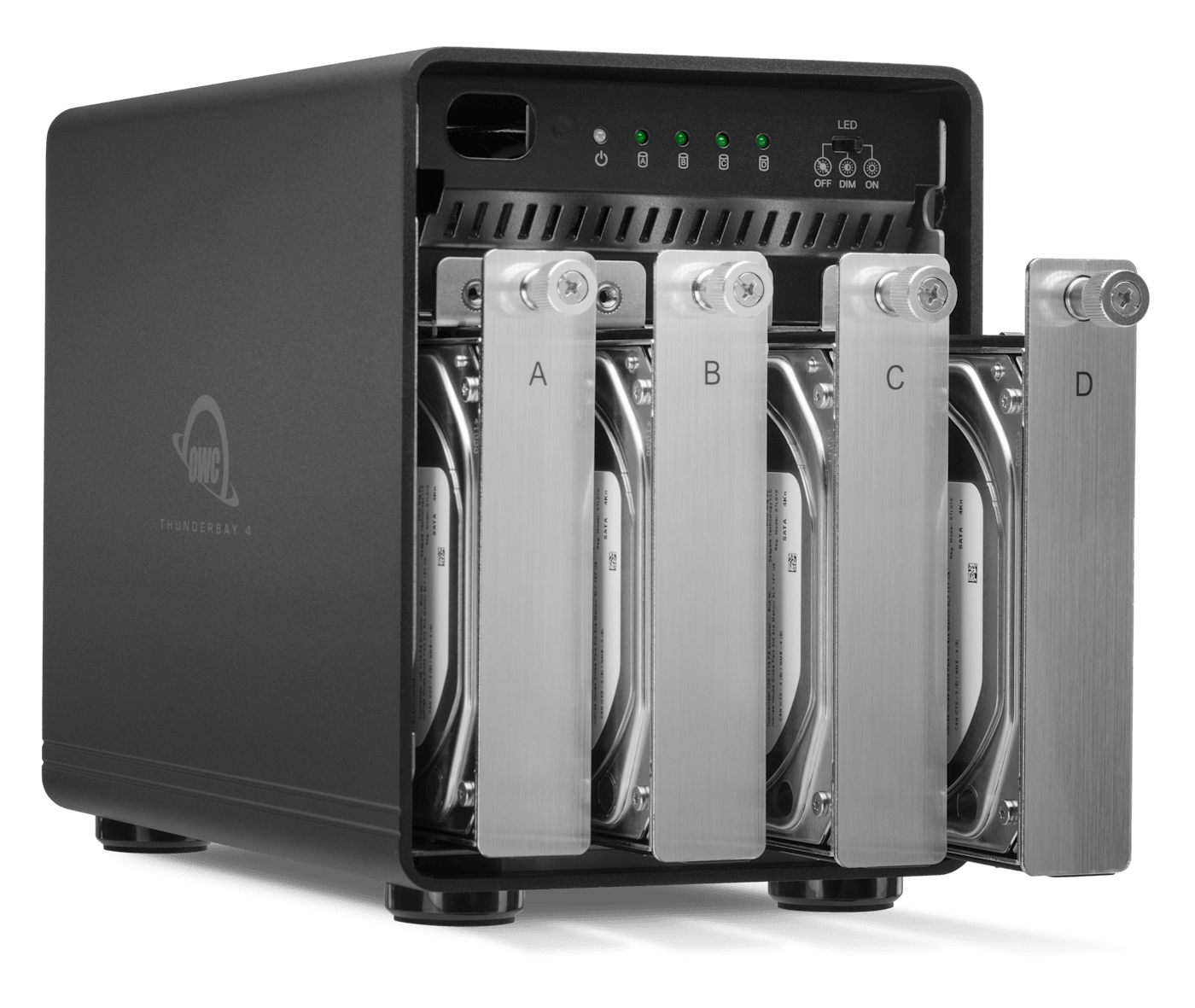

The ThunderBay 4 enclosure accepts four 2.5-inch or 3.5-inch SATA drives without forcing a single storage approach. Configure it with high-capacity HDDs for an archive, SATA SSDs for faster production work, or a combination designed around your own needs.
- Four universal bays support 2.5-inch or 3.5-inch SATA drives.
- Ideal for DIY drive configurations, selected RAID solutions and centralised backup.

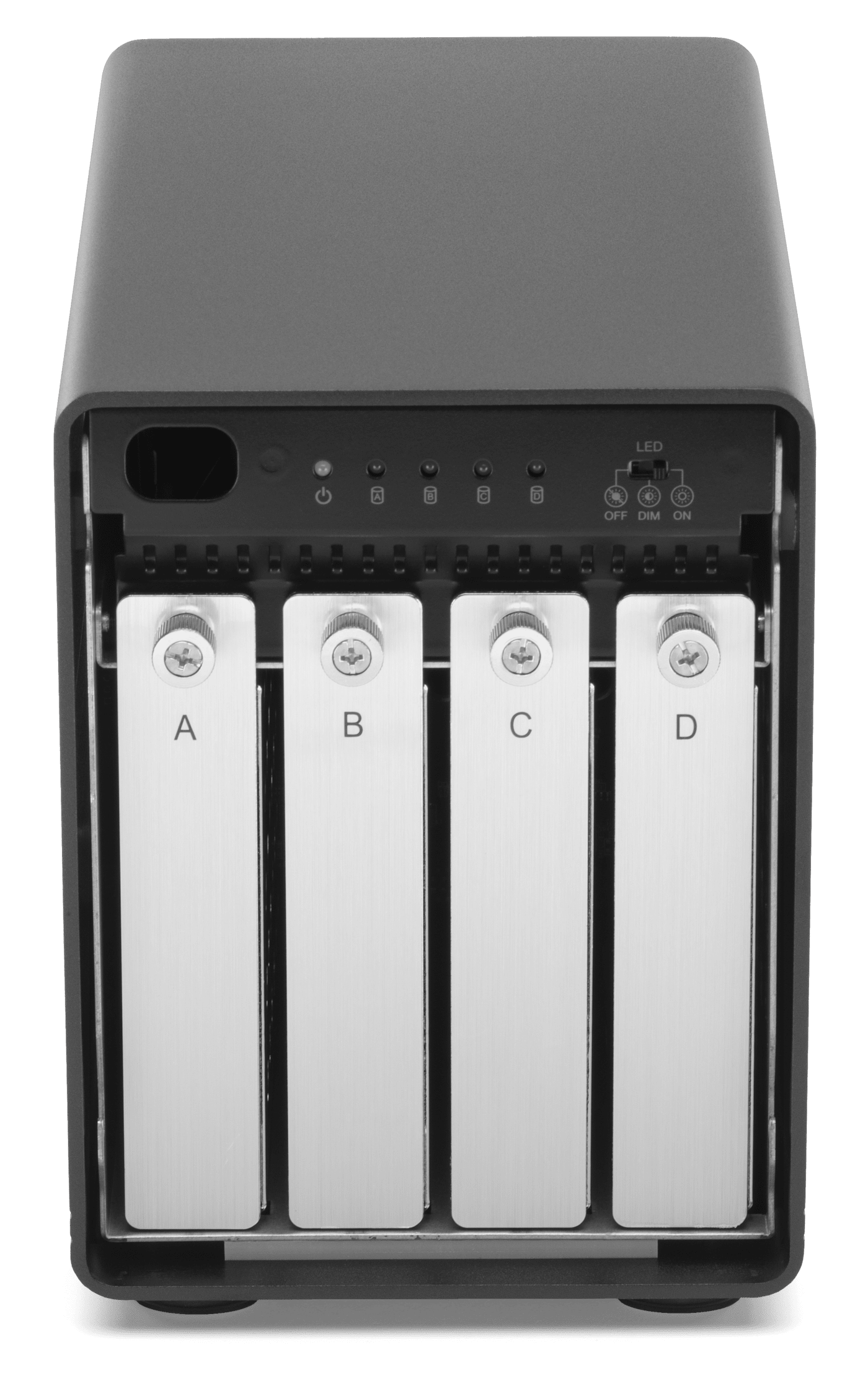

- Locking front panel helps protect installed drive trays.
- Premium aluminium enclosure with vibration-absorbing feet.
- Flow-through venting and a low-turbulence fan support reliable operation.
Thunderbolt 3 Connectivity and Daisy-Chain Flexibility

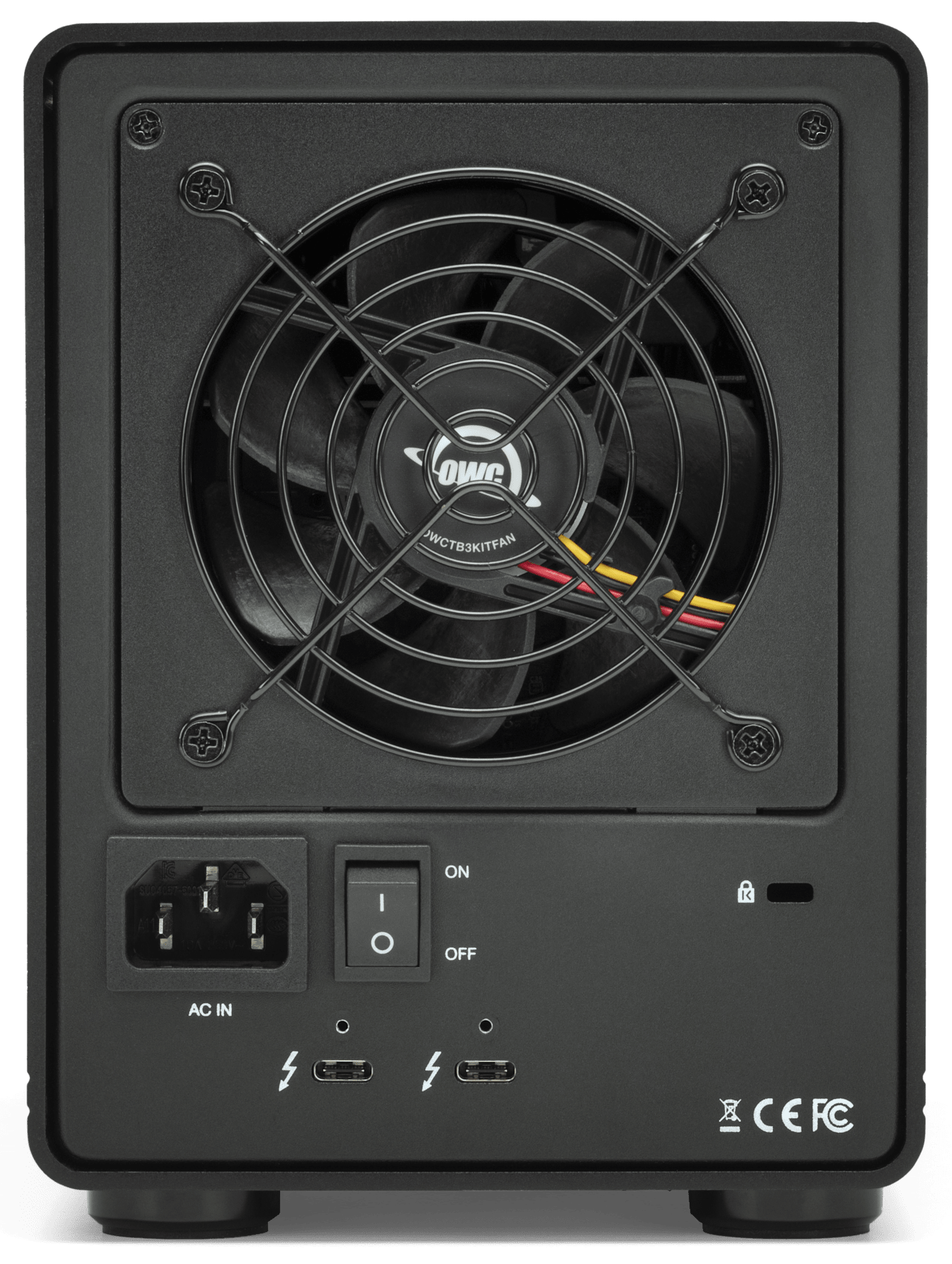

Dual Thunderbolt 3 ports make the ThunderBay 4 an adaptable part of a professional desk or studio. Connect it to a compatible Mac or Windows workstation, add compatible storage devices through the second Thunderbolt port, and build a cleaner direct-attached storage workflow.
- 2 x Thunderbolt 3 ports with up to 40Gb/s interface bandwidth.
- Connect additional compatible Thunderbolt devices through daisy chaining.
- DisplayPort output supports a compatible 4K display connection.
- Certified 0.7m Thunderbolt USB-C cable is included.
- Designed for compatible Mac and Windows Thunderbolt workflows.
SoftRAID - Choose Speed, Capacity or Protection
With OWC SoftRAID support, ThunderBay 4 can be configured around the requirements of each project. RAID 0 delivers high throughput, RAID 5 balances capacity and one-drive fault tolerance, while other supported configurations provide different combinations of performance, redundancy and independent-disk flexibility.
- RAID 0 for high performance and combined capacity.
- RAID 1 for mirrored data protection.
- RAID 4 and RAID 5 for parity-based redundancy.
- RAID 6, RAID 6+ and RAID 10 available with current SoftRAID support, depending on OS and software configuration.
- JBOD / independent-drive mode for drive-by-drive flexibility.

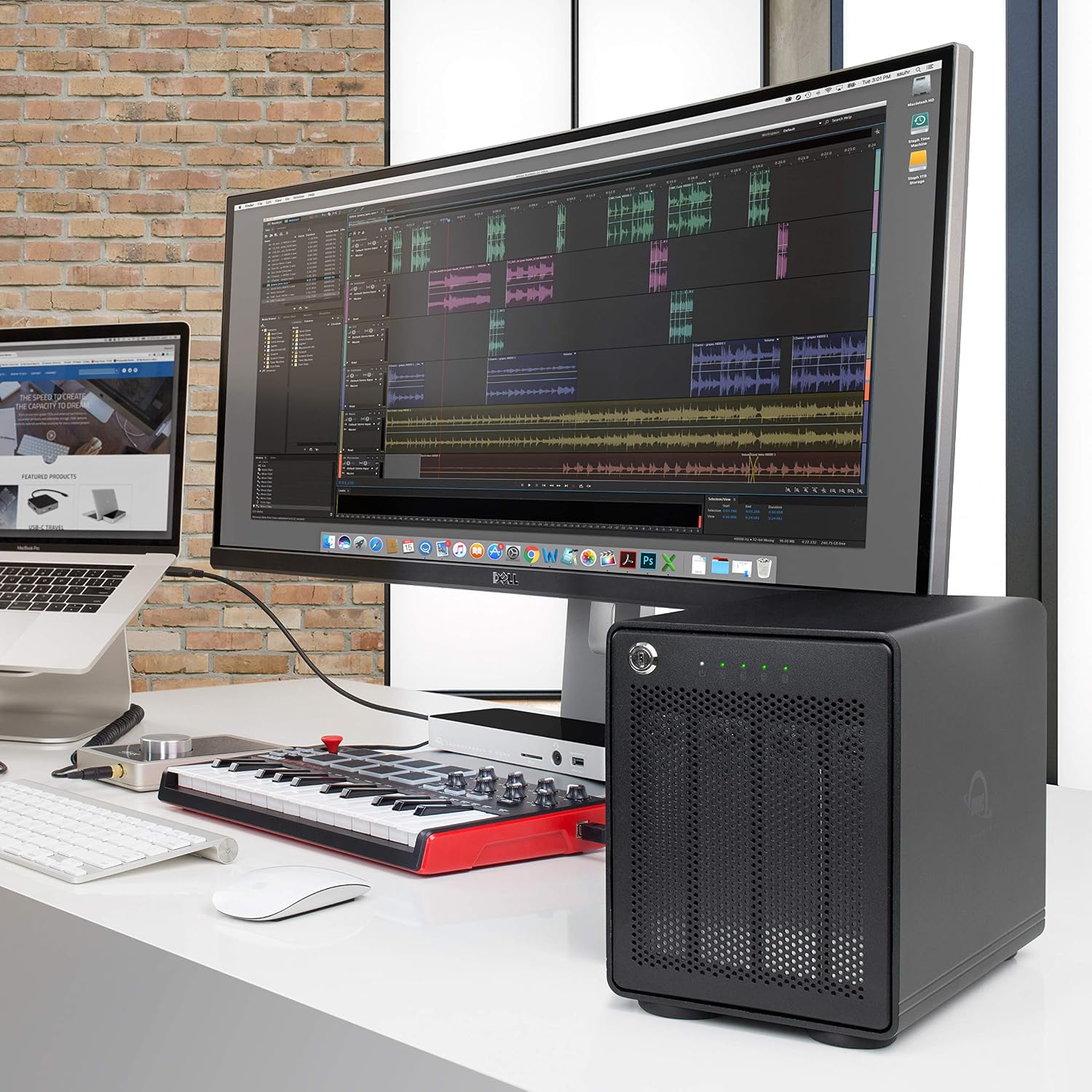

Made for Video, Photo, Audio and Studio Archives
ThunderBay 4 is made for the everyday storage pressure of modern content production. Use it to work directly from a large project library, consolidate smaller external drives, create a robust on-desk archive, or add flexible local storage capacity to a production workspace.
- Edit multi-camera 4K and demanding 6K RAW workflows with suitable drive and RAID configurations.
- Manage extensive Lightroom, Capture One or other RAW image libraries.
- Record, edit and master bandwidth-intensive multi-track audio sessions.
- Centralize backup, archive and project files for individuals and studios.
- Use as a flexible high-capacity storage solution across compatible Mac and Windows systems.
OWC ThunderBay 4 Thunderbolt 3 Enclosure Specifications
| Product | OWC ThunderBay 4 Four-Bay Thunderbolt 3 Storage Enclosure |
|---|---|
| Drive bays | 4 x universal 2.5-inch or 3.5-inch SATA drive bays |
| Host interface | Thunderbolt 3 via USB-C, up to 40Gb/s interface bandwidth |
| Thunderbolt ports | 2 x Thunderbolt 3 ports for host connection and daisy chaining |
| Display output | 1 x DisplayPort 1.2, compatible with a 4K display |
| Maximum performance | Up to 1527MB/s real-world peak performance with four SATA SSDs in RAID 0 under the referenced OWC test conditions |
| Maximum capacity | Up to 96TB, depending on installed drives and configuration |
| RAID support | SoftRAID support for RAID 0, 1, 4, 5, 6, 6+, 10 and JBOD / independent drives; OS/software support can vary by RAID level |
| Cooling and build | Aluminium enclosure, flow-through venting, 92mm low-turbulence fan, vibration-absorbing feet, locking front panel and Kensington security slot |
| Compatibility | Compatible Mac and Windows Thunderbolt workflows; confirm host, OS, SoftRAID version and drive compatibility before deployment |
| Dimensions | Approximately 24.5 x 13.5 x 19.1 cm (9.6 x 5.3 x 7.5 inches) |
| Empty enclosure weight | Approximately 3.9kg (8.6lb) |
| Included items | ThunderBay 4 enclosure, certified 0.7m Thunderbolt USB-C cable, power supply/cable, front-panel lock keys and quick-start information; package contents can vary by configuration |
OWC ThunderBay 4 Product Images
Frequently Asked Questions
Buy OWC ThunderBay 4 Four-Bay Thunderbolt 3 Storage Enclosure
Buy the OWC ThunderBay 4 from NationalPC for expandable four-bay Thunderbolt 3 storage, flexible SATA HDD or SSD support, SoftRAID options and professional content-creation workflows.
