ASUS RT-AX53U AX1800 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection Classic network security powered by Trend Micro
Get Your Home Ready for WiFi 6 (802.11ax)
The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current WiFi standard. The latest WiFi 6(802.11ax) standard provides future-proof technologies, higher network efficiency, faster WiFi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.
*It requires 802.11ax-compatible devices to enjoy the benefits brought by WiFi 6(802.11ax) standard.
Next-Gen WiFi Speed
RT-AX53U is a 2x2 dual-band WiFi router that provides 80MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574Mbps on the 2.4GHz band and 1201Mbps on the 5GHz band — RT-AX53U is 1.5X faster than 802.11ac 2x2 dual-band routers.
Built for Multi-device Households
With a revolutionary combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac WiFi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the WiFi 6(802.11ax) standard divides each channel into small sub-channels, allowing signals from multiple devices* to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive WiFi experience.
Better Battery Life for Your Devices
Target Wake Time (TWT) allows RT-AX53U to schedule designated intervals for devices to transmit data. This allows them to sleep when there is no need to wait for a router signal, reducing power consumption by up to 7X for significantly improved battery life*.
WiFi that Goes Farther
With the latest WiFi 6(802.11ax) standard featuring OFDMA technology, RT-AX53U provides increased WiFi signal range and better coverage by dividing each channel into smaller sub-channels. These sub-channels have a smaller bandwidth that enables them to travel up to 80% farther1, resulting in a better WiFi connection throughout your home*.

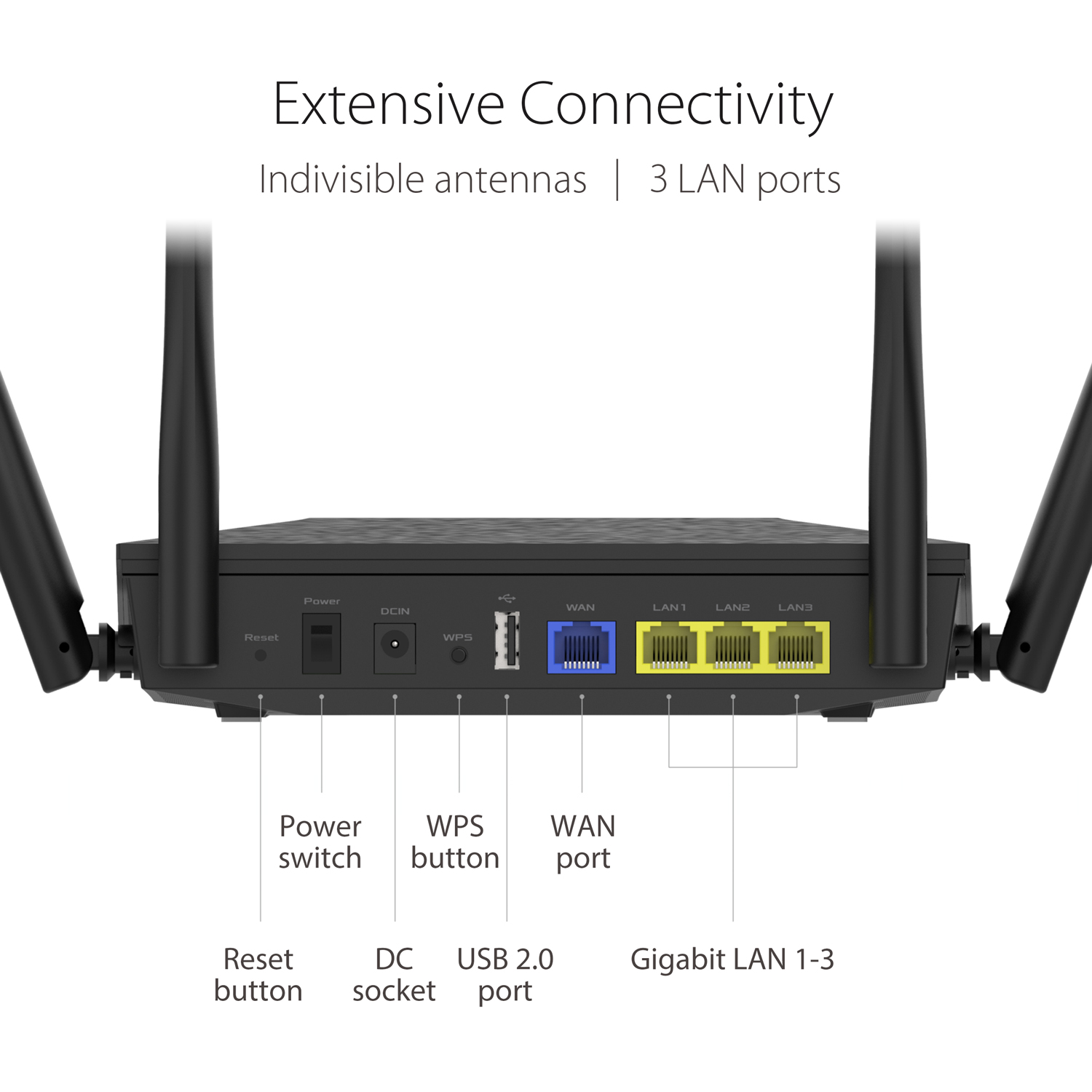

RT-AX53U has one Gigabit WAN port, three Gigabit LAN ports, and USB 2.0 port*. Smart TV, game consoles, NAS storage devices, backup internet and more can now have their own dedicated ports, making RT-AX53U your solid digital home hub.
|CPU Cores||Dual Core|
|Flash Memory||128 MB|
|RAM||256 MB RAM|
|2.4 Ghz Data Rate||574 Mbps|
|5 Ghz Data Rate||1201 Mbps|
|Dual WAN||Yes (Software)|
|Network Standard||IEEE 802.11 ax|
|Antenna||4 x External antennas|
|Transmit/Receive||MIMO technology2.4 GHz 2 x 2, 5 GHz 2 x 2|
|WAN Port||1 x Gigabit LAN|
|Button||WPS Button, Reset Button, Power Switch|
|LAN Port||3 x Gigabit LAN|
|Manufacturer Warranty||3 Years|
|Operation mode||Access Point, Media Bridge, Repeater, Router|
