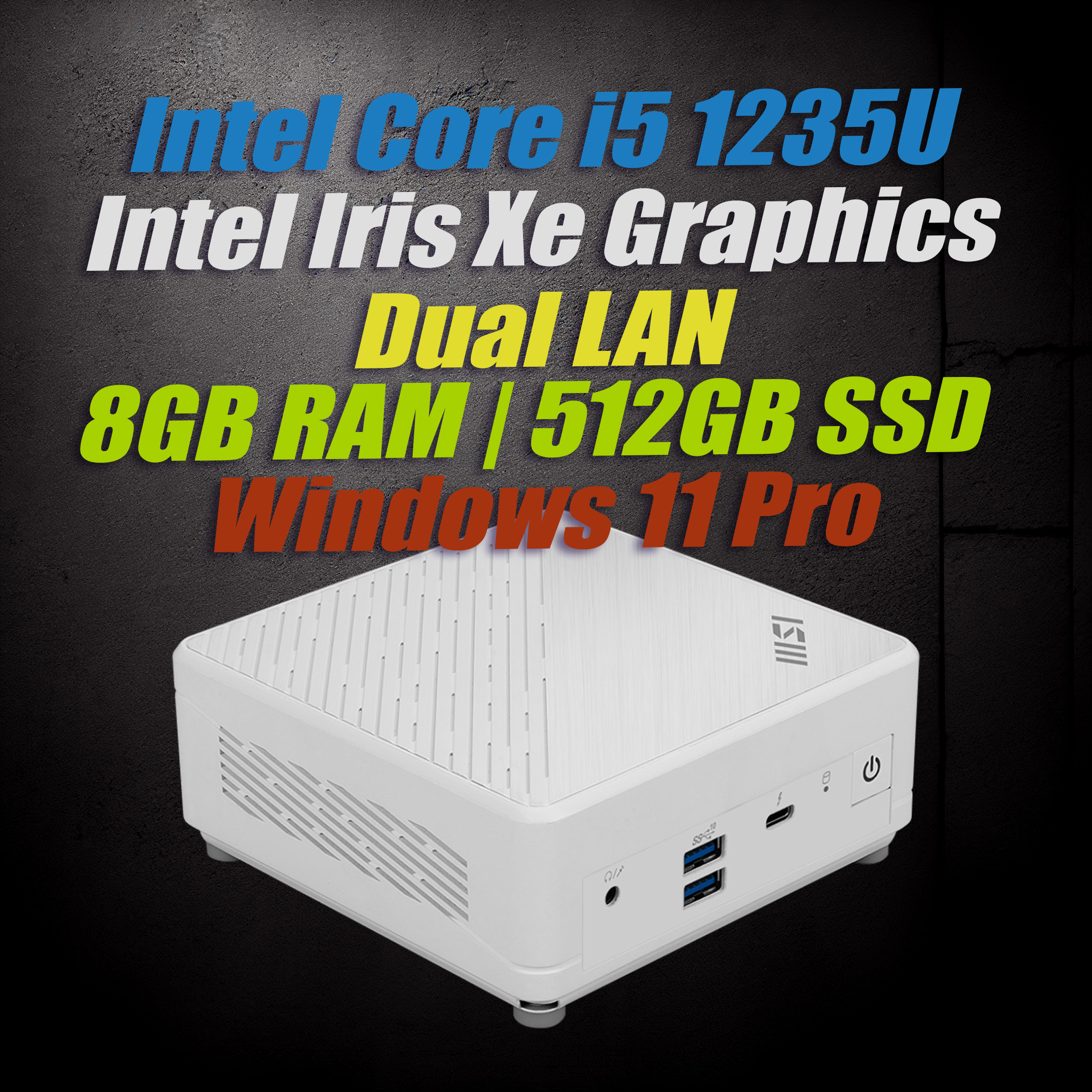

The Energy Efficient Mini-PC

The Cubi 5 12M is a complete system equipped with an Intel 12th Gen Core processor, DDR4 memory, M.2 SSD storage, and Windows 11 software pre-installed. With triple monitor support, Thunderbolt 4 connectivity, Intel Wi-Fi 6E, and dual LAN network capabilities, the Cubi 5 12M is compact, versatile, yet capable mini desktop PC for home or the office.

Compact

The Cubi 5 12M Mini PC comes in a palm-sized 124 x 124 x 53.7 mm case (0.66L/0.57kg) with far less performance trade off compared to laptops.

Capable

RAM: The Cubi 5 12M includes DDR4 memory (2 x SO-DIMMs, expandable up to 64 GB).

Storage: The Cubi 5 12M comes with M.2 SSD storage for faster loading times.

The Cubi 5 12M can be upgraded with 1 x 2.5" SATA HDD/SSD

Triple Display Support

The I/O panels include HDMI 2.0b, DisplayPort 1.4 & Thunderbolt 4 outputs, which support triple monitor setups for improved workflow efficiency or previewing e-commerce content.

With 8K UHD display support, the MSI Cubi 5 12M can be used as Home-Theater/Media PC.

Wi-Fi 6E & Dual LAN

Network connectivity includes up to Intel Wi-Fi 6E AX211 (up to 2.4 Gbps), Bluetooth 5.3, and 2.5G + 1G ethernet LAN.

Thunderbolt 4

Thunderbolt 4 brings Thunderbolt to USB-C at incredible speeds up to 40 Gbps to create one compact port that does it all.

USB 10Gbps Type-A

4 x USB 3.2 Gen 2 (10Gbps) Type-A ports in the front and back I/O ensure that plugging in and transferring data between multiple devices is quick and hassle-free.

VESA Mountable Design

The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment.

MSI Center & Cloud

MSI Center and MSI Cloud Center offer multiple optimizations that can help lighten the workload.

General
Color	Black
Manufacturer Warranty	1 Year
Product Type	Pre-built
Product Family	Cubi 5
Operating System	Windows 11 Pro
Memory
RAM Type	SODIMM DDR4-3200
RAM Capacity	8GB
Max RAM Capacity	64GB
Processor
CPU Cores	10 Cores
CPU Threads	12 Threads
Processor Generation	12th Gen (Alder Lake)
Processor Model	Intel Core i5-1235U
CPU Base Speed	1.3 GHz
CPU Max Speed	4.4 GHz
Integrated GPU	Intel Iris Xe Graphics
Storage
Storage Type	M.2 NVMe + 2.5" SATA
Storage Capacity	512GB
Max Storage Capacity	16TB
Connectivity
LAN Speed	Dual 2.5 Gigabit LAN
WiFi Standard	Wi-Fi 6E
Bluetooth Version	Bluetooth 5.3
Ports & Interfaces
HDMI Ports	1 x HDMI 2.0
DisplayPort	1 x DisplayPort 1.4
USB Type-C	Thunderbolt 4
Design & Physical
Form Factor	Ultra-Compact Mini PC
Cooling Design	Passive
VESA Mount Support	Yes
Dimensions	124 x 124 x 53.7 mm
