- Brand: ASUS
- Model: ROG NUC 16 Edition 20 128GB
- EAN: 4711387600122
- MPN: 90AS00S3-M000Z0
ASUS ROG NUC 16 Edition 20 Gaming Mini PC RNUC16JNK9X8ADA6 with Intel Core Ultra 9 Processor 290HX Plus, NVIDIA GeForce RTX 5090 Laptop GPU 24GB GDDR7, 128GB DDR5-6400 CSODIMM RAM, 2TB PCIe Gen5 NVMe SSD, Wi-Fi 7, Bluetooth 5.4, 2.5G LAN and Windows 11 Home
- Limited Edition 20 ROG gaming mini PC celebrating 20 years of Republic of Gamers
- Intel Core Ultra 9 Processor 290HX Plus for demanding gaming, creative production and AI-assisted workloads
- NVIDIA GeForce RTX 5090 Laptop GPU with 24GB GDDR7 graphics memory
- 128GB (64GB x 2) DDR5-5600 SODIMM RAM
- 2TB M.2 2280 NVMe PCIe Gen5 SSD for fast booting, game loading and project storage
- Dual M.2 2280 storage support with PCIe 4.0 x4 and PCIe 5.0 x4 slots
- Intel Killer Wi-Fi 7 BE1750x, Bluetooth 5.4 and Realtek 2.5G LAN
- 1 x Thunderbolt 4 with DisplayPort 2.1 | 2 x HDMI 2.1 FRL | 2 x DisplayPort 2.1
- Triple-fan QuietFlow cooling system with dual vapor chamber design
- Compact ROG Edition 20 chassis with Windows 11 Home preinstalled
- RNUC16JNK9X8ADA6
Ask a Question About This Product
ASUS ROG NUC 16 Edition 20 Core Ultra 9 RTX 5090 128GB Mini PC
ASUS ROG NUC 16 Edition 20 is a limited-edition, high-performance gaming mini PC. This exact configuration pairs Intel Core Ultra 9 290HX Plus processing with an NVIDIA GeForce RTX 5090 Laptop GPU, 128GB DDR5 memory, a 2TB PCIe Gen5 SSD, Wi-Fi 7 and Windows 11 Home in the compact ROG Edition 20 chassis.
Configuration Highlights
Built for serious gaming, intensive creative applications and local AI-assisted workloads, this ROG NUC 16 Edition 20 configuration combines desktop-class ambition with a space-saving mini PC footprint.
Core Ultra 9 290HX Plus
High-end Intel mobile processor platform for demanding games, streaming and creative multitasking.
RTX 5090 Laptop GPU
NVIDIA GeForce RTX 5090 Laptop GPU with 24GB GDDR7 graphics memory.
128GB DDR5 Memory
128GB configuration using 2 x 64GB DDR5-5600 SODIMM memory modules.
2TB PCIe Gen5 SSD
Fast M.2 2280 NVMe storage for games, projects, applications and media files.
Edition 20 Performance in a Compact Mini PC
ROG NUC 16 Edition 20 is designed for users who need maximum performance in a refined compact system. The Core Ultra 9 processor and RTX 5090 Laptop GPU support high-frame-rate gaming, accelerated rendering, GPU-enabled creative tools and demanding multi-application workflows.
- CPU: Intel Core Ultra 9 Processor 290HX Plus.
- GPU: NVIDIA GeForce RTX 5090 Laptop GPU with 24GB GDDR7 memory.
- Memory: 128GB (64GB x 2) DDR5-5600 SODIMM RAM.
- Operating system: Windows 11 Home preinstalled.
Advanced Connectivity and Dual M.2 Storage
Despite its small footprint, this NUC has display outputs and high-bandwidth I/O for premium desk setups. It also supports dual M.2 2280 SSDs, including one PCIe 5.0 x4 and one PCIe 4.0 x4 slot.
- Display output: 1 x Thunderbolt 4 with DisplayPort 2.1, 2 x HDMI 2.1 FRL and 2 x DisplayPort 2.1.
- Network: Intel Killer Wi-Fi 7 BE1750x, Bluetooth 5.4 and Realtek 2.5G LAN.
- Front / side I/O: 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C and 3.5mm combo audio.

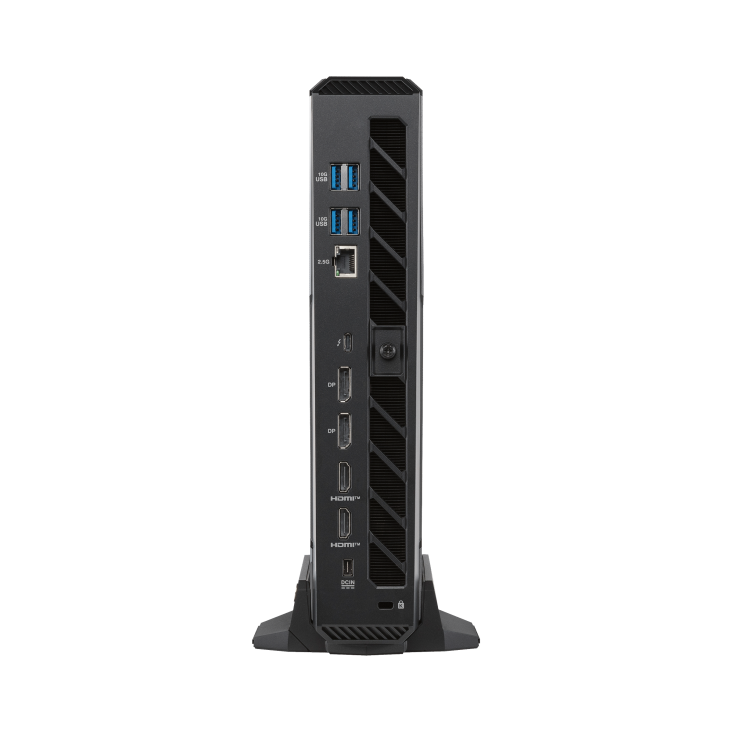

- Rear I/O: Thunderbolt 4, 4 x USB 3.2 Gen 2 Type-A, HDMI, DisplayPort, LAN and DC input.
QuietFlow Cooling for Sustained Performance
The ROG NUC 16 Edition 20 uses a triple-fan QuietFlow cooling system with a dual vapor chamber design. This cooling approach is intended to manage high-performance processor and graphics workloads inside the compact vertical chassis.
- Cooling: Triple-fan QuietFlow design with dual vapor chamber.
- Compact chassis: Vertical ROG Edition 20 system, suitable for space-saving gaming desks.
- Power adapter: 380W external AC adapter.
Best Use Cases
ROG NUC 16 Edition 20 128GB is intended for users who want flagship graphics and a large memory configuration without building a conventional full-size tower PC.
AAA Gaming
High-end GPU capability for demanding modern PC games and high-resolution displays.
Streaming and Creation
Strong CPU, GPU and 128GB memory resources for multi-tasking workflows.
AI-Assisted Workflows
24GB GDDR7 graphics memory supports compatible GPU-accelerated workloads.
Premium Compact Setup
Compact vertical chassis reduces desk footprint while retaining powerful I/O.

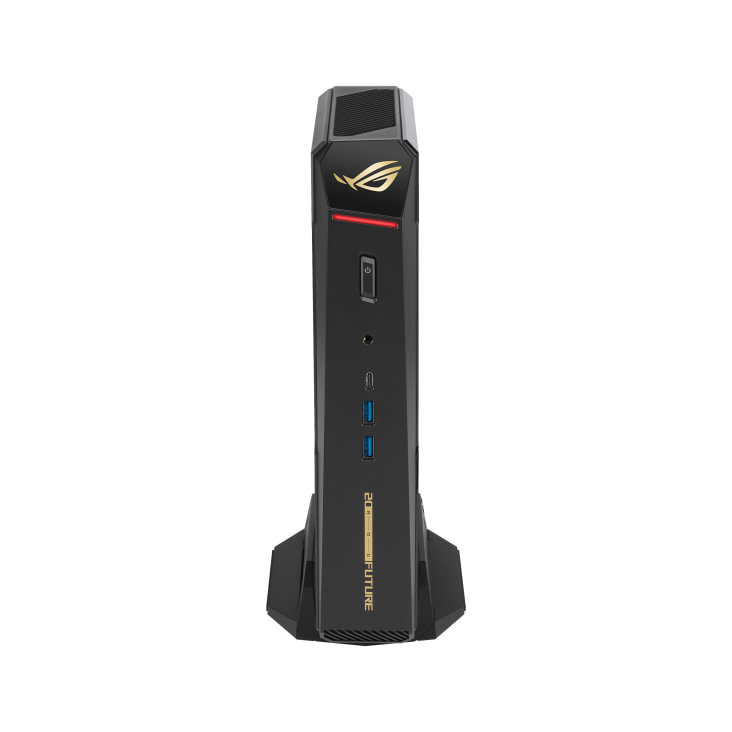

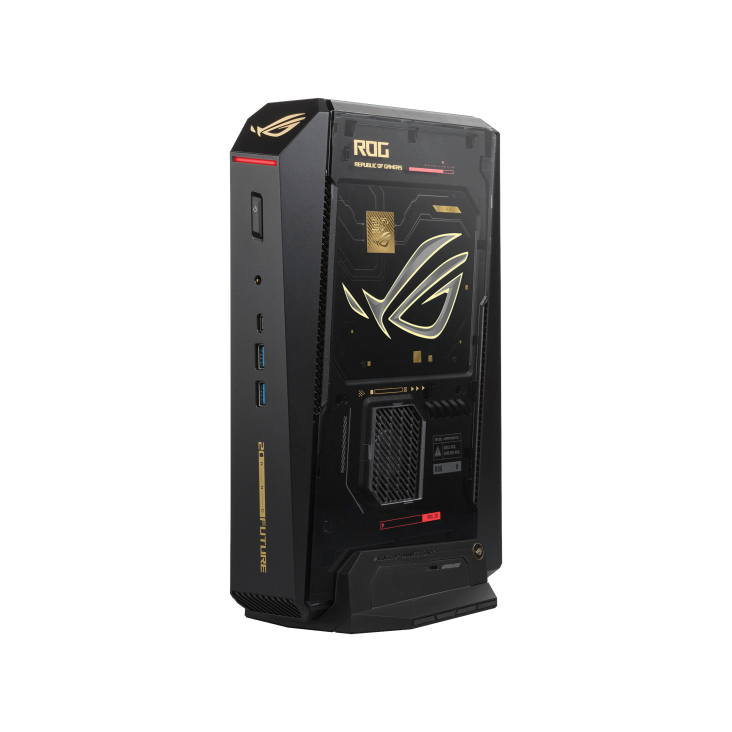

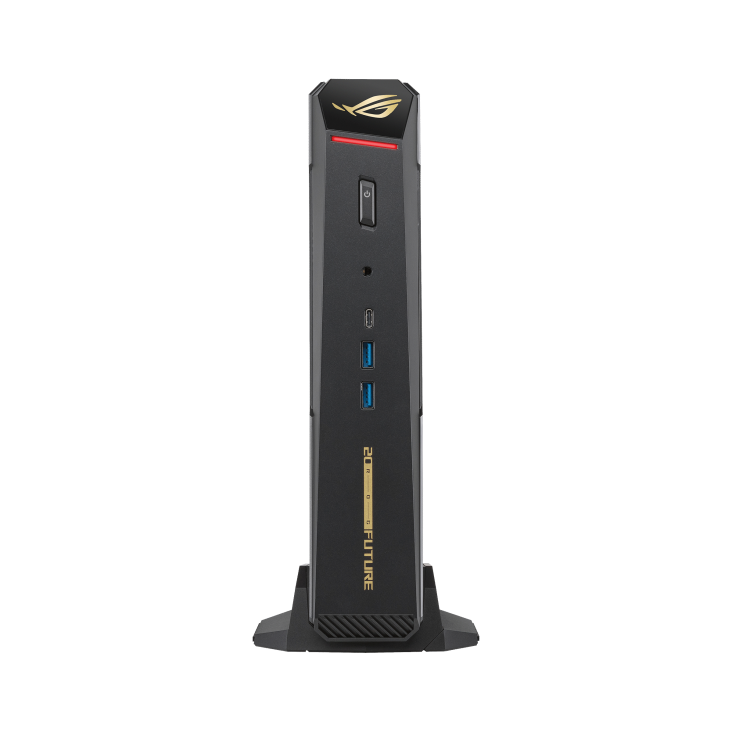

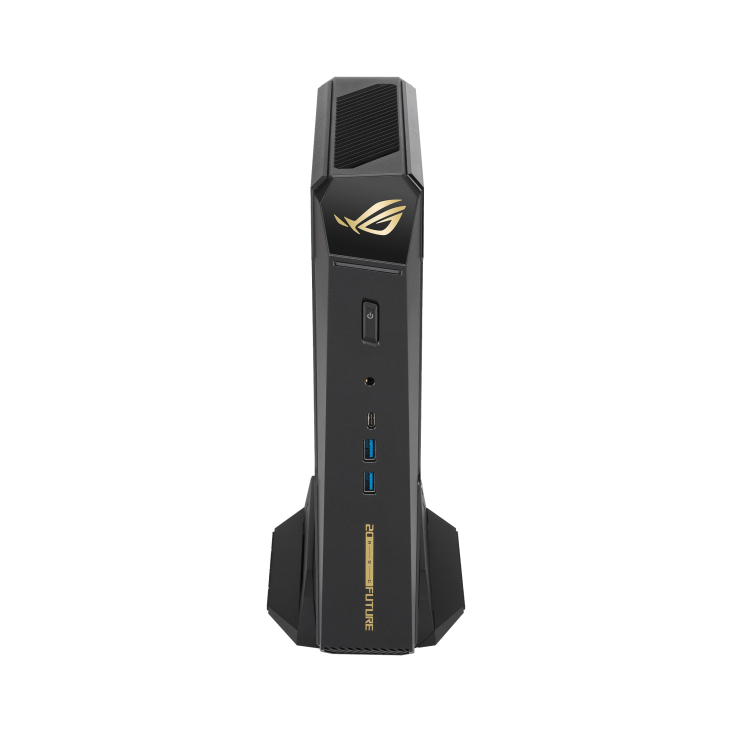

ROG NUC 16 Edition 20 Product Images
These are NationalPC gallery images for the ROG NUC 16 Edition 20 compact vertical mini PC. The image containers use object-fit: contain so the NUC remains fully visible without stretching or cropping.
ASUS ROG NUC 16 Edition 20 128GB Specifications
| Product Name | ASUS ROG NUC 16 Edition 20 Core Ultra 9 RTX 5090 128GB 2TB Windows 11 Home Mini PC |
|---|---|
| Model Name | ROG NUC 16 Edition 20 128GB |
| ASUS Model Code | RNUC16JNK9X8ADA6 |
| MPN | 90AS00S3-M000Z0 |
| Processor | Intel Core Ultra 9 Processor 290HX Plus |
| Graphics | NVIDIA GeForce RTX 5090 Laptop GPU, 24GB GDDR7 |
| Memory | 128GB (64GB x 2) DDR5-5600 SODIMM RAM |
| Storage | 2TB M.2 2280 NVMe PCIe Gen5 SSD |
| Storage Expansion | 2 x M.2 2280 slots: PCIe 5.0 x4 and PCIe 4.0 x4 |
| Wireless | Intel Killer Wi-Fi 7 BE1750x and Bluetooth 5.4 |
| Wired Network | Realtek 2.5G LAN |
| Display Outputs | 1 x Thunderbolt 4 with DisplayPort 2.1, 2 x HDMI 2.1 FRL, 2 x DisplayPort 2.1 |
| Front / Side I/O | 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x 3.5mm combo audio |
| Rear I/O | 1 x Thunderbolt 4 Type-C, 4 x USB 3.2 Gen 2 Type-A, 2 x HDMI 2.1 FRL, 2 x DisplayPort 2.1, RJ45 LAN, DC input, Kensington lock |
| Cooling | Triple-fan QuietFlow cooling system with dual vapor chamber design |
| Power Adapter | 20V DC, 19A, 380W |
| Dimensions | 282.5 x 189.5 x 56.5 mm |
| Weight | 3.2 kg |
| Operating System | Windows 11 Home |
| Warranty | 3 Years |
Frequently Asked Questions
What is the exact model name for this 128GB configuration?
The model name is ROG NUC 16 Edition 20 128GB. This product-page configuration includes a 2TB SSD and RTX 5090 Laptop GPU.
How much RAM does this version have?
It has 128GB total memory, configured as 2 x 64GB DDR5-5600 SODIMM modules.
Which graphics card is included?
It includes an NVIDIA GeForce RTX 5090 Laptop GPU with 24GB GDDR7 graphics memory.
Does it support more than one NVMe SSD?
Yes. The platform has two M.2 2280 storage slots, supporting one PCIe 5.0 x4 slot and one PCIe 4.0 x4 slot.
Is Windows included?
Yes. Windows 11 Home is preinstalled for this listed configuration.
Buy ROG NUC 16 Edition 20 128GB from NationalPC
Choose the ASUS ROG NUC 16 Edition 20 128GB for an Edition 20 gaming mini PC with Core Ultra 9 290HX Plus, RTX 5090 24GB GDDR7 graphics, 128GB DDR5 memory, 2TB Gen5 storage, Wi-Fi 7 and premium compact ROG design.
