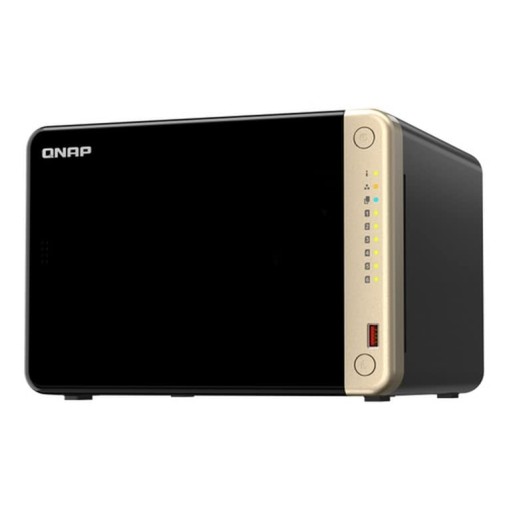

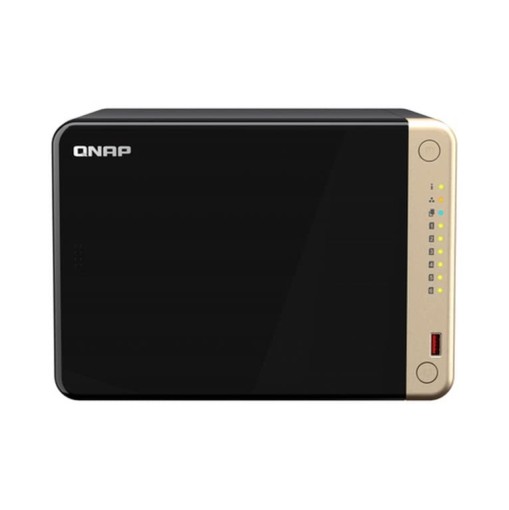

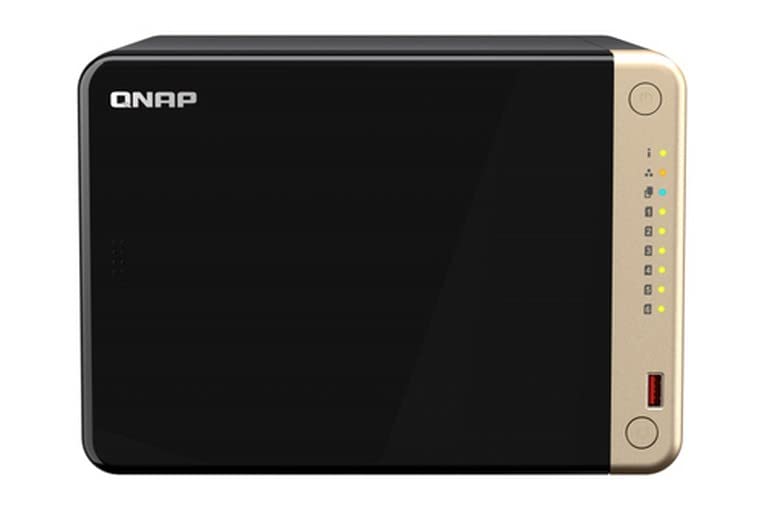

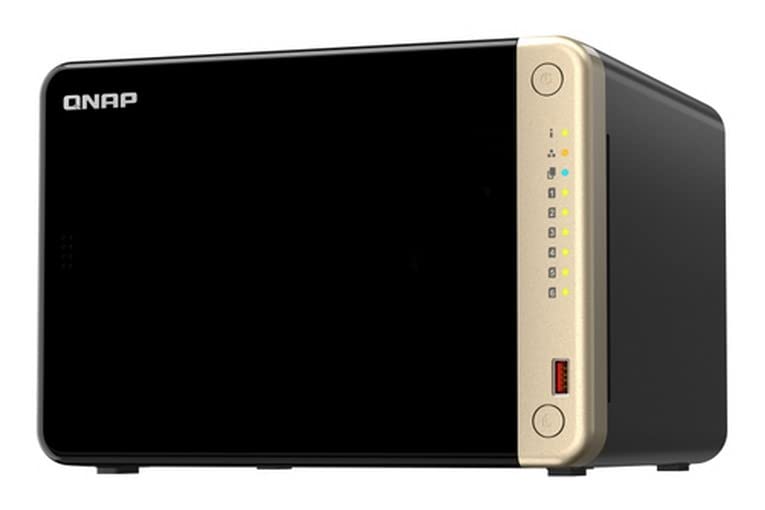

Qnap TS-664-8G 6-Bay High Performance NAS
QNAP TS-664-8G 6-Bay NAS Storage Server – Intel Celeron N5095, 8GB DDR4, Dual 2.5GbE, M.2 NVMe SSD Slots and PCIe Expansion
Brand: QNAP· More from QNAP ›- Model
- TS-664-8G
- EAN
- 4711103082317
- UPC
- 885022024667
Offers
Earn 539 points (worth ₹539) for your next order when you buy with an account.
From ₹5,236/month on credit cards.
Businesses: claim up to ₹16,471 input tax credit with your GSTIN.
Key features
- Intel Celeron N5095 quad-core processor with burst speeds up to 2.9GHz
- 8GB DDR4 SODIMM memory pre-installed
- 6 x 3.5-inch SATA 6Gb/s drive bays
- Supports 3.5-inch SATA hard drives and 2.5-inch SATA SSDs
- Hot-swappable drive bays for convenient storage maintenance
- 2 x 2.5GbE network ports for fast file transfers and network access
- 2 x M.2 2280 PCIe Gen 3 x1 slots for SSD caching and storage acceleration
- PCIe expansion support for additional networking and storage features
- Intel UHD Graphics with hardware-accelerated video transcoding
- Ships without hard drives; storage drives are sold separately
Six Bays for Serious Storage Planning
With six hot-swappable 3.5-inch SATA bays, the TS-664-8G can be configured for capacity, redundancy or a balance of both. It supports compatible 3.5-inch SATA hard disks and 2.5-inch SATA SSDs, so it can serve as a central file repository, project library, backup target, media server or private-cloud storage platform.
Faster Networking, Media and Backup Workflows
The Intel Celeron N5095 quad-core processor combines with Intel UHD Graphics and hardware-accelerated video transcoding support for responsive everyday NAS performance. Dual 2.5GbE ports can be used independently or configured with port trunking where supported, while two USB 3.2 Gen2 10Gbps ports provide a fast route for connected backup drives.
QTS provides tools for storage pools, shared folders, snapshots, backup, synchronisation and application services. The TS-664 platform can also support QuTS hero in supported configurations, offering ZFS-oriented data-integrity features. Always maintain an independent backup copy for important data.
Ready for Expansion and Centralised Data
The TS-664-8G can serve growing teams and advanced home users that need more than basic file storage. Populate the bays with compatible hard drives for capacity, add M.2 SSDs for cache, and use the PCIe Gen3 x2 slot for eligible networking or QM2 expansion. HDMI 2.1 provides local display output up to 4K 60Hz for supported usage.
QNAP TS-664-8G Specifications
| Model | QNAP TS-664-8G |
|---|---|
| Processor | Intel Celeron N5095 quad-core / four-thread processor, burst up to 2.9GHz |
| Graphics / Encryption | Intel UHD Graphics; AES-NI encryption engine; hardware-accelerated transcoding support |
| Memory | 8GB DDR4 SODIMM; 2 x DDR4 SODIMM slots; up to 16GB total (2 x 8GB) |
| Drive Bays | 6 x 3.5-inch SATA 6Gb/s bays; compatible with 3.5-inch HDDs and 2.5-inch SATA SSDs; hot-swappable |
| M.2 Slots | 2 x M.2 2280 PCIe Gen3 x1 slots for compatible NVMe SSD cache / storage use |
| Network | 2 x 2.5GbE RJ45 ports; optional 5GbE or 10GbE via compatible PCIe expansion card |
| Expansion | 1 x PCIe Gen3 x2 slot |
| Ports | 2 x USB 3.2 Gen2 10Gbps Type-A, 2 x USB 2.0, HDMI 2.1 up to 4K 60Hz |
| Operating System | QTS; QuTS hero support is available in supported configurations |
| Cooling / Power | 2 x 90mm fans; 120W external adapter |
| Dimensions / Weight | 165 x 235 x 226.5mm (H x W x D); 2.94kg net |
| Warranty | 3-year standard warranty, subject to applicable QNAP terms |
Build Your High-Performance 6-Bay NAS
Choose the QNAP TS-664-8G for scalable storage, fast multi-gigabit networking and expansion-ready NAS workflows.
