ASUS ESC8000A-E13P 4U AI GPU Server – Dual AMD EPYC 9005/9004 Processor Support, Up to Eight Dual-Slot GPUs, DDR5 RDIMM Memory and High-Speed NVMe Storage
Key features
- 4U GPU server designed for AI, HPC and enterprise workloads
- Dual Socket SP5 support for AMD EPYC 9005 and 9004 series processors
- 24 DDR5 RDIMM memory slots with support for up to 3TB capacity
- Supports up to eight dual-slot high-end GPUs
- 14 PCIe Gen 5 expansion slots
- 8 x 2.5-inch front hot-swap NVMe storage bays
- 2 x M.2 Gen 5 x4 sockets supporting up to 22110 NVMe devices
- 2 x 10GbE LAN ports and 1 x RJ-45 management port
- ASPEED AST2600 BMC graphics with ASUS ASMB12-iKVM remote management
- ASUS Control Center Enterprise support
- 3+1 redundant 3200W 80 PLUS Titanium power supply
- 800 x 439.5 x 175mm chassis | 4U rackmount form factor
ASUS ESC8000A-E13P 4U High-Density GPU Server
ASUS ESC8000A-E13P is an enterprise 4U GPU server platform engineered for AI training and inference, high-performance computing, scientific simulation, large-scale visualisation, rendering and accelerated data-centre workloads. It combines dual AMD EPYC 9005/9004 processor support with NVIDIA MGX architecture for high-density accelerator deployment.
The server is built to support up to eight dual-slot high-end GPUs, up to 24 DDR5 DIMMs, NVMe storage and PCIe 5.0 expansion—giving enterprise teams a scalable foundation for compute-intensive workloads.
Buy ASUS ESC8000A-E13P from NationalPC
Built for Modern AI and Accelerated Computing
ESC8000A-E13P is designed around NVIDIA MGX architecture to help organisations deploy dense accelerator infrastructure for model training, inference, analytics, digital-twin, simulation and visual-computing environments. Its 4U chassis supports up to eight dual-slot high-end GPUs, including supported NVIDIA H200, NVIDIA RTX PRO 6000 Blackwell Server Edition, NVIDIA RTX PRO 4500 Blackwell Server Edition and AMD Instinct MI350P PCIe configurations.
Actual CPU, memory, GPU, storage, networking and power configuration must be selected from the supported ASUS server validation list for the final enterprise deployment.
High-Bandwidth Compute, Networking and Storage
Two Socket SP5 processors deliver twelve DDR5 memory channels per CPU and enable a 24-DIMM memory architecture. The system provides eight PCIe 5.0 x16 slots for dual-slot GPU cards, five PCIe 5.0 x16 slots for high-bandwidth NIC or NVIDIA BlueField-3 DPU configurations and a front PCIe 5.0 x8 slot.
Eight front 2.5-inch hot-swap bays can support NVMe storage through the backplane. Two M.2 Gen5 x4 sockets add compact high-speed boot or local storage options, while integrated dual 10GbE RJ45 ports support network connectivity.
GPU Density
Room for up to eight dual-slot GPU accelerators for compatible AI and HPC configurations.
DDR5 Memory
24 RDIMM / 3DS RDIMM slots for high-capacity, high-bandwidth memory planning.
Remote Management
ASMB12-iKVM enables out-of-band remote management and KVM-over-IP capability.
ASUS ESC8000A-E13P Specifications
| Model | ASUS ESC8000A-E13P |
|---|---|
| Form factor | 4U rackmount high-density GPU server |
| Processor support | 2 x Socket SP5 (LGA 6096), AMD EPYC 9005 / 9004 series; up to 500W cTDP per socket at 25°C operating temperature |
| Memory | 24 DIMM slots, 12 channels per CPU; DDR5 6400/6000/5600 RDIMM and 3DS RDIMM support; maximum capacity depends on validated DIMMs and processor configuration |
| GPU support | Up to 8 dual-slot high-end GPU cards; supported accelerator list depends on final system configuration |
| PCIe expansion | 8 x PCIe 5.0 x16 rear slots for dual-slot GPUs; 5 x PCIe 5.0 x16 rear slots for NIC / DPU; 1 x front PCIe 5.0 x8 slot |
| Storage bays | 8 x front 2.5-inch hot-swap bays; backplane supports up to 8 x NVMe |
| M.2 storage | 2 x M.2 sockets with PCIe Gen5 x4 links, supporting up to 22110 form factor |
| Networking | 2 x 10GbE RJ45 LAN ports and 1 x dedicated management LAN port |
| Management | ASUS Control Center support; ASMB12-iKVM out-of-band remote management / KVM-over-IP |
| Power | 3+1 redundant 3200W 80 PLUS Titanium power supplies; 220-240Vac configuration |
| Dimensions / Weight | 800 x 439.5 x 175mm (D x W x H); 42kg net weight without CPU, DRAM and HDD |
| OS support | Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu and VMware, subject to ASUS compatibility guidance |

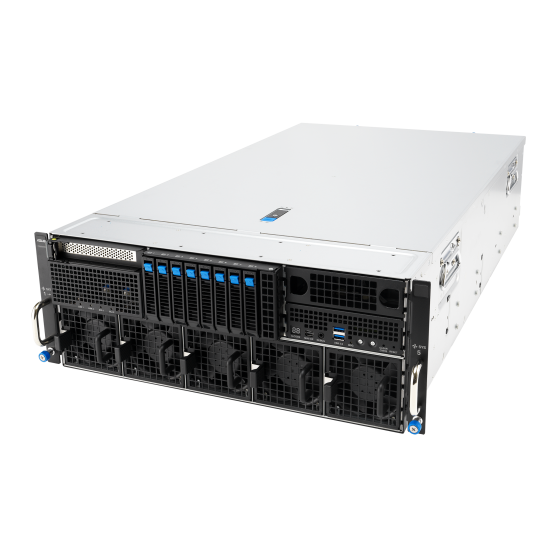

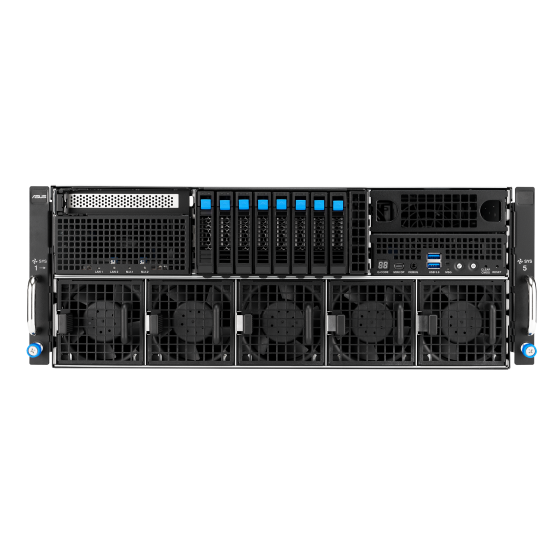

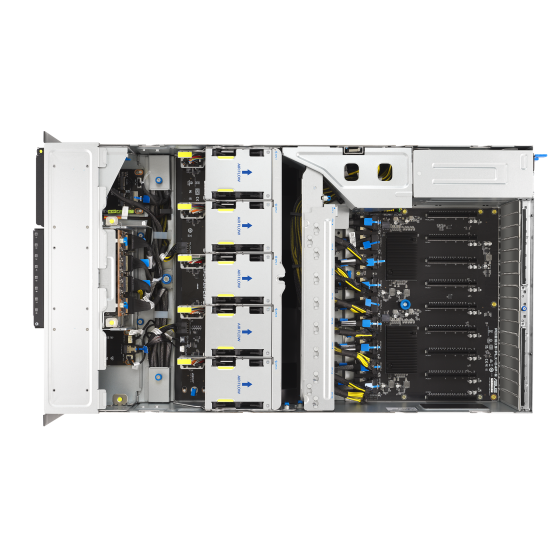

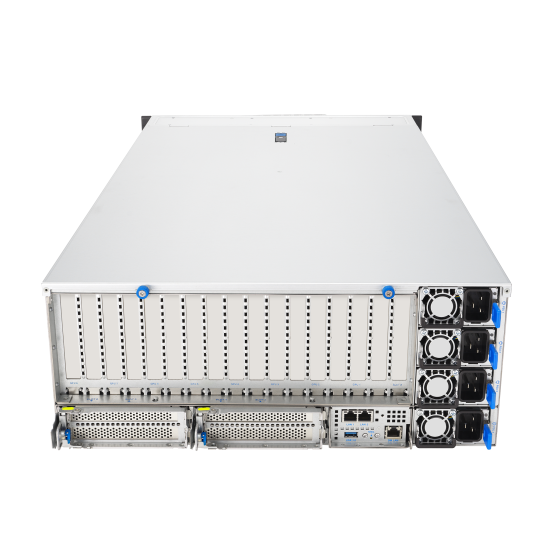

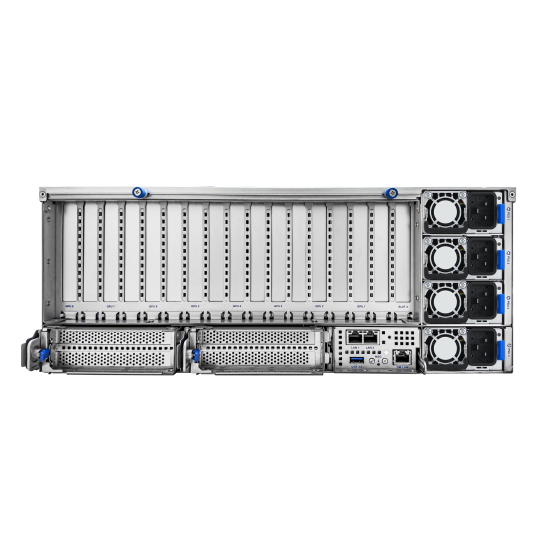

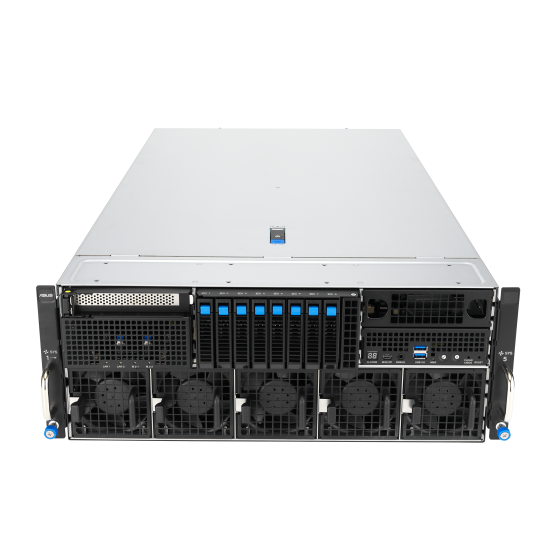

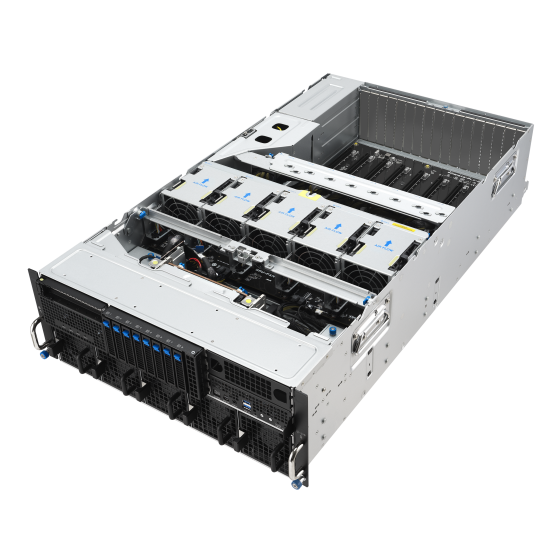

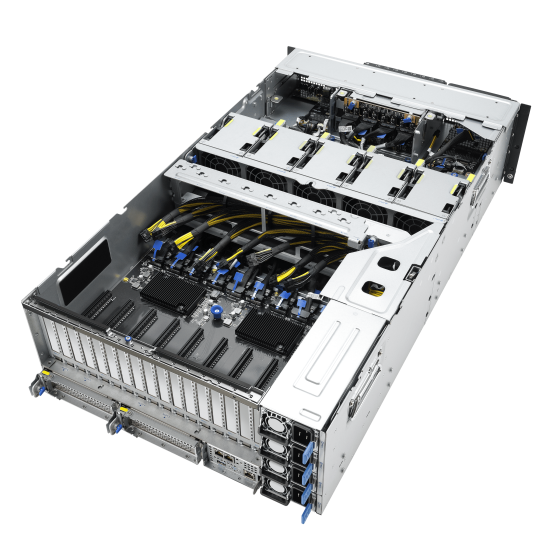

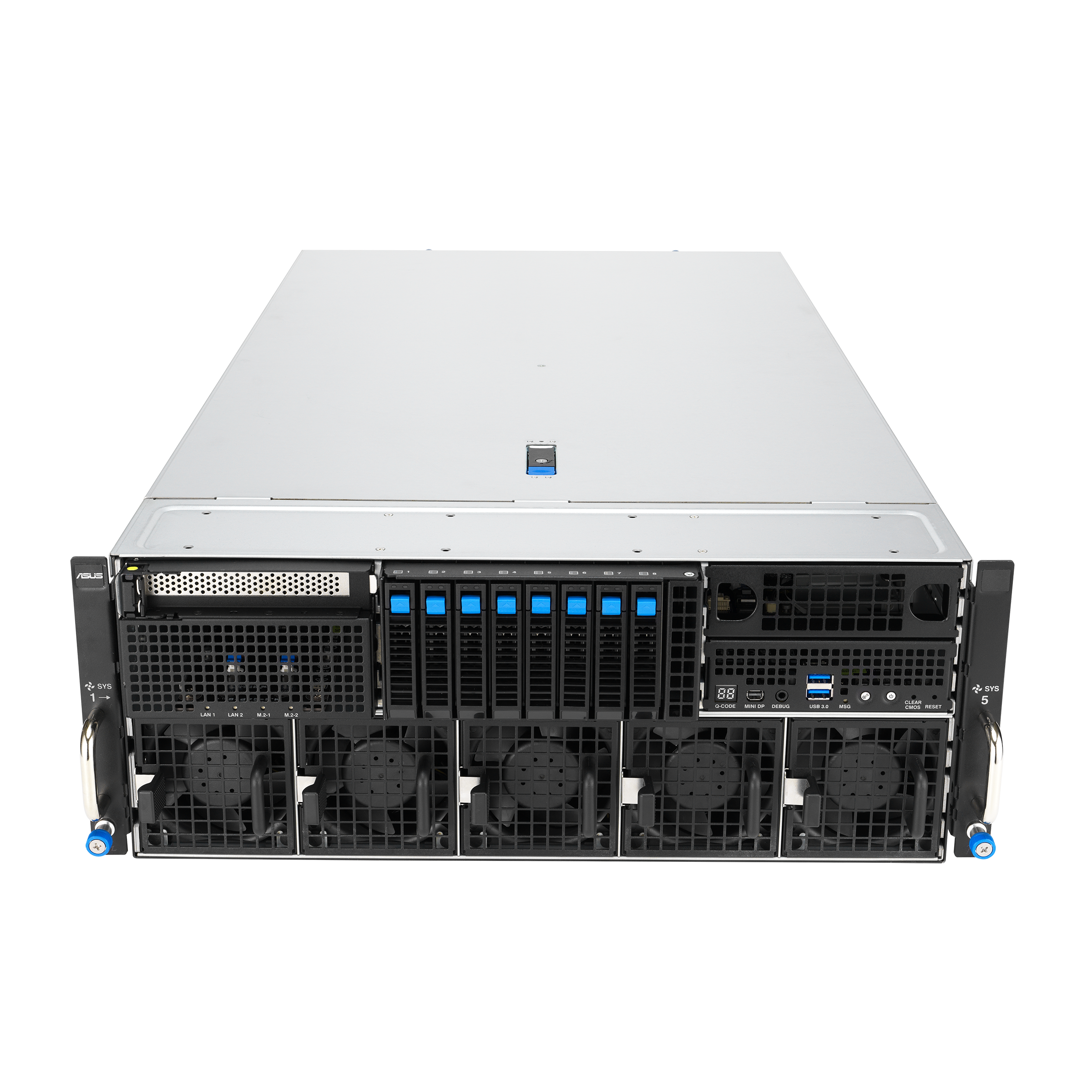

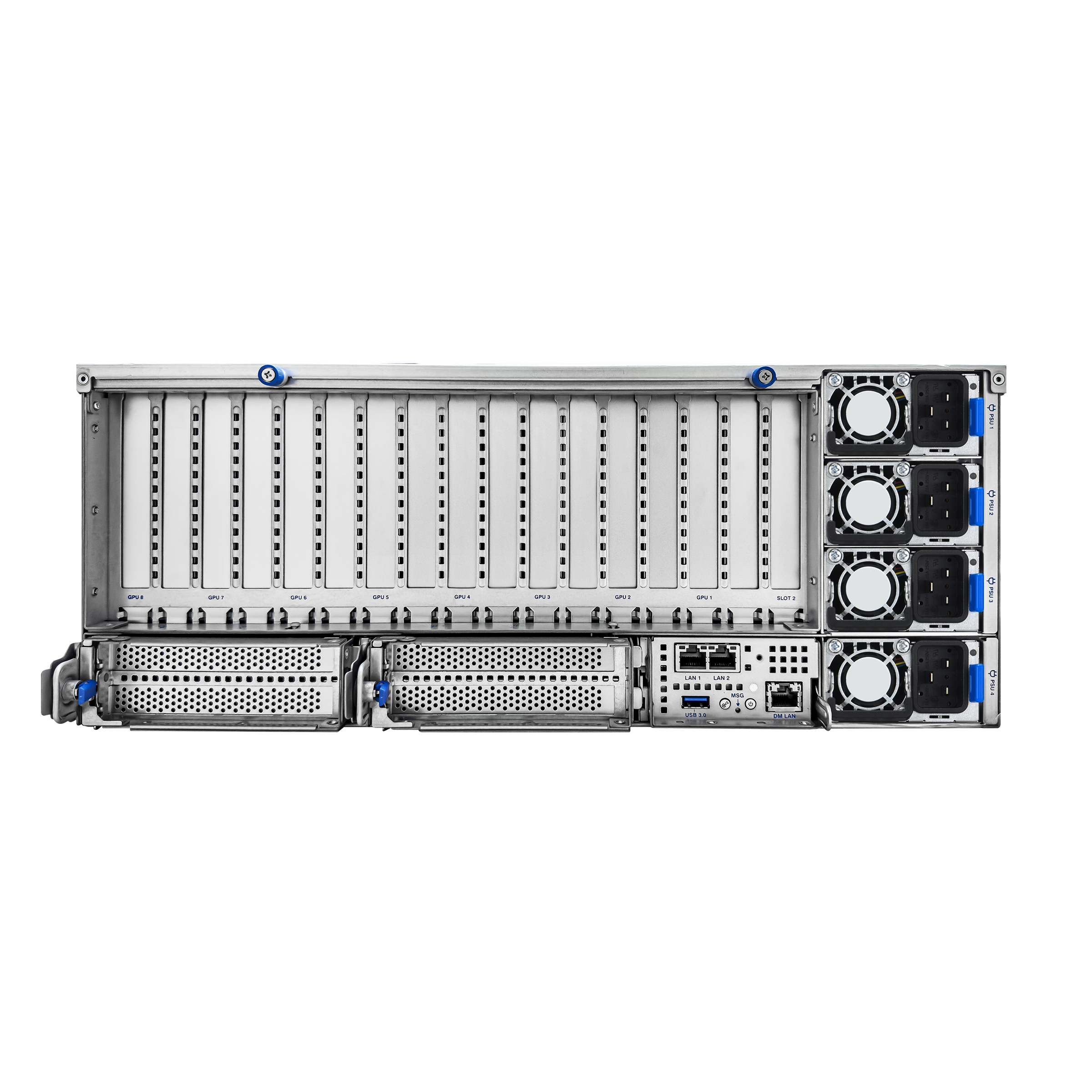

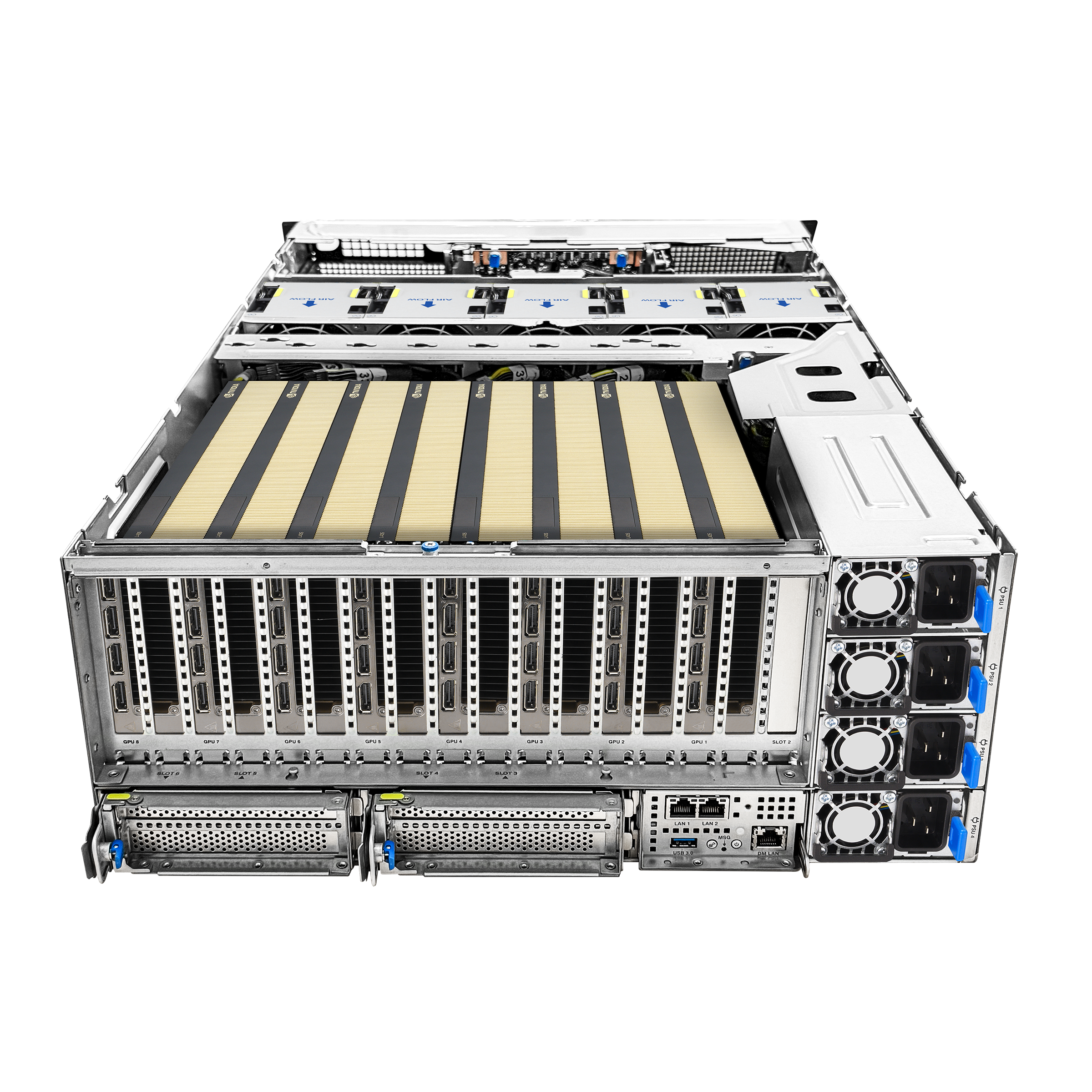

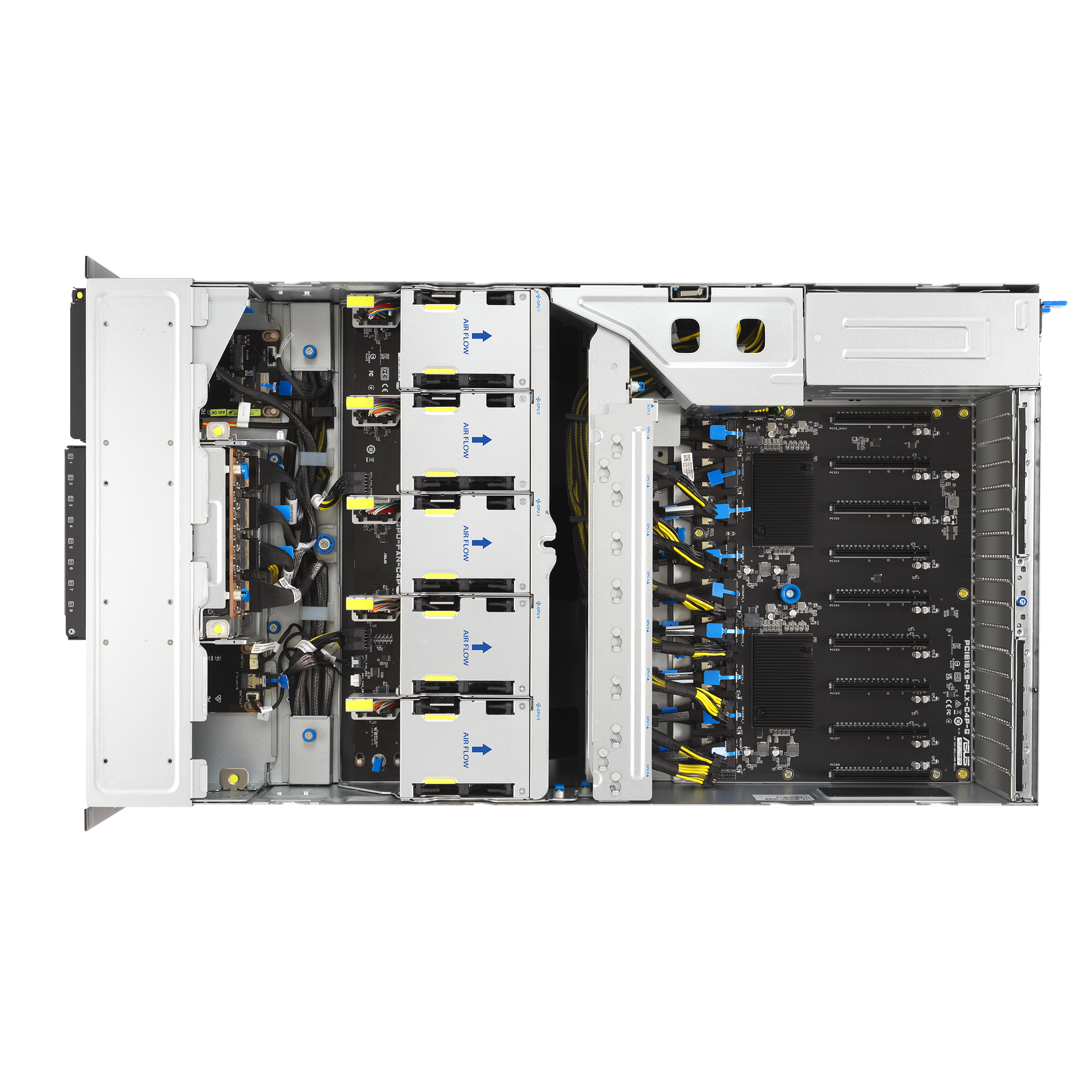

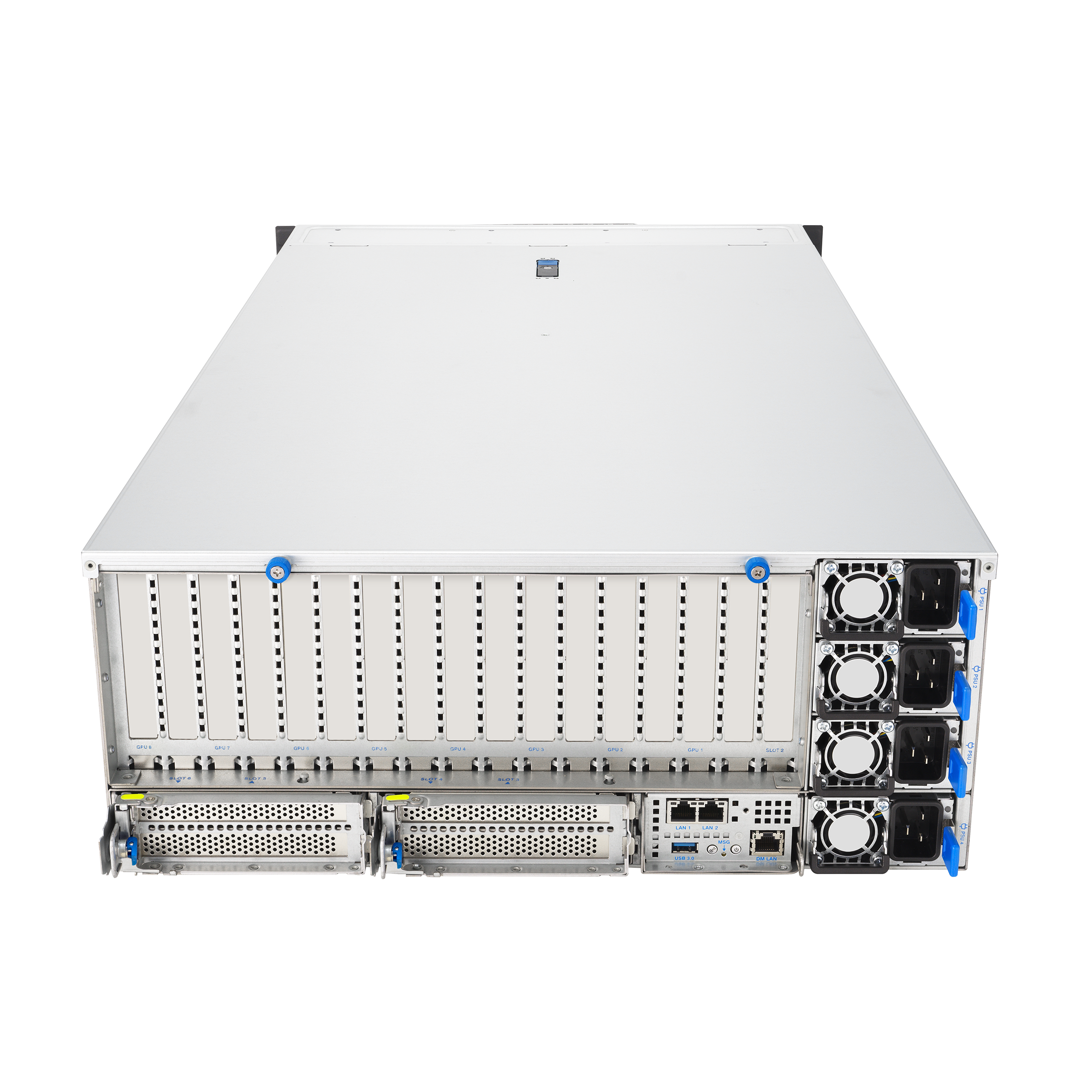

ASUS ESC8000A-E13P Product Images
Model-specific NationalPC product views are shown with a contained image treatment for a clean enterprise product-page layout.
Frequently Asked Questions
Is ESC8000A-E13P a ready-to-use PC?
It is an enterprise server platform. The final configuration should be selected with the appropriate CPUs, validated DDR5 memory, GPU accelerators, storage, networking and operating system for the intended deployment.
What workloads is it intended for?
It is intended for data-centre AI, HPC, deep learning, inference, simulation, visual computing, rendering and similar accelerated computing workloads.
Does it support remote server management?
Yes. The platform includes ASUS ASMB12-iKVM for supported out-of-band management and KVM-over-IP capabilities.
