ASUS ESC8000A-E12 GPU Server Expansion NAS
Key features
-
8U high-density GPU server designed for AI, deep learning, HPC, and data-intensive workloads
-
Supports dual AMD EPYC 7002/7003 processors for extreme computing performance
-
Features up to 8 double-slot GPUs for NVIDIA or AMD accelerators
-
Supports large memory capacity with multiple DDR4 DIMM slots per CPU
-
Offers flexible storage options including NVMe, SATA, and hot-swap drives
-
Optimized for AI training, machine learning, 3D rendering, and enterprise data center applications
ASUS ESC8000A-E12 4U High-Density GPU Server
ASUS ESC8000A-E12 is a 4U enterprise GPU server designed for artificial intelligence, deep learning, high-performance computing, simulation, rendering, visual computing, virtual machines and data-centre acceleration. Its dual AMD EPYC 9004 platform pairs high core-count processing with large DDR5 memory capacity and dense GPU support.
The server supports up to eight dual-slot active or passive GPUs, 24 DDR5 DIMMs, 11 PCIe 5.0 slots and up to eight front hot-swap NVMe/SATA/SAS storage bays. It is a configurable infrastructure platform for organisations building scalable accelerated-compute clusters.
Buy ASUS ESC8000A-E12 from NationalPC
Purpose-Built for AI, HPC and Data-Centre GPU Workloads
ESC8000A-E12 is designed for complex workloads that benefit from parallel GPU acceleration. Its 4U chassis can support up to eight dual-slot GPUs, NVIDIA NVLink bridge configurations and NVIDIA BlueField DPU support, subject to the final compatible build. This makes the platform suitable for AI model training, inference, HPC, large-scale rendering, research, digital content and virtualised compute infrastructure.
For energy-conscious deployment, the chassis separates CPU and GPU airflow paths to optimise thermal management. It supports air and, for supported configurations, advanced liquid-cooling strategies.
PCIe 5.0 Expansion, High-Capacity DDR5 and Flexible Storage
Two Socket SP5 processors provide a 24-DIMM DDR5 architecture with 12 channels per CPU. The platform includes eight PCIe 5.0 x16 slots for dual-slot GPU cards, plus further PCIe 5.0 lanes for NIC, OCP 3.0 and HBA/RAID configurations. This lets teams plan high-speed network fabric, storage controllers and accelerator density around their workload.
Eight front hot-swap bays accept compatible 3.5-inch or 2.5-inch drives; the backplane supports up to eight NVMe, SATA or SAS drives, with SAS capability requiring an appropriate HBA or RAID card. An M.2 slot provides additional local storage flexibility.
GPU Scale
Support for up to eight dual-slot active or passive GPU accelerators in a 4U chassis.
Storage Flexibility
Eight front hot-swap bays with NVMe, SATA and SAS support depending on configuration.
Remote Management
ASMB11-iKVM enables out-of-band management and KVM-over-IP functions.
ASUS ESC8000A-E12 Specifications
| Model | ASUS ESC8000A-E12 |
|---|---|
| MPN | 90SF02H2-M00BL0 |
| Form factor | 4U rackmount high-density GPU server |
| Processor support | 2 x Socket SP5 (LGA 6096) for AMD EPYC 9004 series processors; up to 400W TDP per socket |
| Memory | 24 x DDR5 DIMM slots; 12 channels and 12 DIMMs per CPU; DDR5 4800/4400 RDIMM and 3DS RDIMM support |
| GPU support | Up to 8 dual-slot active or passive GPUs; compatible GPU list depends on validated configuration |
| PCIe expansion | 11 PCIe 5.0 slots: 8 x x16 for dual-slot GPU cards, 1 x x16 NIC slot, 1 x x8 NIC or OCP 3.0 option, and 1 x x8 HBA/RAID slot |
| Storage bays | 8 x front 3.5-inch / 2.5-inch hot-swap bays; backplane supports up to 8 x NVMe/SATA/SAS drives; SAS requires HBA/RAID card |
| Local storage | 1 x M.2 connector with PCIe Gen3 x4 link, supporting up to 22110 form factor |
| Networking | Build-to-order dual 10GbE RJ45 or dual Gigabit Ethernet RJ45, plus dedicated management LAN |
| Management | ASMB11-iKVM remote management / KVM-over-IP and ASUS Control Center support |
| Power | 2+2 or 2+1 redundant 2600W/3000W 80 PLUS Titanium power configuration, depending on region and ordered build |
| Dimensions / Weight | 800 x 440 x 174.5mm (D x W x H); 27kg net weight without CPU, DRAM and HDD |
| OS support | Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu and VMware, subject to ASUS compatibility guidance |

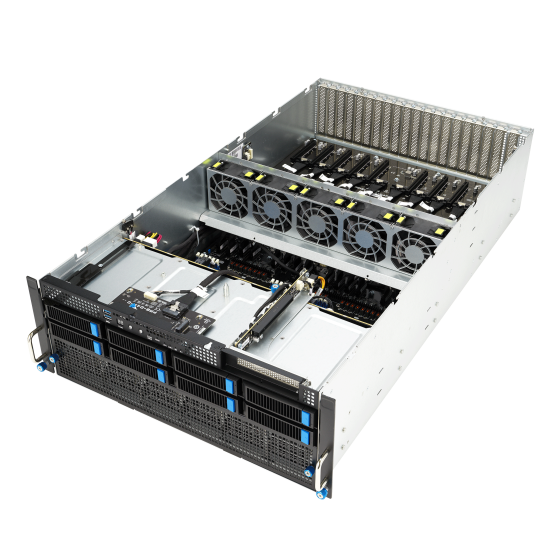

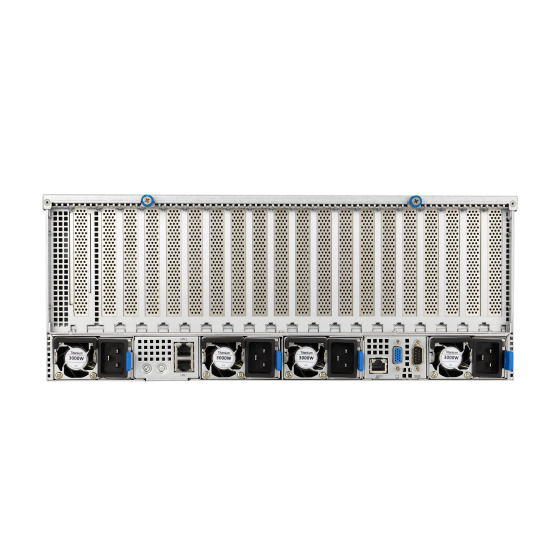

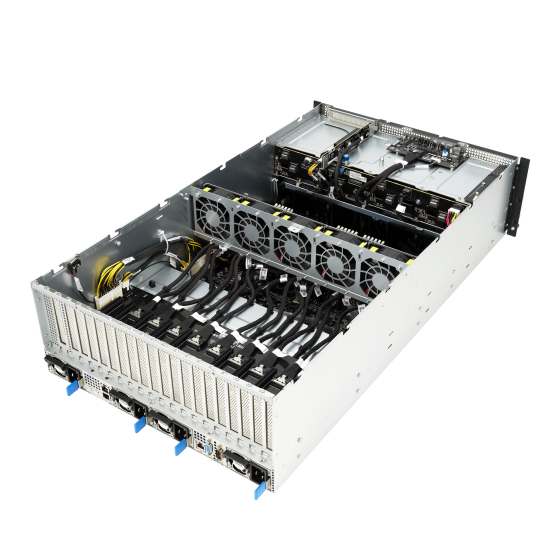

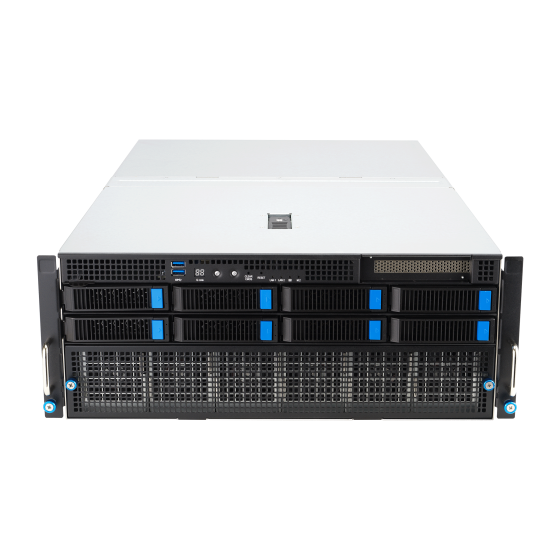

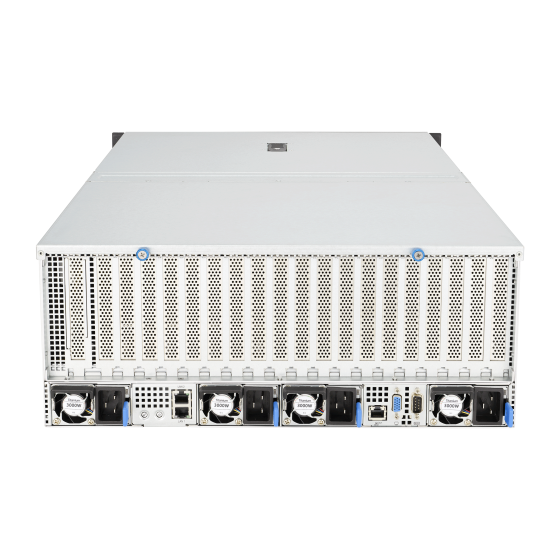

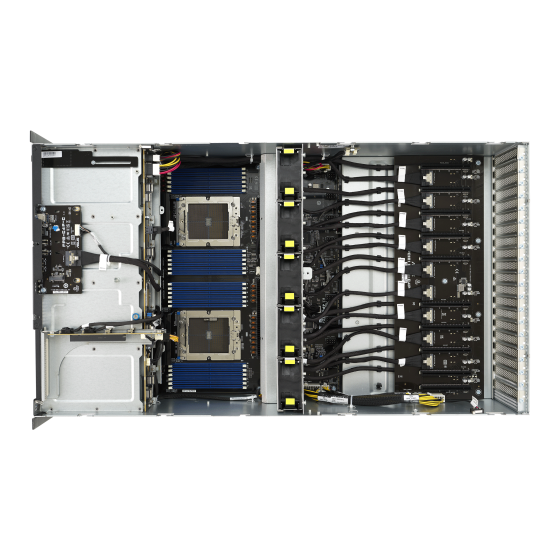

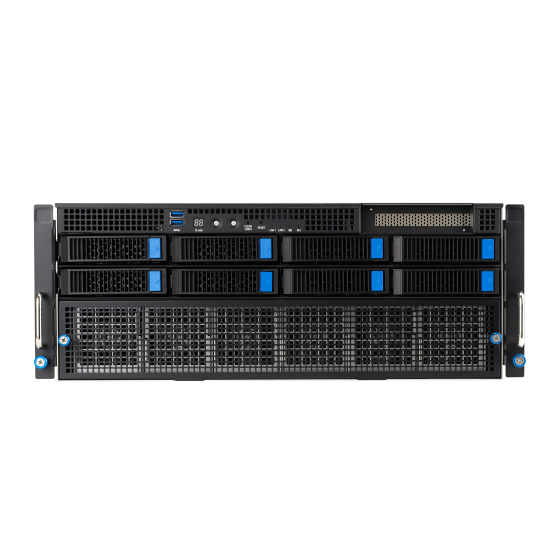

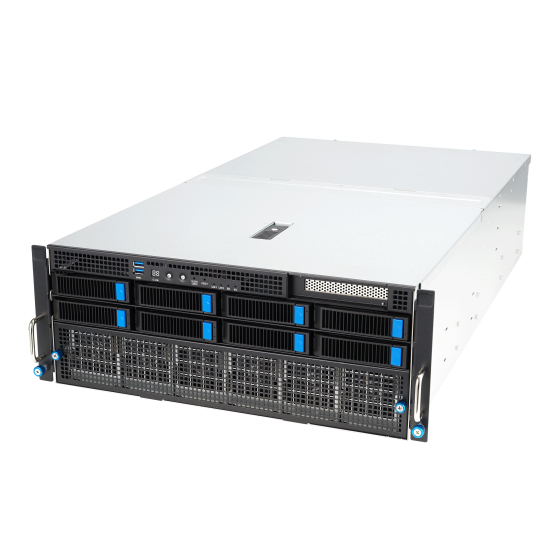

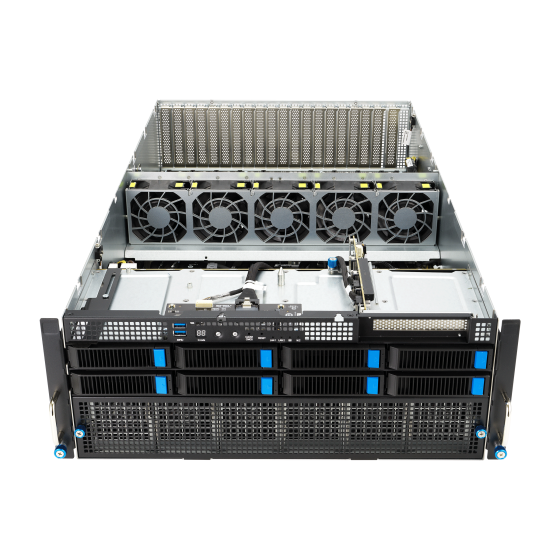

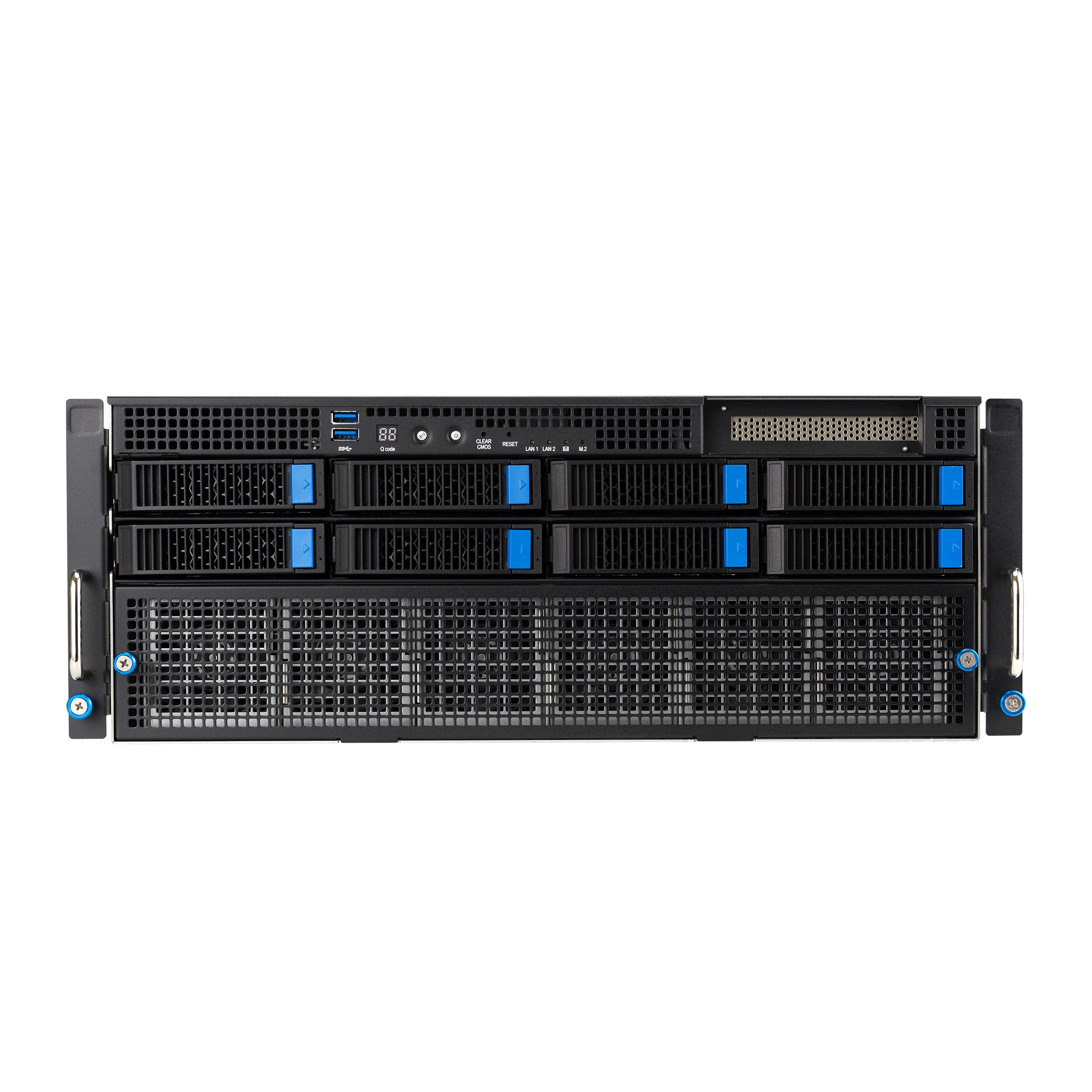

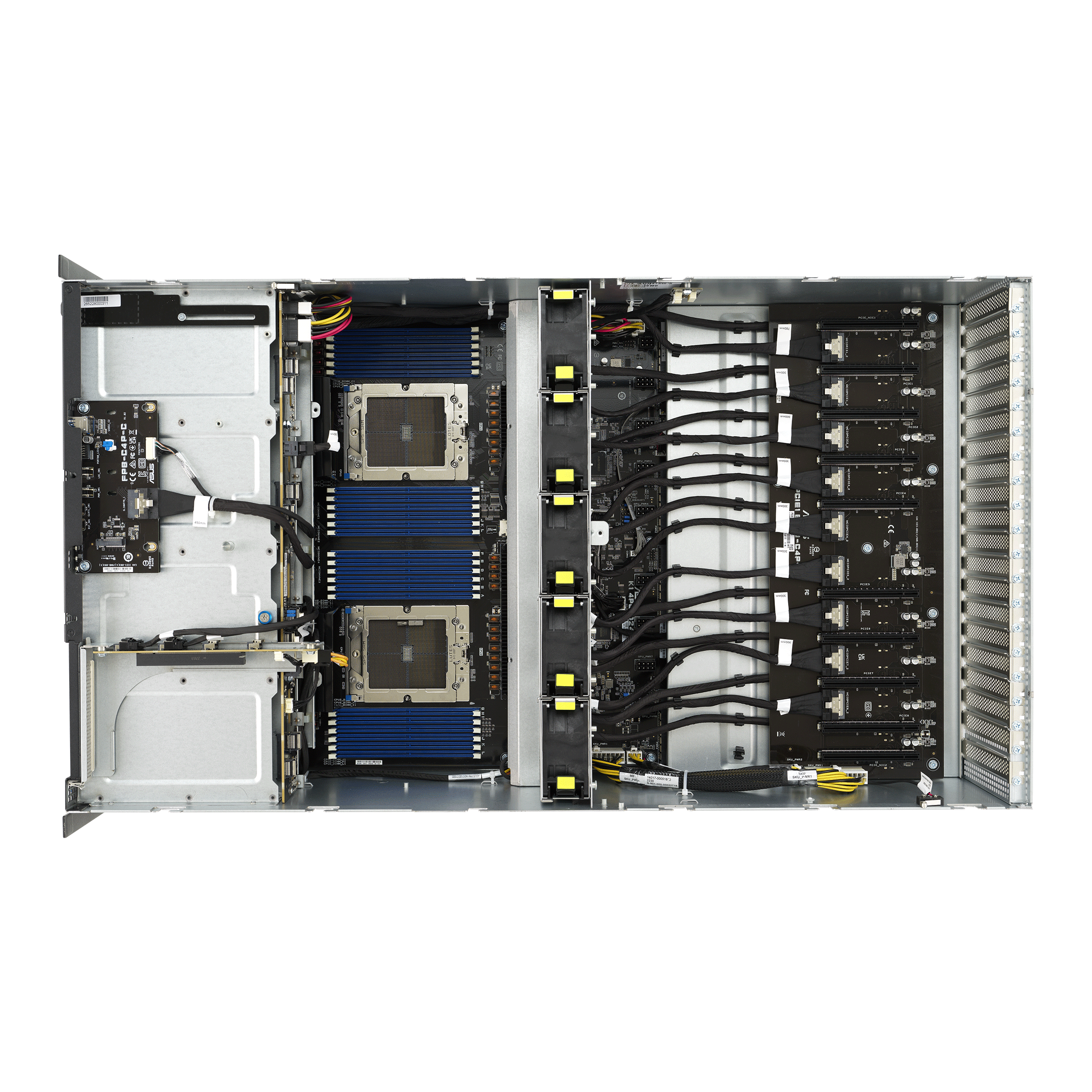

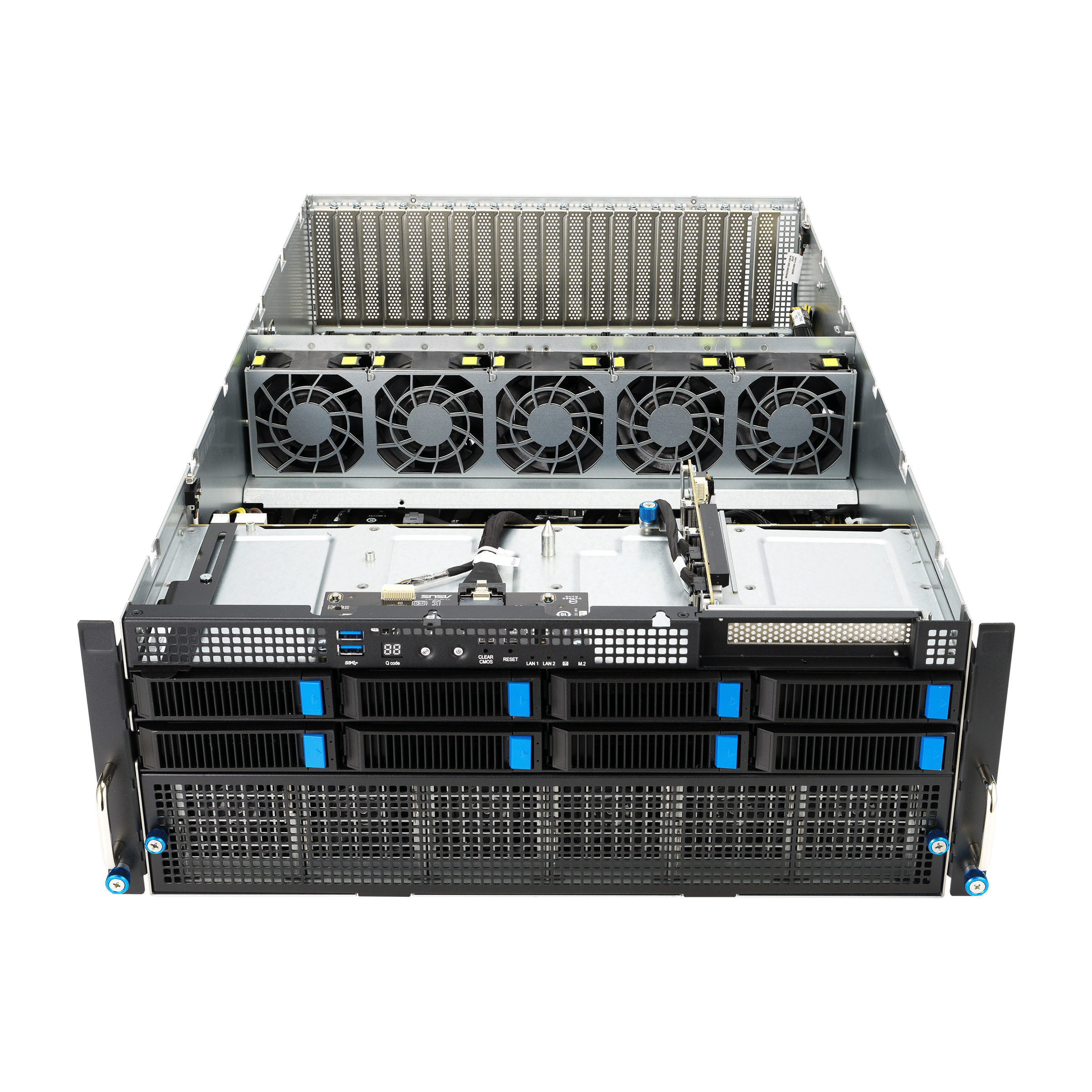

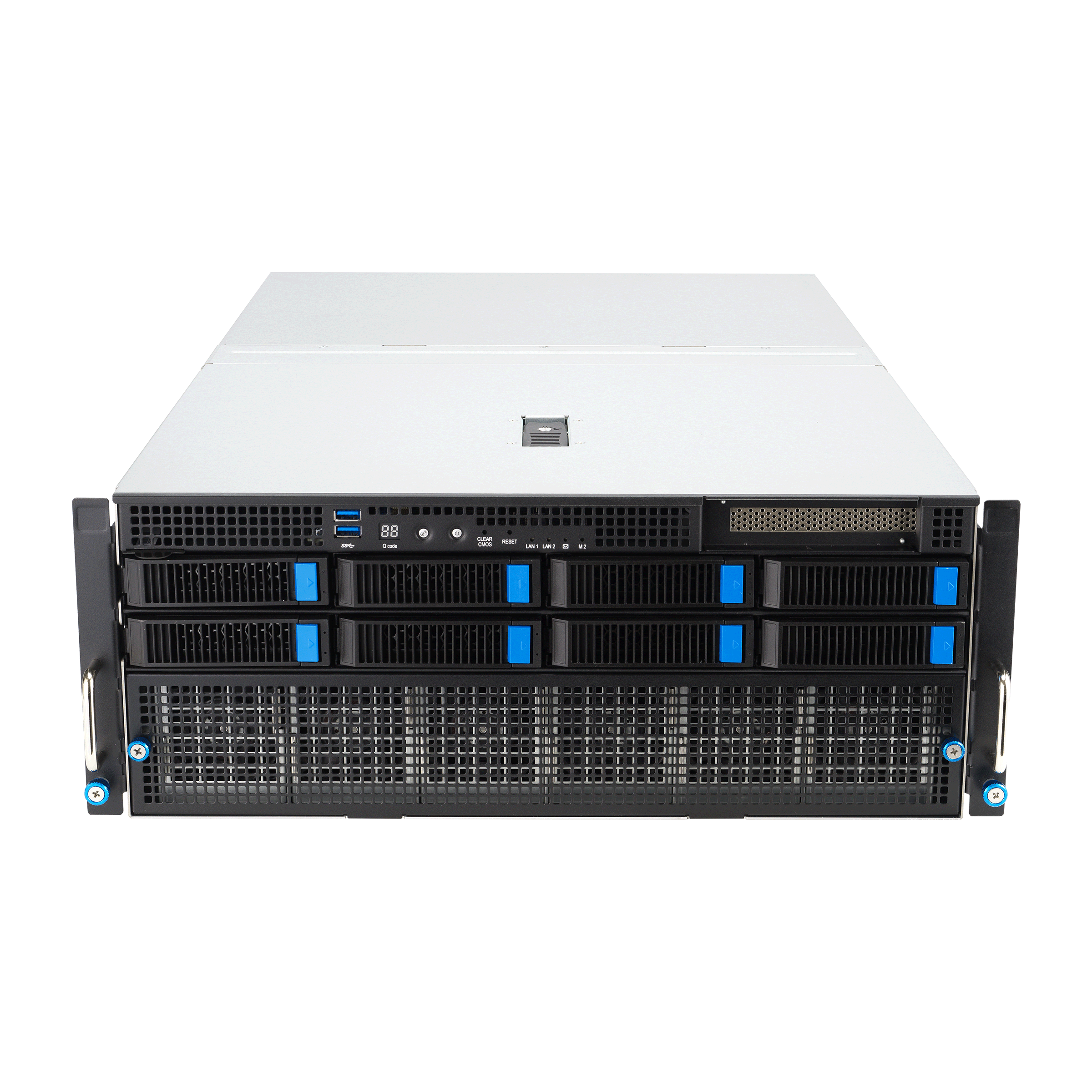

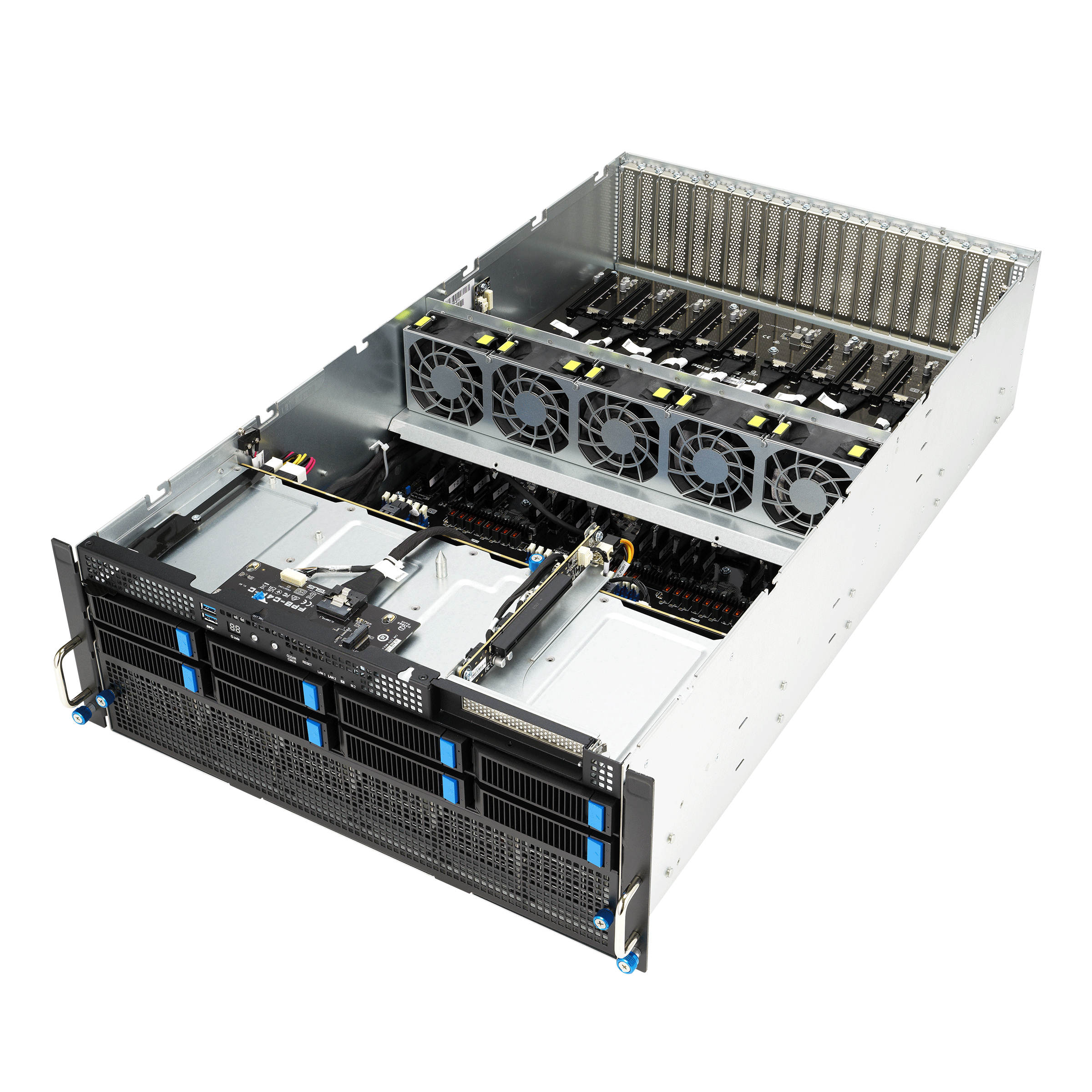

ASUS ESC8000A-E12 Product Images
Correct NationalPC gallery images are included with an object-fit contain layout so the 4U server remains fully visible and professionally presented.
Frequently Asked Questions
Is ESC8000A-E12 a complete ready-to-deploy server?
It is an enterprise server platform. The final system requires compatible processors, DDR5 memory, GPUs, storage, networking and operating system selected for the intended workload.
What workloads is it suitable for?
It is designed for AI training and inference, high-performance computing, deep learning, simulation, rendering, virtualised workloads and data-centre GPU deployments.
Can it be remotely managed?
Yes. ASUS ASMB11-iKVM supports out-of-band remote management and KVM-over-IP functionality for compatible enterprise administration workflows.
Buy ASUS ESC8000A-E12 GPU Server from NationalPC
Build a scalable dual-AMD EPYC 4U GPU server platform with PCIe 5.0 expansion, high-capacity DDR5 memory and eight-GPU density for enterprise AI and HPC.
