- Brand: ASUS
- Model: ROG Crosshair X870E Edition 20
- EAN: 4711636650984
- MPN: 90MB1PD0-M0AAY0
ASUS ROG CROSSHAIR X870E EDITION 20 AMD X870E (AM5 Socket) E-ATX motherboard, Advanced AI PC-ready, 24+2+2 power stages, DDR5 slots with AEMP & NitroPath DRAM Technology, full-width thermal deck, bundled ROG Ryujin 360 Edition 20 AIO liquid cooler, 3mm backplate heatsink, 3D VC M.2 heatsink, nine M.2 slots with expansion cards, two PCIe® 5.0 x16 SafeSlots with PCIe Slot Q-Release Switch, two Realtek 10G Ethernet ports, two USB4® ports, two USB 20Gbps Type-C® front-panel connectors, twelve USB 10Gbps ports, AI Cache Boost, ASUS AI Advisor, AI Overclocking, AIO Q-Connector, and Swivel Dual 6.67" AMOLED LCD, Display Sync-Up Mode
- ROG 20th Anniversary Edition with exclusive premium design
- AMD AM5 socket supports Ryzen™ 9000, 8000 and 7000 Series processors
- 24+2+2 teamed power stages with full-copper VRM thermal solution
- 4 x DDR5 DIMM slots supporting up to 256GB dual-channel memory
- 2 x PCIe 5.0 x16 expansion slots for next-generation graphics cards
- Up to 9 x M.2 slots with PCIe 5.0 and PCIe 4.0 support
- Dual 10Gb Ethernet, Wi-Fi 7 and 2 x USB4® 40Gbps ports
- SupremeFX 7.1 audio with Dolby Atmos, LE Audio and LHDC
- Swivel dual 6.67-inch curved AMOLED display with ASUS InfoHub control
- Compatible with ROG RYUJIN 360 Edition 20 liquid cooling system
- Dispatch after 29-09-2026
Ask a Question About This Product
ASUS ROG Crosshair X870E Edition 20 AMD AM5 E-ATX Motherboard
ASUS ROG Crosshair X870E Edition 20 is a flagship AMD X870E E-ATX motherboard created for the 20th anniversary of ROG. It combines AM5 support for AMD Ryzen 9000, 8000 and 7000 Series processors with 24+2+2 teamed power stages, DDR5 memory tuning, PCIe 5.0 expansion, up to nine M.2 slots, dual 10Gb Ethernet, Wi-Fi 7 and premium ROG Edition 20 design.
Product Specification Highlights
ROG Crosshair X870E Edition 20 is designed for extreme AMD AM5 builds, high-speed DDR5 memory, multi-GPU-ready PCIe 5.0 expansion and storage-heavy workstation configurations.
ROG Edition 20 Design
Premium 20th anniversary ROG styling with collectible flagship presentation for showcase gaming PCs and creator builds.
24+2+2 Power Stages
High-end teamed power design with full-copper VRM thermal solution for sustained AMD Ryzen performance.
Up to 9 x M.2 Slots
Five onboard M.2 slots plus expansion through ROG Hyper M.2 and ROG Q-DIMM.2 support.
Dual 10Gb Ethernet
Two Realtek 10Gb Ethernet ports, Wi-Fi 7 and Bluetooth 5.4 for premium wired and wireless connectivity.
Flagship AMD AM5 Performance
The ASUS ROG Crosshair X870E Edition 20 supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors on the AM5 platform. It is built around the AMD X870E chipset and gives enthusiast builders the power delivery, memory tuning tools and expansion layout expected from a top-tier ROG Crosshair motherboard.
- Processor support: AMD AM5 socket for Ryzen 9000, Ryzen 8000 and Ryzen 7000 Series desktop processors.
- Power design: 24(110A)+2(110A)+2(80A) teamed power stages for demanding gaming, workstation and tuning workloads.
- DDR5 memory: 4 x DIMM slots with up to 256GB support, AMD EXPO, DIMM Fit, AEMP and NitroPath DRAM technology.
Premium Cooling and Edition 20 Display System
ROG Crosshair X870E Edition 20 is engineered for high-end thermal control, including a full-copper VRM thermal solution and motherboard cooling support for demanding AMD Ryzen builds. It is also compatible with the ROG RYUJIN 360 Edition 20 liquid cooling system.
- VRM cooling: Full-copper VRM thermal solution helps control heat around the motherboard power stages.
- M.2 cooling: Extensive M.2 heatsink coverage is built for PCIe 5.0 and PCIe 4.0 NVMe storage.
- AMOLED control: Swivel dual 6.67-inch curved AMOLED display support with ASUS InfoHub control enhances system status and visual customization.
High-Speed Networking, USB and Expansion
This Edition 20 motherboard is built for premium connectivity, including dual 10Gb Ethernet, Wi-Fi 7, USB4 Type-C ports and PCIe 5.0 expansion. It is well suited for high-bandwidth workstations, content creation systems, gaming PCs and multi-drive setups.
- Network: 2 x Realtek 10Gb Ethernet ports with Wi-Fi 7 2x2 and Bluetooth 5.4 wireless support.
- USB: Rear 2 x USB4 40Gbps Type-C ports and 12 x USB 10Gbps ports, plus front USB 20Gbps Type-C headers.
- Expansion: 2 x PCIe 5.0 x16 slots and broad onboard storage support for modern GPUs, add-in cards and NVMe SSDs.
Best Use Cases
ASUS ROG Crosshair X870E Edition 20 is ideal for premium AMD AM5 builds where power delivery, PCIe 5.0 storage, networking and showcase design all matter.
Extreme Gaming PC
Built for flagship Ryzen processors, PCIe 5.0 graphics and high-speed DDR5 memory.
Creator Workstation
Strong choice for NVMe-heavy editing, rendering and multitasking workflows.
Enthusiast Tuning
ROG power, Q-Design and tuning features support advanced builders and overclocking setups.
Showcase Build
Edition 20 design, AMOLED display support and premium ROG accessories create a standout build.

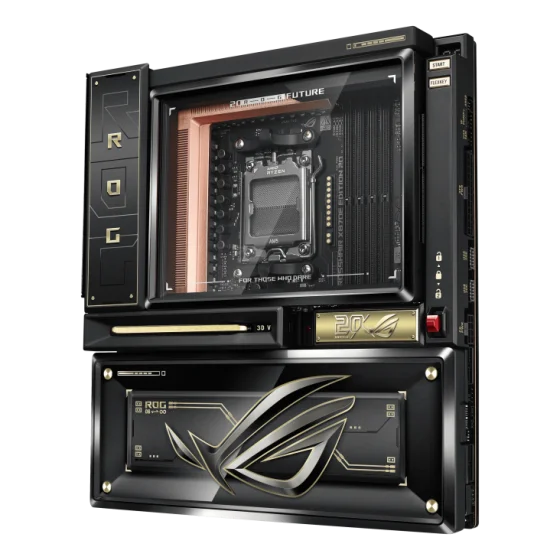

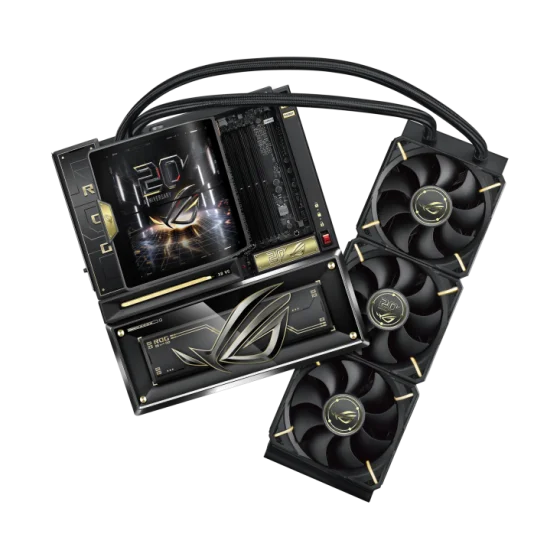

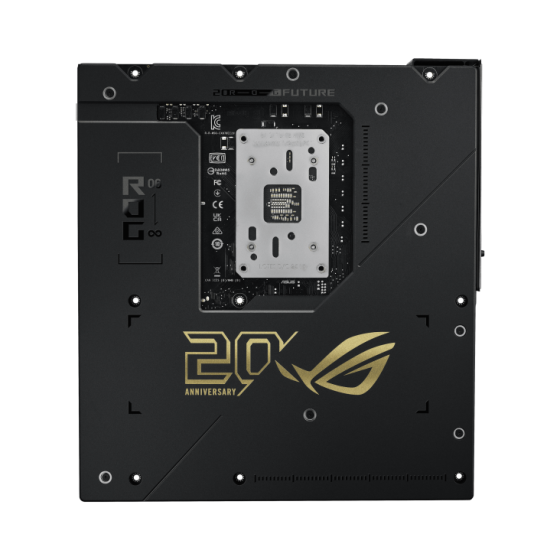

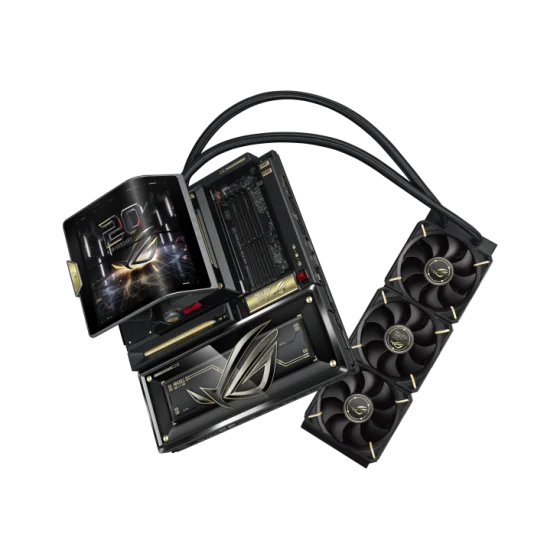

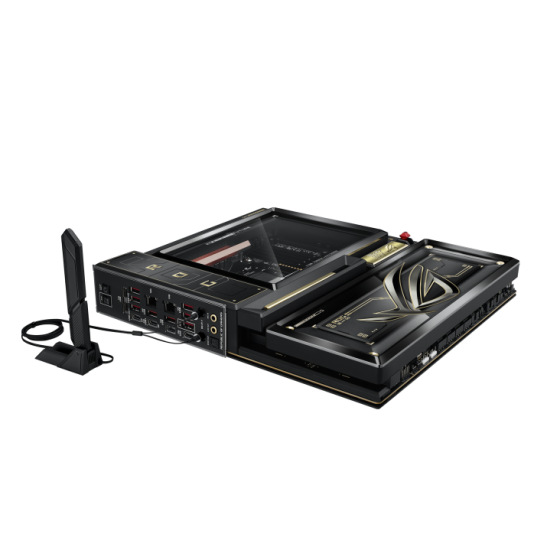

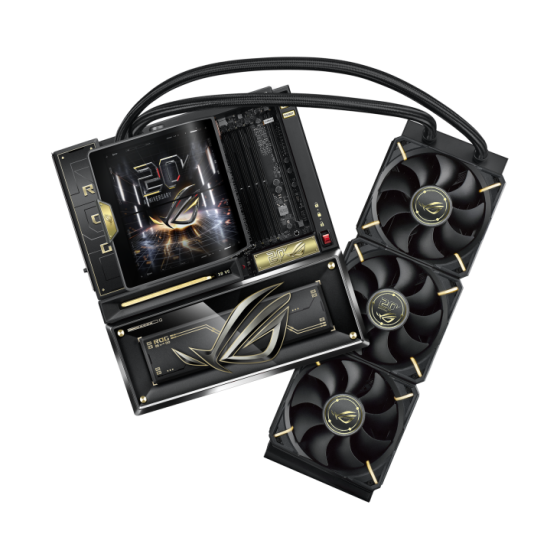

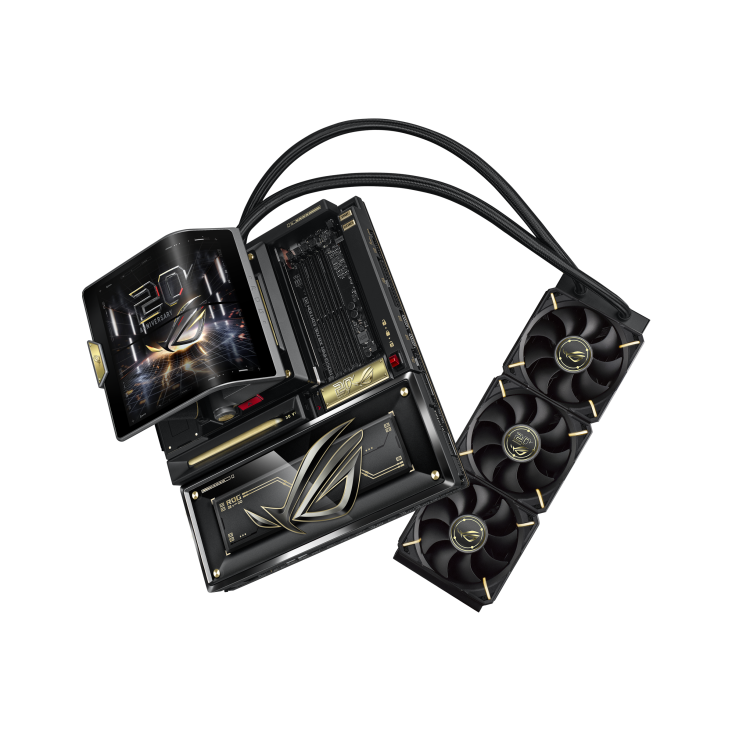

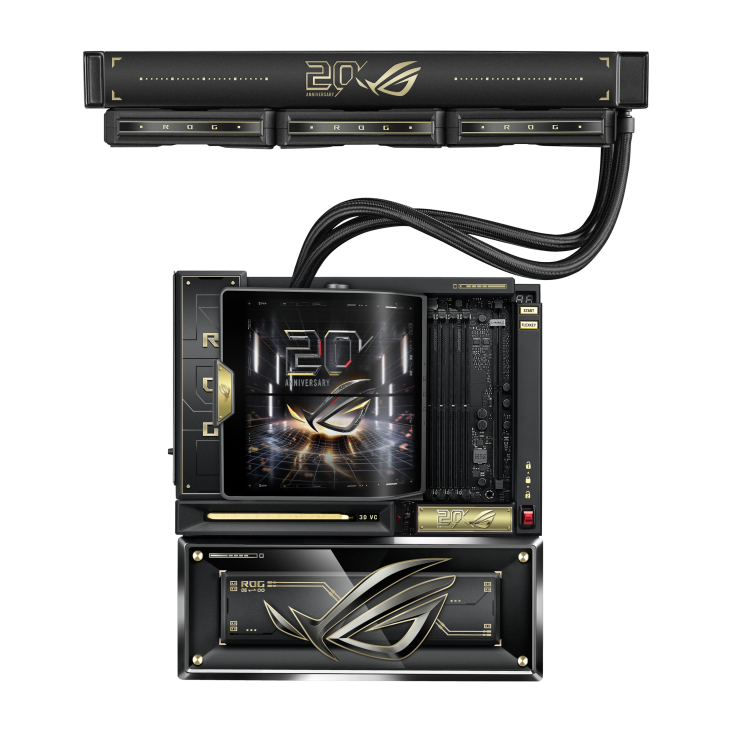

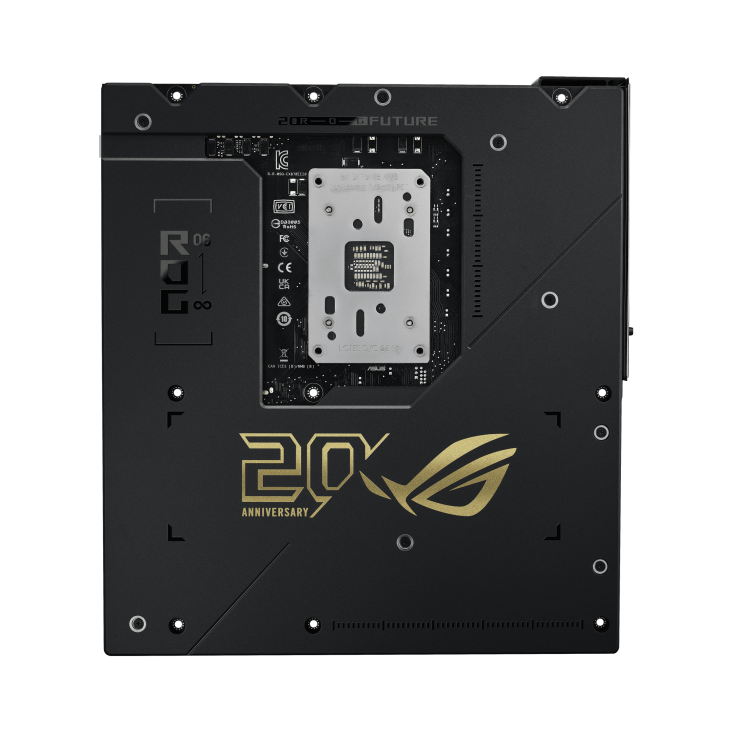

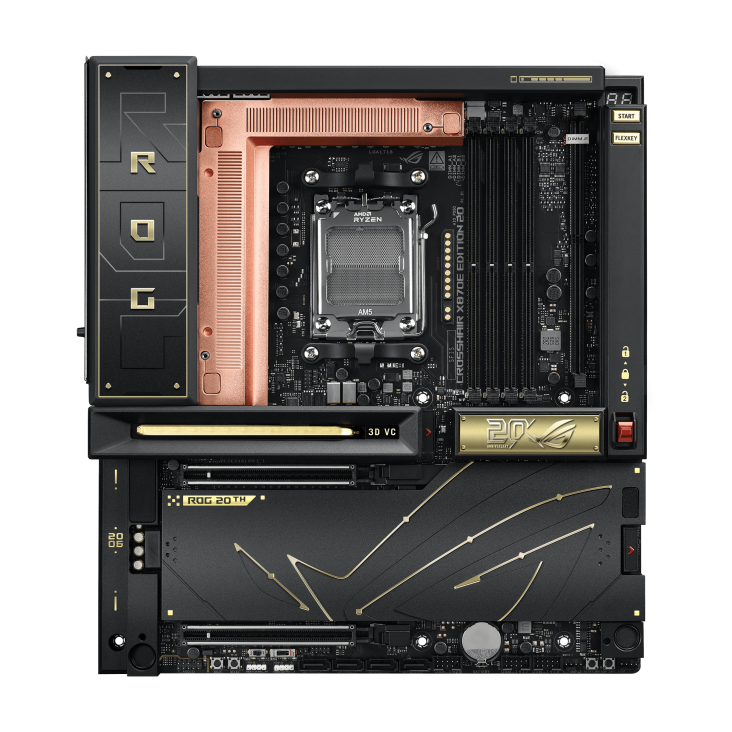

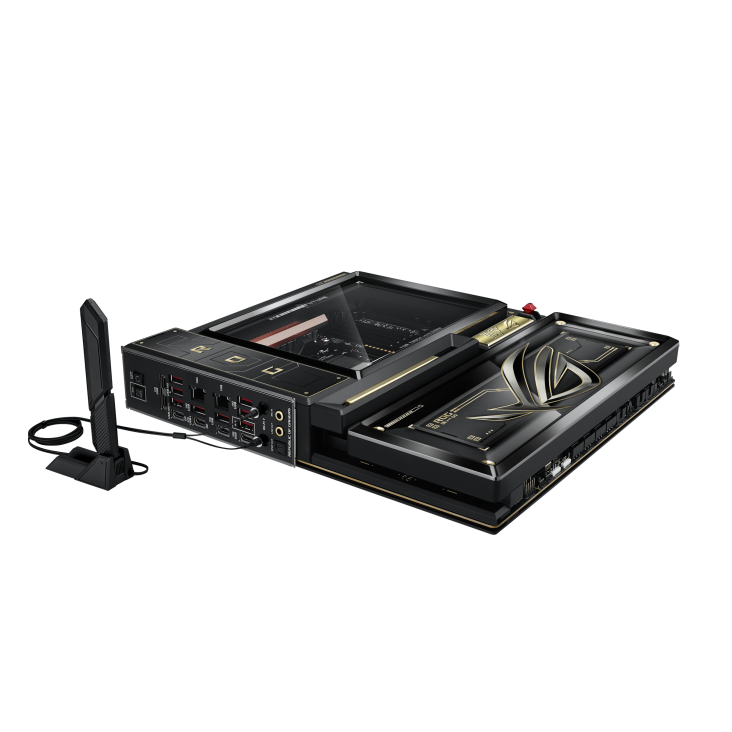

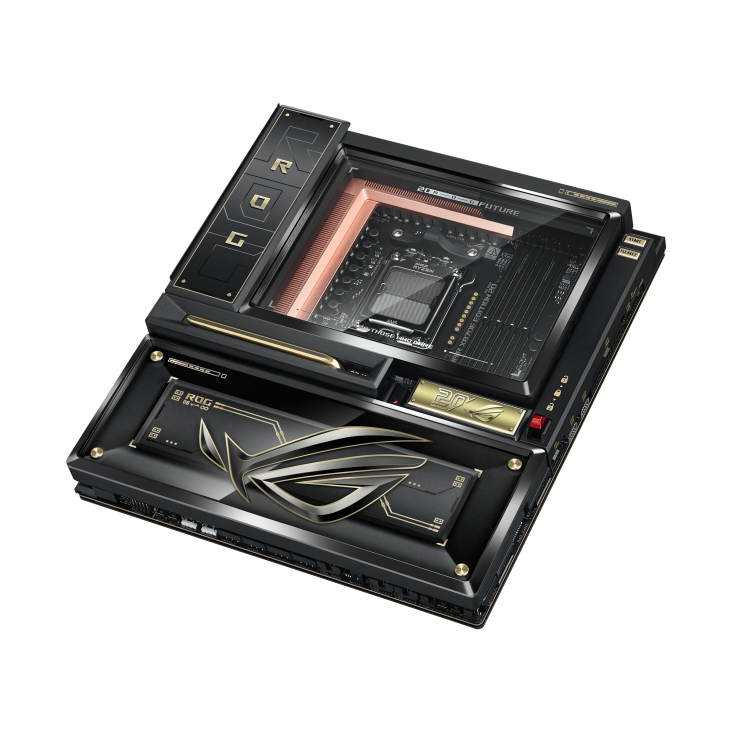

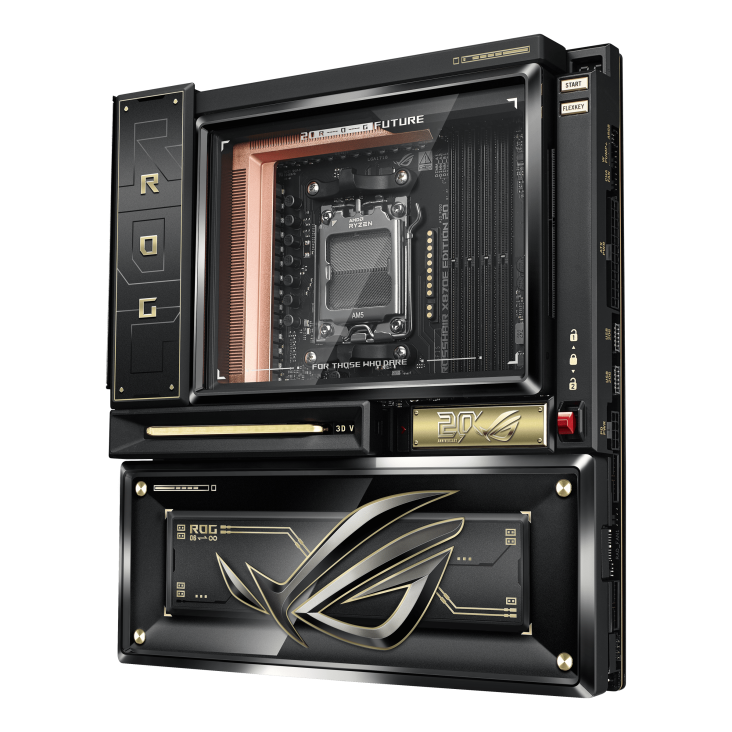

ASUS ROG Crosshair X870E Edition 20 Product Images
Multiple product images are included for a professional website description, with each image contained properly so the motherboard render does not crop or stretch.
ASUS ROG Crosshair X870E Edition 20 Specifications
| Product Name | ASUS ROG Crosshair X870E Edition 20 AMD AM5 E-ATX Motherboard |
|---|---|
| Model Name | ROG Crosshair X870E Edition 20 |
| MPN | 90MB1PD0-M0AAY0 |
| EAN | 4711636650984 |
| Product Family | ROG Crosshair, ROG Edition 20 |
| CPU Socket | AMD AM5 |
| CPU Support | AMD Ryzen 9000, 8000 and 7000 Series desktop processors |
| Chipset | AMD X870E |
| Form Factor | E-ATX, 12 x 10.9 inch |
| Memory | 4 x DDR5 DIMM slots, up to 256GB, dual-channel memory architecture |
| Memory Features | AMD EXPO, DIMM Fit, ASUS Enhanced Memory Profile and NitroPath DRAM technology support |
| Power Stages | 24(110A)+2(110A)+2(80A) teamed power stages |
| Expansion Slots | 2 x PCIe 5.0 x16 slots for Ryzen 9000 and 7000 Series processors, with PCIe Q-Release Switch support |
| Storage | Up to 9 x M.2 slots with PCIe 5.0 and PCIe 4.0 support, plus 4 x SATA 6Gb/s ports |
| RAID Support | RAID 0, 1, 5 and 10 support for AMD Ryzen 9000, 8000 and 7000 Series processors |
| Ethernet | 2 x Realtek 10Gb Ethernet ports |
| Wireless | Wi-Fi 7 2x2 and Bluetooth 5.4 |
| Rear USB | 14 rear USB ports, including 2 x USB4 40Gbps Type-C and 12 x USB 10Gbps ports |
| Front USB | Front USB 20Gbps Type-C connectors, including PD/QC4+ fast charging support up to 60W |
| Audio | ROG SupremeFX 7.1 surround sound audio with ALC4082 codec and ESS ES9219 QUAD DAC |
| Special Features | Dual 6.67-inch curved AMOLED display support, ASUS InfoHub, Q-Design features, ROG Hyper M.2 Card and ROG Q-DIMM.2 support |
| Included Accessories | ROG RYUJIN 360 Edition 20 AIO kit, ROG Hyper M.2 Card, ROG Q-DIMM.2, ASUS Wi-Fi Q-Antenna and ROG accessory kit |
| Operating System Support | Windows 11 |
| NationalPC Product Page | Buy ASUS ROG Crosshair X870E Edition 20 from NationalPC |
Frequently Asked Questions
Which processors does ROG Crosshair X870E Edition 20 support?
ROG Crosshair X870E Edition 20 supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors through the AMD AM5 socket.
Does this motherboard support DDR5 memory?
Yes. It includes 4 x DDR5 DIMM slots with support for up to 256GB memory, AMD EXPO, DIMM Fit, ASUS Enhanced Memory Profile and NitroPath DRAM technology.
How many M.2 slots are available?
The motherboard supports up to 9 x M.2 slots using the onboard M.2 slots together with ROG Hyper M.2 Card and ROG Q-DIMM.2 expansion support.
Is this suitable for a flagship gaming or workstation build?
Yes. The AMD X870E chipset, 24+2+2 power design, PCIe 5.0 expansion, dual 10Gb Ethernet, Wi-Fi 7 and large M.2 capacity make it a premium option for high-end gaming PCs and creator workstations.
