ASUS ProArt B550-CREATOR AMD B550 Ryzen AM4 ATX motherboard for content creators features PCIe® 4.0, dual Thunderbolt™ 4 Type-C ports, dual Intel® 2.5Gb Ethernet, dual M.2 with heatsinks, USB 3.2 Gen 2 and advanced security management
LET YOUR CREATIVITY FLOW
The ProArt B550-Creator motherboard equips creative professionals with powerful hardware and software tools to accelerate their workflows. Featuring comprehensive, efficient cooling and lightning-fast connectivity, this board maximizes the computing power of the latest AMD Ryzen processors to let you create faster and get more done. Combined with a stylish design, advanced security features and the trusted stability and reliability ASUS motherboards are known for, ProArt B550-Creator perfects the art of performance to empower your creative flow.
- AM4 socket : Ready for AMD Ryzen™ 5000 Series / 4000 G-Series / 3000 Series desktop processors
- Powerful I/O : Dual Thunderbolt 4 Type-C ports, dual Intel® 2.5G onboard Ethernet, USB 3.2 Gen 2 plus HDMI™ 2.1 and DisplayPort™ 1.2 output
- Unthrottled Performance : PCI 4.0-ready, 12+2 power stages with high-quality alloy chokes and durable capacitors
- Advanced Security : USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
- ProArt Gives You More : Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
- Trusted Stability : Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot for enhanced durability

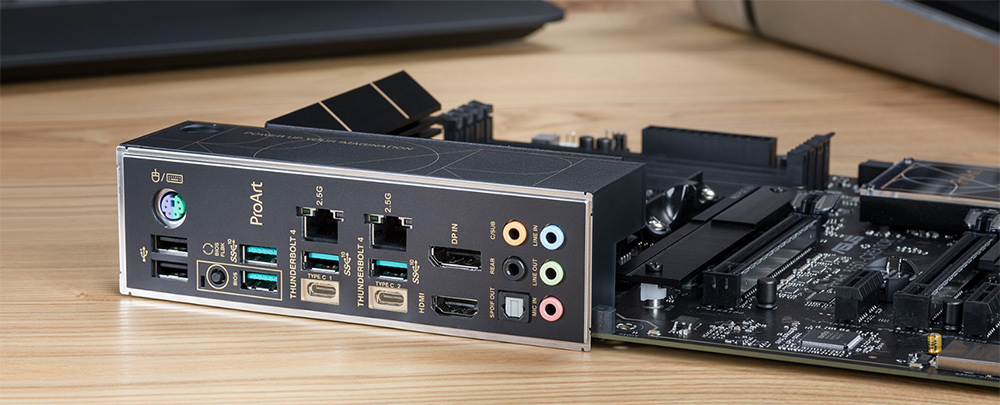

A comprehensive array of powerful I/O ports — including two Thunderbolt™ 4 ports, two 2.5G Ethernet and four USB 3.2 Gen 2 ports — enables quick data transfers and extensive storage options with flexible, hassle-free connectivity.
Dual Thunderbolt™ 4 Type-C®
Each Thunderbolt™ 4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to up to 32 Gbps.
Dual 4K or One 8K display
Dual 2.5G Ethernet
Experience faster data transfers and high-res video streaming with two Intel 2.5G Ethernet (I225-V) ports. ProArt B550-Creator also features CreationFirst, exclusive network optimization software that allocates more bandwidth to speed up essential apps for your work.
ProArt B550-Creator provides robust power delivery and comprehensive cooling to handle the latest AMD Ryzen™ processors. It also supports PCIe 4.0, providing everything you need for the most demanding multithreaded tasks like 3D or video rendering and software compiling.

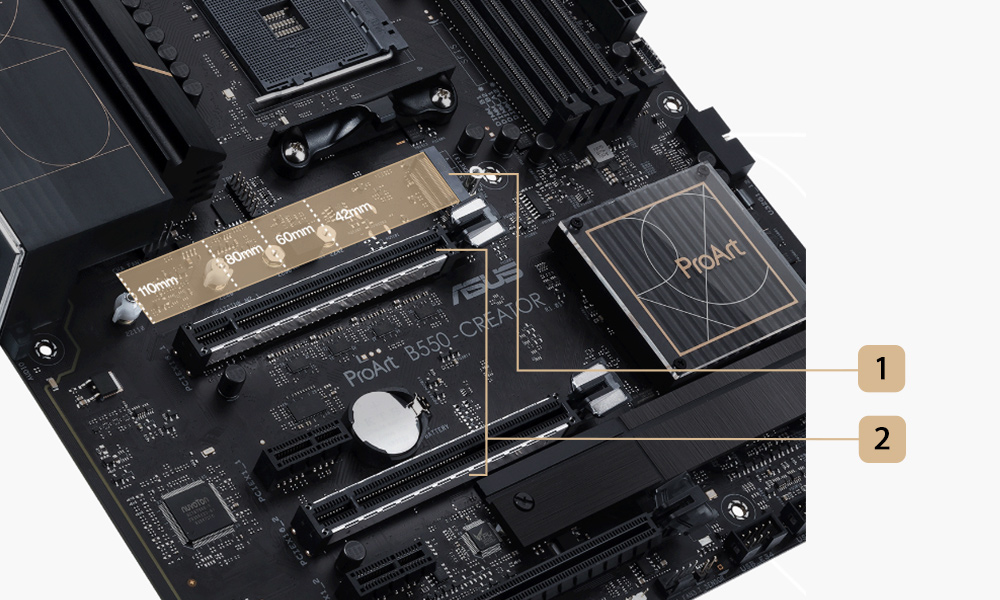

Go Faster with PCIe 4.0
To maximize the potential of the AMD Ryzen 3000 and 5000 Series processors, ProArt B550-Creator features faster PCIe® 4.0 x16 slots for high-powered graphics cards as well as PCIe 4.0 and PCIe 3.0 M.2 sockets to support high-bandwidth NVMe SSD RAID for faster content creation.
PCIe 4.0 M.2 Connector
PCIe 4.0 x16 (x16 or x8/x8)

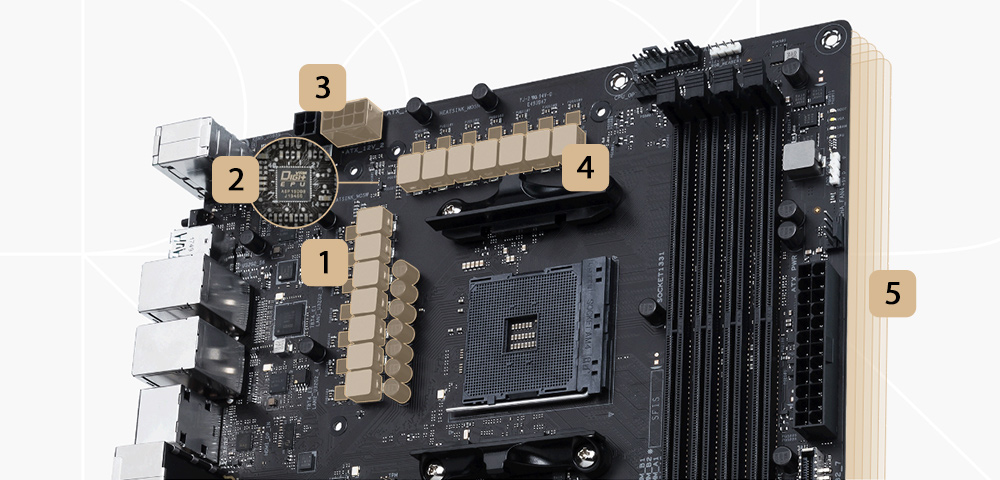

Robust Power Design
ProArt B550-Creator provides robust power delivery to handle the full power of latest Ryzen processors and improve overall system stability.
Teamed Power Stages12+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest AMD Ryzen processors demand.
Digi+ Power ControlThe ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
ProCool II Power ConnectorThe ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.
Choke & CapacitorSuperior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
6-Layer PCBThe 6-layer PCB quickly dissipates heat around the VRM to improve overall system stability and give the CPU more overclocking headroom.

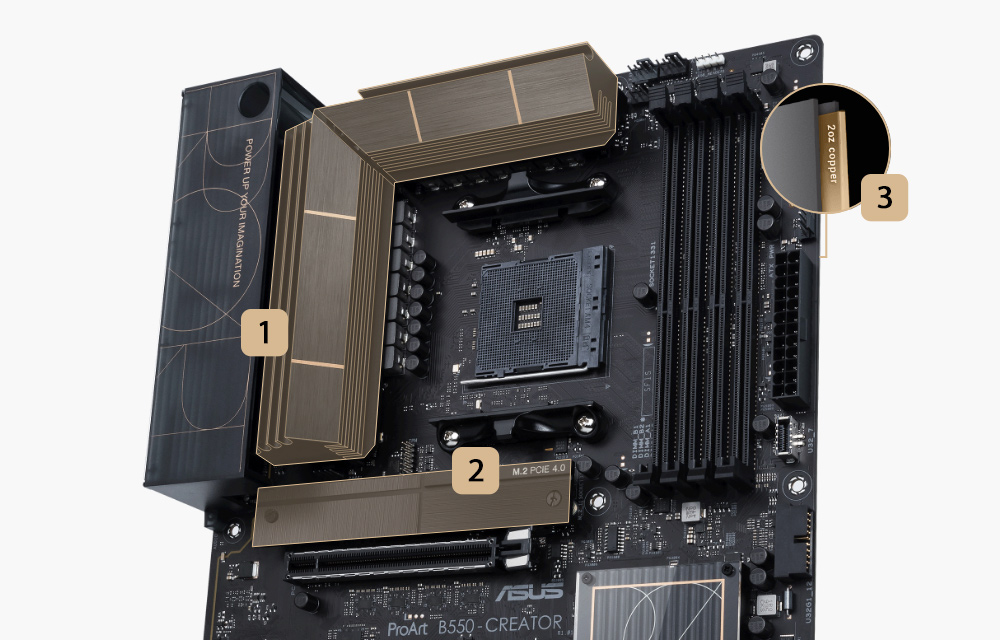

Cool to the Core
The VRM and M.2 heatsink designs ensure effective cooling of the CPU and SSD to ensure system stability and fast storage performance for seamless content creation workflows.
VRM Heatsink & Thermal PadLarge, high-mass heatsinks with an extensive surface area along with high-quality thermal pads help transfer heat from VRM and choke areas to improve heat dissipation.
M.2 HeatsinkBoth M.2 drives sit under a passive heatsink to ward off the throttling that can occur with sustained transfers.
Stack Cool 3+Layers of 2-ounce copper draw heat away from critical components to keep them at their optimal operating temperatures.
Advanced security from ASUS Control Center Express to protect your data and system.Learn More >
USB Port Management
Enable or disable the USB port or set it to Read Only to prevent data leaks.
A software blacklist is also available to prevent running of high-risk applications for IT security.
Registry Editor On/Off
Remotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations for enhanced security.
ProArt Gives You More
ProArt-exclusive software utilities deliver intuitive system monitoring, audio and networking enhancements that smooth your workflow.
Two-Way AI Noise Cancelation
With working-from-home becoming the new normal, clear online communication is critical, even for content creators. Our latest audio utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back so you can hear and be heard with crystal clarity while in calls.
*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.
ProArt Creator Hub
A user-friendly interface designed to enhance your workflow through central system monitoring and control of all connected ProArt Series products, including motherboards and displays.
Fan ModeFan mode quickly configures your system’s cooling by selecting the preferred fan setting.
Task GroupApplications that are frequently used together can be arranged into groups and launched with a single click.
Network-optimization software allows you to prioritize applications in order to allocate more bandwidth to speed up essential apps and tasks.
Adaptive Intelligence ModeIntelligently prioritizes bandwidth of heavy-use applications by identifying in-use applications and using foreground acceleration.
Creation First ModeAllocates more bandwidth to active content-creation applications to optimize network traffic, making your workflow more efficient.
|PCI Express Type||PCI Express 4.0|
|Motherboard||Motherboard:PCIe 3.0 x1:2|
|Memory Speed||DDR4 4866 MHz|
|MOB Chipset||AMD B550|
|MOB Form Factor||ATX|
|M.2 Connector||2 x M.2 Socket|
|SATA Connector||4 x SATA 6Gb/s|
|USB Type-C Port||2 x USB Type-C|
|DisplayPort||1 X DisplayPort|
|USB 3.2 Port||4 x USB 3.2|
|HDMI Output||1 x HDMI port|
|USB 2.0 Port||4 x USB 2.0|
|COM port||1 x COM port|
