| Hard Drive | ‎4 TB Mechanical Hard Disk |
|---|

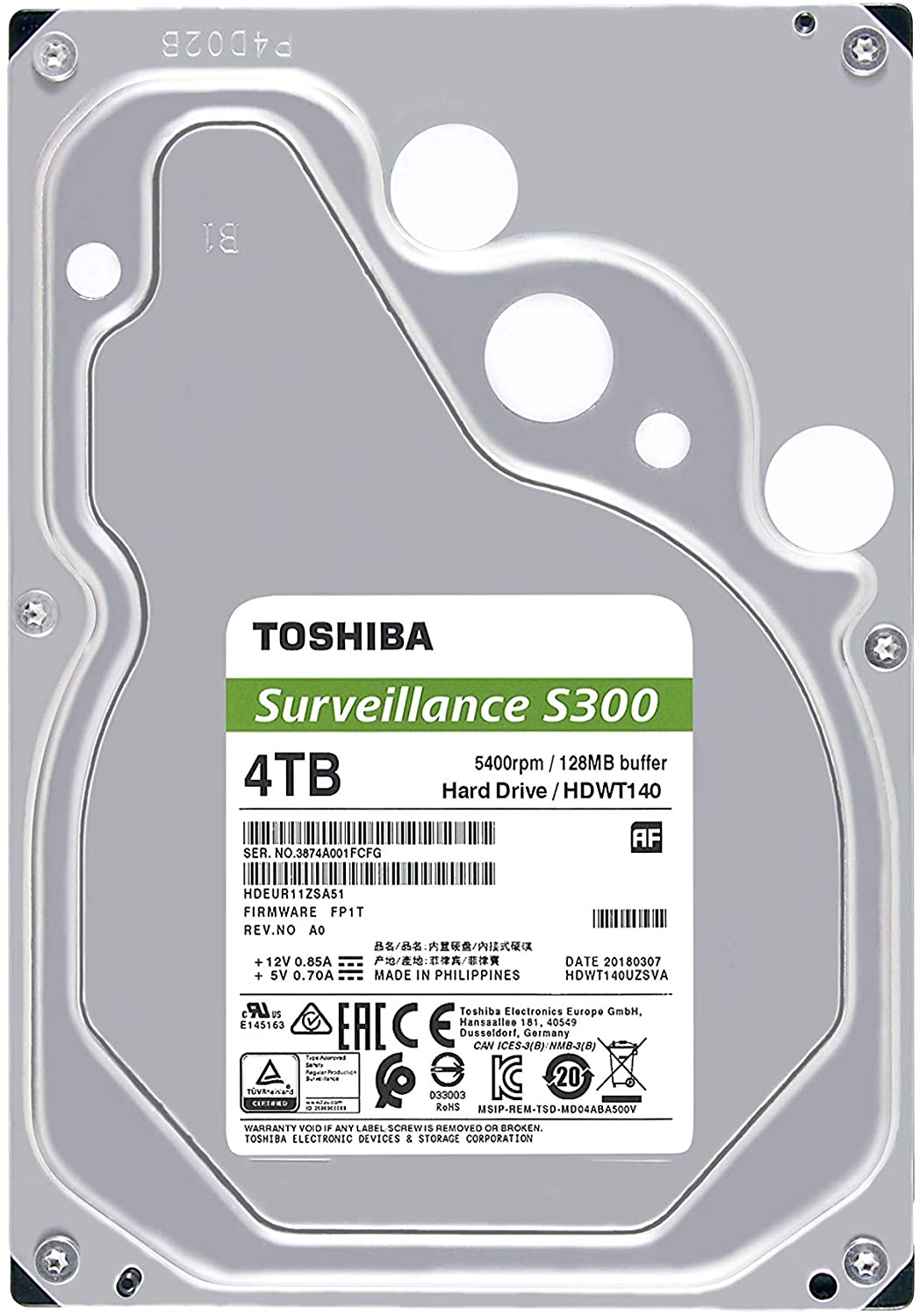

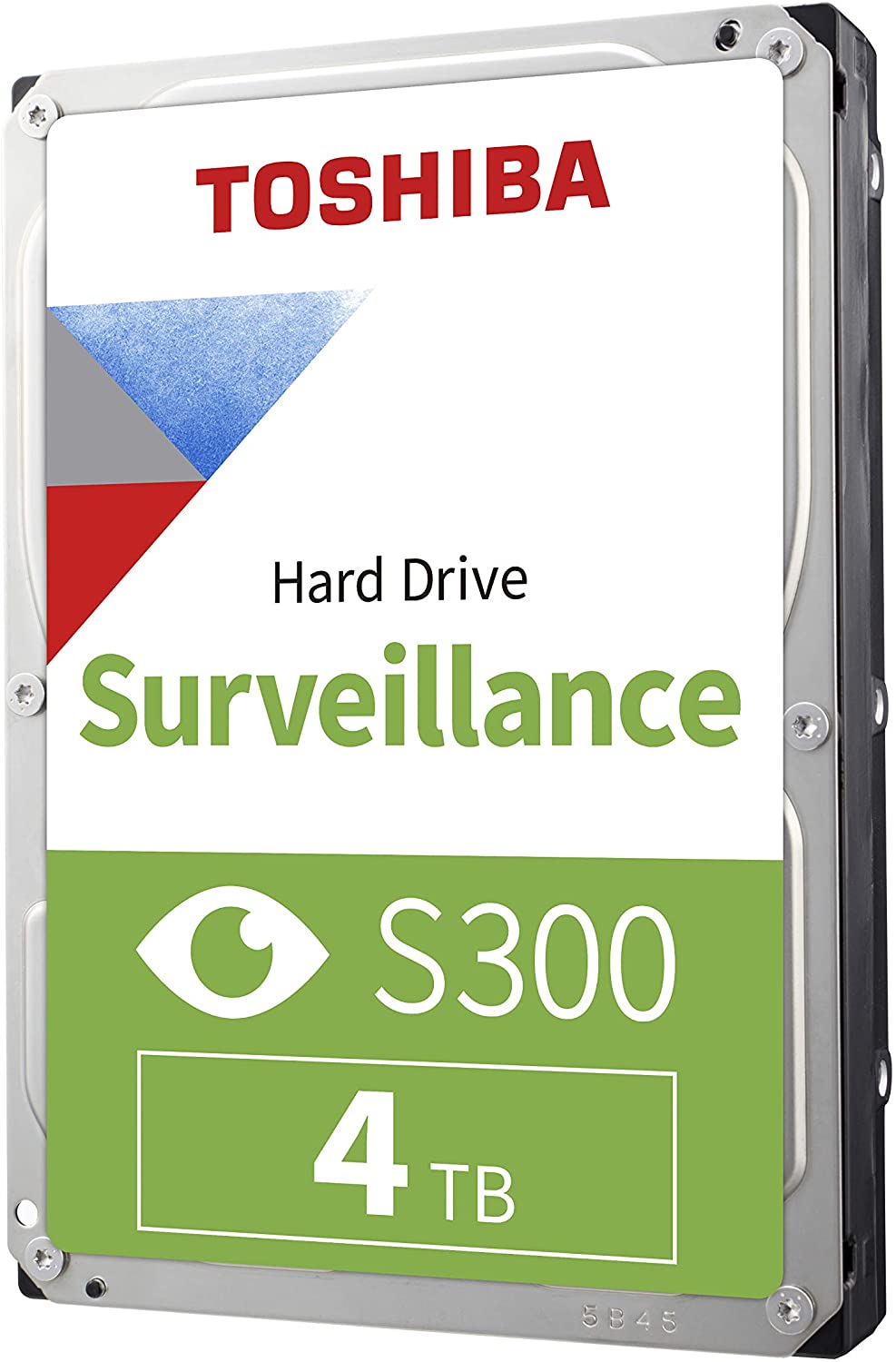

Toshiba S300 Surveillance 3.5inch HDD 4TB
1 / 3
Brand: Toshiba· More from Toshiba ›- Model
- S300 Surveillance 4TB
- MPN
- HDWT740UZSVA
- EAN
- 0723844000622
- UPC
- 723844000622
Price on request
Key features
- Designed for 24/7 surveillance and video recording security systems
- Scalable up to 32 HD video camera
- Support up to 110 TB/Year workload rating
- Built-in rotational vibration (RV) sensors; Maintains durability in harsh operating environments
- Includes Toshiba 3 year limited
From the manufacturer
Â
Toshiba S300 Surveillance 3.5" Internal Hard Drive
Capture Every Detail
For those serious about security, the Toshiba S300 Surveillance Internal Hard Drive has you covered from every angle. The S300 offers equally high performance and surveillance-critical reliability designed for 24/7 operation in your home office and small office video surveillance systems.
Engineered for high reliability, the S300 Surveillance Hard Drive supports a high workload rating and is tested to perform around-the-clock and never sleeps – so that you can.
The S300 comes with features to help safeguard your data and provide optimal performance for your surveillance system. It’s all backed by over 45 years of storage expertise and exceptional quality of Toshiba, the name you can trust. Plus, it comes with a Toshiba three-year limited warranty (3) that gives you peace of mind.
Use for (2):
Â
- Surveillance Network Video Recorders (sNVR)
- Surveillance Digital Video Recorders (sDVR)
- Hybrid sDVR (analog and IP)
- RAID Storage Arrays for Surveillance
Â
Specifications (4):
- Capacity (1): 4 TB
- Interface: SATA 6 Gbit/s
- Drive Bays supported (6): Up to 8
- Cameras supported (10): Up to 32
- 5400 RPM / 128 MB Cache
- Workload rating (7): Up to 110 TB/year
- MTTF (8): up to 1 million hours
- Limited Warranty (3): 3 years
Â
Features
|
|
|
|
|---|---|---|---|
Designed for 24/7 SurveillanceThe S300 is designed to run reliably in demanding surveillance environments, supporting workloads* of up to 180 TB per year (7) and MTTF of up to 1 million hours (8) to help keep your security system running 24/7. * workloads vary by capacity | Optimized PerformanceRecord and stream high definition videos at lightning-fast speeds reliably with up to 10TB (1) storage capacity - allowing you to store more high definition footage and more high quality frames per second. The S300's large cache size (up to 256 MB)* and fast data transfer speed (up to 248 MB/s (9))* help minimize frame loss and improve video playback. * cache size and transfer speed vary by capacity | Scale with your Security SystemThe S300 is designed to support up to 64 high definition cameras (10)*, giving you the flexibility to upgrade and expand your surveillance security system in the future. With up to 10TB (1) storage capacity, you can store more HD videos, enabling longer data retention on fewer number of HDDs. * number of cameras supported varies by capacity | Built to LastThe S300 utilizes RV sensor technology to compensate for the effects of vibration from adjacent drives or cooling fans in a multi-bay enclosure. It is designed to operate in a wide temperature range and maintains durability even in harsh operating environments. |
Â
Specifications
| Basic Specifications | |
| Form factor | 3.5-inch |
| Interface | 6.0 Gbit/s |
| Number of cameras supported | 32 |
| Drive bays supported | up to 8 |
| Shock Sensor | Yes |
| Advanced Format (AF) | Yes |
| RoHS compatible | Yes |
| Halogen free | Yes |
| Recording Technology | SMR |
| Performance | |
| Rotational speed (rpm) | 5400 |
| Max. data transfer speed (sustained MB/s Typ.) | 184 |
| Buffer size (MB) | 128 |
| Average latency (ms) | 5.56 |
| Reliability | |
| Workloads (TB/year) | 180 |
| MTTF (hours) | 1,000000 |
| Unrecoverable error rate | 1 per 10^14 |
| 24 x 7 operation | Yes |
| Load/Unload cycle | 600 000 |
| Power Management | |
| Supply voltage | 5 V DC ±5%, 12 V DC ±10% |
| Consumption (operating) | 4.11 W typ. |
| Consumption (active idle) | 2.36 W typ. |
| Environmental | |
| Temperature (operating/non-operating) | 0 to 70°C, -40 to 70 °C |
| Vibration (operating) | 4.90 m/s2 {0.50 G}(5 to 350 Hz) 2.45 m/s2 {0.25 G} (350 to 500 Hz) |
| Vibration (non-operating) | 29.4 m/s2 {3.0 G} (5 to 500 Hz) |
| Shock (operating) | 686 m/s2 {70 G} (2 ms duration) |
| Shock (non-operating) | 3430 m/s2 {350 G} (2 ms duration) |
| Acoustics (idle mode) | 21 dB typ. |
| Physical | |
| Dimensions | 147 (L) x 101.85 (W) x 26.1 (H) |
| Weight | 650 g |
| Warranty | 3 Years |
