- Brand: MSI
- Model: RTX 5060 Ti Ventus 2X OC Plus
- UPC: MSI-G506T-8V
- MPN: G506T-8V2CP
MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS Graphics Card delivers Blackwell-powered gaming, AI acceleration and content-creation performance in a compact dual-fan design.
- NVIDIA GeForce RTX 5060 Ti GPU | Blackwell Architecture
- 4,608 CUDA Cores | 8GB GDDR7 Graphics Memory
- 2602MHz Boost Clock | Up to 2617MHz Extreme Performance Mode
- 28Gbps Memory Speed | 128-Bit Memory Interface
- PCIe Gen5 x16 Interface Operating at x8
- 3 x DisplayPort 2.1b | 1 x HDMI 2.1b | Up to Four Displays
- STORMFORCE Dual-Fan Cooling | Reinforcing Backplate
- 180W Power Consumption | 1 x 8-Pin Connector | 600W Recommended PSU
Ask a Question About This Product

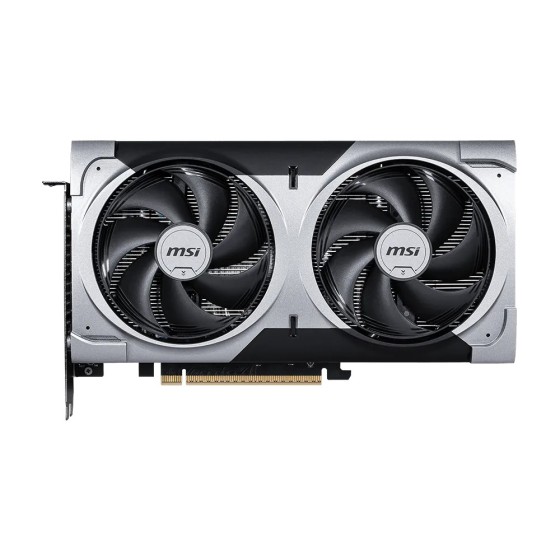

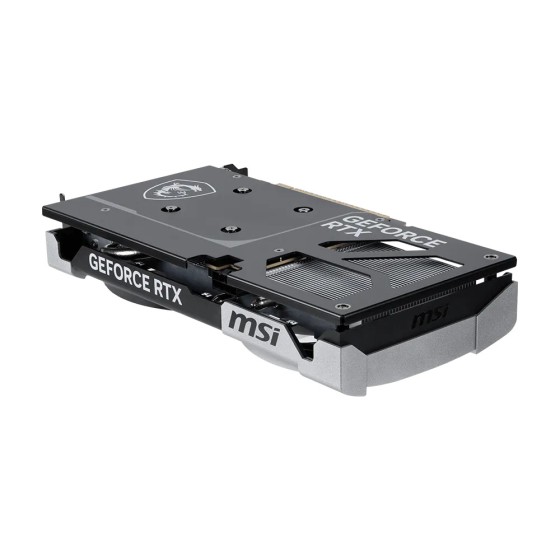

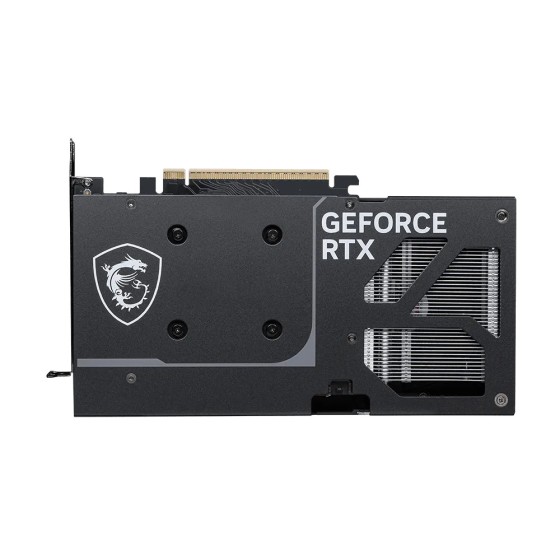

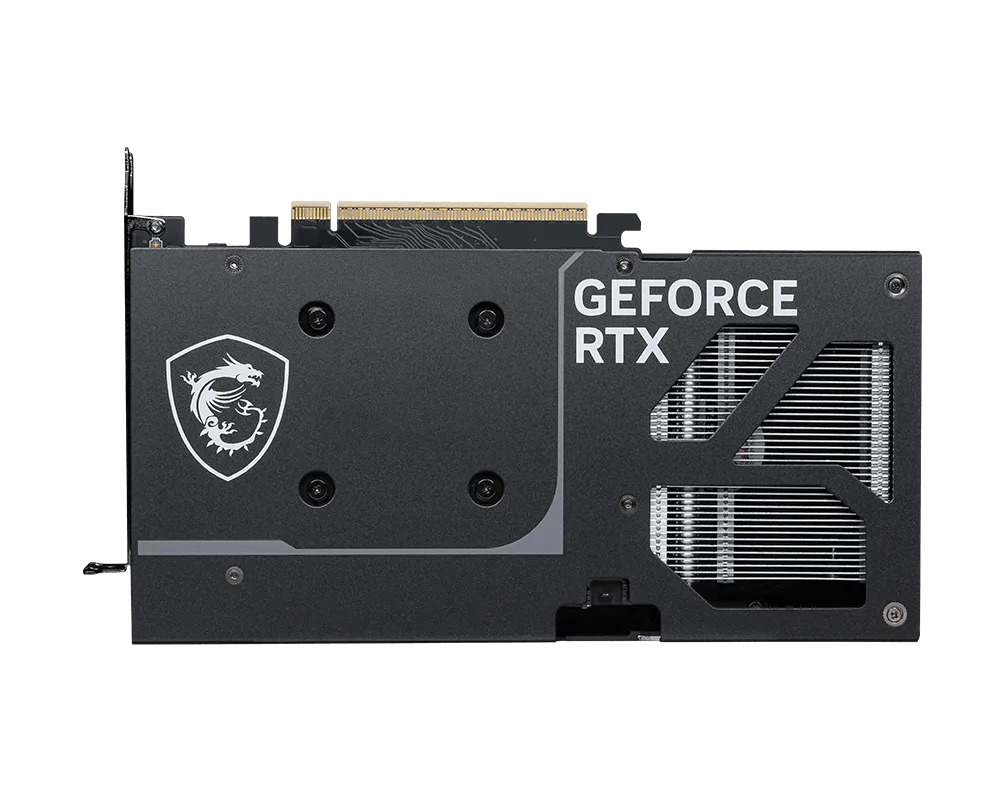

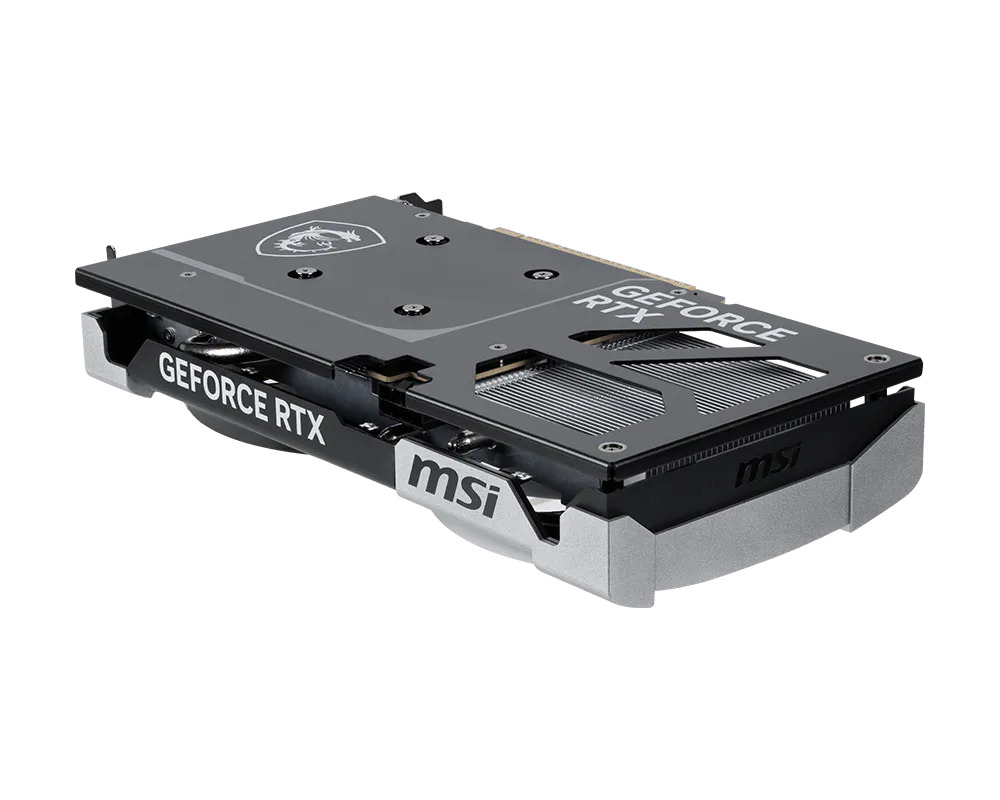

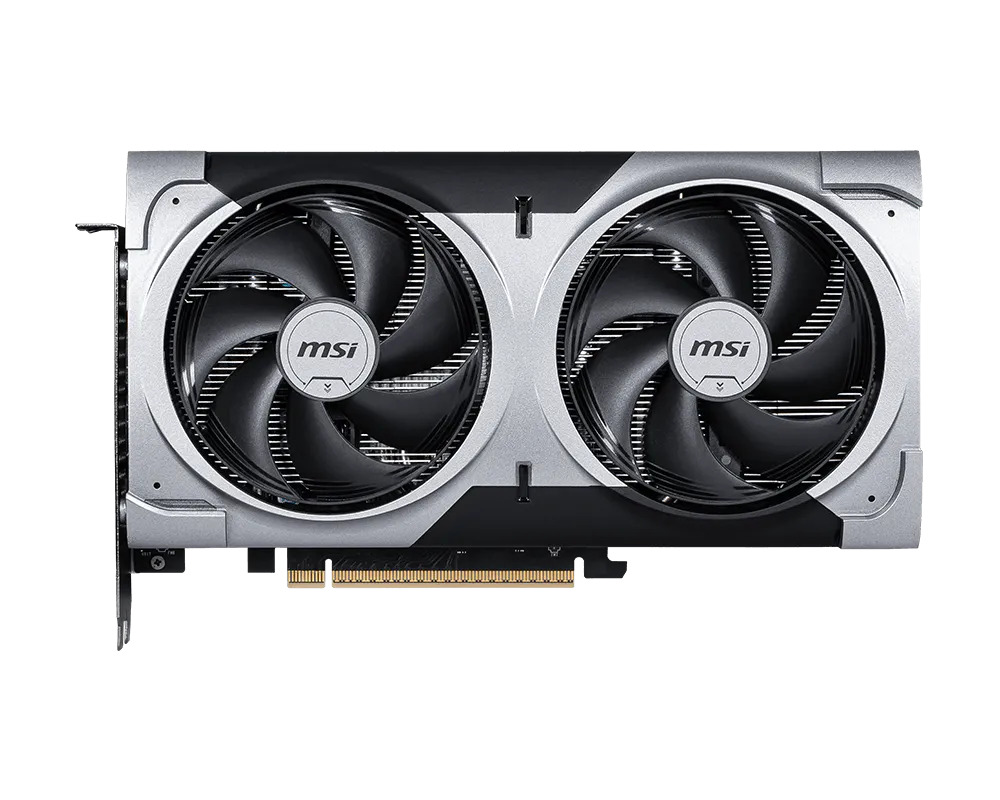

MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS
Upgrade your gaming and creator PC with an efficient NVIDIA Blackwell graphics card featuring 8GB GDDR7 memory, DLSS 4.5, ray tracing, AI acceleration and MSI's compact dual-fan VENTUS cooling design.
Compact RTX 50 Series performance for gaming and creators
The MSI RTX 5060 Ti VENTUS 2X OC PLUS brings NVIDIA Blackwell architecture, GDDR7 memory and DLSS 4.5 technologies into a practical dual-fan design. It is a strong fit for high-FPS 1080p gaming, smooth 1440p gameplay, creator acceleration, AI-assisted workflows and multi-monitor productivity builds.
NVIDIA Blackwell + DLSS 4.5
Advanced RTX platform support for AI-enhanced graphics, ray tracing, neural rendering and improved frame rates in supported games.
Dual-Fan VENTUS Cooling
Two STORMFORCE fans, heat pipes, thermal padding and Zero Frozr help keep the card cool and quiet during everyday use.
Modern Display Output

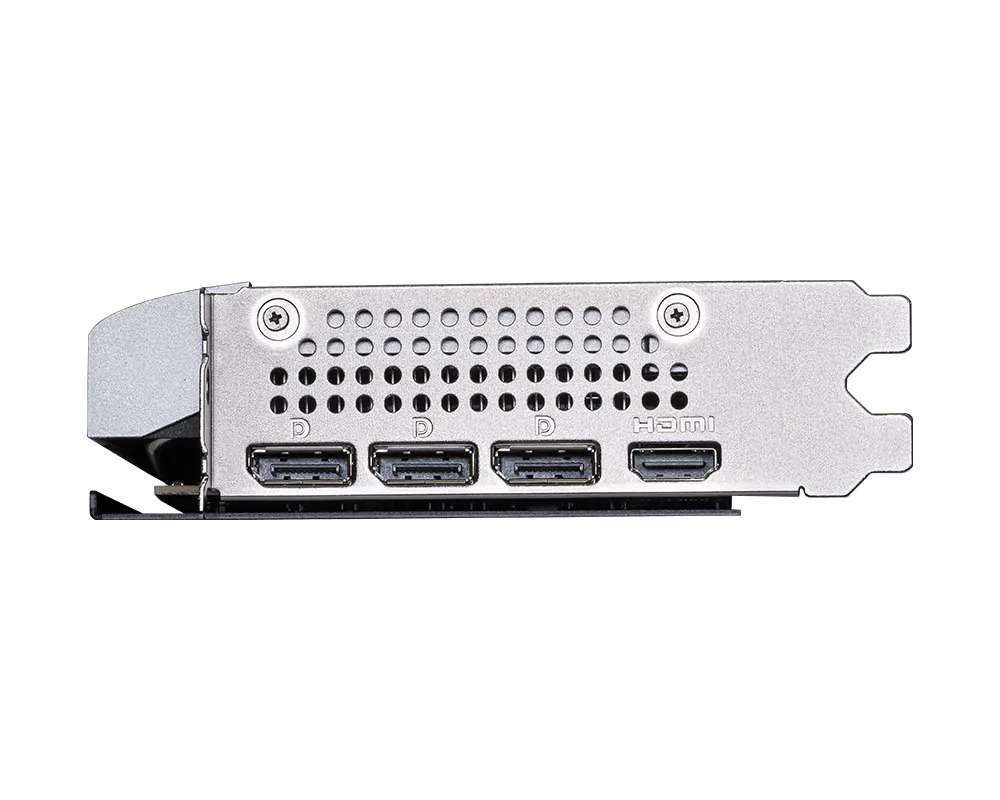

Includes three DisplayPort 2.1b ports and one HDMI 2.1b port for up to four displays and high-refresh modern monitors.
Built around essential cooling, speed and reliability
VENTUS focuses on practical performance with a resilient enclosure, reinforcing backplate, DrMOS power stages, fuses and MSI Center support for real-time monitoring and optimization.
- Extreme Performance: 2617 MHz using MSI Center
- Boost clock: 2602 MHz
- 8GB GDDR7 memory on a 128-bit bus
- PCI Express Gen 5 x16 interface, using x8 lanes
MSI RTX 5060 Ti VENTUS 2X OC PLUS Specifications
| Marketing Name | GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS |
|---|---|
| Model Name | G506T-8V2CP |
| Graphics Processing Unit | NVIDIA GeForce RTX 5060 Ti |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 4608 Units |
| Interface | PCI Express Gen 5 x16, uses x8 |
| Core Clocks | Extreme Performance: 2617 MHz (MSI Center), Boost: 2602 MHz |
| Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus | 128-bit |
| Display Outputs | 3 x DisplayPort 2.1b, 1 x HDMI 2.1b |
| HDMI Support | Up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR and HDR |
| Maximum Displays | 4 |
| Digital Maximum Resolution | 7680 x 4320 |
| Power Consumption | 180W |
| Power Connector | 1 x 8-pin |
| Recommended PSU | 600W |
| Card Dimensions | 227 x 126 x 41 mm |
| Weight | 573g card / 834g package |
| DirectX Support | 12 Ultimate |
| OpenGL Support | 4.6 |
| G-SYNC Support | Yes |
Best use cases
FAQ
Is this the 8GB RTX 5060 Ti model?
Yes. This description is for MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS, model name G506T-8V2CP, with 8GB GDDR7 memory.
What power supply is recommended?
MSI lists 180W power consumption, one 8-pin power connector and a 600W recommended power supply.
How many monitors can it support?
The card supports up to 4 displays using 3 x DisplayPort 2.1b and 1 x HDMI 2.1b outputs.
Does it support G-SYNC?
Yes. MSI lists G-SYNC technology support for this model.
Buy MSI RTX 5060 Ti VENTUS 2X OC PLUS from National PC
Choose this compact RTX 5060 Ti 8GB graphics card for gaming, creators, AI PC upgrades and modern multi-display setups.
