ROG Strix Helios review
- Brand: ASUS
- Model: ROG Strix Helios White Edition
- UPC: 192876611302
- EAN: 4718017611305
- MPN: 90DC0023-B30000

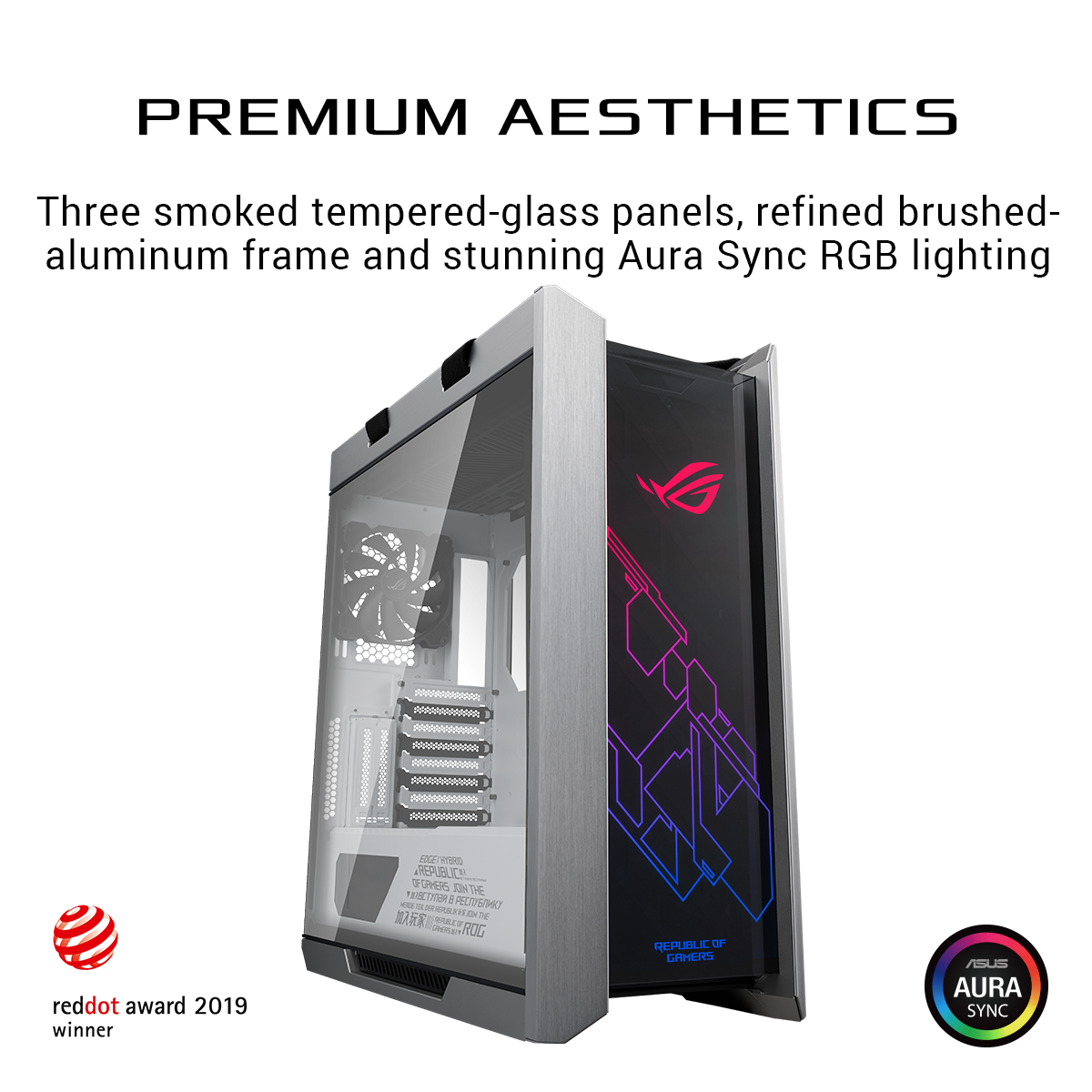

- Premium design & aesthetics: Made for showcase builds with three tempered-glass panels, brushed-aluminum frame and integrated Aura Sync RGB front lighting

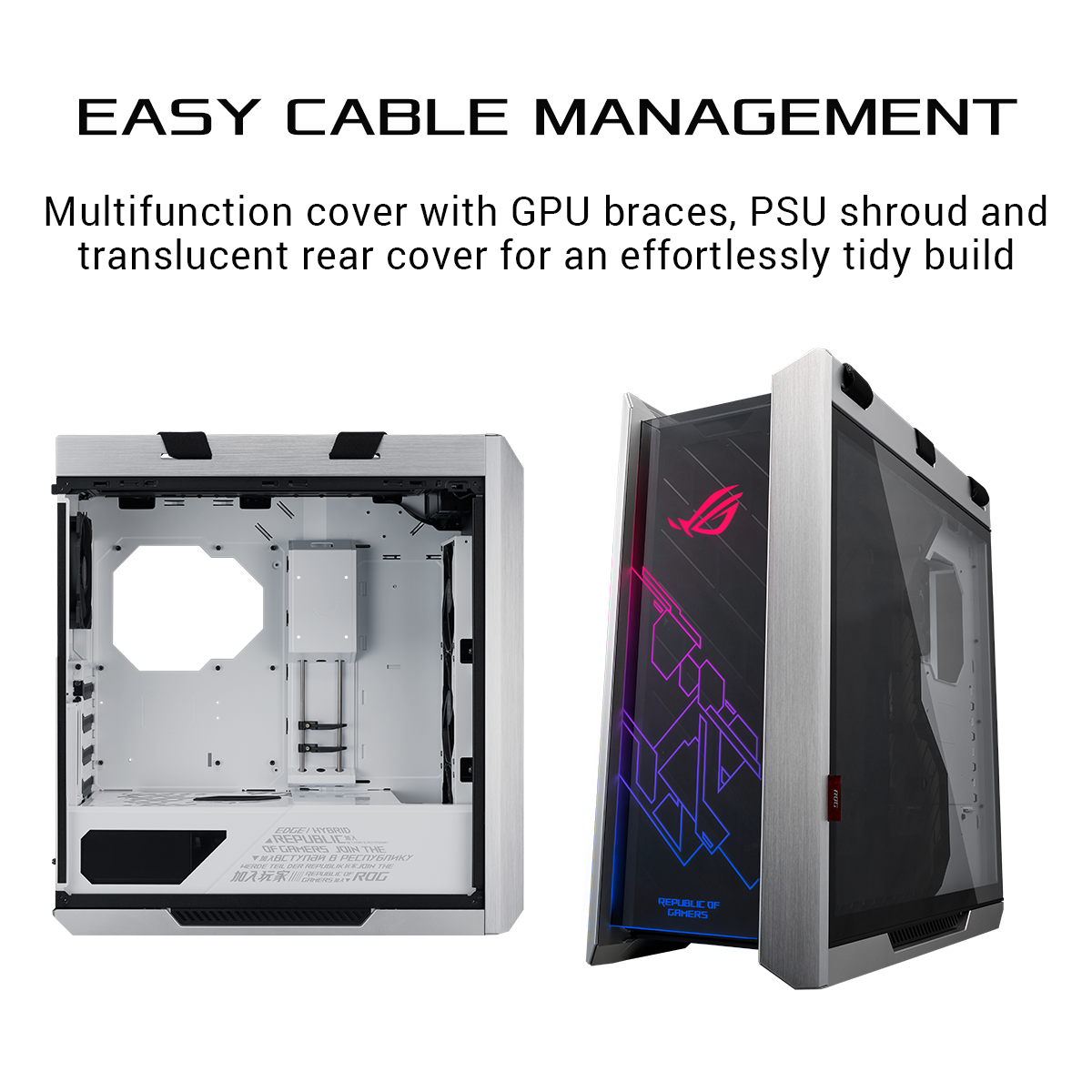

- Clean build made easy: A multifunction cover with graphics card holders, a PSU shroud and a translucent rear cable cover offer effortless cable management

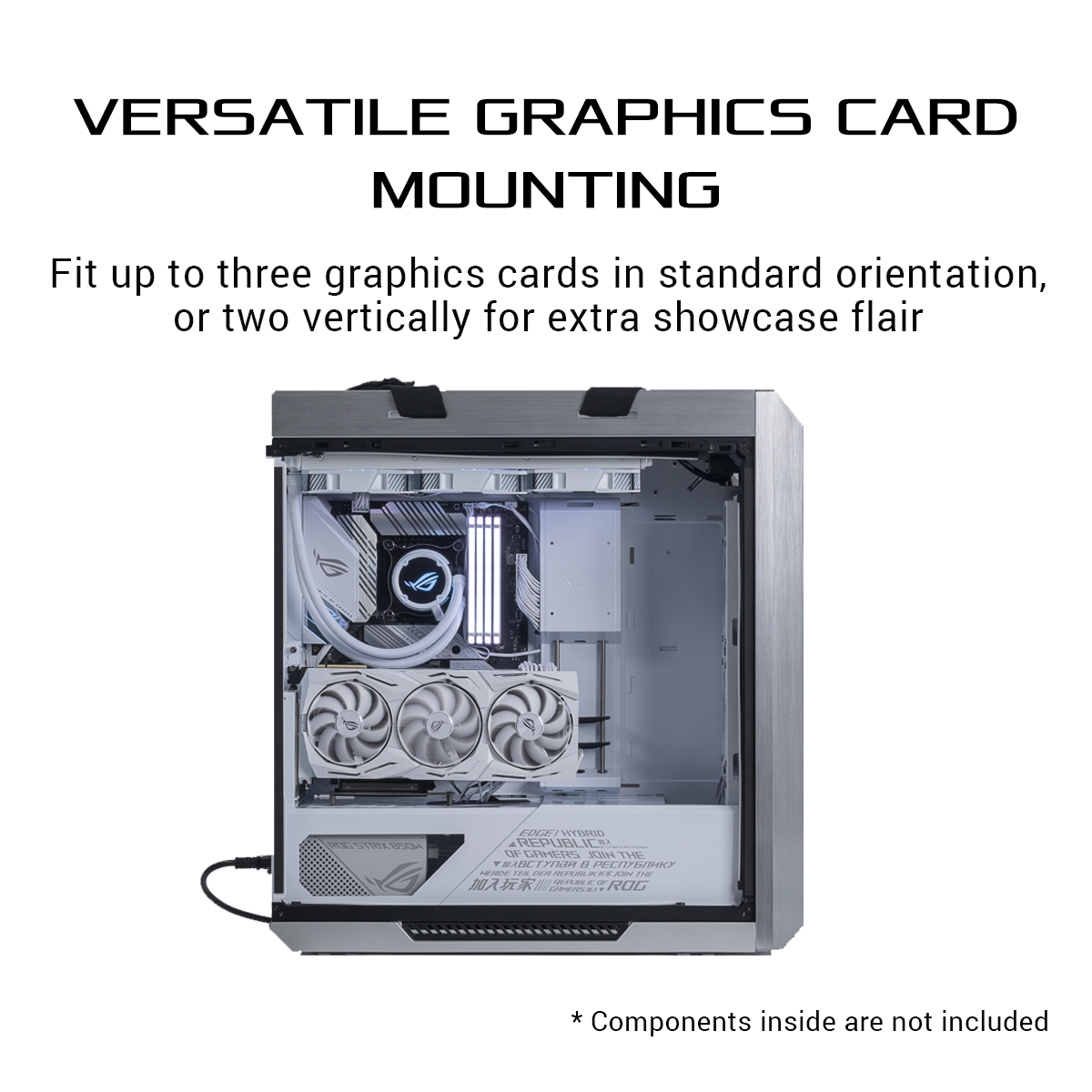

- Versatile GPU mounting: Install three graphics cards in standard orientation, or two vertically for extra showcase flair using a bundled bracket

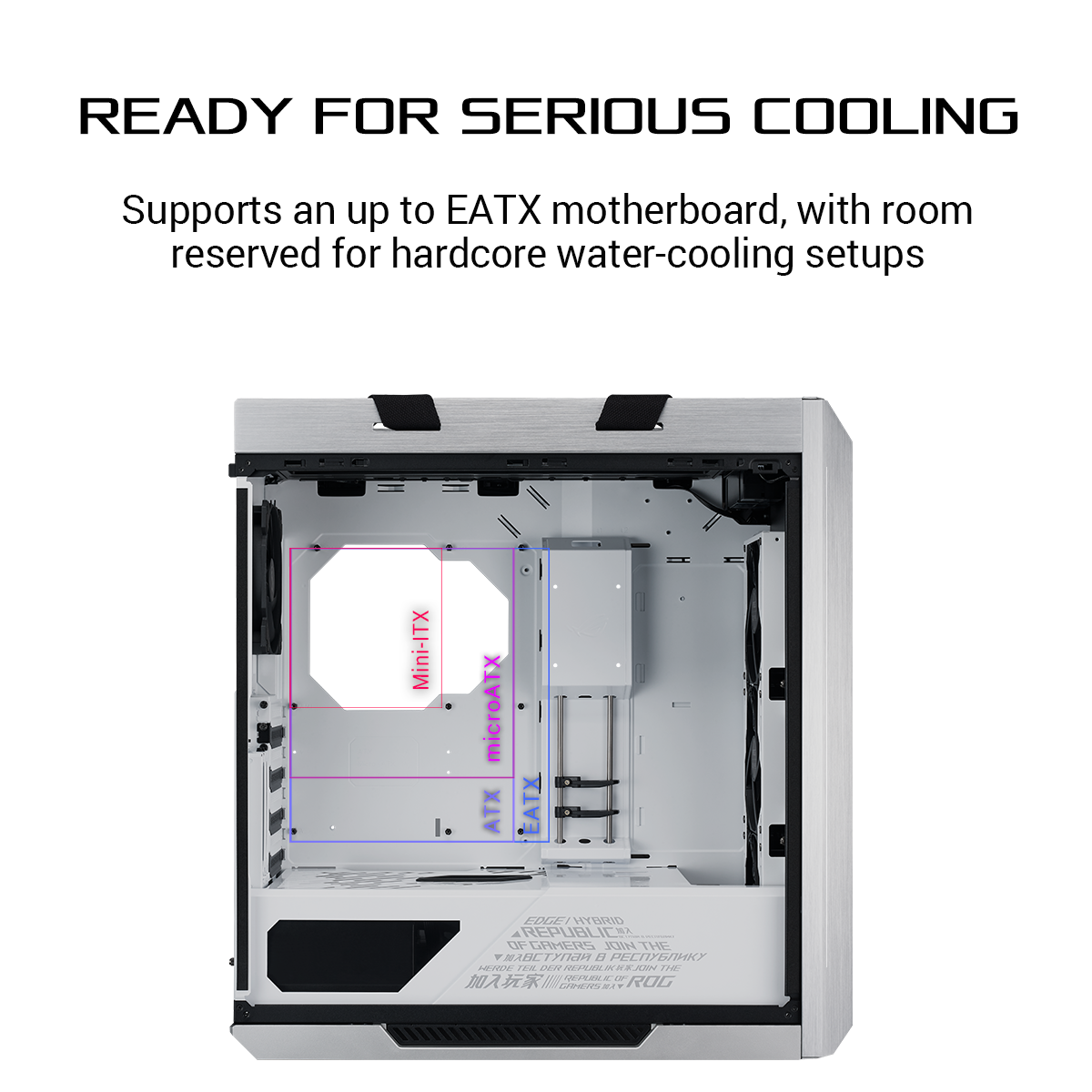

- Ready for serious cooling: Supports an up to EATX motherboard, with room for 420mm front radiators and water-cooling pump and reservoir
- Advanced I/O panel: USB 3.1 Gen 2 Type-Câ„¢ port, four USB 3.0 ports, an RGB-lighting control button and a fan-speed control button

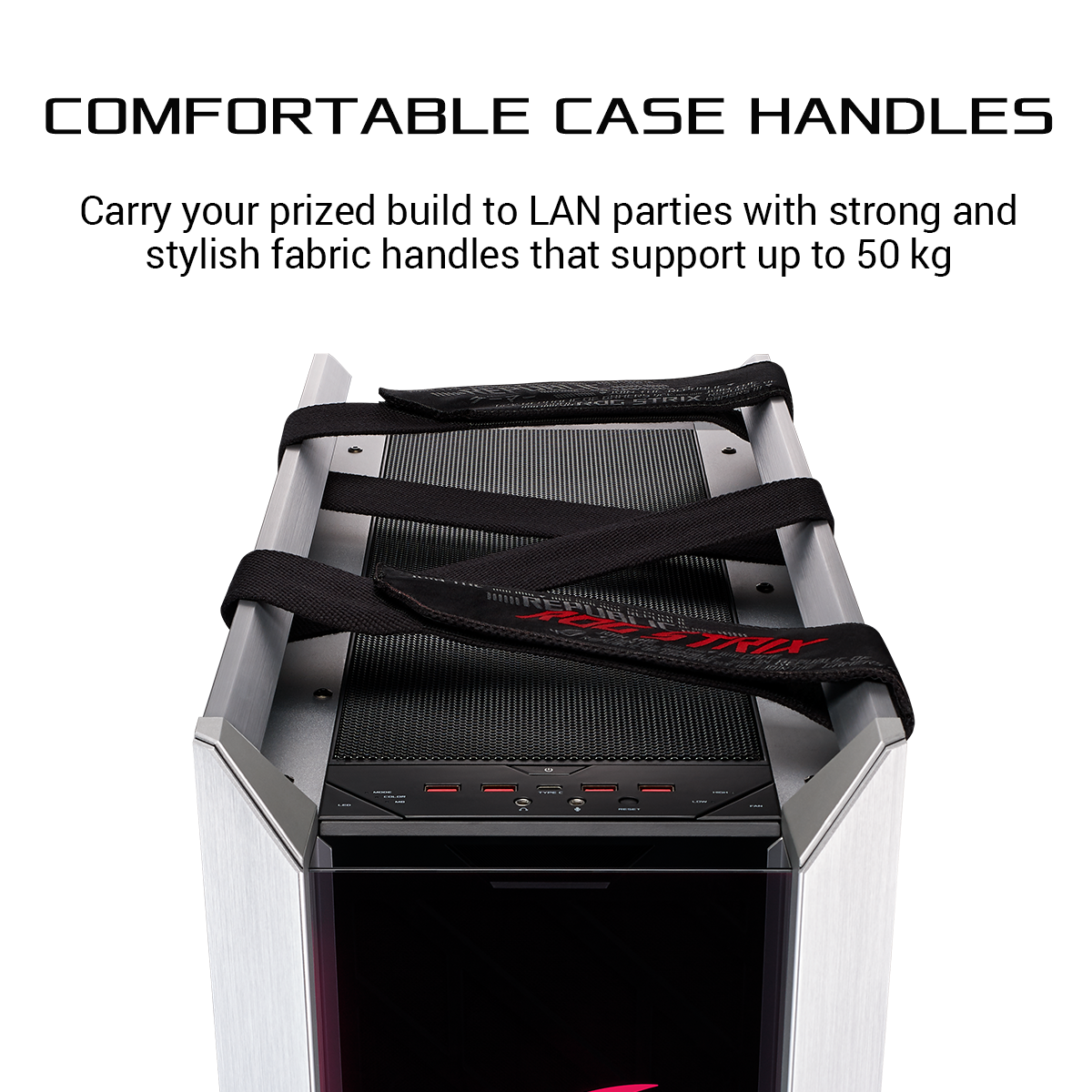

- Comfortable case handles: Easily carry your prized build to LAN parties with ergonomic and stylish fabric handles
Ask a Question About This Product
GRAPHICS CARD PLACEMENT OPTIONS | ||||||||||||||
Horizontal mounted up to three graphics cards.The additional stand up PCIe slots and the exclusive GPU bracket enables you to show off up to two graphics cards in the vertical position. * Riser cables sold separately | ||||||||||||||
COOLING COMPATIBILITY |
Fan: Top: 3x120 / 2x140mm Front: 3x120 or 140mm Rear: 1x120 or 140mm Radiator: Top: 120 / 140 / 240 / 280 / 360mm Front: 120 / 140 / 240 / 280 / 360 / 420mm Rear: 120 / 140mm |
STRONG, COMFORTABLE CARRY HANDLES |
It’s ergonomic design, easy and safe to transport to LAN parties or gaming events with the integrated fabric carry handles. Rigorously tested to support up to 110 pounds (50 kg). |
PSU SHROUD WITH CUT-OUT DESIGN |
Unique ROG Cybertext Pattern & two-pieces design of PSU shroud allows for removable first shroud for additional clearance to mount thicker radiator. * The special front cut-out to showcase with ROG Strix 850W White Edition or other OLED integrated power supplies. |
General | |
Color | White |
Manufacturer Warranty | 2 years |
CAB Type | ATX Mid Tower |
CAB 140mm Fans | Support up to 6 |
CAB Side Panel Window | tempered-glass |
CAB 120mm Fans | Support up to 7 |
CAB Expansion Slots | 8+2 |
CAB Front Ports | 1 x USB 3.1 Gen 2 (Type-C), 4 x USB 3.1 Gen 1, 1 x Headphone, 1 x Microphone, LED Control, Fan Control |
CAB with power supply | No power supply |
Maximum CPU Cooler Height | 190mm |
Maximum GPU Length | 450mm |
Maximum Radiator Length | 360mm |
Maximum PSU Length | 220mm |
CAB Material | Galvanized steel |
CAB Power Supply Mount | Bottom Mounted |
CAB External 5.25" Drive Bays | No |
CAB Internal 2.5" Drive Bays | 7 |
CAB Internal 3.5" Drive Bays | 4 |
Motherboard | |
MOB Form Factor | Extended ATX |
Features | |
Product Segment | Strix |
