- Brand: ASUS

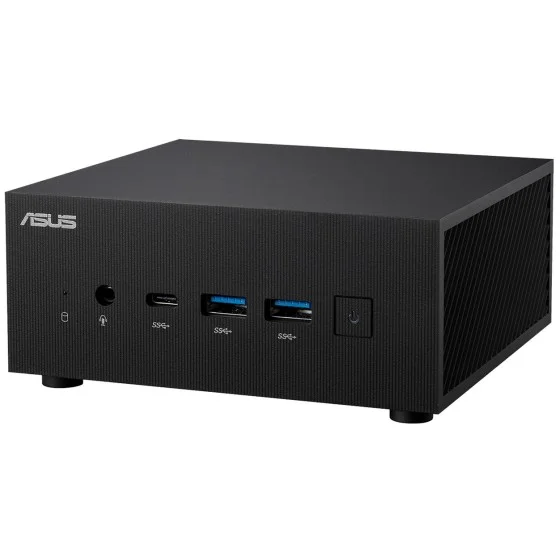

- Model: PN52 R5 5600H Barebone
- UPC: 197105022812
- EAN: 4711387022818
- MPN: 90MR00R2-M00280
- AMD Ryzen 5 5600H Processor
- 6 Cores | 12 Threads | 4.2GHz | 19MB Smart Cache
- AMD Radeon Graphics
- 2 x HDMI 2.1 | 1 x Display Port 1.4
- 2.5 GbE LAN | Wi-Fi 6 | Bluetooth 5.2
- 1 x 3-in-1 card reader slot
- 1 x USB 3.2 Type-C (DP 1.4 and Power Delivery input)
- No RAM | No SSD | No OS
- 2 x DDR4 3200MHz SODIMM RAM Slots
- 1 x 2.5-inch SATA | 2 x M.2 2280 PCIe 3.0
Ask a Question About This Product
4K Resolution & Quad Display Support
ASUS ExpertCenter PN52 can support up to four 4K displays via two HDMI® ports, DisplayPort™ over USB-C® or other user-configurable ports, without any limitation on the combination used.
- *Configurable ports are confirmed SKU before configuring.
- *Configurable - VGA ports can not support 4K due to transfer speed limit.
- **High resolution/multi displays requires sufficient memory bandwidth
Ultra-realistic 8K Visuals
ASUS ExpertCenter PN52 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that’s 4X greater than 4K, or 16X that of traditional FHD output.
*High resolution/multi displays requires sufficient memory bandwidth
USB Power Delivery Input
ASUS ExpertCenter PN52 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.
*Devices need to support at least 20V/4.5A power delivery
Easy Upgrades
An easy-access underside panel allows users replace and upgrade memory, storage and the wireless card. All that’s required is a screwdriver.
Overview
Multi-storage Design
ASUS MiniPC PN52 fits 2 x M.2 SSD, and a 2.5-inch HDD, letting you create your own custom storage solution with the balance of speed and capacity to fit your needs.
