- Brand: ASUS
- Model: PRO WS W790E-SAGE SE
- MPN: 90MB1C20-M0UAY0
ASUS Pro WS W790E-SAGE SE Workstation Motherboard provides enterprise-grade expansion, networking and remote management for powerful Intel Xeon W professional workstations.
- Intel W790 Chipset | Intel LGA4677 Socket | EEB Form Factor
- Supports Intel Xeon W-3400 and Xeon W-2400 Series Processors
- 8 x DDR5 DIMM Slots | Up to 2TB ECC R-DIMM Memory Support
- Up to 7 x PCIe 5.0 x16 Expansion Slots with Compatible Xeon W-3400 CPUs
- 3 x M.2 Storage Slots | 2 x SlimSAS Connectors
- Dual Intel X710-AT2 10Gb Ethernet for High-Speed Networking

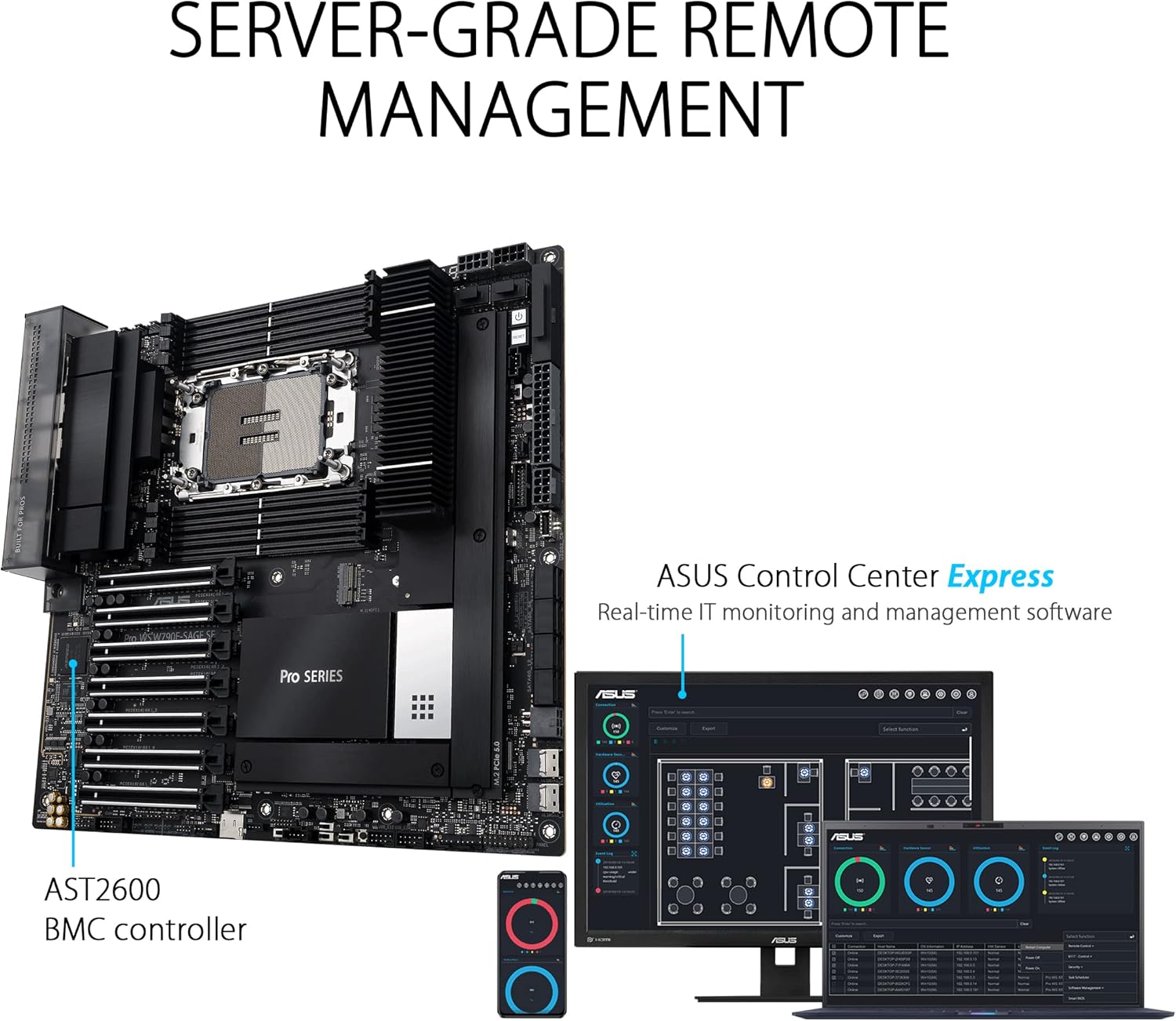

- AST2600 BMC | Dedicated Management LAN | Server-Grade IPMI
- USB 3.2 Gen 2x2 Type-C | 14+1+1 Power-Stage Design
Ask a Question About This Product

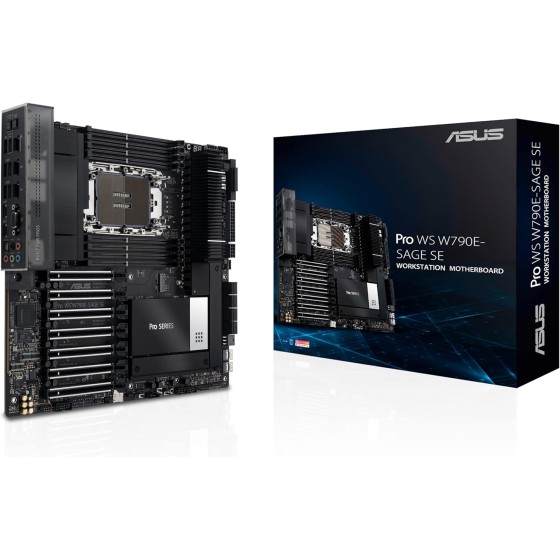

ASUS Pro WS W790E-SAGE SE Workstation Motherboard
ASUS Pro WS W790E-SAGE SE is a serious workstation motherboard for Intel Xeon W-3400 and W-2400 series processors. It is designed for professional workstations that need high PCIe expansion, ECC registered DDR5 memory, server-grade management, fast storage and reliable 24/7 operation.
Key highlights

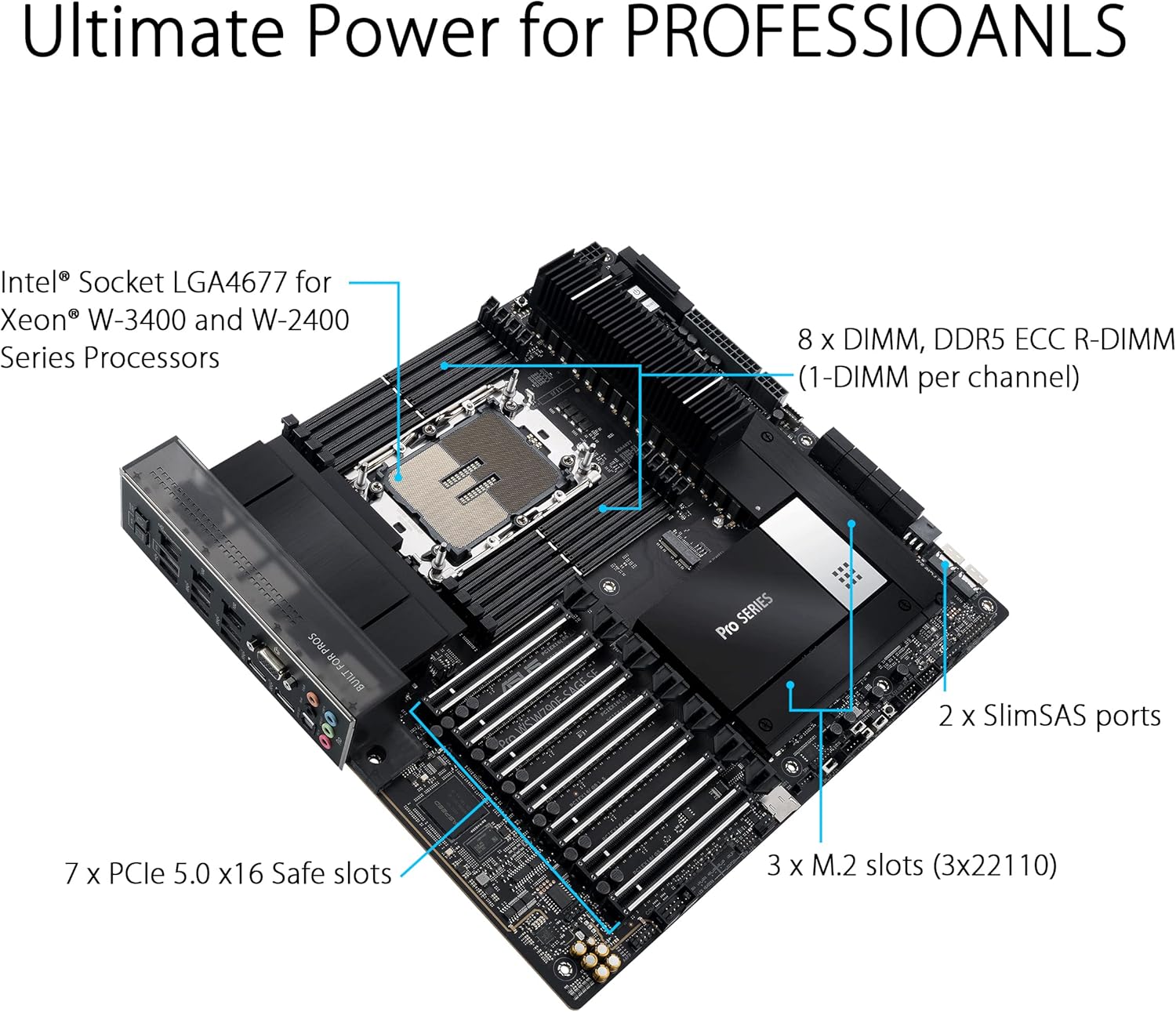

Intel W790 Platform
LGA4677 socket support for Intel Xeon W-3400 and W-2400 series processors.

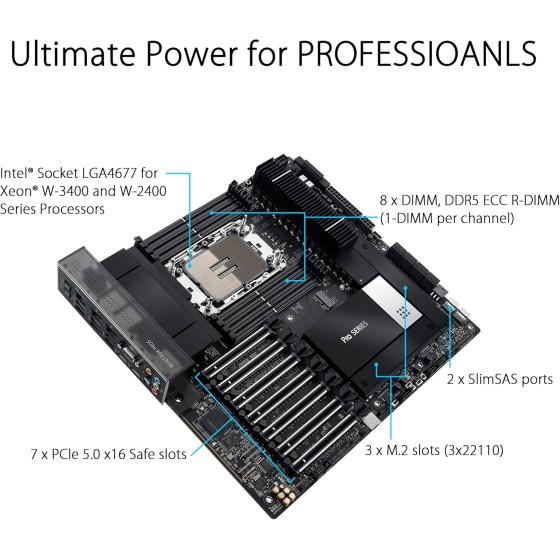

Massive Expansion
Up to 7 PCIe 5.0 x16 slots with Xeon W-3400 series processors.
ECC DDR5 Support
8 DIMM slots with up to 2048GB DDR5 ECC Registered memory support.
Workstation Connectivity
Dual 10Gb Ethernet, Realtek 1Gb Ethernet, 3 M.2, 2 SlimSAS and 8 SATA ports.
Built for reliable performance
ASUS Pro WS W790E-SAGE SE is a serious workstation motherboard for Intel Xeon W-3400 and W-2400 series processors. It is designed for professional workstations that need high PCIe expansion, ECC registered DDR5 memory, server-grade management, fast storage and reliable 24/7 operation.
Specifications
| Model | ASUS Pro WS W790E-SAGE SE |
|---|---|
| CPU Socket | Intel LGA4677 for Xeon W-3400 and W-2400 series processors |
| Chipset | Intel W790 |
| Memory Slots | 8 x DIMM |
| Max Memory | 2048GB |
| Memory Type | DDR5 ECC Registered Memory |
| Memory Architecture | 8-channel |
| Expansion Slots | Up to 7 x PCIe 5.0 slots with Xeon W-3400 series processors |
| Storage | 3 x M.2 slots, 2 x SlimSAS slots, 8 x SATA 6Gb/s ports |
| Networking | Intel dual 10Gb Ethernet plus Realtek 1Gb Ethernet |

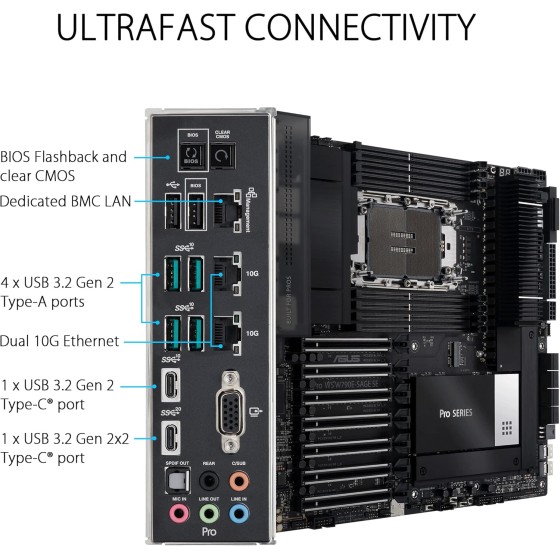

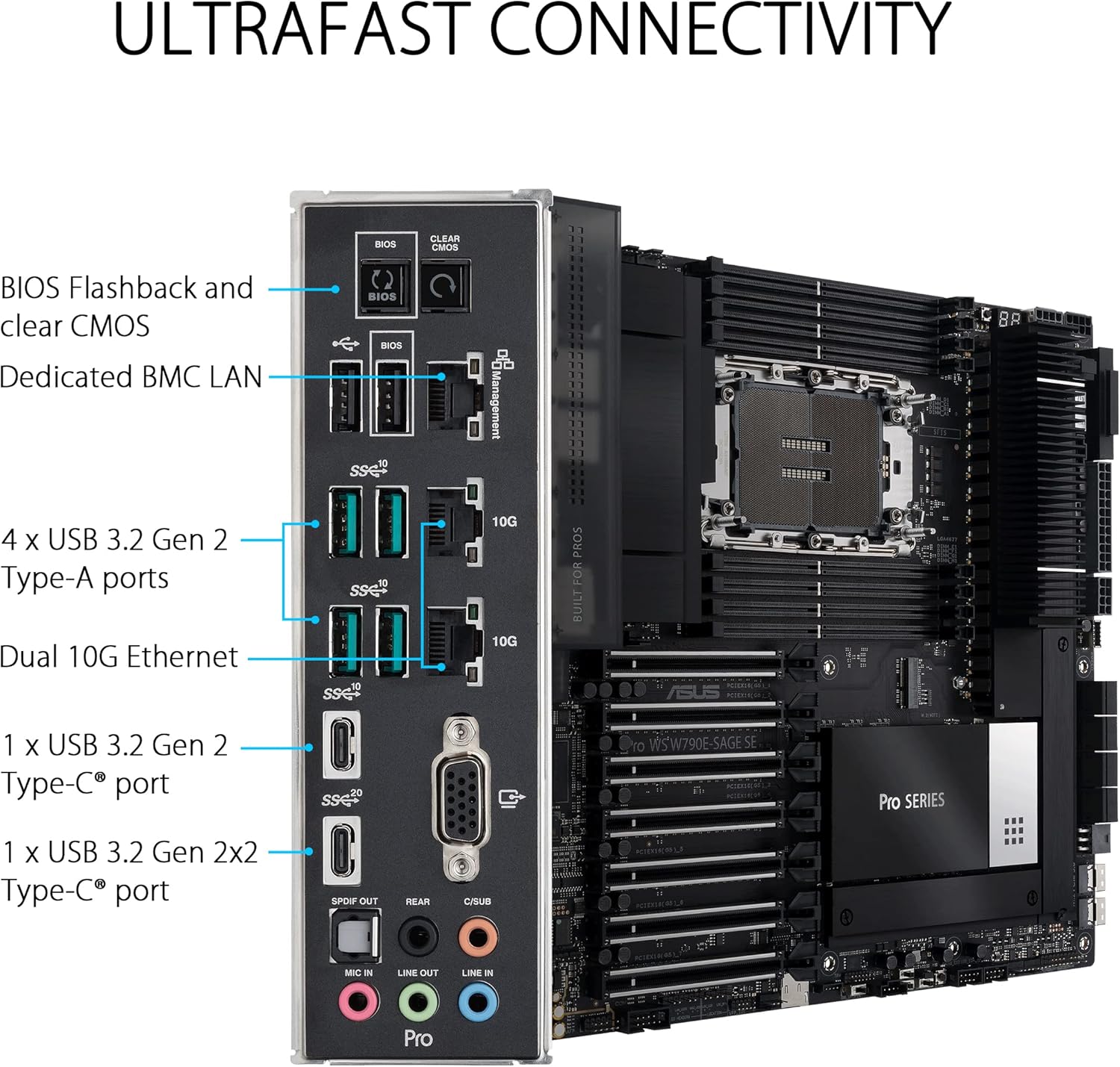

| Rear USB | USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 and USB 2.0 ports |
| Audio | Realtek S1220A 7.1 surround sound audio codec |
| Management | BMC/IPMI-related controls and ASUS Control Center Express support |
| BIOS | 512Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 and Windows 10 64-bit |
| Form Factor | EEB, 12in x 13in |
