Brand | ‎APC |
---|---|
Manufacturer | ‎APC |
Model | ‎BX1100C-IN |
Model Name | ‎BX600C-IN |
Product Dimensions | ‎36 x 20 x 37 cm; 9.83 Kilograms |
Batteries | ‎1 AAA batteries required. (included) |
Item model number | ‎BX1100C-IN |
Special Features | ‎Input frequency 45 - 65 Hz (auto sensing), Transfer Time 10ms typical : 12ms maximum, Nominal Input Voltage 230V, Output power capacity 660Watts / 1.1 kVA, Cord Length 1.52meters |
Mounting Hardware | ‎UPS, User Manual and Warranty card |
Audio Wattage | ‎660 Watts |
Voltage | ‎230 Volts |
Wattage | ‎360 Watts |
Charging Time | ‎6 Watt Hours |
Batteries Included | ‎Yes |
Batteries Required | ‎Yes |
Battery Cell Composition | ‎Lead Acid |
Has Auto Focus | ‎No |
Programmable Buttons | ‎No |
Manufacturer | ‎APC |
Country of Origin | ‎India |
Item Weight | ‎9 kg 830 g |
- Brand: APC
- Model: BX1100C-IN
- Brand - APC
- Model -Â Back-UPS
Ask a Question About This Product
From the manufacturer
Power Backup and Protection for Home Office, Desktop & Home Entertainment
Work, Study, Play? Stay Protected, Stay Connected!APC Back-UPS is an ideal power backup and protection for home offices, desktop PCs, home entertainment systems, wifi-routers, and electronic devices. It defends your digital experience from any power disruption and ensures quality and uninterrupted power supply to your electronic devices. | Protect Your Digital LifeBattery and Surge-protected outlets APC Back-UPS provides 4 Indian 2/3 Pin Power Socket which are Battery Back-up & Surge Protected Outlets and 1 Indian 2/3 Pin Power Socket with Surge Protection. It protects your hardware and data during power outages, surges, and spikes. APC Back-UPS has AVR Technology which provides protection from Wide Voltage Fluctuation and also compatible with Generator which is ideal for Indian Power Condition. | Power Backup during Power CutsAdequate Backup Time as per the Load. Upto 45 min. Power Backup for 1 PC + 1 Electronic Device <30W+/- 15W = 120 min max 60W +/- 15W = 50 min 120W +/- 15W = 27 min 240W +/- 15W = 11 min. *Disclaimer: Back up time is subject to load, room temperature, battery life, and results may vary. Please visit our APC website to know more details about the backup time as per the load. |
Smart Battery & Safety Features
Smart Battery ManagementBattery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance. Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. | ManageabilityAudible alarms Provides notification of changing utility power and UPS power conditions LED status display Quickly understand unit and power status with visual indicators | Safety StandardsRoHS Compliance and BIS Approved for reliable safety Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. |
 | ||
---|---|---|
 | APC BX1100C-IN | APC BX600C-IN |
Output Power Capacity | 1100 VA / 660 Watt | 600 VA / 360 Watt |

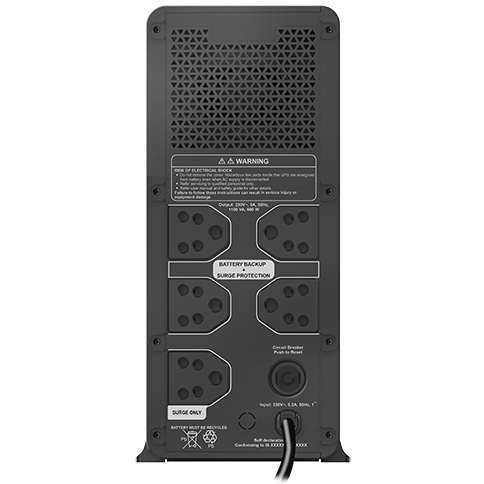

Output Connections | (1) India 2/3-pin 6A (Surge Protection) & (4) India 2/3-pin 6A (Battery Backup) | (3) India 2/3-pin 6A (Battery Backup) |
Run Time Load | 75 min. @ 100W, 30 min. @ 200W, 17 min. @ 300W | 30 min. @ 100W, 10 min. @ 200W, 5 min. @ 300W |
Power Cord Length | 1.52 meter | 1.22 meter |
Net Weight | 8.98 Kg. | 4.7 Kg. |
Height | 28.2 cm | 21.8 cm |
Widht | 13.2 cm | 10.7 cm |
Depth | 25.9 cm | 23.7 cm |
Battery Capacity | 2 x 7.2 Ah | 1 x 7.2 Ah |
Product information
Technical Details
Specification
Output | |
Output power capacity | 660Watts / 1.1 kVA |
Max Configurable Power (Watts) | 660Watts / 1.1 kVA |
Nominal Output Voltage | 230V |
Efficiency at Full Load | 72.0 % |
Output Frequency (sync to mains) | 50 Hz |
Topology | Line Interactive |
Waveform type | Stepped approximation to a sinewave |
Transfer Time | 10ms typical : 12ms maximum |
Input | |
Nominal Input Voltage | 230V |
Input frequency | 45 - 65 Hz (auto sensing) |
Input Connections | India 3-pin 6A |
Cord Length | 1.52meters |
Input voltage range for main operations | 145 - 290V |
Number of Power Cords | 1 |
Efficiency at Full Load | 72.0 % |
Batteries & Runtime | |
Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Typical recharge time | 6hour(s) |
Communications & Management | |
Control panel | LED status display with On Line : On Battery : Replace Battery and Overload indicators |
Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
Surge Protection and Filtering | |
Surge energy rating | 255Joules |
Physical | |
Maximum Height | 282mm , 28.2cm |
Maximum Width | 132mm , 13.2cm |
Maximum Depth | 259mm , 25.9cm |
Net Weight | 8.98kg |
Shipping weight | 10.21kg |
Shipping Height | 394mm , 39.4cm |
Shipping Width | 203mm , 20.3cm |
Shipping Depth | 384mm , 38.4cm |
Color | Black |
Environmental | |
Operating Environment | 0 - 40 °C |
Operating Relative Humidity | 0 - 95 % |
Operating Elevation | 0-3000meters |
Storage Temperature | -15 - 45 °C |
Storage Relative Humidity | 0 - 95 % |
Storage Elevation | 0-15000meters |
Audible noise at 1 meter from surface of unit | 45.0dBA |
Warranty | 1 Year |
Features
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Battery charging indicator
Lets you know when your battery is charging and when it is fully charged.
Battery Saver
Extends battery life by preventing unnecessary discharges while the UPS is on battery.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Cold-start capable
Provides temporary battery power when the utility power is out.
Fast battery charging capability
Allows for reduced battery recharge time, prevents disturbances on the distribution system by correcting the power factor, protects the battery against damage caused by deep discharge and provides backfeed protection.
Generator compatibility
Allows you to recharge your battery while on generator power.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
General | |
Color | Black |
Brand | APC |
Manufacturer Warranty | 1 years |
Power | |
Ac Socket | 4 x Battery Backed AC Outlets,1 x Surge Only AC Outlets |
