QNAP QXP-T32P Dual-Port Thunderbolt 3 Expansion Card – PCIe 3.0 x4 Interface, Two Thunderbolt 3 Ports, Up to 40 Gb/s Data Transfer Rate, Compatible with Select QNAP NAS Models, Includes Low-Profile and Full-Height Brackets

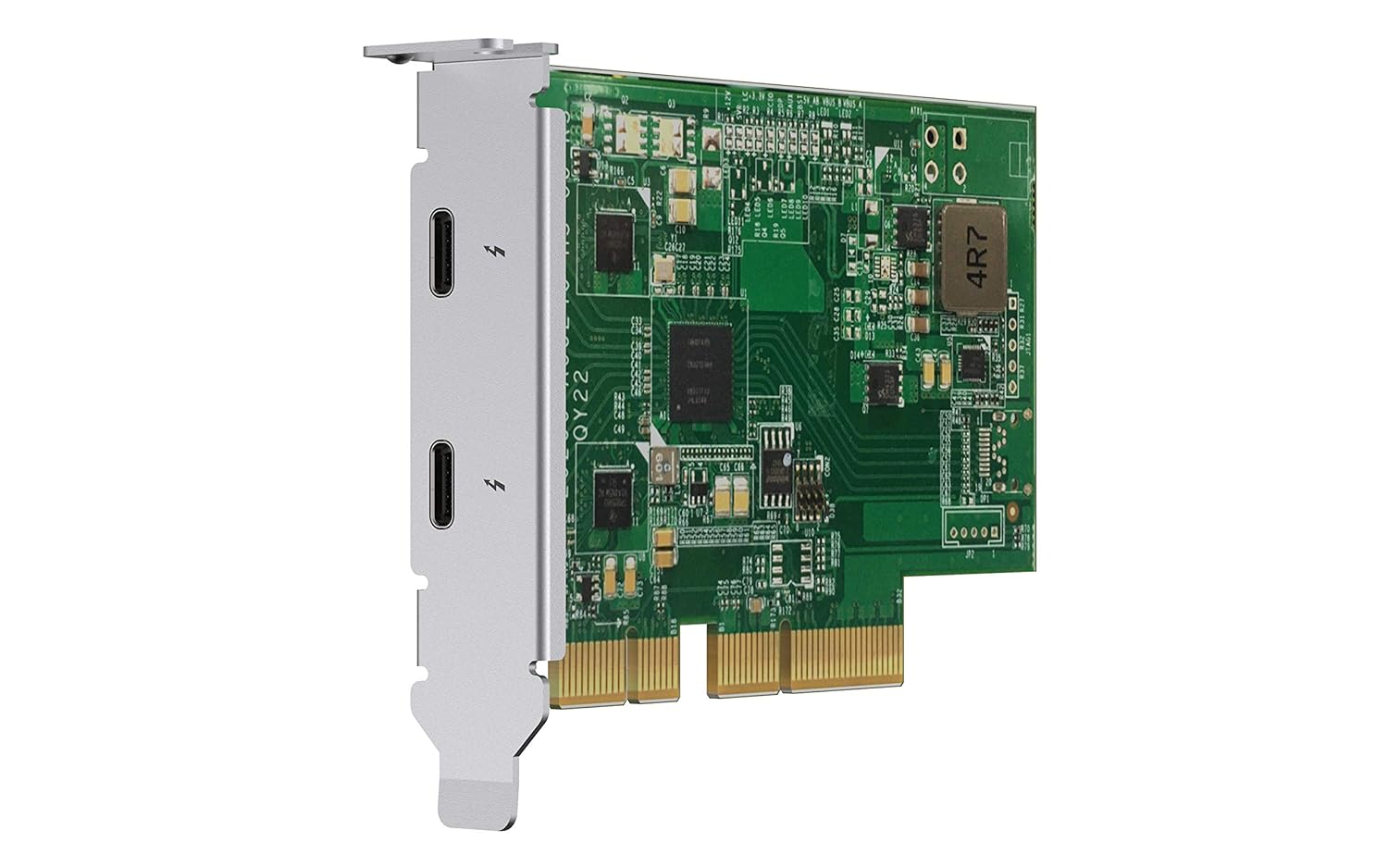

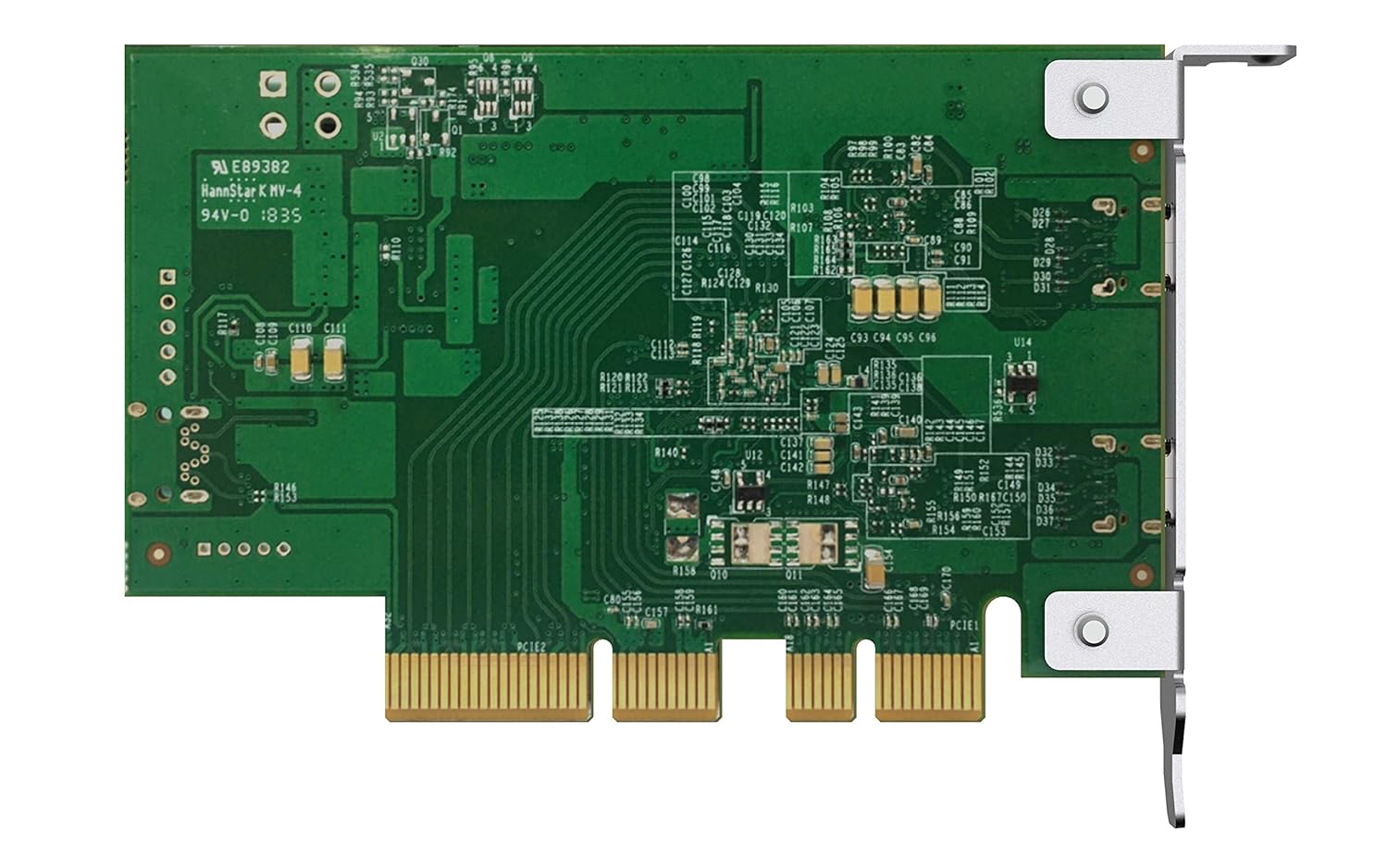

The QNAP QXP-T32P is a dual-port Thunderbolt 3 expansion card designed to enhance the connectivity and performance of compatible QNAP NAS devices. By installing this card into an available PCIe 3.0 x4 slot, users can add two Thunderbolt 3 ports to their NAS, enabling high-speed data transfers up to 40 Gb/s. This upgrade is particularly beneficial for professionals engaged in bandwidth-intensive tasks such as real-time 4K video editing, collaborative workflows, and rapid file sharing.

• Host Interface: PCIe 3.0 x4
• Ports: 2 x Thunderbolt 3 (USB Type-C)
• Data Transfer Rate: Up to 40 Gb/s
• Form Factor: Low-profile (pre-installed); full-height bracket included
• Compatibility: QNAP TVS-h1288X and TVS-h1688X NAS models
• Package Contents: QXP-T32P card, low-profile bracket (pre-installed), full-height bracket

Enhanced Performance for Creative Professionals: With the QXP-T32P, video editing studios and creative professionals can significantly accelerate their workflows. The high-speed Thunderbolt 3 ports facilitate smooth transfer, display, and editing of 4K videos in real-time, reducing latency and improving overall efficiency.

Daisy-Chaining Capability: The dual Thunderbolt 3 ports support daisy-chaining of up to six QNAP Thunderbolt devices, including other Thunderbolt NAS units and Thunderbolt 3 to 10GbE adapters. This feature allows for flexible expansion and streamlined connectivity in complex workflows.

Broad Device Compatibility: While the QXP-T32P is designed for Thunderbolt 3, it also supports Thunderbolt 4 devices when connected using standard Thunderbolt 4 certified cables or passive Thunderbolt 3 cables shorter than 0.8 meters. Additionally, legacy Thunderbolt 2 devices can be connected using an appropriate adapter, though at reduced speeds of up to 20 Gb/s.

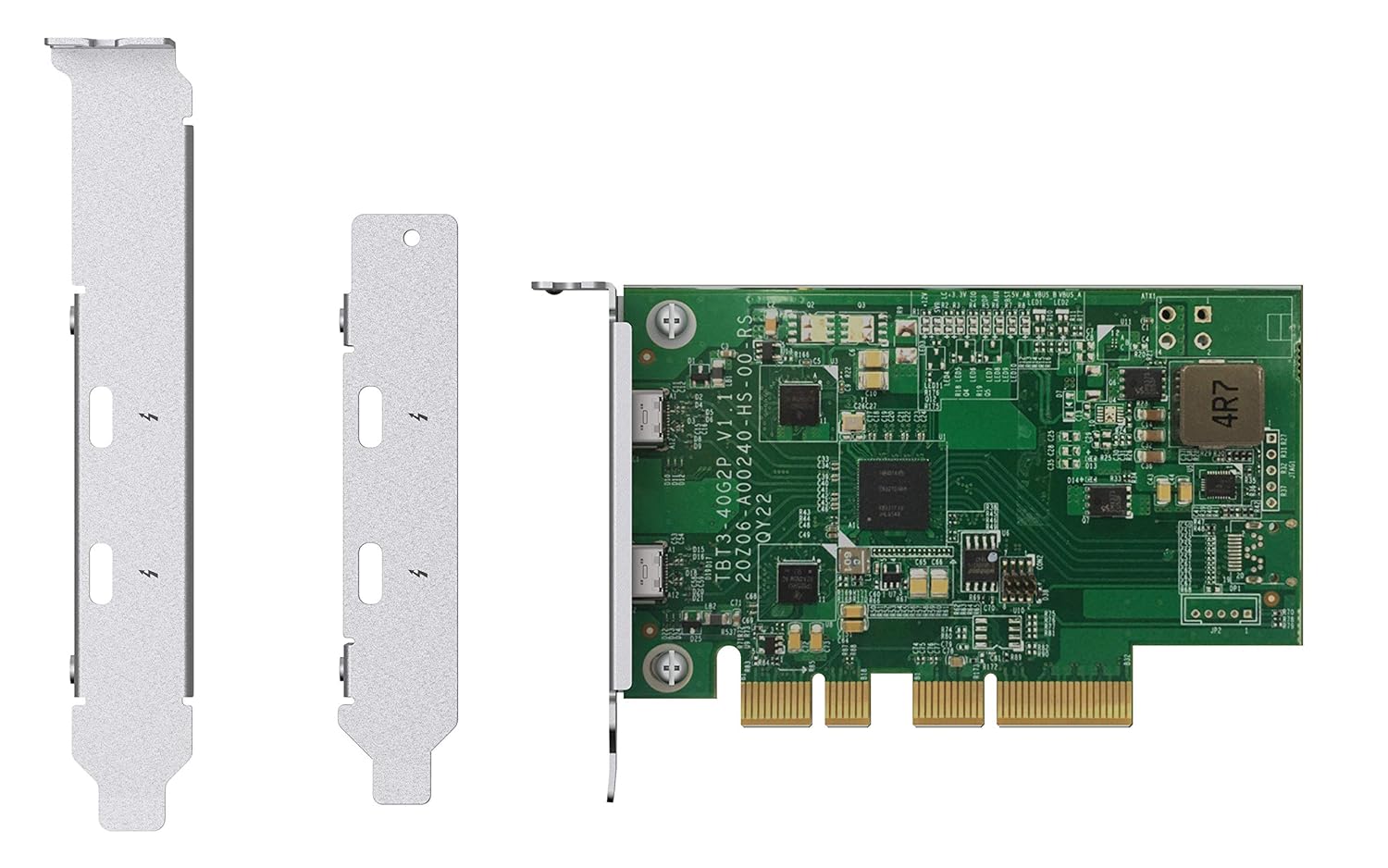

Easy Installation and Versatility: The expansion card comes with a low-profile bracket pre-installed and includes a full-height bracket in the package, ensuring compatibility with various NAS chassis sizes. Installation is straightforward, allowing users to quickly upgrade their systems for enhanced performance.

Important Considerations:

• Compatibility: The QXP-T32P is compatible only with QNAP TVS-h1288X and TVS-h1688X NAS models. Ensure your NAS has an available PCIe 3.0 x4 slot before installation.
• Cable Requirements: For optimal performance, use certified Thunderbolt 3 40Gbps cables (marked with the Thunderbolt icon and "3"). When connecting Thunderbolt 4 hosts, use Thunderbolt 4 certified cables or passive Thunderbolt 3 cables shorter than 0.8 meters.
• Operating System Support: Requires QTS 4.4.0 or later, or QuTS hero 4.5.0 or later.

Upgrade your QNAP NAS with the QXP-T32P Dual-Port Thunderbolt 3 Expansion Card to experience high-speed data transfers, improved workflow efficiency, and versatile connectivity options.
