- Brand: Kioxia

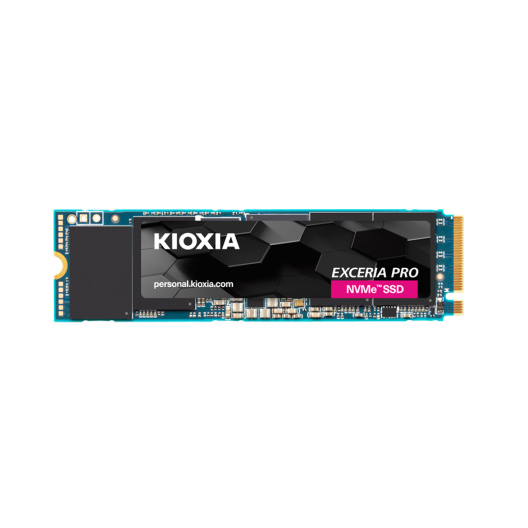

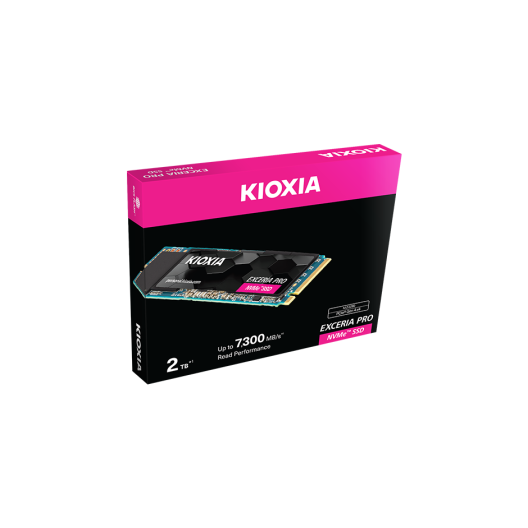

- Model: Exceria Pro 2TB Gen4 M.2
- EAN: 4582563854055
- MPN: LSE10Z002TG8
Ask a Question About This Product
Capacity
1TB 2TB
7,300/6,400 MB/s
800,000/1,300,000 IOPS
Usage
Client desktops and laptops
The all-new KIOXIA EXCERIA PRO SSD Series uses next generation technology to take your high-end computing and gaming into a new realm of possibilities. Leveraging PCI Express® 4.0 technology, this M.2 2280 single-sided series now offers up to 2TB of capacity well-suited for both high performance desktops and notebooks needing maximum speed.
Features
- BiCS FLASH™
- NVMe™ 1.4 Technology
- M.2 2280 Form Factor
- PCIe® Gen4 x4
- SSD Utility Management Software
Game-Changing Performance
Imagine up to 7,300 MB/s of sequential read speed*1 and up to 6,400 MB/s sequential write speed*1, and you have the KIOXIA EXCERIA PRO Series. Designed to reduce game loading, video editing and graphic rendering time, the EXCERIA PRO Series helps your content creation or gaming environment excel.
Small and Compact for an Easy Upgrade
Featuring a thin, single-sided M.2 2280 form factor, the EXCERIA PRO SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.
PCIe® 4.0 Technology
This “hero” class KIOXIA SSD delivers powerful performance utilizing the PCIe® 4.0 and NVMe™ 1.4 technology. EXCERIA PRO SSD series push the boundaries of flash storage technology, offering enhanced real-world performance that will blow away hardcore gamers and content creators.
Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.
SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!
We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.
EXCERIA PRO SSD Product Specifications
Capacity / dimensions
Capacity
1TB, 2TB
Form Factor
M.2 Type 2280-S2-M
Interface
PCI Express® Base Specification Revision 4.0 (PCIe®)
Flash Memory type
BiCS FLASH™ TLC
Interface Maximum Speed
64 GT/s (PCIe® Gen4x4)
Dimension (Max: LxWxH)
80.15 x 22.15 x 2.23 mm
Interface Command
NVM Express™ Revision 1.4 command set
Weight
1TB: 7.6 g (typ.)
2TB: 8.0 g (typ.)
Performance
Max Sequential Read Speed*1
7,300 MB/s
Max Sequential Write Speed*1
6,400 MB/s
Max Random Read Speed*2
1TB: 1,000,000 IOPS
2TB: 800,000 IOPSMax Random Write Speed*2
1TB: 1,100,000 IOPS
2TB: 1,300,000 IOPSEndurance: TBW*3
1TB: 400 TB
2TB: 800 TBMTTF
1.5 million hours
Operating environment / protection performance
Operating Temperature
0 ℃ (Ta) to 85 ℃ (Tc)
Storage Temperature
-40 ℃ to 85 ℃
Certification
RoHS compliant*5
Shock Resistance
9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration
196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
Supply Voltage
3.3 V ±5 %
Power Consumption
PS3: 50 mW (typ.)
PS4: 5 mW (typ.)Power Consumption (Active)
8.9 W (typ.)
Compatibility
PCI Express
Compatible with PCI Express® Base Specification Revision 4.0 and NVM Express™ Revision 1.4 command set
Connector Type
M.2 M key Socket
Target Applications
Client desktops and laptops
Others
Services and Support
Up to 5-year manufacturer's warranty*4
Performance Optimization
TRIM, Idle Time Garbage Collection
