Kioxia Exceria Pro 1TB Gen4x4 M.2 Nvme SSD

1 / 3
Brand: Kioxia
No reviews yetWrite a review
Model
Exceria Pro 1TB Gen4 M.2
MPN
LSE10Z001TG8
EAN
4582563854048
Price on request

EXCERIA PRO
NVMe™ SSD

Next Generation Now

The all-new KIOXIA EXCERIA PRO SSD Series uses next generation technology to take your high-end computing and gaming into a new realm of possibilities. Leveraging PCI Express® 4.0 technology, this M.2 2280 single-sided series now offers up to 2TB of capacity well-suited for both high performance desktops and notebooks needing maximum speed.



Features

  • BiCS FLASH™
  • NVMe™ 1.4 Technology
  • M.2 2280 Form Factor
  • PCIe® Gen4 x4
  • SSD Utility Management Software

Game-Changing Performance

Imagine up to 7,300 MB/s of sequential read speed*1 and up to 6,400 MB/s sequential write speed*1, and you have the KIOXIA EXCERIA PRO Series. Designed to reduce game loading, video editing and graphic rendering time, the EXCERIA PRO Series helps your content creation or gaming environment excel.

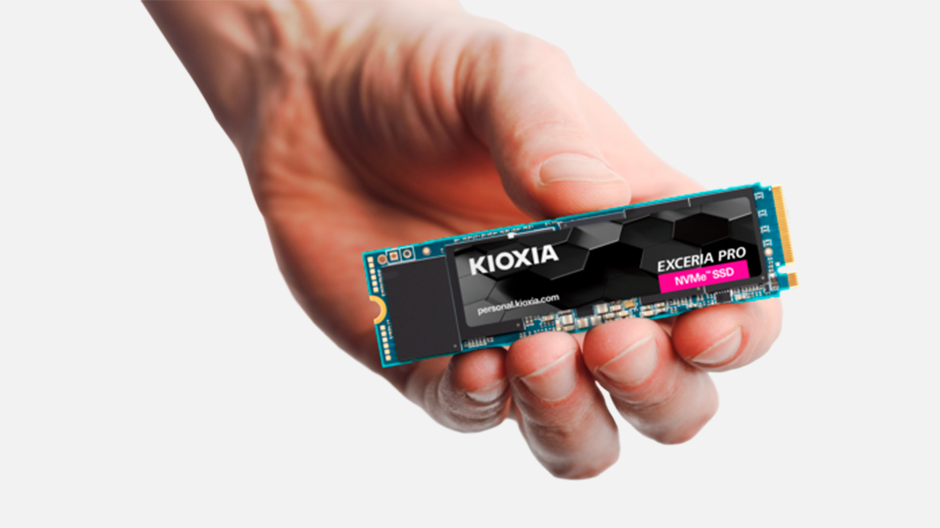

Small and Compact for an Easy Upgrade

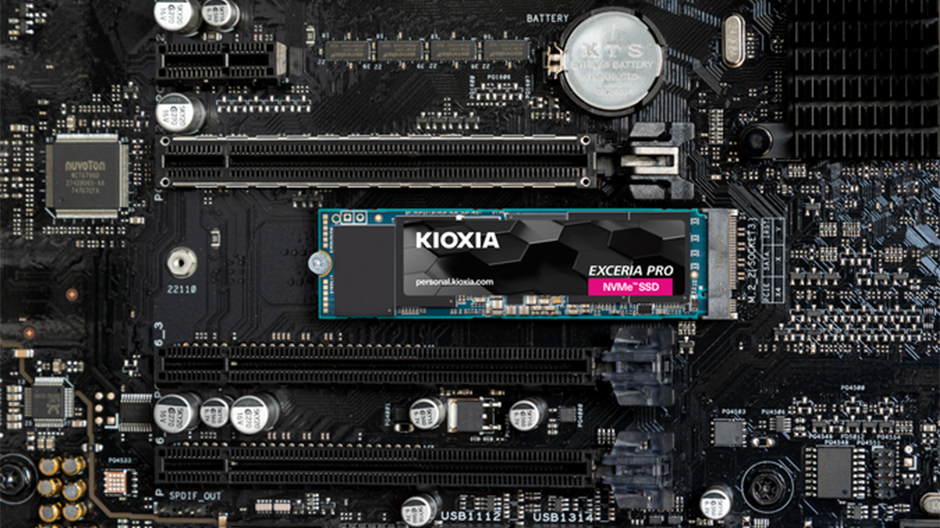

Featuring a thin, single-sided M.2 2280 form factor, the EXCERIA PRO SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.

PCIe® 4.0 Technology

This “hero” class KIOXIA SSD delivers powerful performance utilizing the PCIe® 4.0 and NVMe™ 1.4 technology. EXCERIA PRO SSD series push the boundaries of flash storage technology, offering enhanced real-world performance that will blow away hardcore gamers and content creators.

BiCS FLASH™ logo

Cutting-Edge 3D Flash Memory

Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.



SSD Utility Management Software

The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.



EXCERIA PRO SSD Product Specifications

Capacity / dimensions

  • Capacity

    1TB, 2TB

  • Form Factor

    M.2 Type 2280-S2-M

  • Interface

    PCI Express® Base Specification Revision 4.0 (PCIe®)

  • Flash Memory type

    BiCS FLASH™ TLC

  • Interface Maximum Speed

    64 GT/s (PCIe® Gen4x4)

  • Dimension (Max: LxWxH)

    80.15 x 22.15 x 2.23 mm

  • Interface Command

    NVM Express™ Revision 1.4 command set

  • Weight

    1TB: 7.6 g (typ.)
    2TB: 8.0 g (typ.)

Performance

  • Max Sequential Read Speed*1

    7,300 MB/s

  • Max Sequential Write Speed*1

    6,400 MB/s

  • Max Random Read Speed*2

    1TB: 1,000,000 IOPS
    2TB: 800,000 IOPS

  • Max Random Write Speed*2

    1TB: 1,100,000 IOPS
    2TB: 1,300,000 IOPS

  • Endurance: TBW*3

    1TB: 400 TB
    2TB: 800 TB

  • MTTF

    1.5 million hours

Operating environment / protection performance

  • Operating Temperature

    0 ℃ (Ta) to 85 ℃ (Tc)

  • Storage Temperature

    -40 ℃ to 85 ℃

  • Certification

    RoHS compliant*5

  • Shock Resistance

    9.806 km/s2 {1,000 G} 0.5 ms half sine wave

  • Vibration

    196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis

  • Supply Voltage

    3.3 V ±5 %

  • Power Consumption

    PS3: 50 mW (typ.)
    PS4: 5 mW (typ.)

  • Power Consumption (Active)

    8.9 W (typ.)

Compatibility

  • PCI Express

    Compatible with PCI Express® Base Specification Revision 4.0 and NVM Express™ Revision 1.4 command set

  • Connector Type

    M.2 M key Socket

  • Target Applications

    Client desktops and laptops

Others

  • Services and Support

    Up to 5-year manufacturer's warranty*4

  • Performance Optimization

    TRIM, Idle Time Garbage Collection
