- Brand: Kioxia
- Model: Exceria Plus G2 500GB Gen3 M.2
- EAN: 4582563852419
- MPN: LRD20Z500GG8
Ask a Question About This Product
Capacity
500GB 1TB 2TB
3,400/3,200 MB/s
- 680,000/620,000 IOPS
Usage
Client desktops and laptops

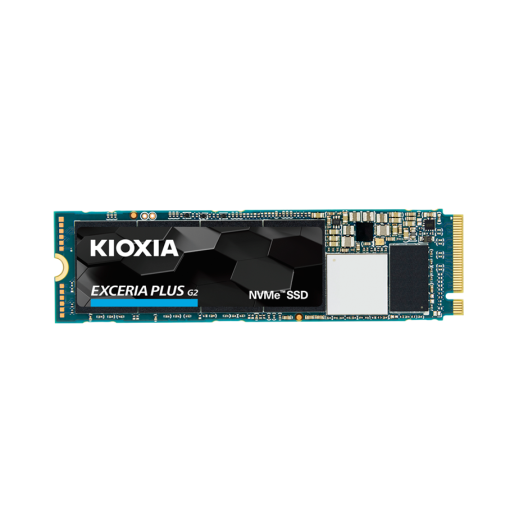

Your high-performance gaming system needs high-performance storage. The KIOXIA EXCERIA PLUS G2 SSD series is built to deliver enthusiast-class PCIe® performance thanks to an 8-channel controller that brings out the full potential of its BiCS FLASH™ 3D flash memory. This new enthusiast-class SSD series offers up to 2TB of capacity in a M.2 2280 form factor suitable for both desktops and mobile PCs.
- BiCS FLASH™
- NVMe™ 1.3c Technology
- M.2 2280 Form Factor
- PCIe® Gen3 x4 Lane
- SSD Utility Management Software
Game-Changing Storage
Don’t let your storage be outclassed. The KIOXIA EXCERIA PLUS G2 SSD series offer high performance storage for enthusiasts and hardcore gamers that feel held back by commodity storage hardware. With up to 3,400 MB/s sequential read speed*1 and 3,200 MB/s sequential write speed available to you, your system won’t be deprived of the storage bandwidth it needs to excel.
Game On!
Why keep using an interface that was designed for hard drives? Utilizing the latest NVMe™ 1.3c technology, the EXCERIA PLUS G2 SSD series reduces latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.
Small and Mighty

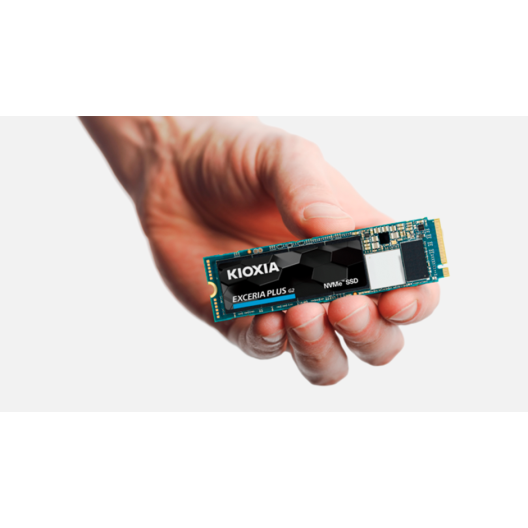

Featuring a thin and light M.2 2280 form factor, the EXCERIA PLUS G2 SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker system.
Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.
SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!
We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.
EXCERIA PLUS G2 SSD Product Specifications
Capacity / dimensions
Capacity
500GB, 1TB, 2TB
Form Factor
M.2 Type 2280-D3-M
Interface
PCI Express® Base Specification Revision 3.1a (PCIe®)
Flash Memory type
BiCS FLASH™ TLC
Interface Maximum Speed
32 GT/s (PCIe® Gen3x4L)
Dimension (Max: LxWxH)
80.15 x 22.15 x 3.73 mm
Interface Command
NVM Express™ Revision 1.3c command set
Weight
10.0 g (typ.)
Performance
Max Sequential Read Speed*1
3,400 MB/s
Max Sequential Write Speed*1
3,200 MB/s
Max Random Read Speed*2
500GB: 650,000 IOPS
1TB, 2TB: 680,000 IOPSMax Random Write Speed*2
500GB: 600,000 IOPS
1TB, 2TB: 620,000 IOPSEndurance: TBW*3
500GB: 200 TB
1TB: 400 TB
2TB: 800 TBMTTF
1.5 million hours
Operating environment / protection performance
Operating Temperature
0 ℃ (Ta) to 85 ℃ (Tc)
Storage Temperature
-40 ℃ to 85 ℃
Certification
RoHS compliant*5
Shock Resistance
9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration
196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
Supply Voltage
3.3 V ±5 %
Power Consumption
PS3: 50 mW (typ.)
PS4: 5 mW (typ.)Power Consumption (Active)
500GB: 6.7 W (typ.)
1TB:6.7 W (typ.)
2TB: 7.6 W (typ.)
Compatibility
PCI Express
Compatible with PCI Express® Base Specification Revision 3.1a and NVM Express™ Revision 1.3c command set
Connector Type
M.2 M key Socket
Target Applications
Client desktops and laptops
Others
Services and Support
Up to 5-year manufacturer's warranty*4
Performance Optimization
TRIM, Idle Time Garbage Collection
