- Brand: Kioxia
- Model: Exceria G2 1TB Gen3 M.2
- EAN: 4582563853997
- MPN: LRC20Z001TG8
Ask a Question About This Product
Capacity
500GB 1TB 2TB
2,100/1,700 MB/s
360,000/400,000 IOPS
Usage
Client desktops and laptops
The new 2nd generation KIOXIA EXCERIA G2 SSD Series takes performance to the next level with up to 2,100 MB/s of sequential read speed*1, enabling faster boot ups, file transfers and system responsiveness. Leveraging BiCS FLASH™ 3D flash memory, this updated mainstream-class SSD series now offers up to 2TB of capacity in a M.2 2280 form factor suitable for both desktops and notebooks.
Features
- BiCS FLASH™
- NVMe™ 1.3c Technology
- M.2 2280 Form Factor
- PCIe® Gen3 x4
- SSD Utility Management Software
Performance Made Affordable
The KIOXIA EXCERIA SSD series redefines mainstream storage for everyday users that feel held back by SATA-based hardware. Say goodbye to hard drive lag and get a computing experience worthy of your applications. Compared to SATA SSDs, the EXCERIA G2 SSD series delivers balanced performance and value that will transform your system.
Small and Compact for an Easy Upgrade

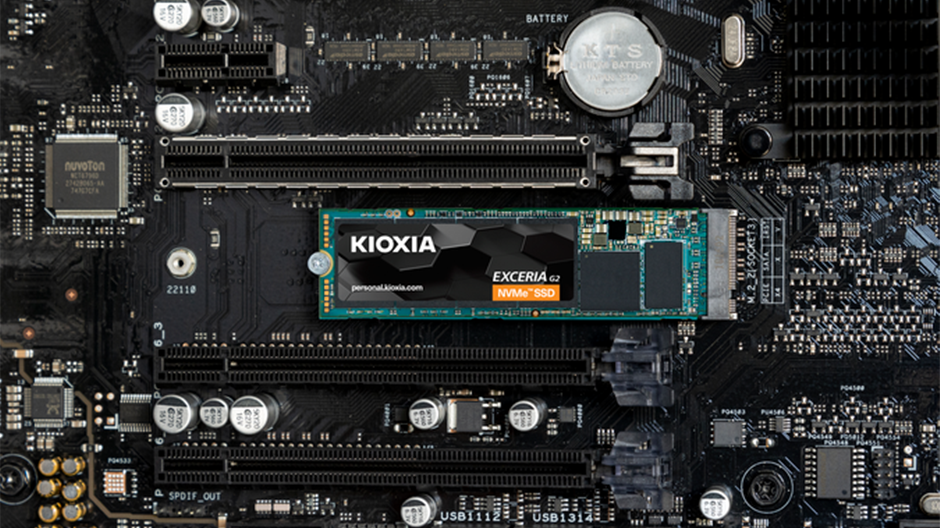

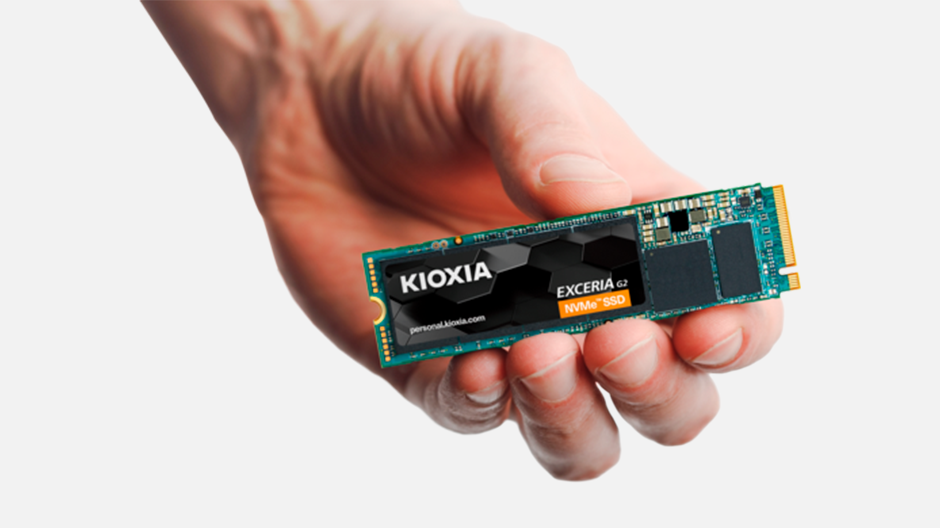

Featuring a thin, single-sided M.2 2280 form factor, the EXCERIA G2 SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.
NVMe™ Technology
Why keep using an interface that was designed for hard drives? Utilizing the NVMe™ 1.3c technology, EXCERIA G2 SSD series reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.
Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting edge storage experience.
SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!
We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.
EXCERIA G2 SSD Product Specifications
Get the latest product briefs, user manuals, safety instructions, software, and more.
Capacity / dimensions
Capacity
500GB, 1TB, 2TB
Form Factor
M.2 Type 2280-S2-M
Interface
PCI Express® Base Specification Revision 3.1a (PCIe®)
Flash Memory type
BiCS FLASH™ TLC
Interface Maximum Speed
32 GT/s (PCIe® Gen3x4)
Dimension (Max: LxWxH)
80.15 x 22.15 x 2.23 mm
Interface Command
NVM Express™ Revision 1.3c command set
Weight
500GB, 1TB: 6.8 g (typ.)
2TB: 7.1 g (typ.)
Performance
Max Sequential Read Speed*1
2,100 MB/s
Max Sequential Write Speed*1
1,700 MB/s
Max Random Read Speed*2
500GB, 1TB: 400,000 IOPS
2TB: 360,000 IOPSMax Random Write Speed*2
400,000 IOPS
Endurance: TBW*3
500GB: 200 TB
1TB: 400 TB
2TB: 800 TBMTTF
1.5 million hours
Operating environment / protection performance
Operating Temperature
0 ℃ (Ta) to 85 ℃ (Tc)
Storage Temperature
-40 ℃ to 85 ℃
Certification
RoHS compliant*5
Shock Resistance
9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration
196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
Supply Voltage
3.3 V ±5 %
Power Consumption
PS3: 50 mW (typ.)
PS4: 5 mW (typ.)Power Consumption (Active)
500GB, 1TB: 3.5 W (typ.)
2TB: 5.3 W (typ.)
Compatibility
PCI Express
Compatible with PCI Express® Base Specification Revision 3.1a and NVM Express™ Revision 1.3c command set
Connector Type
M.2 M key Socket
Target Applications
Client desktops and laptops
Others
Services and Support
Up to 5-year manufacturer's warranty*4
Performance Optimization
TRIM, Idle Time Garbage Collection
