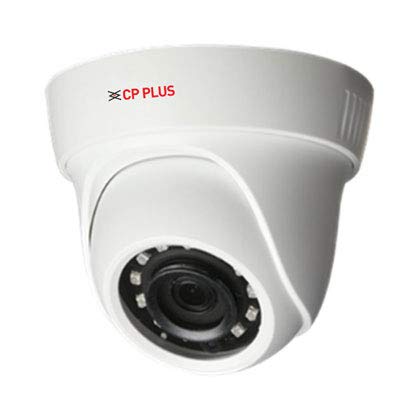

CP Plus CP-USC-DA24L2 HD 2.4MP Dome Security Camera with 3.6mm Lens, IR Range Up to 20m

The CP Plus CP-USC-DA24L2 HD 2.4MP Dome Security Camera is designed to provide high-definition surveillance for various environments. Equipped with a 1/2.7" 2.4MP PS CMOS image sensor, this camera delivers clear and detailed video quality. The dome body type ensures durability and discreet placement, making it suitable for both indoor and outdoor security applications.

The camera features a 3.6mm fixed lens with an optional 2.8mm lens available, offering a horizontal angle of view of 87.5° (103°). With a maximum aperture of F1.85, it ensures excellent performance in low-light conditions, with a minimum illumination of 0.02Lux/F1.85 and 0Lux with IR on. The IR LEDs provide an IR range of up to 20 meters, enhancing visibility in complete darkness.

Advanced imaging technologies such as Digital Wide Dynamic Range (DWDR), Back Light Compensation (BLC), and Highlight Compensation (HLC) are supported, ensuring high-quality video in various lighting conditions. The camera also includes a multi-language OSD menu for easy configuration and control.

This dome camera supports versatile video output options, including 1-channel BNC high-definition video output and CVBS video output, which can be switched as needed. It provides smooth video streaming at 25/30fps@2.4MP and 25/30/50/60fps@720P resolution.

The CP-USC-DA24L2 is designed to operate efficiently in a wide temperature range of -40°C to +60°C with less than 95% relative humidity, making it suitable for harsh environmental conditions. The IP67 weatherproof standard ensures protection against dust and water, further enhancing its durability for outdoor use.

Powering the camera is straightforward with a 12V DC power source, and it has a low power consumption of a maximum of 3.3W with IR on. The compact dimensions of Φ97mm×79.3mm and a weight of 0.17kg make it easy to install and integrate into existing security systems.

Whether you need to monitor a small business, residential property, or any other area, the CP Plus CP-USC-DA24L2 HD 2.4MP Dome Security Camera provides reliable and high-quality surveillance to meet your security needs.
