- Brand: TENDA
- Model: 4G680V2.0
- EAN: 6932849428261
- MPN: E5591010927001921
- Plug SIM card and surf the internet without configuration
- Qualcomm processor for supreme performance
- Support external Landline phone via VoLTE, make calls anytime anywhere

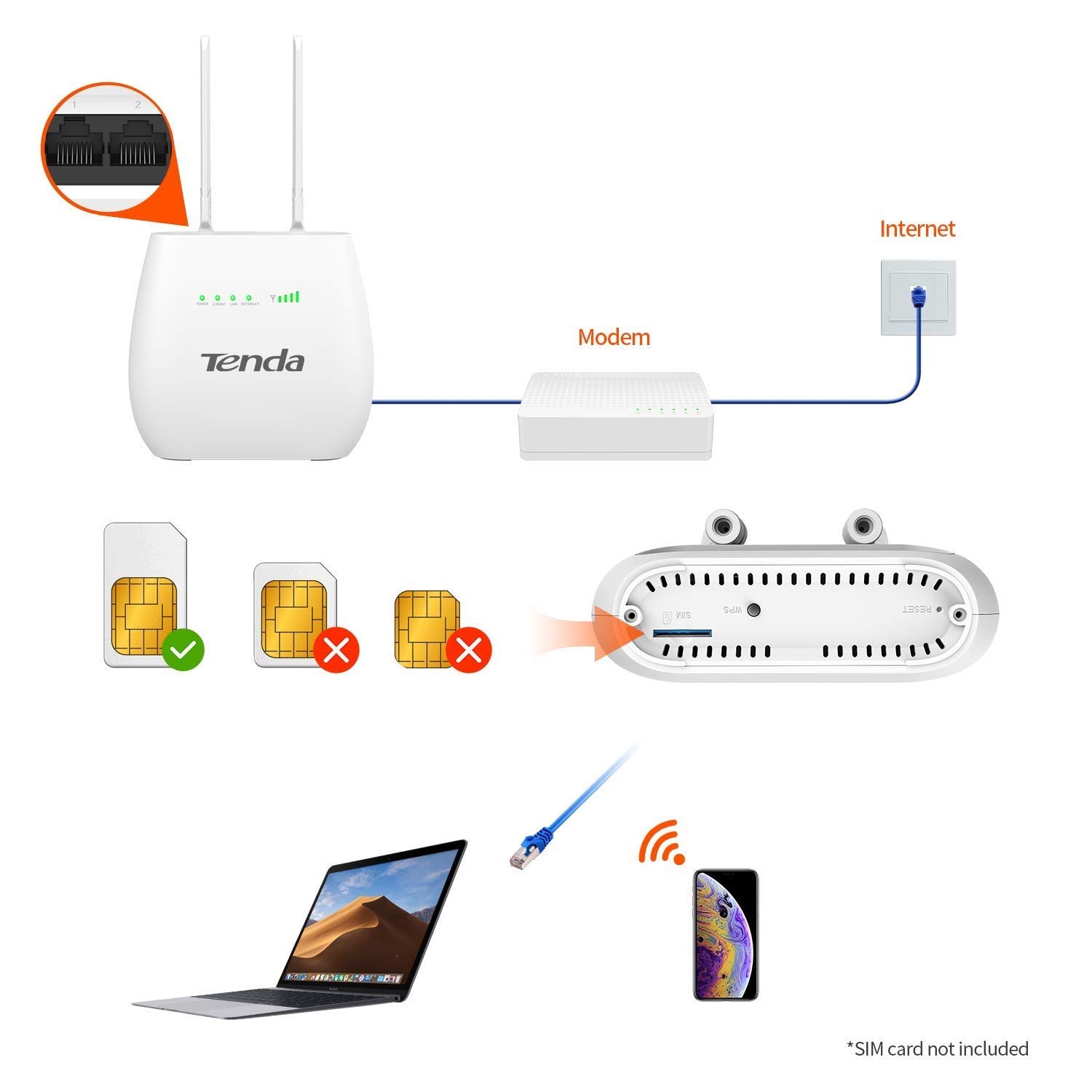

- Automatically switch to wired connection once connected with a modem
Ask a Question About This Product

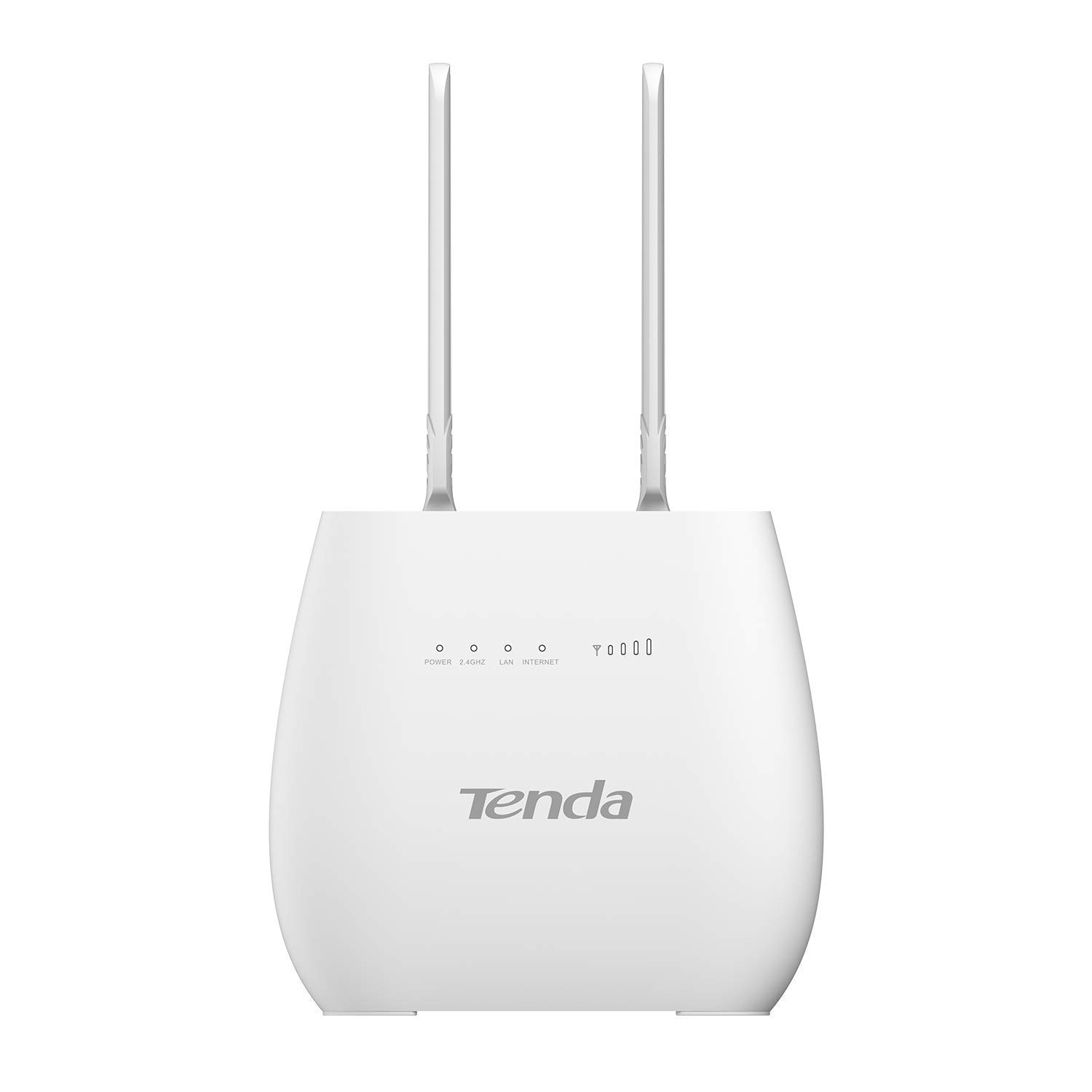

Tenda 4G680V2.0 3G/4G 300Mbps Wireless N300 4G LTE and Volte Router (SIM Based, Not a Modem)
Â
Â
Â
Specifications
| Dimension | 130mm*117mm*46mm（L*W*H) |
| Net Weight | About 295g |
| Link Speed | White |
| Link Speed Rate | FDD-LTE DL/UL 150Mbps/50Mbps DC-HSPA+ DL/UL 43.2 Mbps/5.76 Mbps Megabit Wired speed rate |
| LED Indicator | Power on/off 2.4GHz WiFi Status LAN Port Status 4G/3G Signal strength Bars |
| Power Supply | Input : 110V-220V AC 50/60Hz DC : 12V/1A |

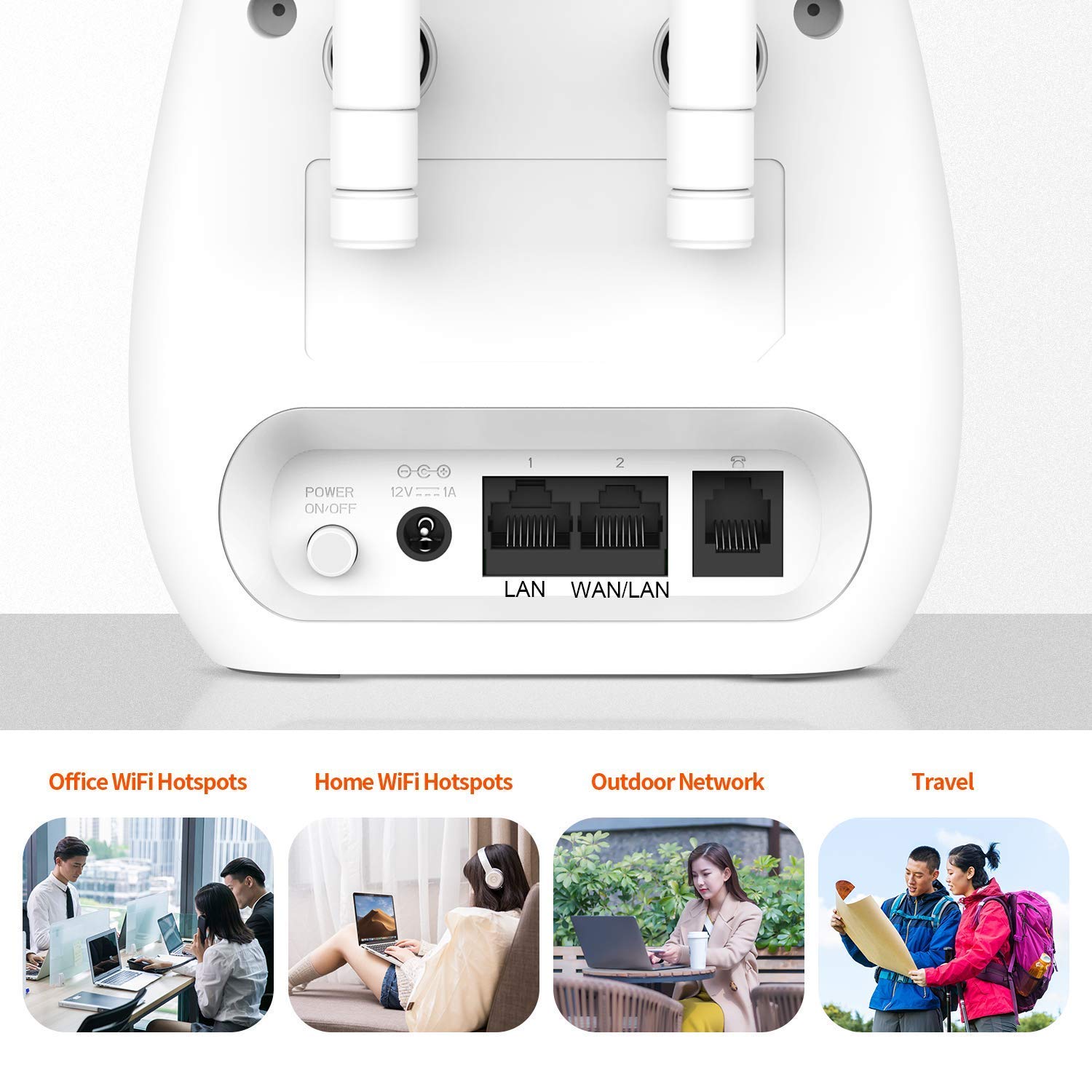

| External Interface | Two RJ45 Ports One RJ11 Port 2FF SIM slot |
| Button | Power on/off Reset Hole |
| Standard&Protocol | IEEE 802.11nã€IEEE 802.11gã€IEEE 802.11b |
| Antenna | Two internal Wi-Fi antennas + Two external 3G/4G antennas |
| Wireless Link Rate | 802.11 b/g/n 300Mbps |
| Frequency Range | 2.4GHz |
| Basic Function | Client Filter SSID, Broadcast Channel |
| Wireless Security | WPA-PSK/WPA2-PSK WPA/WPA2 WEP |
| Internet Connection Type | FDD LTE/TDD LTE/WCDMA/GSM |
| Function | Automatic APN matching according to USIM Date traffic management SMS Manager USSD Service MAC Filter DMZ DHCP 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Browser | IE, Firefox, Google Chrome, Safari, Opera |
| Operation System | Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS X 10.5, 10.6, 10.7 and 10.8 with latest upgrades |
| Temperature | Operating Temperature : 0ºC~45ºC Storage Temperature : -30ºC~70ºC |
| Humidity | Operating Humidity : 10% ~ 90% RH Non-condensing Storage Humidity : 5% ~ 90% RH Non-condensing |
| Default Settings | Login IP Address : 192.168.0.1 Login User Name/Password : admin/admin SSID : Tenda_xxxx (where "xxxx" represents the last four characters of device MAC address) Password : See the label on back cover |
Â
 What In the Box
- 1 x Tenda 4G680V2.0 300Mbps Wireless N300 4G LTE VoLTE Voice Service WiFi Router - Maxis Digi Celcom Umobile Unifi
- 1 x Power Adapter
- 1 x Ethernet Cable
- 1 x Phone Cable
- 1 x Quick Install Guide
 Warranty
3 Years Warranty
Tenda 300Mbps Wireless N300 4G LTE VoLTE Router 4G680 2.0 (SIM Card Wifi Router)
Â
Â
Features
Â
Tenda 4G680 2.0 Provides 4G LTE Mobile WAN and wired WAN connection to let you surf the internet easily. By simply plug a mobile operator's SIM card,you can shared with multiple users or multiple devices and enjoy fast 4G speed. Use 4G LTE as primary connection while wired connection as backup connection,the device automatically fails over to wired connection when 4G signal is lost.and fail back when it resumes.in a word,it will let you always on Internet and enjoy the lately and fast mobile internet .it provide voice service base on VoLTE or CSFB also.It offers Wireless N speeds of up to 300Mbps.This router is perfect for locations where 4G LTE speeds are faster than cable broadband or ADSL is inconvenient. It provides High speed Wi-Fi service and Voice service to you steadily.
Â
Specifications
Â
| Link Speed Rate |
|
| LED Indicator |
|
| Power Supply |
|
| External Interface |
|
| Button |
|
| Standard&Protocol | IEEE 802.11nã€IEEE 802.11gã€IEEE 802.11b |
| Antenna | Two internal Wi-Fi antennas + Two external 3G/4G antennas |
| Wireless Link Rate | 802.11 b/g/n 300Mbps |
| Frequency Range | 2.4GHz |
| Basic Function |
|
| Wireless Security |
|
| Internet Connection Type | FDD LTE/TDD LTE/WCDMA/GSM |
| Function |
|
| Browser | IE, Firefox, Google Chrome, Safari, Opera |
| Operation System | Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS X 10.5, 10.6, 10.7 and 10.8 with latest upgrades |
| Temperature |
|
| Humidity |
|
| Default Settings |
|
