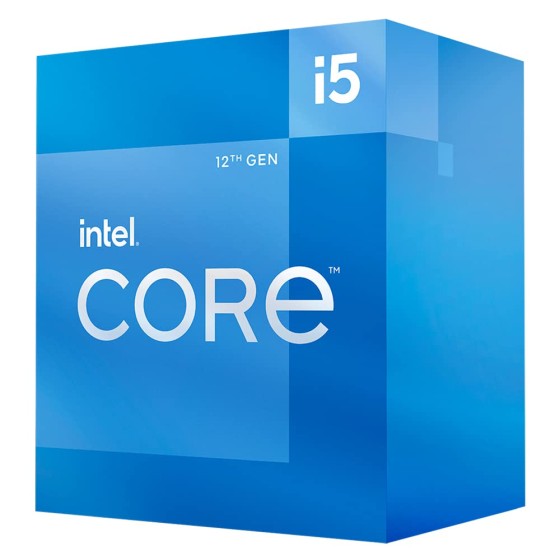

Intel i5 12400 LGA1700 12TH Gen Desktop Processor

Intel Core i5-12400 12th Gen Alder Lake Processor

Features:

  • Intel 7 Alder Lake Processor Base Power: 65W
  • Maximum Turbo Power: 117W
  • 18MB L3 Cache
  • 7.5MB L2 Cache
  • Intel UHD Graphics 730
  • Windows 11 Supported

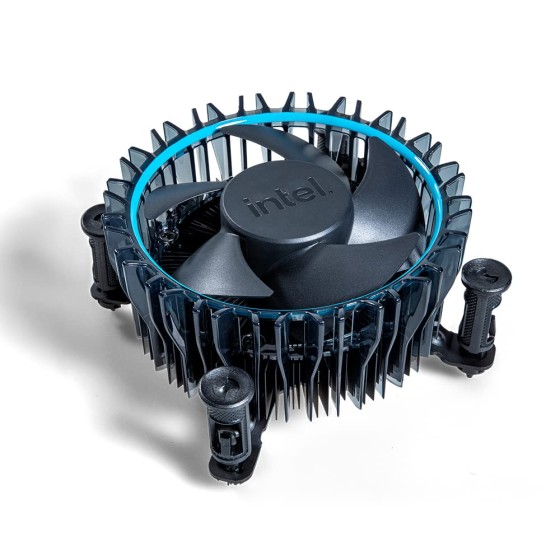

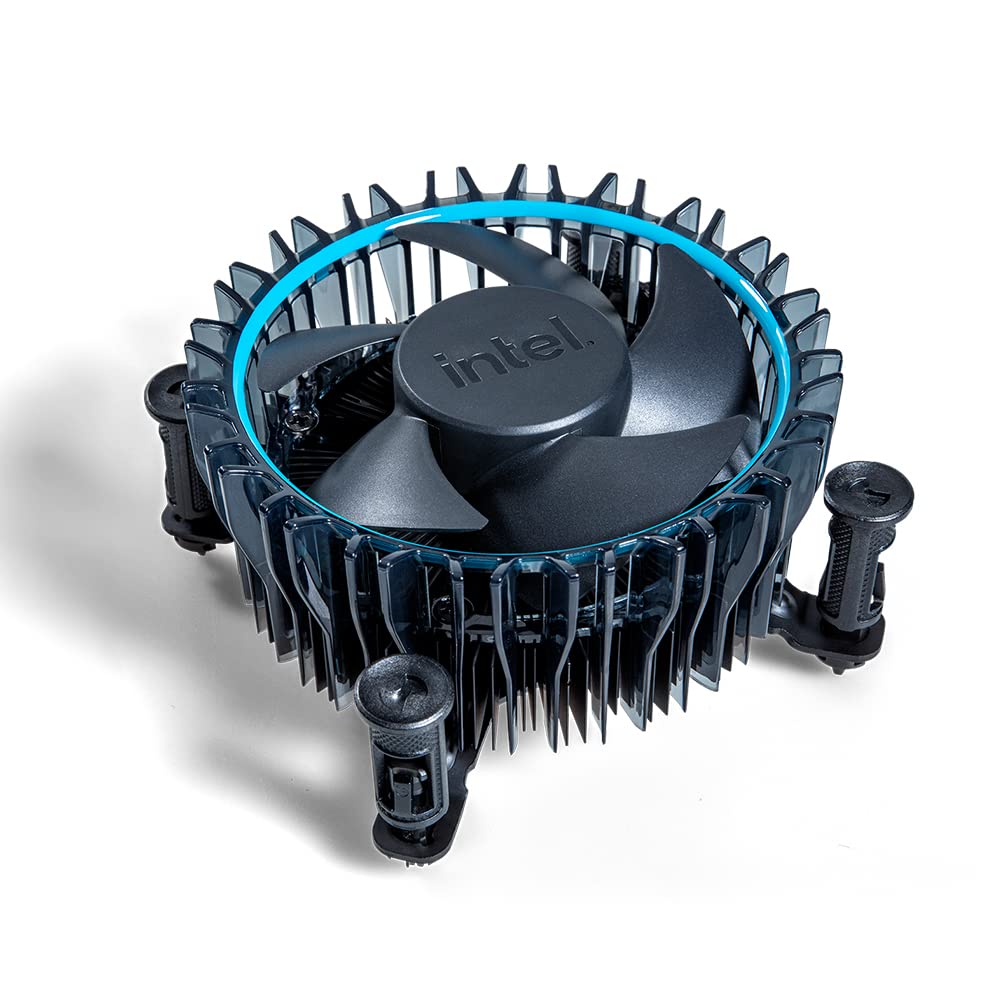

  • Intel Laminar RM1 CPU Cooler

Specifications:

Essentials
Product Collection12th Generation Intel® Core™ i5 Processors
Code NameProducts formerly Alder Lake
Vertical SegmentDesktop
Processor Numberi5-12400
StatusLaunched
LithographyIntel 7
Use ConditionsPC/Client/Tablet
CPU Specifications
Total Cores6
# of Performance-cores6
# of Efficient-cores0
Total Threads12
Max Turbo Frequency4.40 GHz
Performance-core Max Turbo Frequency4.40 GHz
Performance-core Base Frequency2.50 GHz
Cache18 MB Intel® Smart Cache
Total L2 Cache7.5 MB
Processor Base Power65 W
Maximum Turbo Power117 W
Memory Specifications
Max Memory Size (dependent on memory type)128 GB
Memory Types
  • Up to DDR5 4800 MT/s
  • Up to DDR4 3200 MT/s
Max # of Memory Channels2
Max Memory Bandwidth76.8 GB/s
Processor Graphics
Processor GraphicsIntel® UHD Graphics 730
Graphics Base Frequency300 MHz
Graphics Max Dynamic Frequency1.45 GHz
Graphics OutputeDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units24
Max Resolution (HDMI)4096 x 2160 @ 60Hz
Max Resolution (DP)7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)5120 x 3200 @ 120Hz
DirectX Support12
OpenGL Support4.5
Multi-Format Codec Engines1
Intel® Quick Sync VideoYes
Intel® Clear Video HD TechnologyYes
# of Displays Supported4
Device ID0x4692 / 0x4682
OpenCL Support2.1
Expansion Options
Direct Media Interface (DMI) Revision4.0
Max # of DMI Lanes8
Scalability1S Only
PCI Express Revision5.0 and 4.0
PCI Express ConfigurationsUp to 1x16+4, 2x8+4
Max # of PCI Express Lanes20
Package Specifications
Sockets SupportedFCLGA1700
Max CPU Configuration1
Thermal Solution SpecificationPCG 2020C
TJUNCTION100°C
Package Size45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator3.0
Intel® Thread DirectorNo
Intel® Deep Learning Boost (Intel® DL Boost)Yes
Intel® Optane™ Memory SupportedYes
Intel® Speed Shift TechnologyYes
ntel® Turbo Boost Max Technology 3.0No
Intel® Turbo Boost Technology2.0
Intel® Hyper-Threading TechnologyYes
Intel® Virtualization Technology (VT-x)Yes
Intel® Virtualization Technology for Directed I/O (VT-d)Yes
Intel® VT-x with Extended Page Tables (EPT)Yes
Intel® 64Yes
Instruction Set64-bit
Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle StatesYes
Enhanced Intel SpeedStep® TechnologyYes
Thermal Monitoring TechnologiesYes
Intel® Volume Management Device (VMD)Yes
Security & Reliability
Intel® AES New InstructionsYes
Secure KeyYes
Intel® OS GuardYes
Execute Disable BitYes
Intel® Boot GuardYes
Mode-based Execute Control (MBEC)Yes
Intel® Control-Flow Enforcement TechnologyYes
Warranty3 Years
Note*** Features, Price, Specifications are subject to change without notice.
CPU
Core Name Alder Lake
PCI Express 5.0 Lanes20
CPU Cores6 Cores
CPU Threads6 Threads
Base Clock2.50 GHz
Max Boost Clock4.40 GHz
Product LineCore i5
Total L2 Cache7.5 MB
CPU Socket TypeLGA 1700
Thermal SolutionHeat-sink and CPU:PCG 2020C
Memory
Memory TypeDDR4
Memory Capacity128 GB
Memory Channels2
GPU
Graphics Engine UHD Graphics 730
Power
TDP117 Watts
General
Manufacturer Warranty3 years
Product FamilyIntel 12th Gen
