MSI MPG Series A750GF Power Supply (PSU): 750 Watt, Full Modular, 80 PLUS Gold Certified, 10 Year Warranty (306-7ZP0B18-CE0)

GPU SUPPORT FOR ALL

The MPG gaming power supply can support the NVIDIA GeForce RTXâ„¢ 30/20 Series and AMD GPUs. Prepared for the highest of requirements, the MPG

power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.

1 VGA Power Connector                                                                                2 VGA Power Connector

3 VGA Power Connector



80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

TRUSTWORTHY AND EFFICIENT

The MPG gaming power supply is proudly backed by a 10-year limited warranty, guaranteeing long term reliable operation.

*This image is for information purposes only. Please see the actual product for reference.

100% JAPANESE 105° C CAPACITORS

Aiming for unwavering product quality and performance stability, the MPG gaming power supply comes with 100% Japanese 105° C capacitors and solid capacitors.

ONLY WHAT YOU NEED

Organizing cables is often the most bothersome part of building a PC. With the MPG gaming power supply’s fully modular design, it means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.

Shown with MSI’s MPG GUNGNIR 110M & MAG CORELIQUID 240R liquid cooler.

ALL THE MORE ORGANIZED

All of the MPG gaming power supply’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. Use the cables you need, and store the rest in the included cable bag.

FEELS RIGHT AT HOME

The MPG gaming power supply’s 160mm-long and 150mm-wide dimensions ensure a comfortable and easy fit in most PC cases, effectively providing more space for cable management and airflow to the rest of the system.

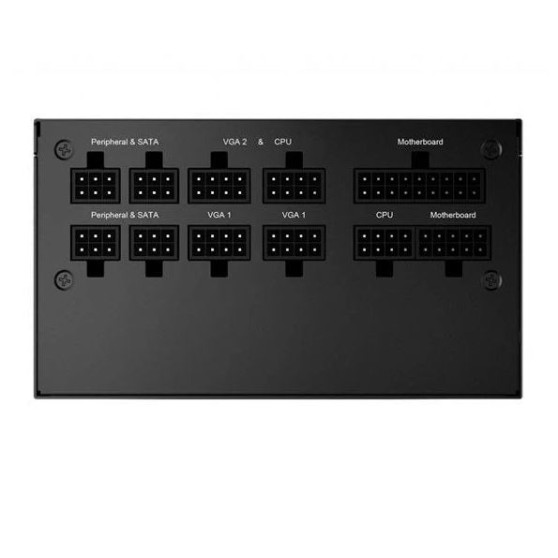

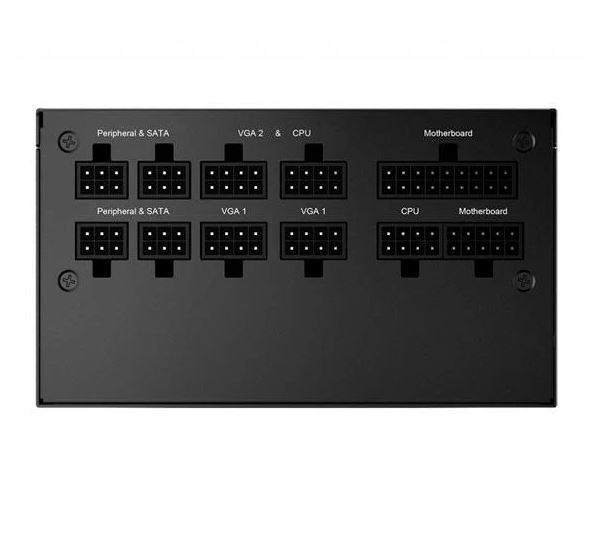

X1 ATX CONNECTOR                                              X6 PCI-E CONNECTOR

24-PIN                                                                      8-PIN (6+2)

600mm ± 10mm                                                     500mm ± 10mm

X8 SATA CONNECTOR                                         X2 EPS CONNECTOR

(SATA)                                                                    8-PIN (4+4)

950mm ± 10mm                                                  700mm ± 10mm

X5 PERIPHERAL /
FDD CONNECTOR

4-PIN
1100mm ± 10mm

SPECIFICATION
AC Input	100V~240V
DC Output	+5V	+3.3V	+12VMBPH	+12VCPU	+12VVGA1	+12VVGA2	-12V	+5VSB
	22.0A	22.0A	25.0A	25.0A	35.0A	35.0A	0.3A	2.5A
Total Power	120W		750W				Â
	750W

• Supports the NVIDIA GeForce RTXâ„¢ 30 Series GPUs
• Full modular cable design
• Flat cable equipment
• 10-year warranty
• 80 Plus Gold certified for high efficiency
• 100% all Japanese 105oC capacitor
• Active PFC design
• Industrial level protection with OVP, OCP,OPP, OTP, SCP, UVP
• LLC Half Bridge Topology with DC-DC module design

MSI MPG A750GF 750 WATT 80 PLUS GOLD CERTIFICATION FULLY MODULAR SMPS

Overview :

MAG A750 GF

• Supports the NVIDIA GeForce RTXâ„¢ 30 Series GPUs
• Full modular cable design
• Flat cable equipment
• 10-year warranty
• 80 Plus Gold certified for high efficiency
• 100% all Japanese 105oC capacitor
• Active PFC design
• Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
• LLC Half Bridge Topology with DC-DC module design



GPU SUPPORT FOR ALL

The MPG gaming power supply can support the NVIDIA GeForce RTX™ 30/20 Series and AMD GPUs. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.

80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

TRUSTWORTHY AND EFFICIENT

The MPG gaming power supply is proudly backed by a 10-year limited warranty, guaranteeing long term reliable operation.

100% JAPANESE 105° C CAPACITORS

Aiming for unwavering product quality and performance stability, the MPG gaming power supply comes with 100% Japanese 105° C capacitors and solid capacitors.

ONLY WHAT YOU NEED

Organizing cables is often the most bothersome part of building a PC. With the MPG gaming power supply’s fully modular design, it means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.

ALL THE MORE ORGANIZED

All of the MPG gaming power supply’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. Use the cables you need, and store the rest in the included cable bag.

FEELS RIGHT AT HOME

The MPG gaming power supply’s 160mm-long and 150mm-wide dimensions ensure a comfortable and easy fit in most PC cases, effectively providing more space for cable management and airflow to the rest of the system.

ALLOY COPPER CONNECTOR TERMINALS

The MPG gaming power supply’s CPU, VGA, and MB connectors utilize alloy copper terminals that can withstand higher current ratings than traditional phosphor bronze cable terminals.

Specification :



• Wattage750 Watt
• SeriesMPG SERIES
• Certification80+ GOLD
• ModularFULLY MODULAR
• PCIe Connector (6+2)6
• SATA Connector8
• Peripheral (4-Pin)5
• Warranty10 Years
