- Brand: Lian LI
- Model: SP750
- UPC: 840353041370
- EAN: 4718466010490
- 80 PLUS GOLD Efficiency
- Fully modular braided cables for a clean look
- Japanese electrolytic capacitors for high durability
- ZERO RPM mode under 40% load for silent operation
- Sleek and classic exterior with brushed aluminum housing
Ask a Question About This Product
Available in two color
Sleek Black Look with Aluminum Housing Completely White Designing.
80 PLUS Gold Certificate
SP750 guarantees up to 92% efficiency, ensuring less power wastage.
SP750 Composition

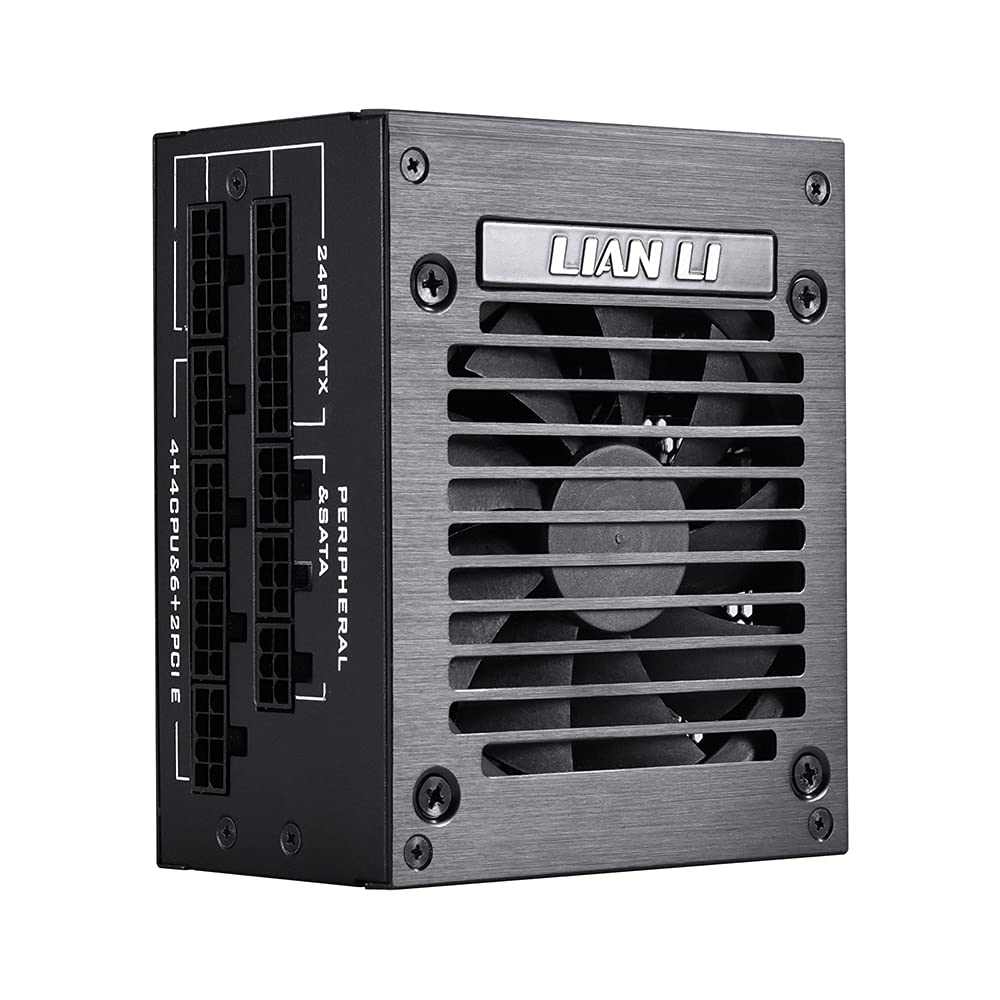

Cooling in Silence
The SP750 features a 92mm hydraulic bearing fan that operates at zero RPM mode until 40% load in order to achieve minimal acoustic levels.
ACOUSTIC NOISE (Ambient Temperature is 25ยฐC)
Note : Internal components reach 60ยฐC will also trigger fan to operate
Japanese Electrolytic Capacitors
Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offering the highest stability.

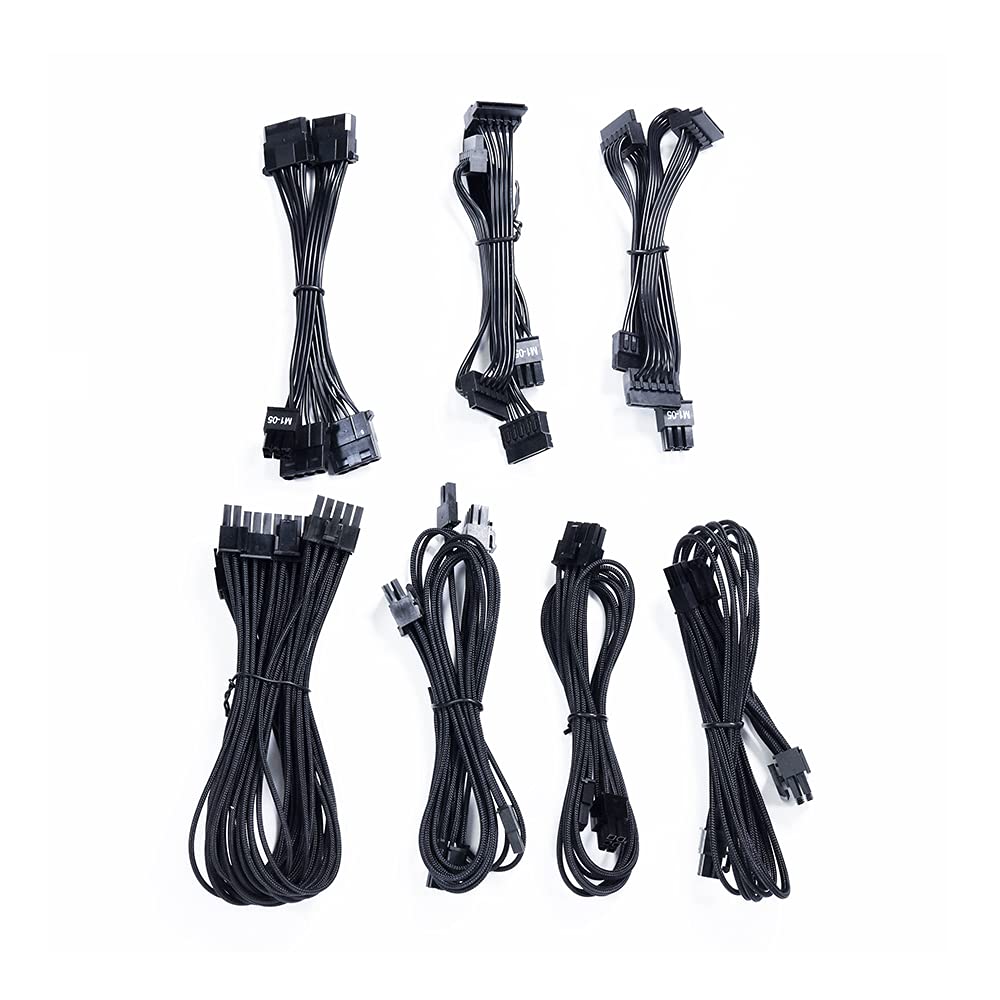

Fully Modular Connection and Included Braided Cables
The fully modular power supply provides all necessary braided cables right out of the box, ensuring less cable clutter and more aesthetics.
CPU / ATX12V Connector x1
2 x 8 PIN PCIe Connector x1
1 x 8 PIN PCIe Connector x1
Motherboard Connector x1
SATA Connector x2
Peripheral Connector x1

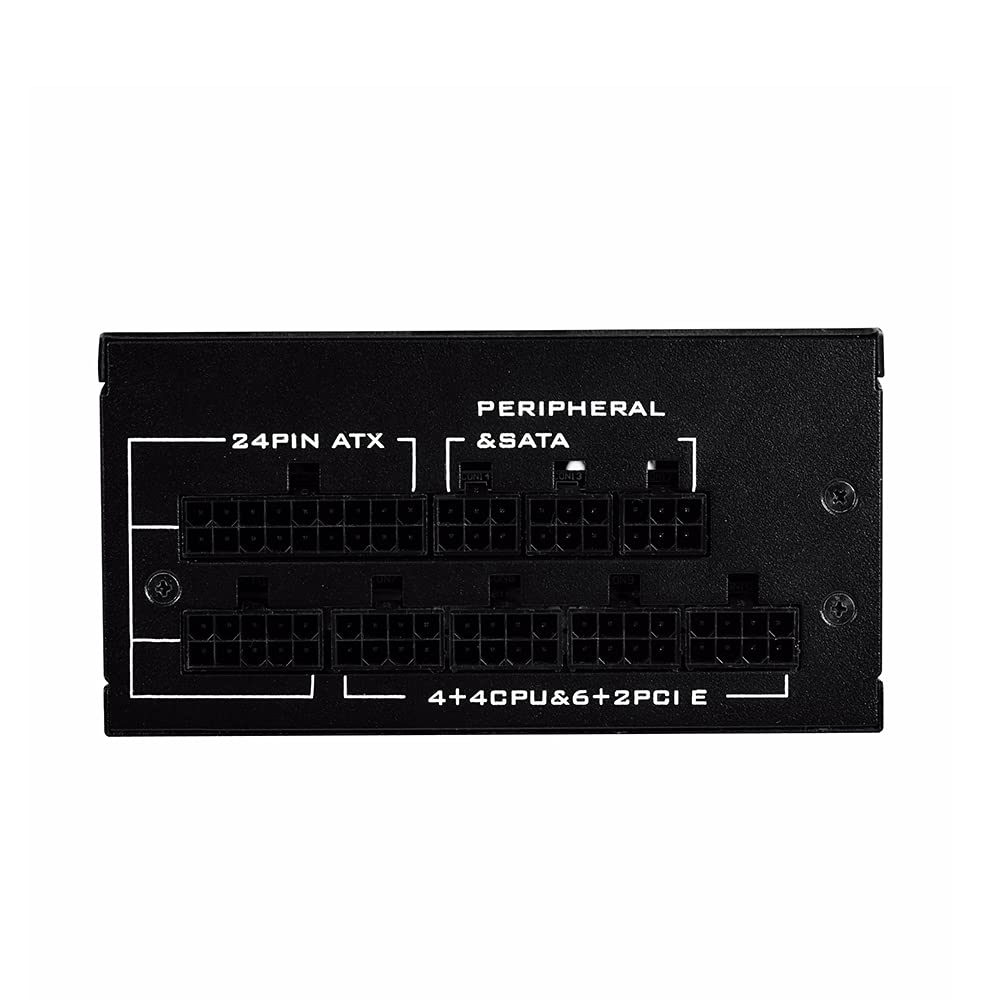

SP750 Connector Type for Custom Cables
Note: Damage caused by custom cables doesnโt include in the warranty.
Multi Power Cord Types
Five Years Warranty
LIAN LI offers a 5-year limited warranty for the SP750, reflecting our confidence in the quality of our performance SFX PSU.
SPECIFICATIONS
| MODEL | SP750 |
|---|---|
| Dimensions | (D)100 mm X (W)63.5mm X (H)125 mm |
| Power supply design | Fully modular |
| Color | Black / White |
| Material | Steel/brushed aluminum housing |
| Form factor | SFX |
| Certification | 80 PLUS Gold |
| Max. DC Output | 750W |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 744W |
| Input Voltage | 100 โ 240 Vrms |
| Input Frequency Range | 50Hz โ 60 Hz |
| PFC | Active PFC (PF)>0.90 at full load |
| Efficiency | 91.89% Max |
| Protective Circuit | OCP/ OPP/ UVP/ OVP/ OTP/ SCP |
| Connectors | 1 x 24 / 20-Pin motherboard connector (300mm) x 1pcs 2 x 8 / 4-Pin CPU / ATX 12V connector (450mm-70mm) x 1 pcs 1 x 8 / 6+2 Pin PCIe connector (400mm) x 1pcs 2 x 8 / 6+2 Pin PCIe connector (400mm-120mm) x 1pcs 4 x SATA connector (120mm-120mm-120mm-120mm) x 2pcs 4 x 4-Pin Peripheral connector (120mm-120mm-120mm-120mm) x 1pcs |
| 750W FAN RPM | 1000-2800 RPM |
| Noise Level | 17.1-43.1 DBA |
| Bearing Type | 31.Fluid Dynamic Bearing (FDB) |
| Warranty | 5 years |
