The Cooler Master G800W Gold Power Supply delivers stable and efficient power for high-performance systems, making it the perfect choice for gaming rigs and workstations. With 80 PLUS Gold certification, this PSU ensures ≥90% efficiency under typical load, reducing energy costs and heat generation.
The non-modular design provides all the essential connections, including 4 PCI-e 6+2 pin connectors, 6 SATA connectors, and 3 Peripheral 4-pin connectors, making it compatible with a wide range of components. Its 120mm HDB fan operates quietly while maintaining optimal cooling, ensuring reliability even under heavy workloads.
Engineered with active PFC and protections including OVP, OPP, SCP, UVP, OTP, and OCP, the G800W Gold ensures system safety and long-term durability. The PSU is built to comply with ATX 12V v2.52 standards, supporting the latest PC builds.
Key Specifications:
Power Output: 800W
Certification: 80 PLUS Gold, ≥90% efficiency at typical load
Form Factor: ATX 12V v2.52

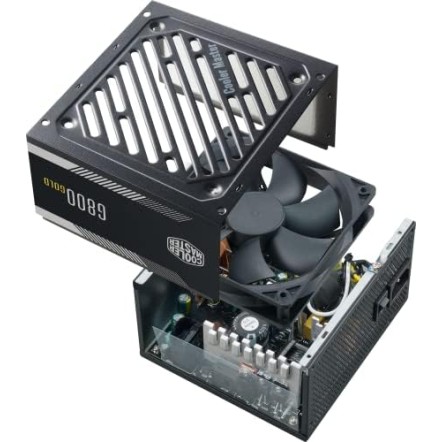

Fan: 120mm HDB for quiet cooling
Connectors:
1 x ATX 24 Pin
1 x EPS 4+4 Pin
1 x EPS 8 Pin
4 x PCI-e 6+2 Pin
6 x SATA
3 x Peripheral 4 Pin
Protections: OVP, OPP, SCP, UVP, OTP, OCP
Dimensions: 140 x 150 x 86 mm
Input Voltage: 100-240V
Input Current: 12-6A
Input Frequency: 47-63Hz
Hold Up Time: ≥15ms at 100% load
Warranty: 5 years
MTBF: >100,000 hours
The Cooler Master G800W Gold is designed for long-term reliability, backed by a 5-year warranty, and complies with multiple regulatory certifications, including RoHS2.0, TUV, CE, FCC, and more.
80 PLUS Gold Certified: Ensures high efficiency with minimal heat and energy loss.
800W Output: Ideal for high-performance gaming and workstation builds.
Comprehensive Protections: OVP, SCP, OCP, UVP, and more for system safety.
