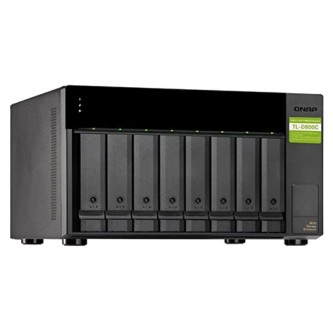

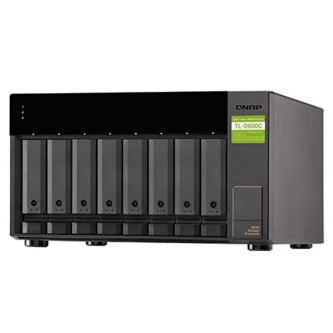

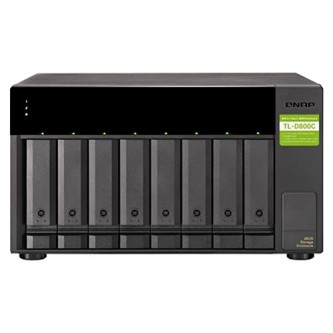

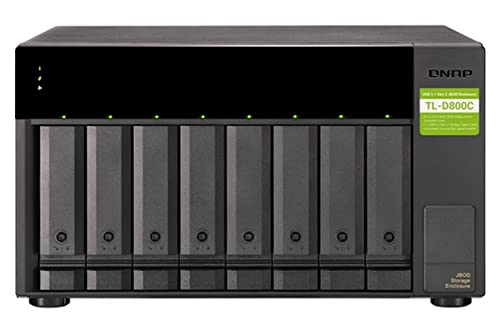

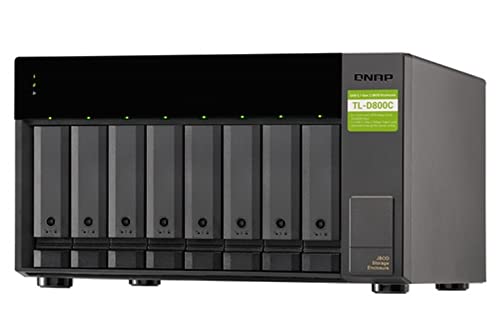

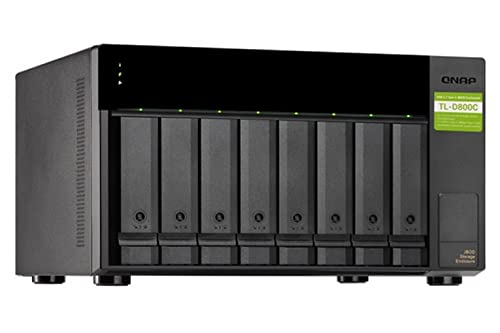

The QNAP TL-D800C-EU JBOD Storage Enclosure is designed to provide users with a high-capacity, high-speed storage expansion solution. Equipped with eight 3.5-inch SATA 6Gb/s drive bays and a USB 3.2 Gen 2 Type-C interface, the TL-D800C-EU offers up to 10 Gbps data transfer speeds, making it ideal for both home and business applications.
Drive Bays: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s; compatible with 3.5-inch HDDs, 2.5-inch HDDs, and 2.5-inch SSDs; hot-swappable
Host Interface: 1 x USB 3.2 Gen 2 Type-C port
Dimensions (HxWxD): 188.2 × 329.3 × 281.4 mm
Weight: Net weight of 6.18 kg; gross weight of 7.54 kg
Power Supply Unit: 250W PSU, 100 - 240V
Operating Temperature: 0 - 40°C (32°F - 104°F)
Storage Temperature: -20 - 70°C (-4°F - 158°F)
Relative Humidity: 5-95% RH non-condensing
Cooling System: 2 x 120mm, 12VDC fans with mode switch (Auto, High, Medium, Low)
System Warning: Buzzer
Security: Kensington Security Slot
High-Speed USB 3.2 Gen 2 Connectivity:
The TL-D800C-EU features a USB 3.2 Gen 2 Type-C port, delivering up to 10 Gbps data transfer speeds. This high-speed interface ensures fast and efficient file sharing and data transfer, significantly reducing backup and recovery times.
Flexible Storage Configuration and Management:
Users can configure the TL-D800C-EU in various RAID modes to suit their storage needs. When connected to a QNAP NAS, the Storage & Snapshots Manager allows for easy RAID configuration and storage management. For Windows®, macOS®, and Ubuntu® users, the QNAP JBOD Manager utility provides a user-friendly interface to monitor and manage the enclosure.
Cross-Platform Compatibility:
The TL-D800C-EU is compatible with multiple operating systems, including QNAP NAS, Windows®, macOS®, and Ubuntu®. This versatility makes it an excellent choice for users seeking to expand their storage across different platforms seamlessly.
Robust and User-Friendly Design:
The enclosure's lockable drive trays prevent accidental or unauthorized removal of drives, ensuring data security. Its compact metal body and efficient cooling system provide stable and reliable operation, even under full load conditions.
Ideal Use Cases:
NAS Expansion: Effortlessly increase your QNAP NAS storage capacity to accommodate growing data needs.
High-Speed Data Transfer: Leverage the USB 3.2 Gen 2 interface for rapid backup and retrieval of large files, such as multimedia content and databases.
Cross-Platform Data Sharing: Share and transfer data across different operating systems without compatibility issues.
Flexible RAID Configurations: Customize storage setups to balance performance and redundancy according to specific requirements.
The QNAP TL-D800C-EU JBOD Storage Enclosure offers a reliable, high-performance solution for users seeking to expand their storage capabilities with ease and efficiency.
