MSI H510M-A PRO Intel LGA 1200 Micro-ATX Motherboard, Supports 10th and 11th Gen Processors

MSI H510M-A PRO Intel LGA 1200 Motherboard

Out Of Stock

MSI H510M-A PRO Intel LGA 1200 Micro-ATX Motherboard, Supports 10th and 11th Gen Processors

0 reviews - Write a review

from

₹0.00

Ex Tax: ₹0.00

Stock: Out Of Stock
Brand: MSI
Model: H510M-A PRO
UPC: 824142242339
EAN: 4719072802905

11TH GEN CORE READY - The H510M-A PRO is a compact micro-ATX motherboard outfitted with the latest Intel H510 chipset (LGA 1200, 11th Gen Core ready); The VRM features MSI Core Boost technology for improved stability & performance
GEN4 GPU SLOT, DUAL DIMMS - A PCIe 4.0 x16 slot (with steel frame) supports state-of-the-art graphics cards; Dual DIMMs with dual-channel DDR4 architecture support up to 64 GB of SDRAM (3200MHz)
GEN3 M.2 SSD STORAGE - The M.2 Gen3 x4 32Gb/s slot is designed to maximize NVMe-based SSD performance; SSD storage reduces loading time
PASSIVE & AI COOLING - A chipset heatsink provides passive cooling; a PCB base with thickened copper helps dissipate heat; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperature
GET CONNECTED - Features Intel 1219V 1G LAN; Fixed ports include legacy VGA as well as the latest HDMI 2.0b (4K/60Hz) - requires CPU with integrated graphics; 2 x USB 3.2 Gen 1 Type-A (5Gb/s) and 7.1 HD Audio with Audio Boost

Qty

Out Of Stock

Buy Now Ask a question

Add to Wish List Compare this Product

MSI H510M-A PRO Intel LGA 1200 Micro-ATX Motherboard, Supports 10th and 11th Gen Processors

Product Description

MSI H510M-A PRO Motherboard, Micro-ATX - Supports Intel Core 11th Gen Processors SPN-DCON

MSI H510M-A PRO Motherboard, Micro-ATX - Supports Intel Core 11th Gen Processors

H510M-A PRO is a compact micro-ATX motherboard outfitted with the latest Intel H510 chipset

Product information

Technical Details

Brand

â€ŽMSI

Series

â€ŽH510M-A PRO

Item Height

â€Ž5 Centimeters

Item Width

â€Ž20.2 Centimeters

Product Dimensions

â€Ž23.6 x 20.2 x 5 cm; 699 Grams

Batteries

â€Ž1 A batteries required.

Item model number

â€Ž7D22-009R

Processor Socket

â€ŽLGA 1200

Memory Technology

â€ŽDDR4

Maximum Memory Supported

â€Ž64 GB

Memory Clock Speed

â€Ž3200 MHz

Graphics Card Interface

â€ŽIntegrated

Number of HDMI Ports

â€Ž1

Number of Ethernet Ports

â€Ž1

Wattage

â€Ž50

Are Batteries Included

â€ŽNo

Lithium Battery Energy Content

â€Ž2.6 British Thermal Units (BTUs)

Lithium Battery Weight

â€Ž0.5 Milligrams

Number Of Lithium Ion Cells

â€Ž7

Number of Lithium Metal Cells

â€Ž7

Manufacturer

â€ŽMicro-Star International Co., Ltd

Item Weight

â€Ž699 g

H510M-A PRO

Supports 10^thÂ Gen Intel^Â®Â Coreâ„¢, 11^thÂ Gen Intel^Â®Â Coreâ„¢, Pentium^Â®Â Gold and Celeron^Â®Â processors for LGA 1200 socket
Supports DDR4 Memory, up to 3200(Max) MHz
Core Boost:Â With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost:Â Advanced technology to deliver pure data signals for the bestÂ performance and stability.
Lightning Fast Experience: PCIe 4.0
Turbo M.2:Â Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor:Â Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications

PROCESSOR	Supports 10th Gen Intel^Â®Â Coreâ„¢ Processors, 11th Gen Intel^Â®Â Coreâ„¢ Processors, Pentium^Â®Â Gold and Celeron^Â®Â Processors Â Please go to www.intel.com for more compatibility information.
CHIPSET	Intel^Â®Â H510 Chipset
MEMORY	2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^Â®Â CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^Â®Â CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^Â®Â Extreme Memory Profile (XMP) Â Please refer to www.msi.com for more information on compatible memory.
EXPANSION SLOT	1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel^Â®Â CPU Support up to PCIe 3.0 for 10th Gen Intel^Â®Â CPU 1x PCIe 3.0 x1 slot (From PCH) 1x M.2 slot with E key for WiFi module only(M2_2)
ONBOARD GRAPHICS	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz Â Available only on processors featuring integrated graphics. Â Graphics specifications may vary depending on the CPU installed.
STORAGE	4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) M2_1 slot (From H510 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Â SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB	IntelÂ®Â H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector)
AUDIO	RealtekÂ®Â ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Intel^Â®Â I219V 1Gbps LAN controller
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector

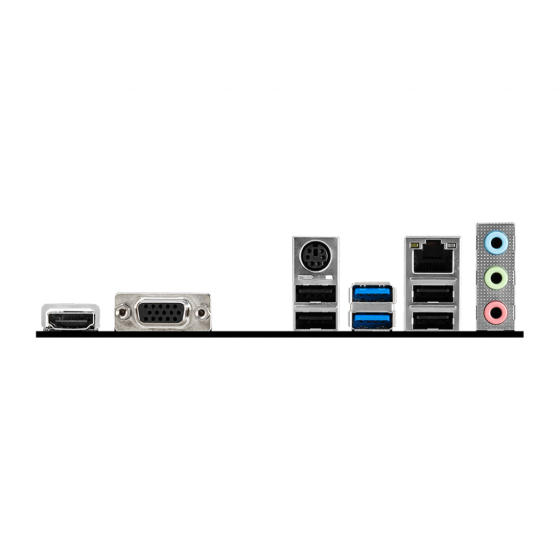

BACK PANEL PORTS	HDMI VGA Mouse / Keyboard LAN port Audio connector USB 2.0 USB 3.2 Gen 1 5Gbps Type-A USB 2.0
DIMENSIONS	mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
MOUNTING	6 mounting holes
OPERATING SYSTEM	Support for Windows^Â®Â 10 64-bit
Warranty	3 Years

CPU
CPU Socket Type	LGA 1200
PCI Express Type	PCI Express 4.0
General
Manufacturer Warranty	3 years
Product Family	PRO series
LAN Port	1x Intel I219V Gigabit LAN controller
Memory
Memory Capacity	64GB (2 x 32GB) RAM
Memory Speed	DDR4 3200 MHz
Motherboard
Chipset Manufacturer	INTEL
MOB Memory Slots	2 X DDR4
MOB Form Factor	Micro ATX
MOB Chipset	Intel H510
Storage
M.2 Connector	2 x M.2 Socket
Interface
SATA Connector	2 x SATA 4Gb/s
HDMI Output	1 x HDMI port
USB 3.2 Port	4 x USB 3.1
VGA Output	1 x VGA port
USB 2.0 Port	6 x USB 2.0
