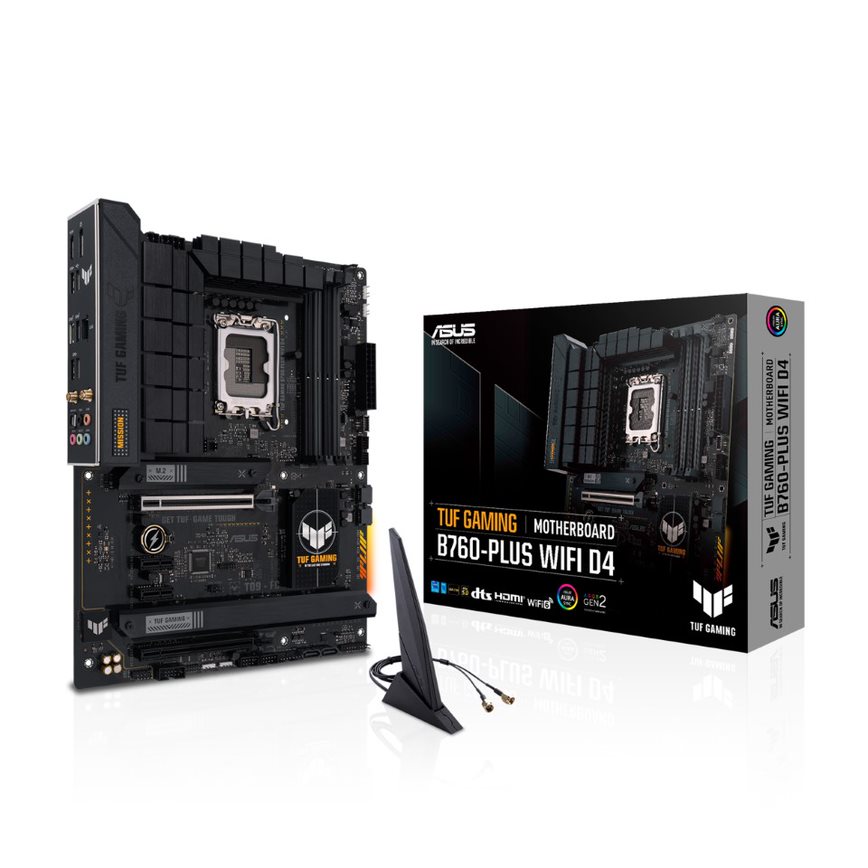

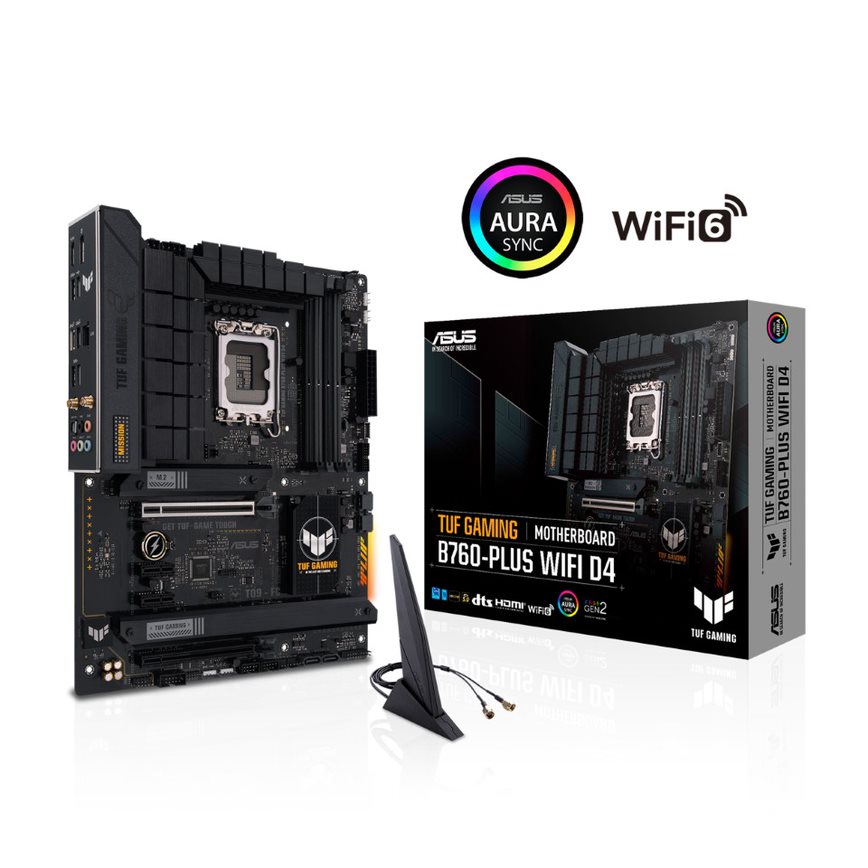

ASUS TUF GAMING B760-PLUS WIFI D4 is an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®)

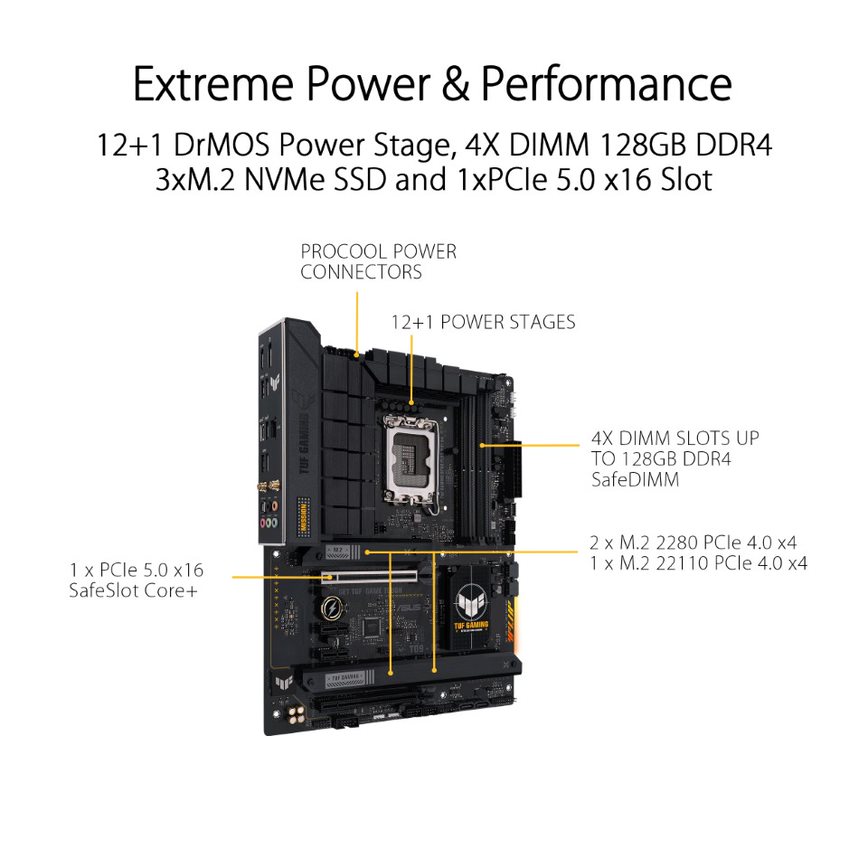

Power Design

• DrMOS Power Stages

  12+1 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.​

• Six-Layer PCB Design

  The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.​

• 8+4 PIN ProCool Power Connectors

  Compared to most power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.​

• TUF Components​

  Certified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.

• Digi+ VRM

  The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.​

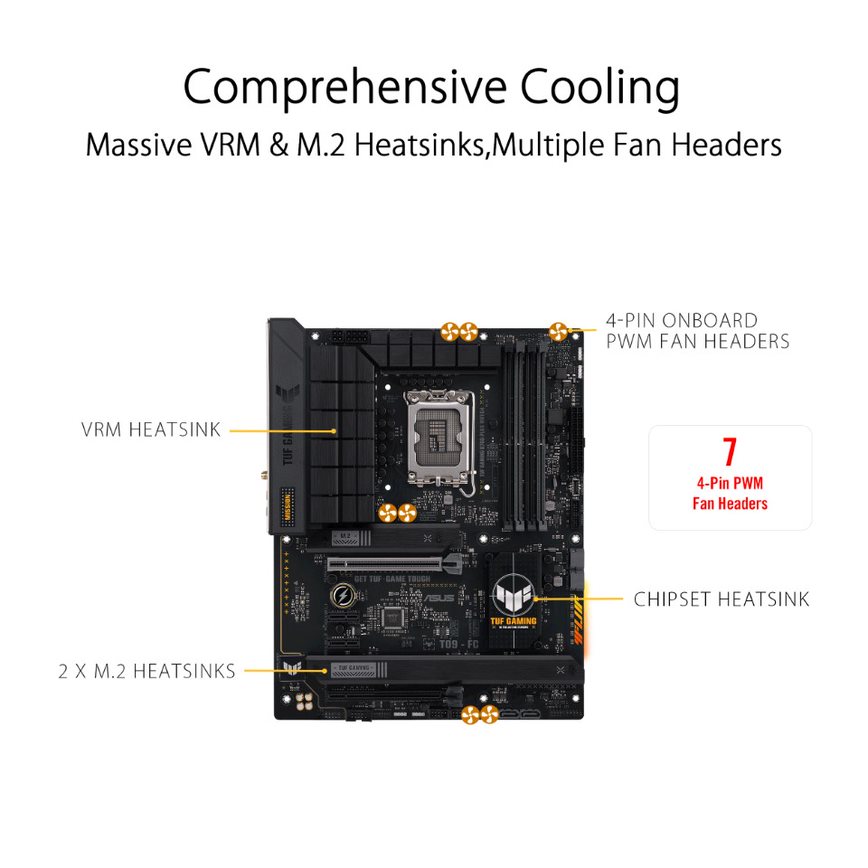

Cooler by Design

• Enlarged VRM Heatsink​

  The extensive surface area of this heatsink covers the VRMs and chokes to improve thermal performance.​

• Optimized M.2 Heatsink Design

  Three of the four M.2 slots have dedicated heatsinks to help keep M.2 SSDs at optimal operating temperatures and ensure consistent performance and reliability.​

DRAM Overclocking Performance

Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

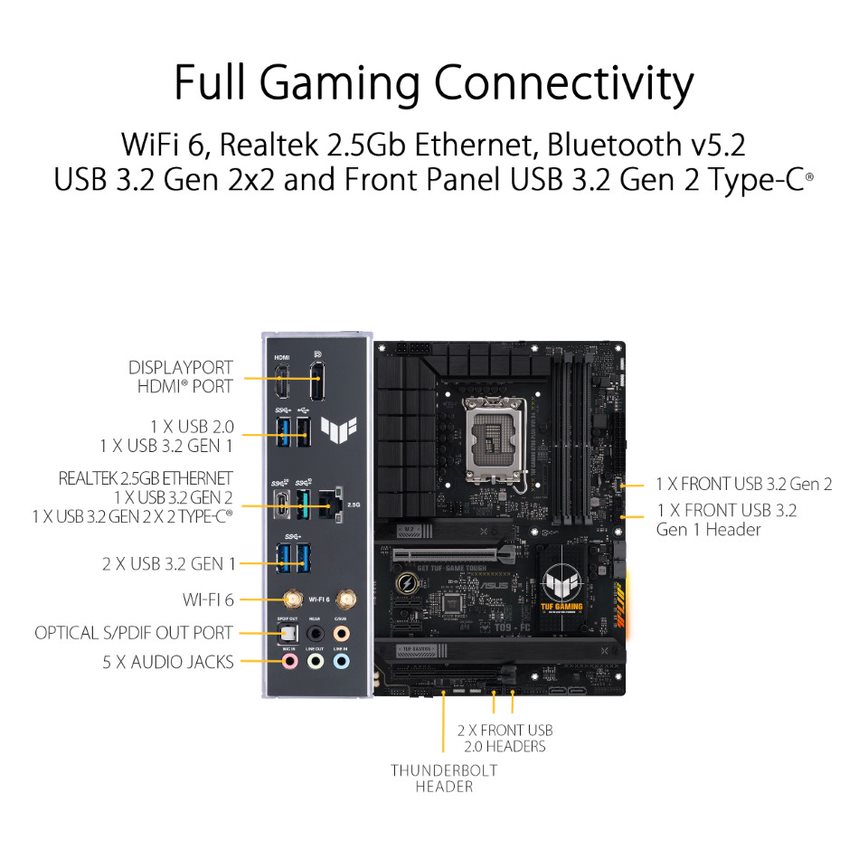

Connectivity

• USB 3.2 Gen 2x2 Type-C

  Extensive USB support ensures connections to a wide array of external devices. This TUF GAMING motherboard includes a USB 3.2 Gen 2x2 Type-C port on the rear I/O panel that delivers transfer speeds of up to 20 Gbps.​

• PCIe 5.0

  The latest Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of the PCIe bus.​

• Front USB 3.2 Gen 2 Type-C

  A full complement of USB ports support high-end rigs loaded with peripherals, including a front-panel USB 3.2 Gen 2 Type-C^® connector that provides data transfer speeds of up to 10 Gbps.​

• Thunderbolt™(USB4^®) Support

  The TUF GAMING B760 series features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card*, this motherboard can also enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connection and supports up to an 8K-resolution display. It can also provide up to 100 watts of power to fast-charge devices.​

WiFi 6

The Intel WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps*. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.

* Actual speed depends on environmental conditions.

Two-Way AI Noise Cancelation​

This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.​

*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.​

• 500M




  Deep-learning database

• AUDIO




  Input/output

• HIGH




  Fidelity

• Minimal




  Performance impact

Outshine the Competition

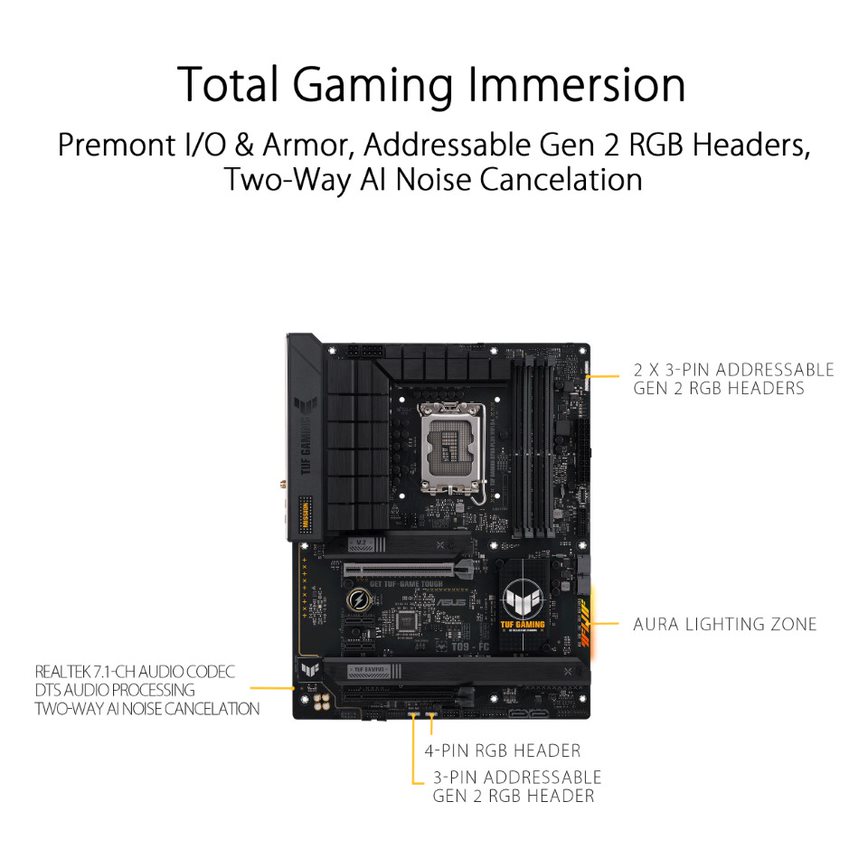

A well-tuned system deserves a matching aesthetic. The TUF GAMING B760 series features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware.

•

  STATIC

•

  BREATHING

•

  Strobing

•

  Rainbow

•

  COLOR CYCLE

•

  Starry Night

•

  Music Effect

•

  Smart

•

  Dark

•

  Adaptive-Color

M.2 Q-Latch

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.​

Q-LED

The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.​
