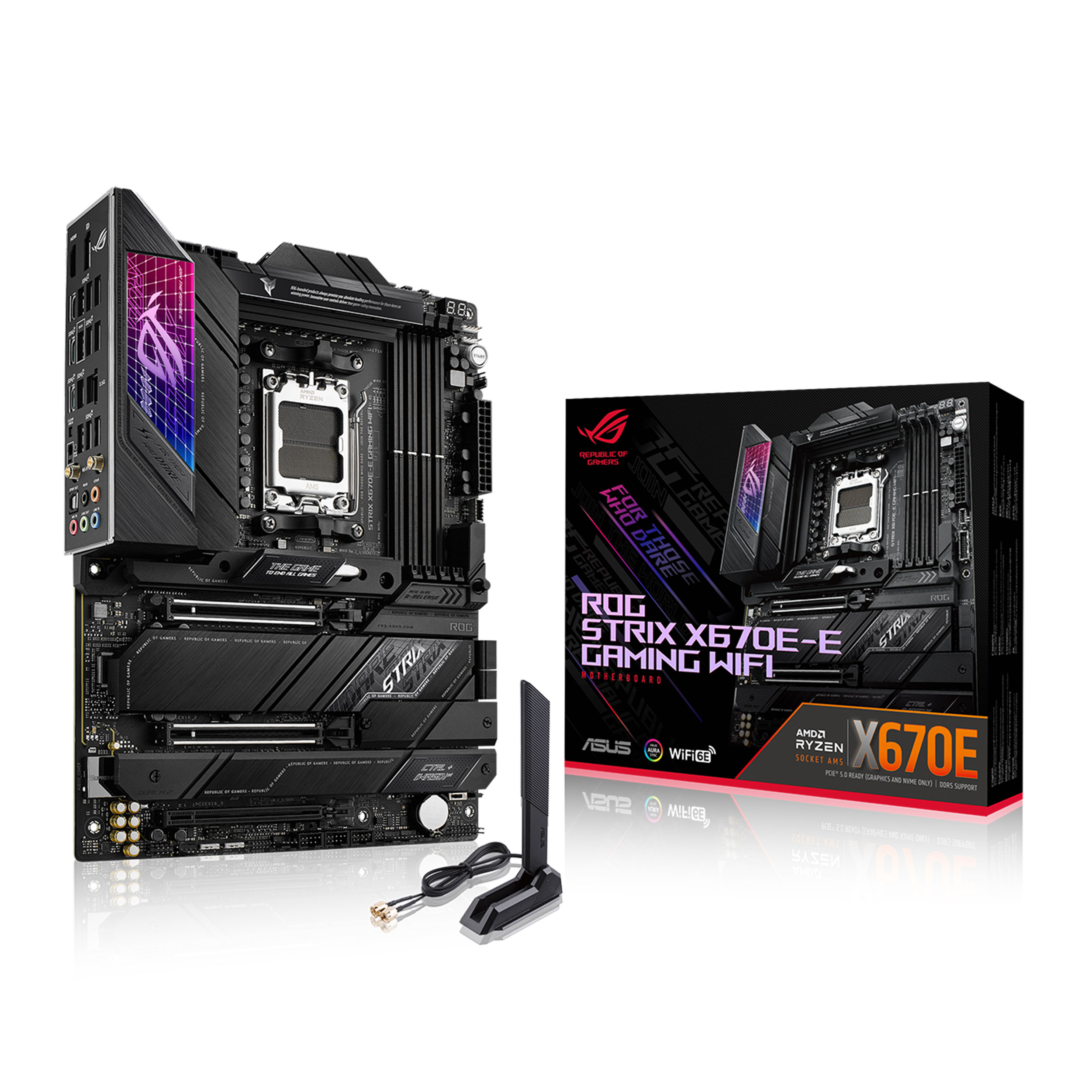

ASUS ROG STRIX X670E-E GAMING WIFI AMD X670 ATX motherboard with 18 + 2 power stages, DDR5 support, PCIe 5.0, M.2 heatsinks, PCIe 5.0 SSD support, M.2 backplate, M.2 Heatsink, USB 3.2 Gen 2, WiFi 6E, Dynamic OC Switcher, AI Cooling II, and Aura Sync

DYI FRIENDLY

•

  PCIE® SLOT Q-RELEASE

  A physical button unlocks the first PCIe slot’s security latch with a simple press, greatly simplifying the process of removing a PCIe card from the motherboard when it’s time to upgrade to a new GPU or add-in card.

•

  M.2 Q-LATCH

  The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

•

  CLR CMOS BUTTON

  The Clr CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

  BIOS FLASHBACK™ BUTTON

  BIOS FlashBack™ is the simplest and safest way to update BIOS. Simply drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, and plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.

•

  Q-CODE

  An on-board display shows diagnostic codes, providing a valuable reference for troubleshooting common boot problems and hardware issues.

•

  START BUTTON

  This convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.

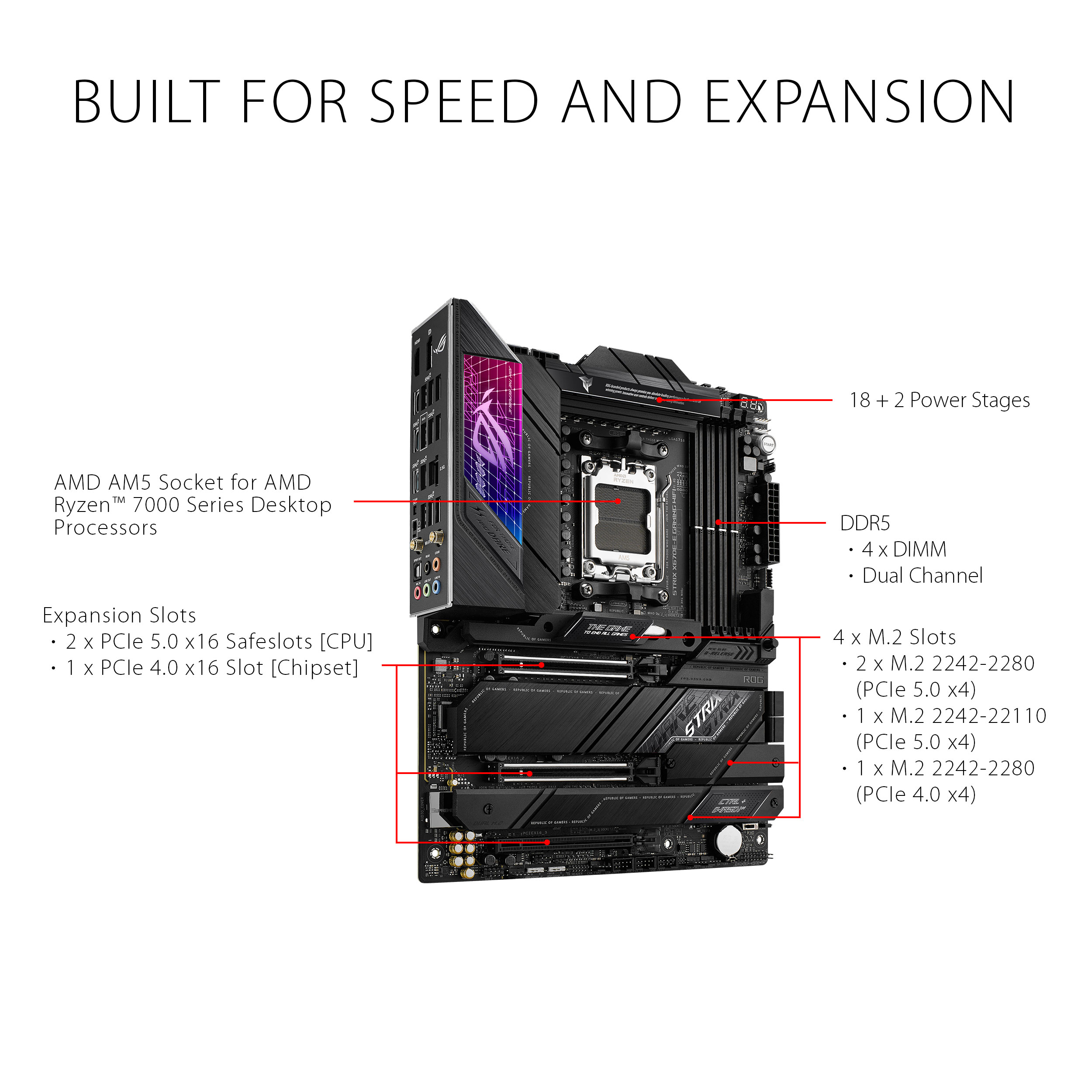

PCIE 5.0

Blazing fast storage is at your command with three PCIE 5.0 M.2 slots and one PCIE 4.0 M.2 slot. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to two x16 extension slots, which include SafeSlot to support heavy graphics cards and Q-release (top slot only) for easy upgrades.

POWER DESIGN

• TEAMED POWER ARCHITECTURE

  18 + 2 power stages, strategically teamed to rapidly respond to load changes and drive Ryzen™ 7000 through any workload.

• ALLOY CHOKES AND DURABLE CAPACITORS

  Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

• 2 x 8-PIN PROCOOL II POWER CONNECTORS

  ProCool II connectors are precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.

• EIGHT-LAYER PCB

  A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

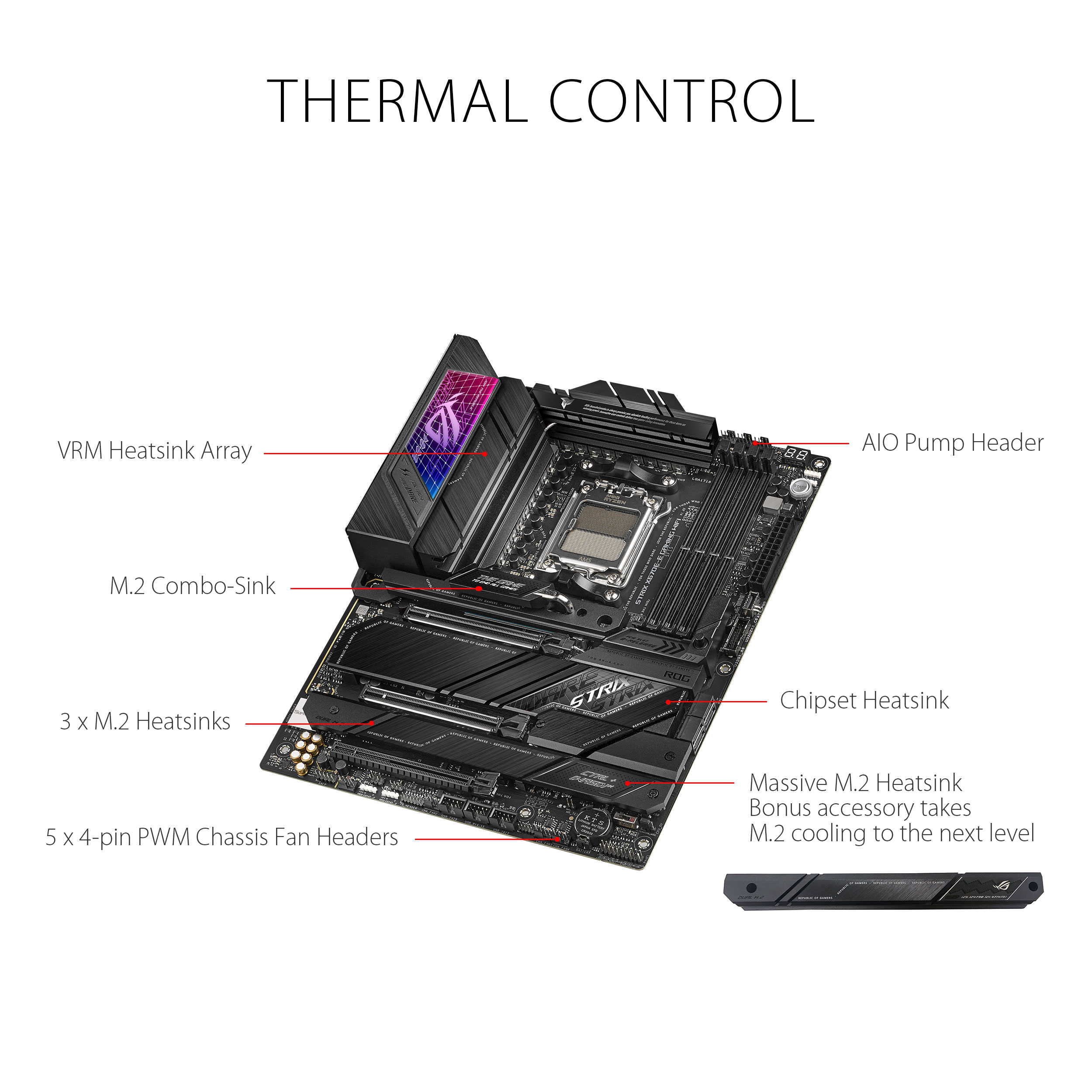

COOLING

• VRM HEATSINK ARRAY

  Two thick VRM heatsinks are connected by a heatpipe, sharing cooling capacity across VRMs and providing ample surface area and mass to handle the power needs of high-performance AMD Ryzen™ 7000 Series processors.

• HIGH-CONDUCTIVITY THERMAL PADS

  High-quality thermal pads are utilized between power stages and heatsinks, helping to improve heat transfer and reduce VRM operating temperatures.

• M.2 COMBO-SINK

  An M.2 heatsink with a direct-contact heat pipe delivers ample surface area, enabling optimal running temperatures for PCIe 5.0 M.2 drives, even when airflow is restricted.

• M.2 BACKPLATE

  An integrated backplate on the M.2_1 slot helps ensure that high-performance PCIe 5.0 drives can deliver peak performance, even when airflow is restricted.

• M.2 HEATSINKS

  Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

• MASSIVE M.2 HEATSINK

  Tame storage thermals with the largest onboard M.2 heatsink we've ever shipped. Slot in your SSDs, pop in some screws, and watch temps drop as all that extra mass wicks heat away from the drives underneath.

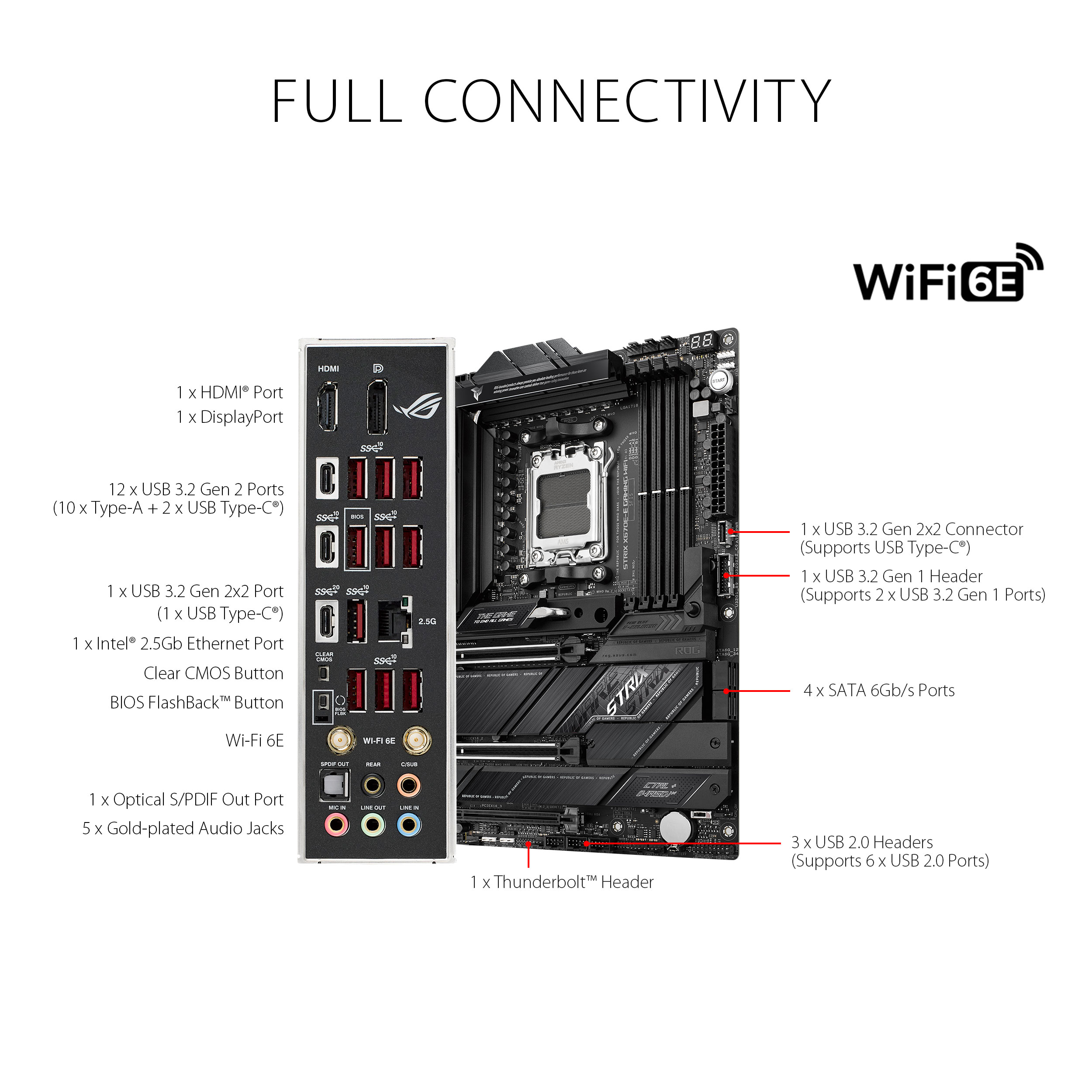

NETWORKING

• WIFI 6E

  Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

  *WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. Learn more about the ASUS WiFi 6E ecosystem.

• Intel 2.5G Ethernet

  Onboard Intel® 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.

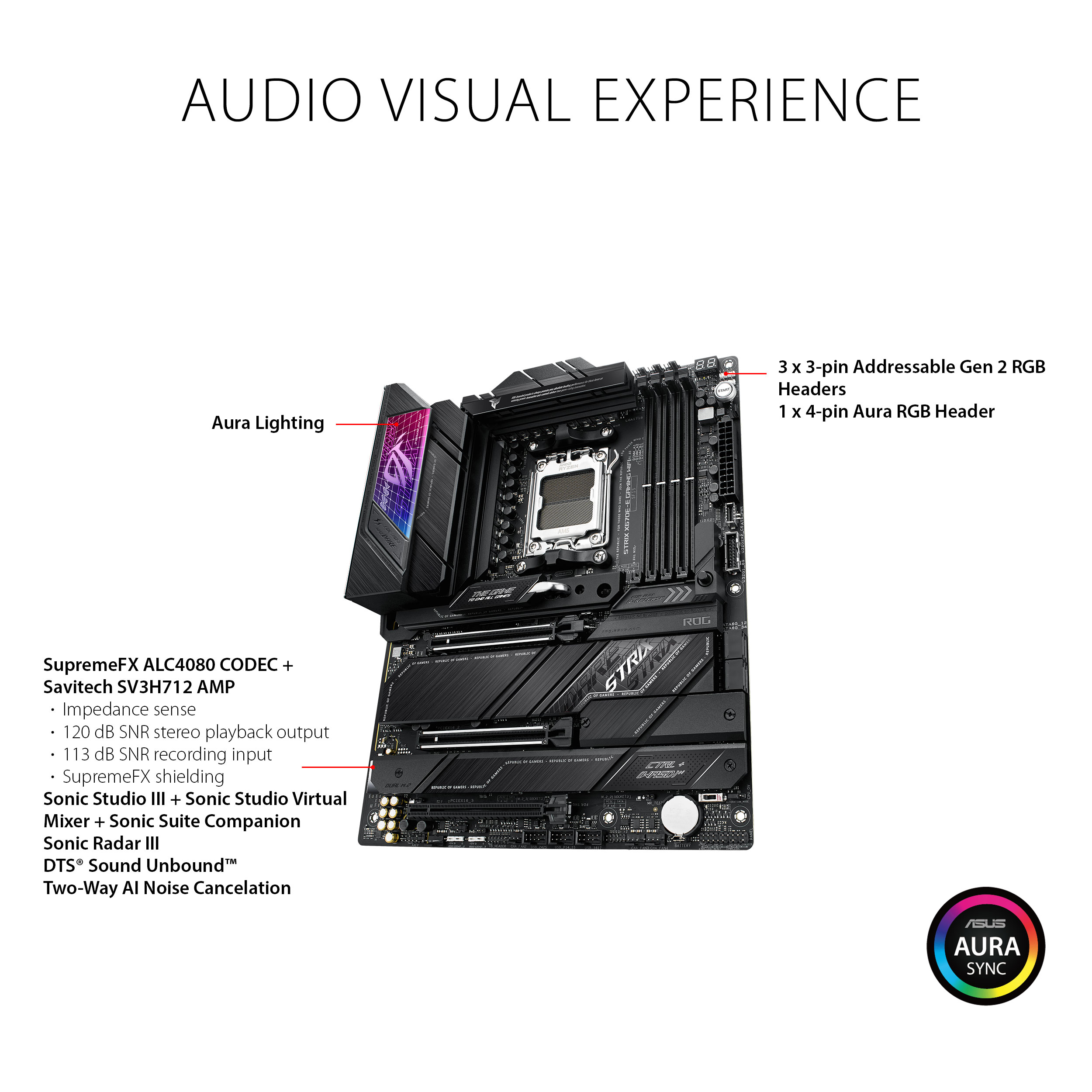

SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software that provides superior audio. The ROG Strix X670E-E Gaming WiFi's SupremeFX implementation features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones.

UNDENIABLY ROG STRIX

The ROG Strix X670E-E Gaming WiFi makes quite a statement compared to its slightly more subdued brethren. A high-contrast monochromatic colorway includes silver metal components and white design accents on top of a black PCB and dark metallic heatsinks. Aggressive angles and a splash of customizable RGB on the I/O shroud help it stand out even further from the crowd.
