- Brand: ASUS
- Model: ROG STRIX B860-I GAMING WIFI
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra processors (Series 2)
- Exclusive AI & memory technologies: ASUS AI Advisor, ASUS-exclusive AI Networking II, DIMM Fit and AEMP III to simplify setup and improve performance
- Robust Power Solution: 10(80A)+1(80A)+2(80A)+1(80A) power stages with ProCool power connectors, MicroFine alloy chokes and premium metallic capacitors
- Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an L-shaped heatpipe
- Latest M.2 Support: Two onboard PCIe® 5.0 M.2 slots, one cooled by a large heatsink to maximize performance, and the other for additional storage
- Abundant Connectivity: One Thunderbolt™ 4 USB Type-C® port , one USB 20Gbps connector , two USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, and full support for next-gen graphics card, HDMI™ 2.1
- High-Performance Networking: Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet
- DIY-Friendly Design: PCIe Slot Q-Release Slim, Q-Antenna, BIOS Q-Dashboard, Q-LED, Clear CMOS button, and pre-mounted I/O shield
- Immersive Audio: ROG SupremeFX ALC1220P codec with Savitech SV3H712 amplifier, along with Dolby Atmos®
- Unmatched Personalization: Two Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- Renowned Software: ASUS DriverHub, Dolby Atmos®, TurboV Core, GlideX, HWiNFO, bundled 60-days AIDA64 Extreme subscription
Ask a Question About This Product

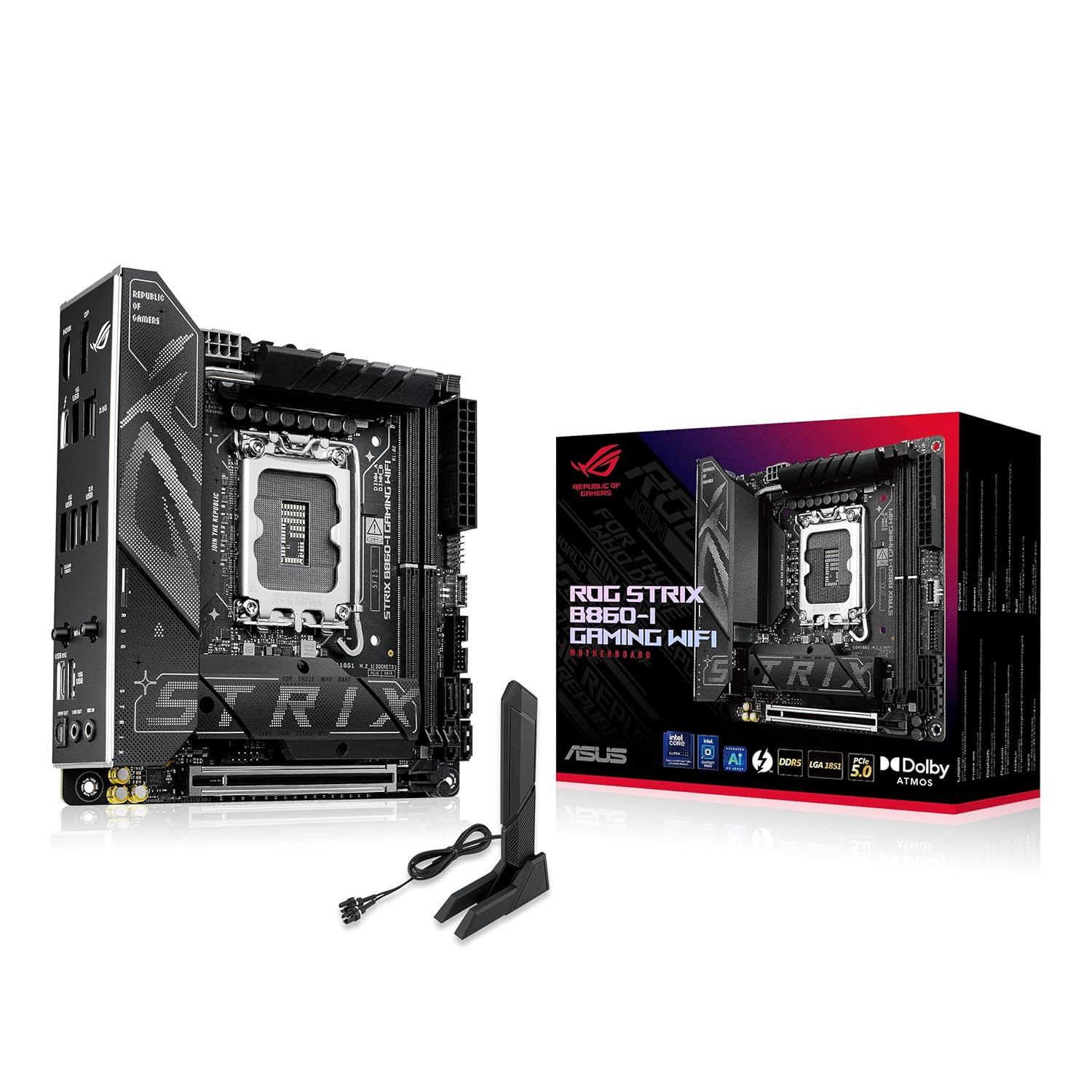

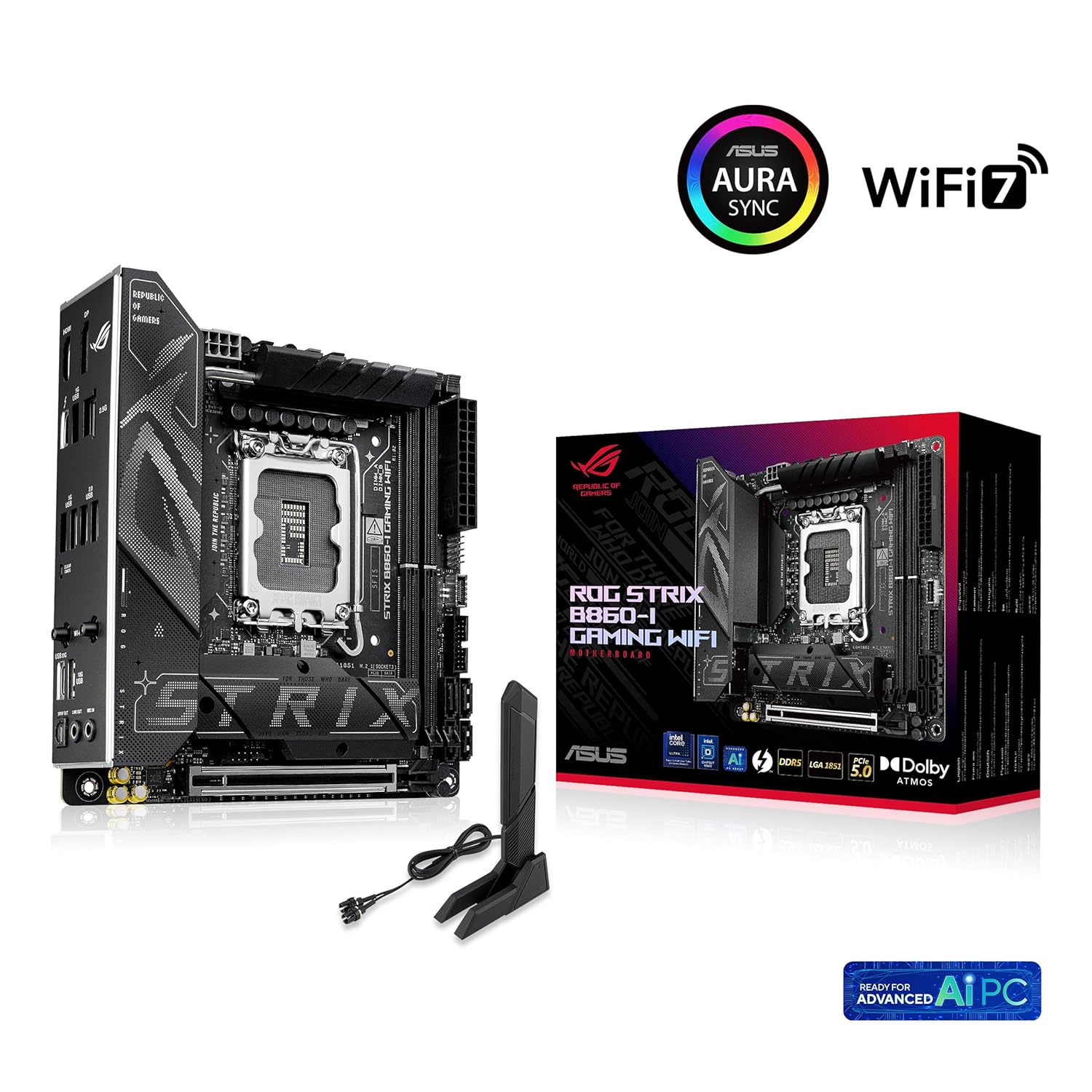

ROG STRIX B860-I GAMING WIFI
Intel® B860 LGA 1851 Mini-iTX motherboard, Advanced AI PC-ready, 10+1+2+1 power stages, DDR5 slots, DIMM Fit, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, two M.2 slots , PCIe 5.0 x16 SafeSlot with PCIe® Slot Q-Release Slim, and full support for next-gen graphics card, one Thunderbolt™ 4 port , one USB 20Gbps Type-C® connector , ASUS AI Advisor, AI Networking II
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra processors (Series 2)
- Exclusive AI & memory technologies: ASUS AI Advisor, ASUS-exclusive AI Networking II, DIMM Fit and AEMP III to simplify setup and improve performance
- Robust Power Solution: 10(80A)+1(80A)+2(80A)+1(80A) power stages with ProCool power connectors, MicroFine alloy chokes and premium metallic capacitors
- Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an L-shaped heatpipe
- Latest M.2 Support: Two onboard PCIe® 5.0 M.2 slots, one cooled by a large heatsink to maximize performance, and the other for additional storage
- Abundant Connectivity: One Thunderbolt™ 4 USB Type-C® port , one USB 20Gbps connector , two USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, and full support for next-gen graphics card, HDMI™ 2.1
- High-Performance Networking: Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Intel 2.5 Gb Ethernet
- DIY-Friendly Design: PCIe Slot Q-Release Slim, Q-Antenna, BIOS Q-Dashboard, Q-LED, Clear CMOS button, and pre-mounted I/O shield
- Immersive Audio: ROG SupremeFX ALC1220P codec with Savitech SV3H712 amplifier, along with Dolby Atmos®
- Unmatched Personalization: Two Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- Renowned Software: ASUS DriverHub, Dolby Atmos®, TurboV Core, GlideX, HWiNFO, bundled 60-days AIDA64 Extreme subscription
- 8-Pin ProCool Power Connector
- Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
- EXPANSION SLOT
・ 1 x PCIe 5.0 x16 SafeSlot [CPU]
- 10(80A)+1(80A)+2(80A)+1(80A) Power Stages
- DDR5 9066+ MT/s (OC)
・ 2 x DIMM
・ Dual Channel
- 2 x M.2 Slots
・1 x M.2 2280 (PCIe 5.0 x4)
・1 x M.2 2280 (PCIe 4.0 x4)

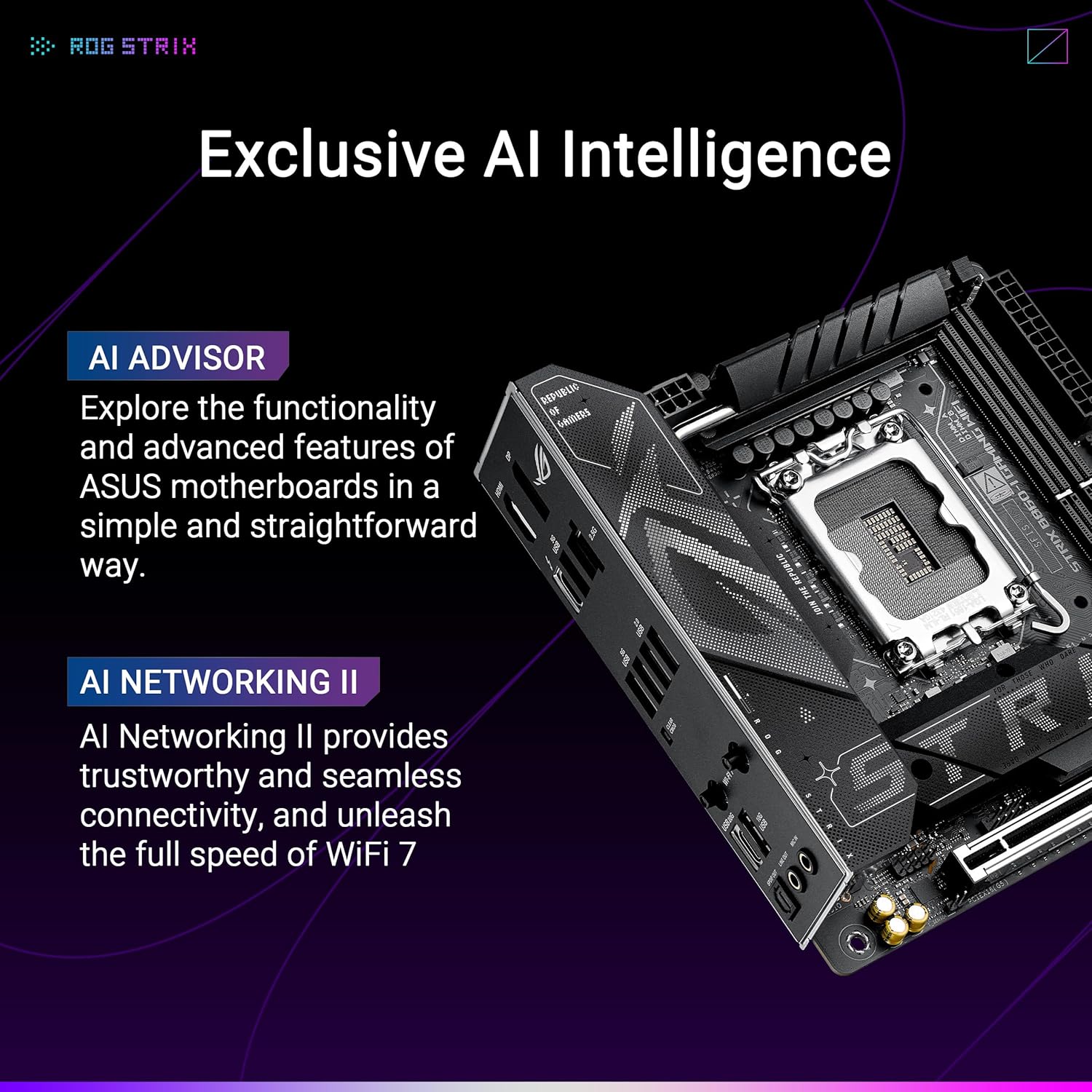

ASUS AIINTELLIGENCE
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
* Availability of ASUS AI Advisor may vary by region.
** AI Advisor functions may vary by platform.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
*Features may vary by model.
PerformanceOVERCLOCKING
NPU BOOST
The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
* The overclocking performance may vary depending on the CPU series and motherboard used.
** Testing was conducted with an Intel® Core™ Ultra 9 285K processor , ROG Maximus Z890 Extreme motherboard, GeForce RTX™ 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G).
Asynchronous Clock
For next-level frequency flexibility, the ROG Strix B860-I features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.
Separate CPU BCLK from other domains for unfettered overclocking.
*NGU stands for Next Generation Uncore.
PerformanceMEMORY
DDR5 DOMINATION
Enhanced signal routing can push enthusiast-grade kits well beyond the 9 GT/s threshold on the Strix B860-I.
AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.
DIMM FIT
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
ROG STRIX ULTIMATEPOWER DESIGN
10(80A)+1(80A)+2(80A)+1(80A)
Power Stages

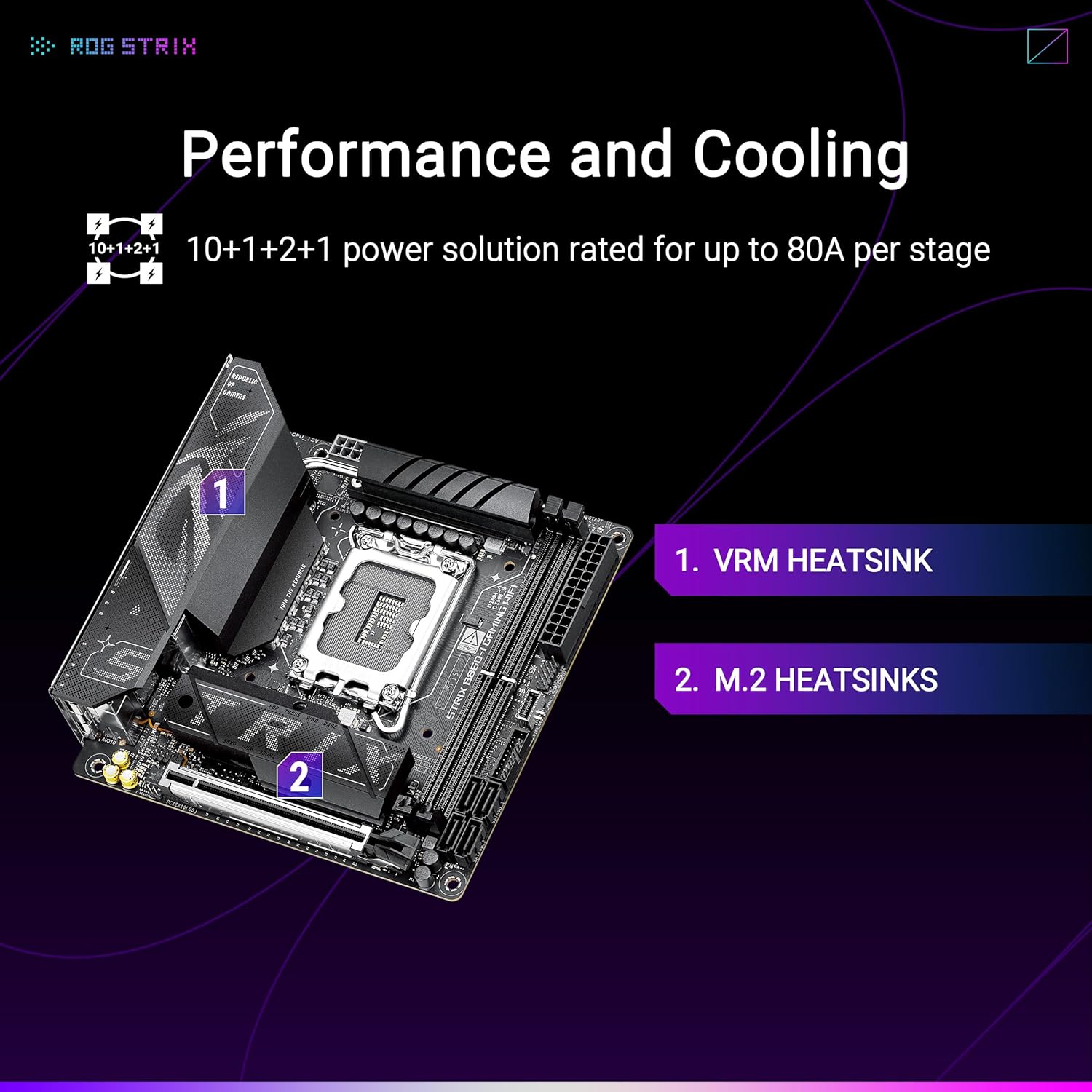

PerformanceCOOLING
M.2
M.2 HEATSINKS
VRM
VRM HEATSINK ARRAY
CPU
CPU FAN HEADERS, AIO PUMP FAN HEADER
CHASSIS
4-PIN FAN HEADER
leading Connectivity
wifi7
- 160MHz
- 6GHzbands
- 4096AQM
Intel 2.5Gb Ethernet
pcie 5.0
Fully embracing the new standard, the Strix B860-I offers end-to-end PCIe 5.0 support.
USB PORT
Thunderbolt™ 4
Gaming Audio

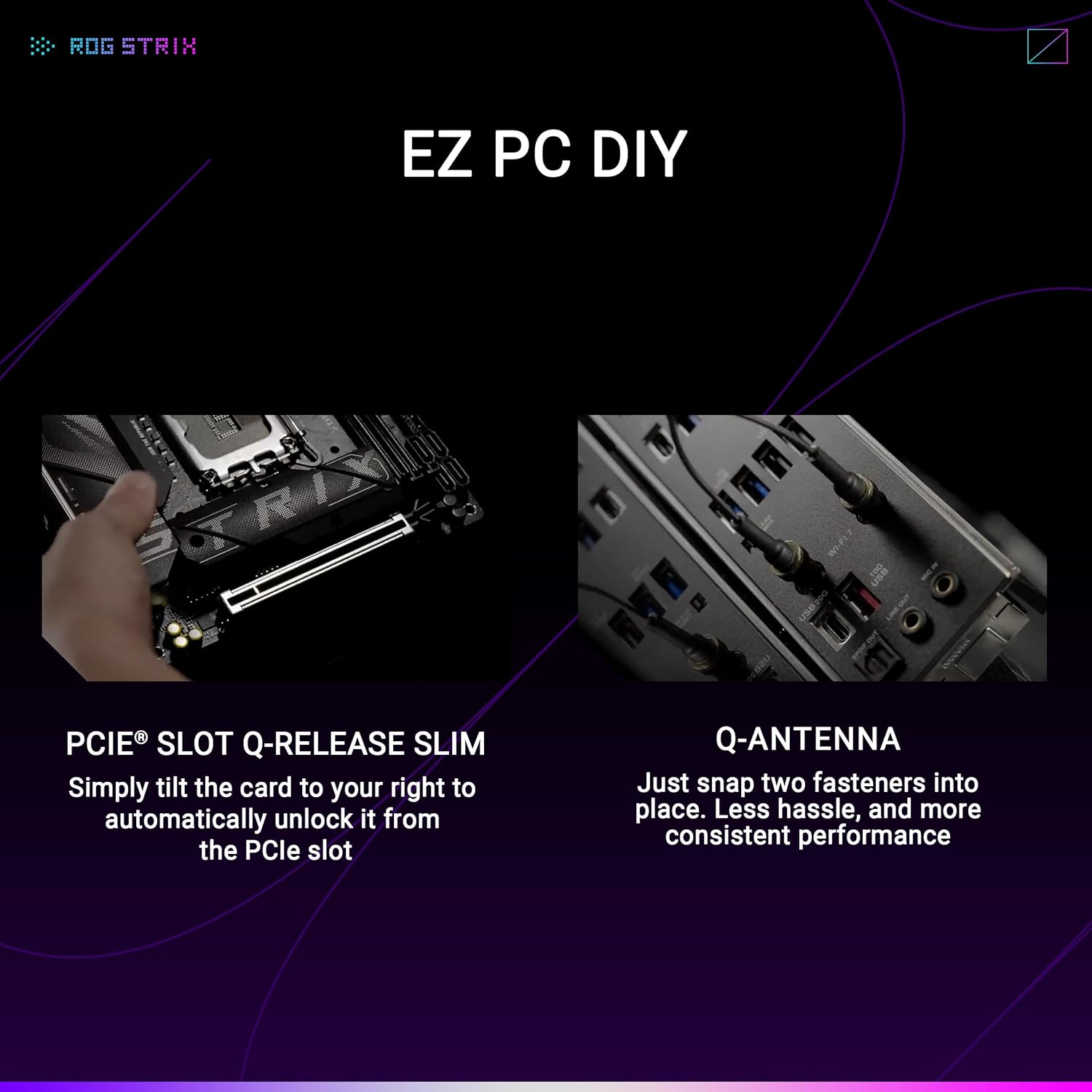

EZ PC DIY
PCIE® SLOT Q-RELEASE SLIM
New M.2 Q-LATCH
Q-Antenna
Q-LED
CLEAR CMOS
**Model for reference only
BIOS
BIOS Q-DASHBOARD
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
UEFI BIOS FULL HD
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
SOFTWARE UTILITIES
TURBOV CORE
ASUS GLIDEX
HWiNFO
ASUS DRIVERHUB
AIDA64 EXTREME
ARMOURY CRATE
TURBOV CORE
Intuitive overclocking within Windows. No BIOS interface, no reboots. Simple and swift performance tuning at your fingertips.
ASUS GLIDEX
ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.
HWiNFO
HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.
ASUS DRIVERHUB
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.
AIDA64 EXTREME
The ROG Strix B860-I includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.
*Support available for ROG Ryujin II and later models.
ARMOURY CRATE
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
PLAY IN STYLE
UNDENIABLY ROG STRIX
The ROG Strix B860-I features a sleek, minimalist design that blends effortlessly with various system components. Its deep black PCB and metallic heatsinks give it a bold, intense look, while the L-shaped backplate adds both style and practical protection against sharp edges.
- PHOTO
- VIDEO
COOLER COMPATIBILITY
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for B860 motherboards, empowering you to build your dream gaming rig.
See compatible AIO coolers
THE ROG STRIX ECOSYSTEM AWAITS
Level up your game with ROG Strix. Enjoy complimentary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.
