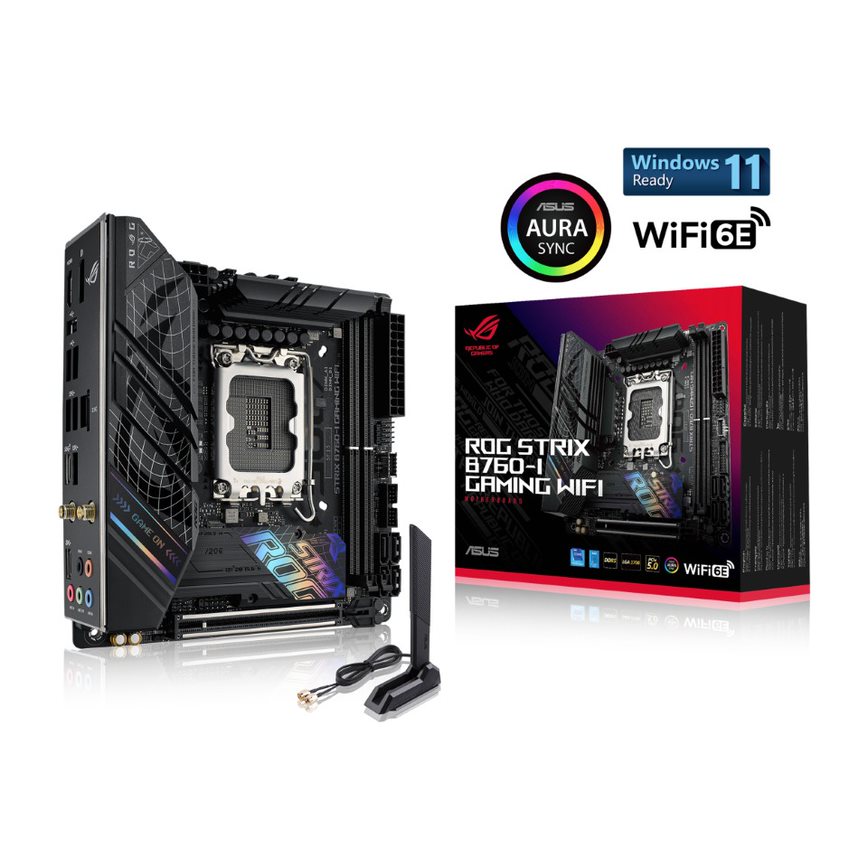

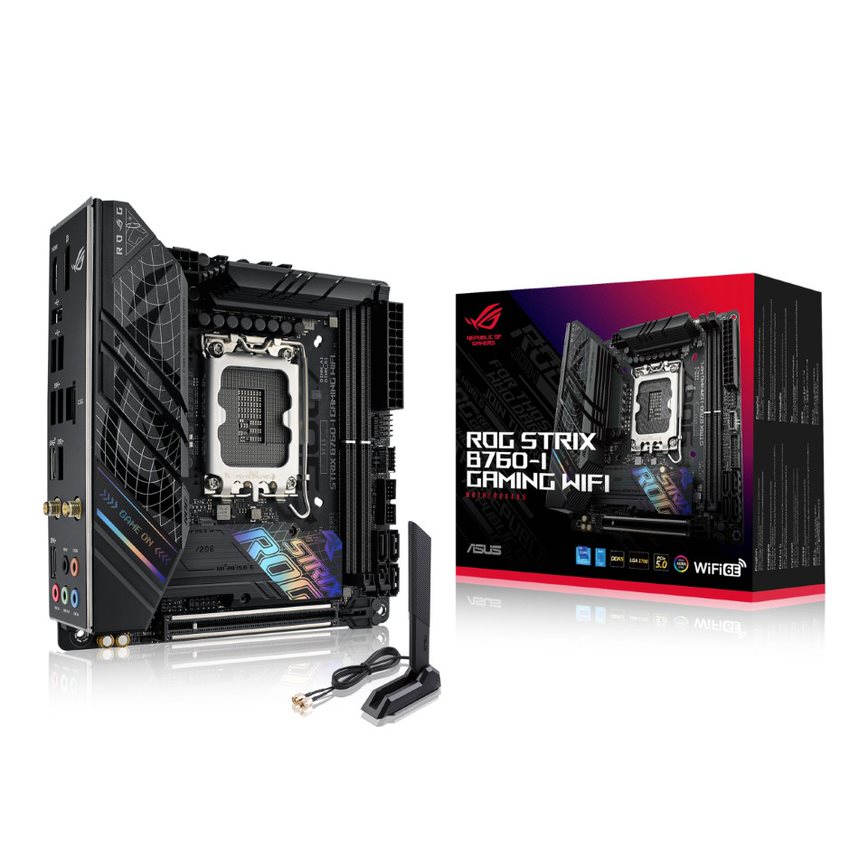

ASUS ROG Strix B760-I Gaming WiFi Intel® B760 LGA 1700 mini-ITX motherboard, 8 + 1 power stages, DDR5 up to 7600 MT/s, PCIe 5.0, two M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C®, and Aura Sync RGB

DIY FRIENDLY

•

  M.2 Q-LATCH

  The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

•

  Q-LED

  Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.

•

  PRE-MOUNTED I/O SHIELD

  The patented ROG I/O shield is finished in sleek matte black and comes pre-mounted, which further simplifies the process of installing the motherboard.

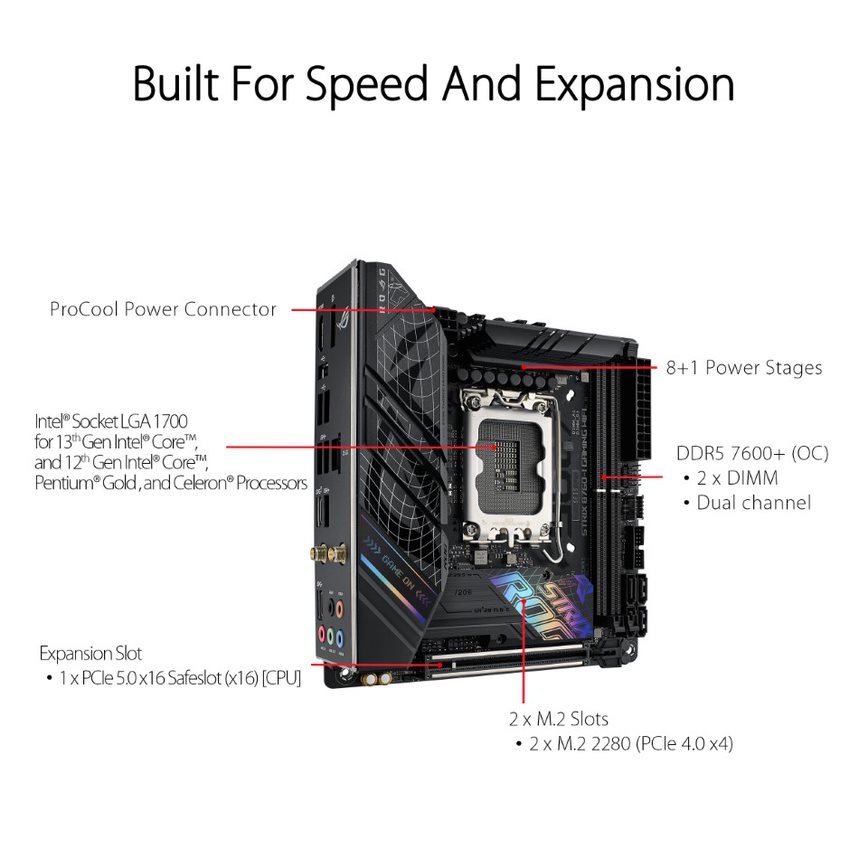

POWER DESIGN

• POWER ARCHITECTURE​

  8 + 1 power stages each rated to 80A deliver ample current to drive the most powerful Intel 13^th Gen processors through any workload with ease.

• ALLOY CHOKES AND DURABLE CAPACITORS

  High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

• EIGHT-LAYER PCB

  A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

MEMORY

•

  DDR5 DOMINATION

  ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix B760-F, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

•

  AEMP II

  ASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules. AEMP’s second version allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the Strix B760-F to push frequencies higher than ever before. AEMP II can even overclock mixed kits in a quad-DIMM arrangement, and the vast library of support now extends to nearly every DDR5 module that does not otherwise have XMP support.

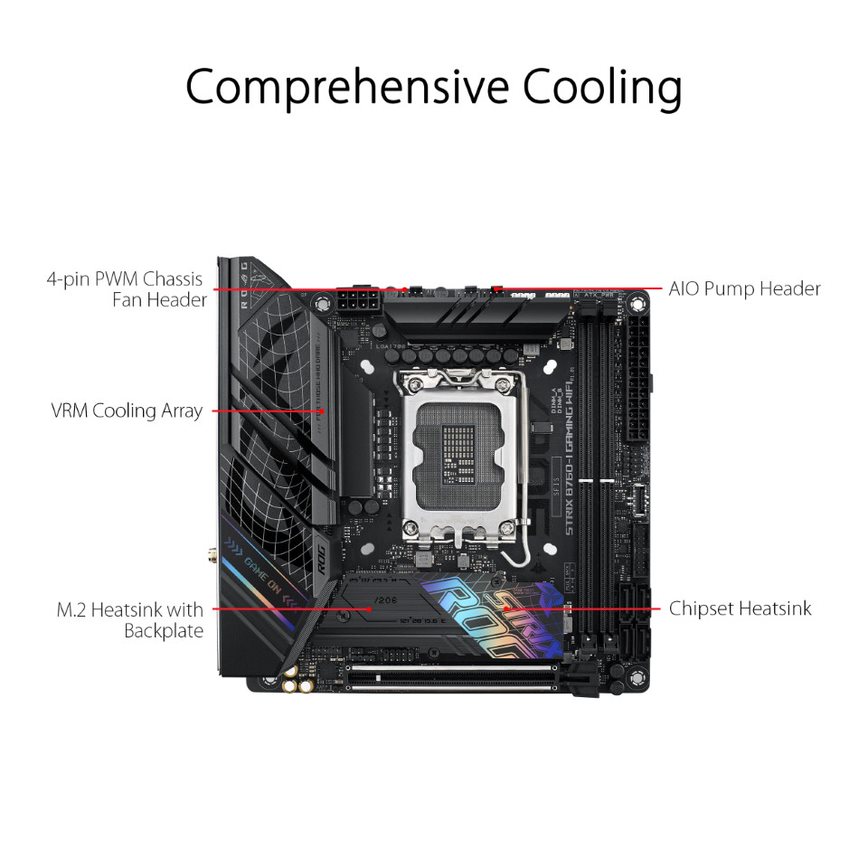

COOLING

• VRM HEATSINK ARRAY

  Substantial heatsinks cover the power solution, bolstered by a quiet thermal system that intakes from the core and outputs heat upwards through diagonal slits, so the VRM stays cool even in air-restricted systems.

• M.2 HEATSINKS

  A large heatsink covers the front NVME SSD slot to help keep your drive at optimal temperatures for consistent performance and reliability.

• M.2 BACKPLATE

  Additional mass is underneath the slot to deal with the thermal load of high-performance M.2 drives.

• CPU FAN HEADER

  Positioned near the top of the motherboard, a PWM/DC fan header gives easy access for CPU coolers.

• AIO PUMP FAN HEADER

  A dedicated PWM/DC header connects self-contained water-cooling setups.

• 4-PIN FAN HEADER

  The Strix B760-I features a chassis fan header that auto-detects any PWM or DC fan connected to it.

PCIE PERFORMANCE

The x16 expansion slot is ready for the future with incredible PCIe 5.0 bandwidth, and it is protected with a SafeSlot retention bracket to support the bulk of the latest graphics cards. Zippy storage comes courtesy of the pair of PCIe 4.0 M.2 slots, one under the front-side heatsink, and the other positioned on the back to save space.

NETWORKING

• WIFI 6E

  Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

  *WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. Learn more about ASUS WiFi 6E

• Intel 2.5G Ethernet

  Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel^® 2.5 Gbps Ethernet.

USB

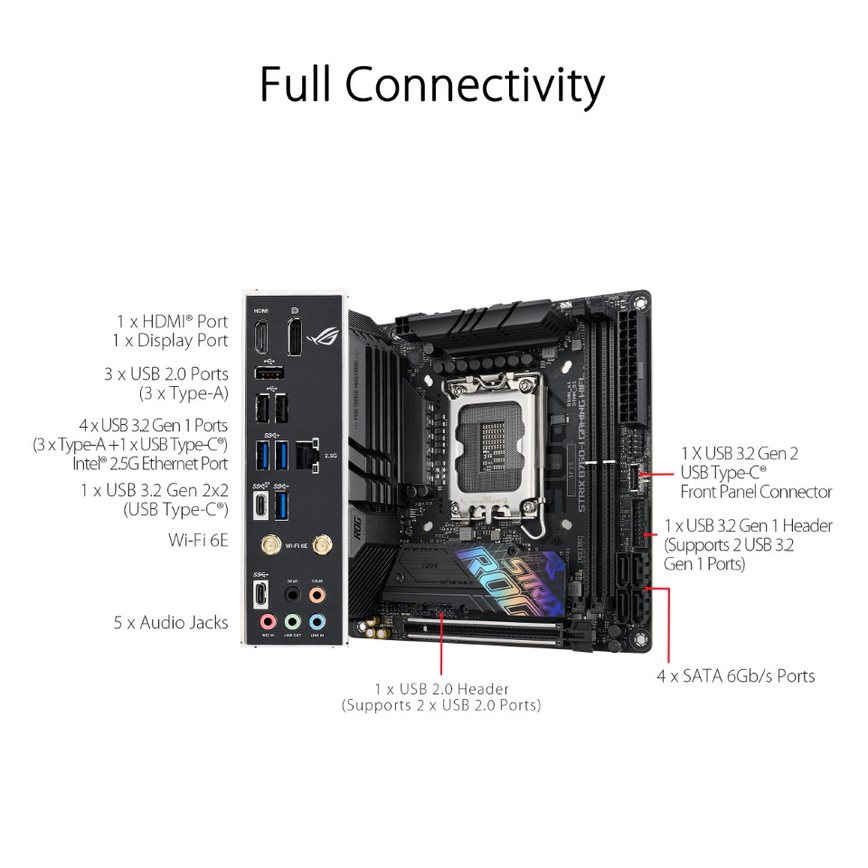

The Strix B760-I comes loaded with multiple high-speed USB options. Five of the rear I/O ports are USB 3.2-compliant, with the fastest being a USB 3.2 Gen 2x2 Type-C^® port for data transfers up to 20 Gbps. A chassis port can also receive turbo treatment via the USB Gen 3.2 Gen 2 front-panel connector.

SUPREMEFX

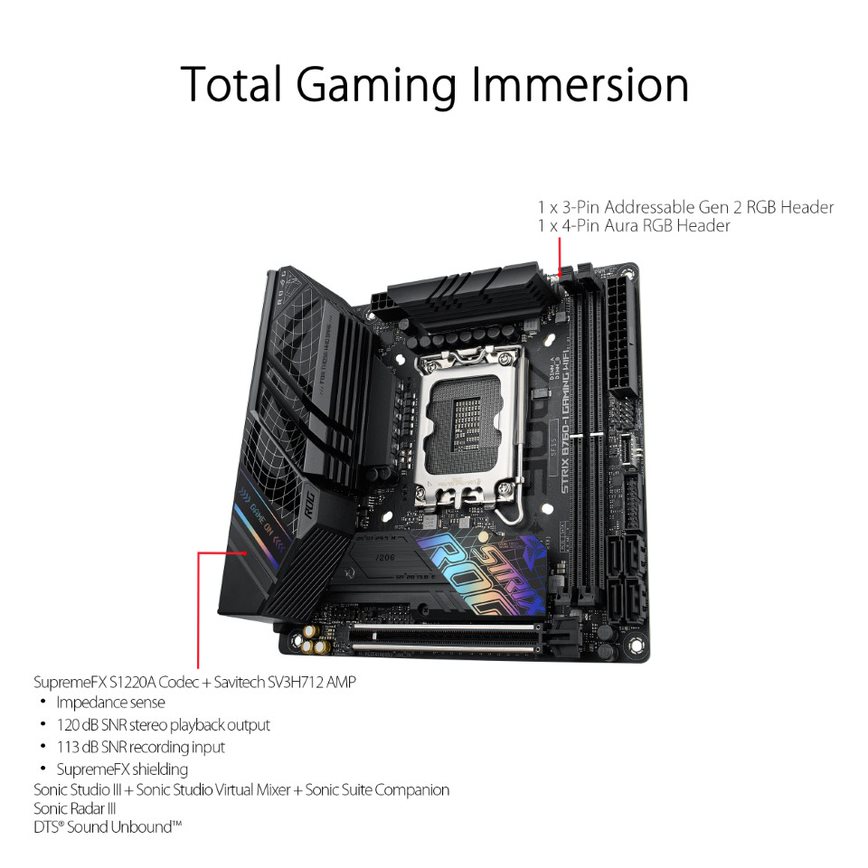

ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-I implementation features the S1220A codec for high-resolution playback up to 32-bit/192 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

UNDENIABLY ROG STRIX

In compact builds with a vertically-mounted graphics card, the ROG Strix B760-I keeps a low profile, as only the top of a wavy grid decal is likely to peek through. But if the build has a bit more space, a pair of bold pastel insignias give some colorful flair amid the otherwise stealthy fascia.
