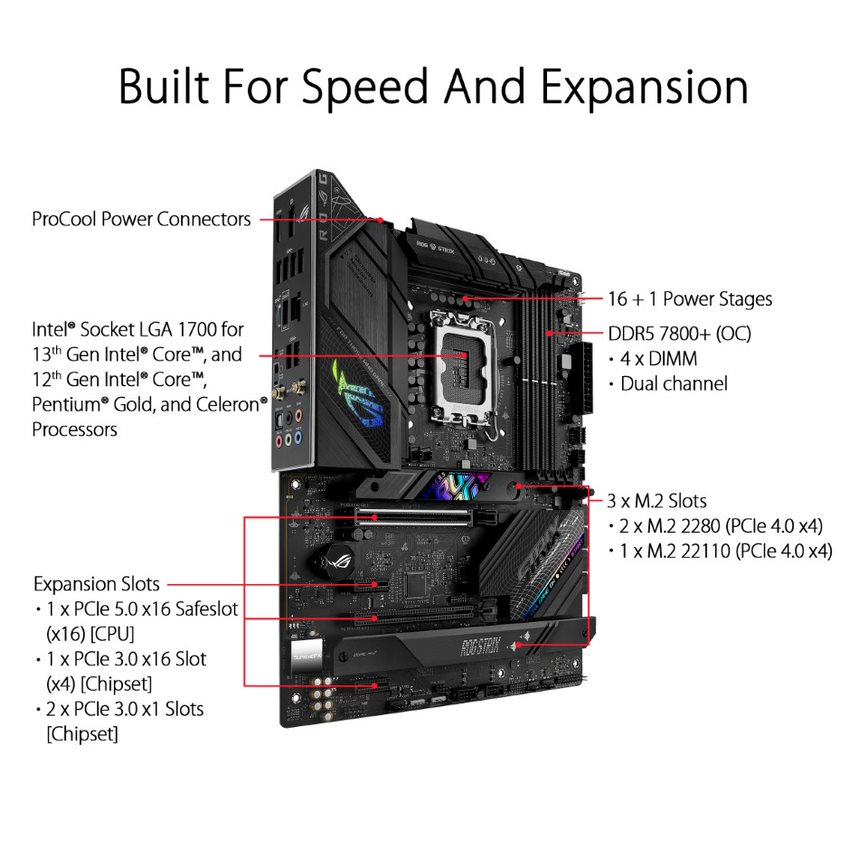

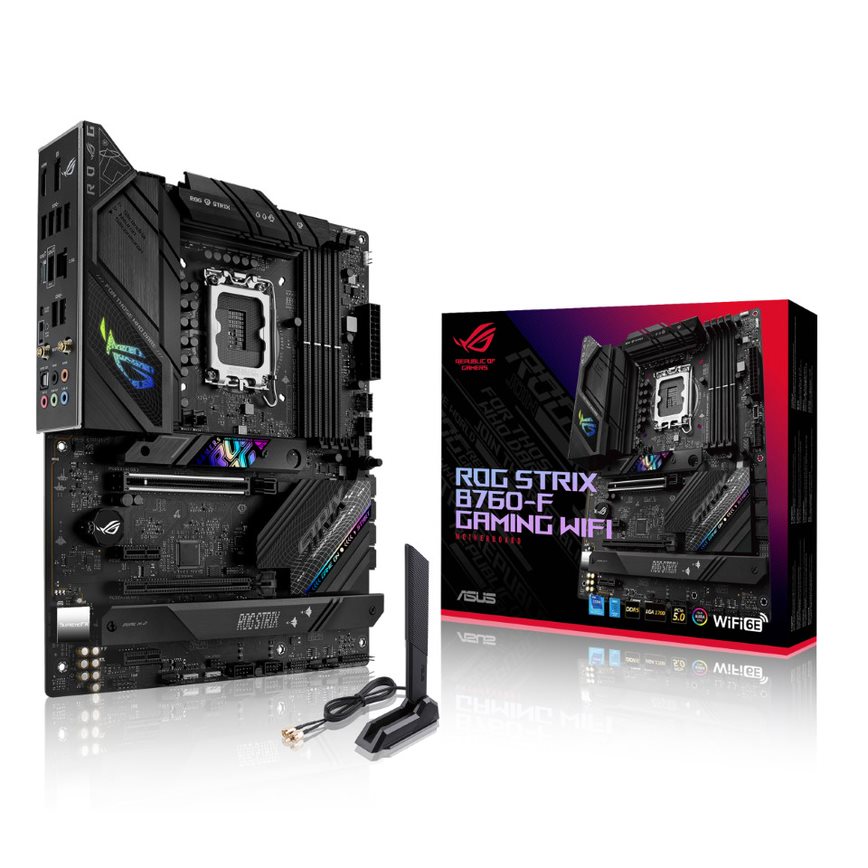

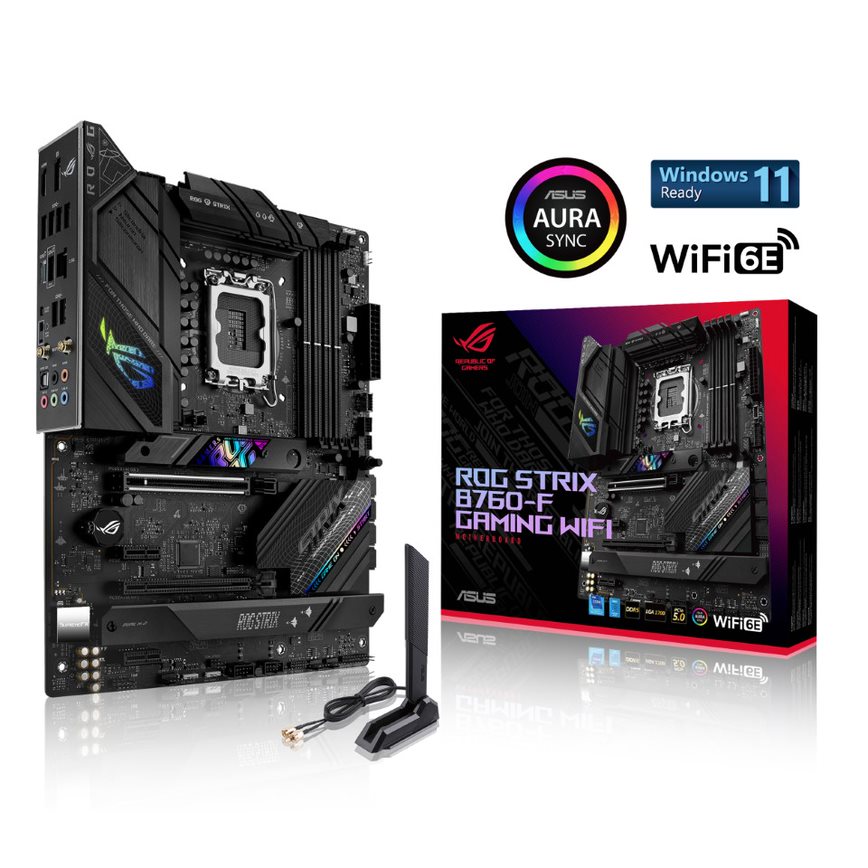

ASUS ROG STRIX B760-F GAMING WIFI Intel B760 LGA 1700 ATX motherboard with 16 + 1 power stages, DDR5 RAM, PCIe 5.0 x16 SafeSlot with Q-Release, three M.2 slots, WiFi 6E, 2.5G Ethernet, USB 3.2 Gen 2 Type-C, AEMP II, AI Noise Cancelation and Aura Sync

DIY FRIENDLY

•

  PCIE^® SLOT Q-RELEASE

  A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

•

  M.2 Q-LATCH

  The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

•

  CLR CMOS BUTTON

  The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

•

  BIOS FLASHBACK™ BUTTON

  BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

•

  Q-LED

  Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.

POWER DESIGN

• POWER ARCHITECTURE​

  16 + 1 power stages, each rated to 60A, deliver ample current to drive the most powerful Intel 13^th Gen processors through any workload with ease.

• ALLOY CHOKES AND DURABLE CAPACITORS

  High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

• SIX-LAYER PCB

  A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

MEMORY

•

  DDR5 DOMINATION

  ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix B760-F, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

•

  AEMP II

  ASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules. AEMP’s second version allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the Strix B760-F to push frequencies higher than ever before. AEMP II can even overclock mixed kits in a quad-DIMM arrangement, and the vast library of support now extends to nearly every DDR5 module that does not otherwise have XMP support.

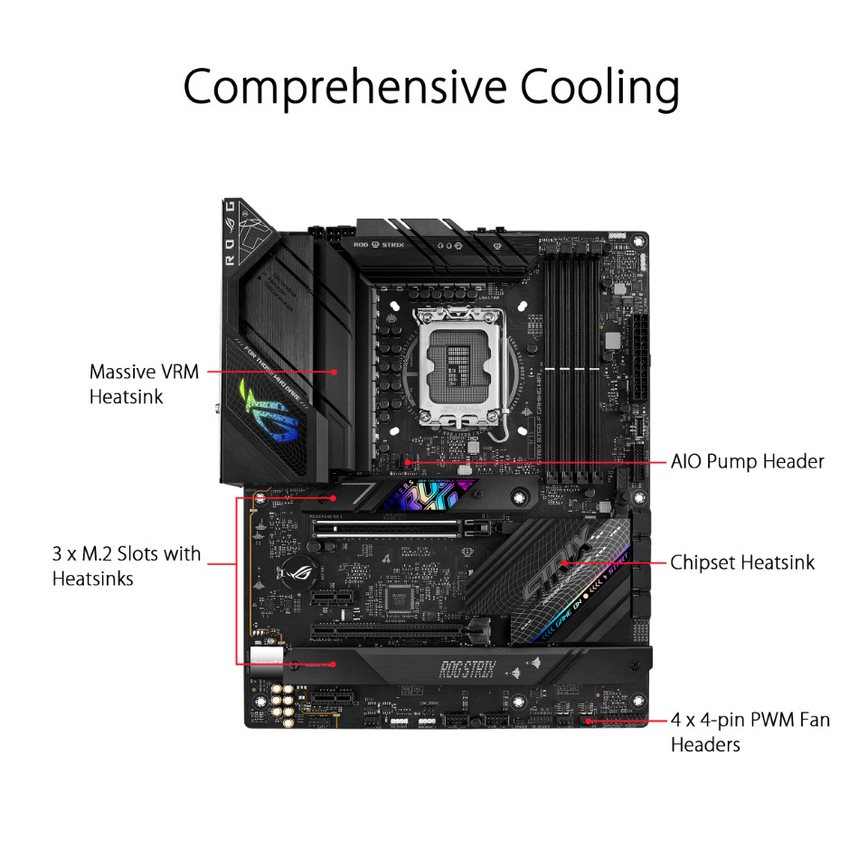

COOLING

• VRM HEATSINK ARRAY

  Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13^th Gen processors.

• M.2 HEATSINKS

  Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

• CPU FAN HEADERS

  Positioned near the top of the motherboard, a pair of PWM/DC fan headers give easy access for CPU coolers.

• AIO PUMP FAN HEADER

  A dedicated PWM/DC header connects self-contained water-cooling setups.

• 4-PIN FAN HEADERS

  The Strix B760-F features four chassis fan headers, each supporting auto-detection of PWM or DC fans.

PCIE PERFORMANCE

The top x16 expansion slot is ready for the future with incredible PCIe 5.0 bandwidth, and it is protected with a SafeSlot retention bracket to support the bulk of the latest graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.

NETWORKING

• WIFI 6E

  Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

  *WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. Learn more about ASUS WiFi 6E

• Intel 2.5G Ethernet

  Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel^® 2.5 Gbps Ethernet.

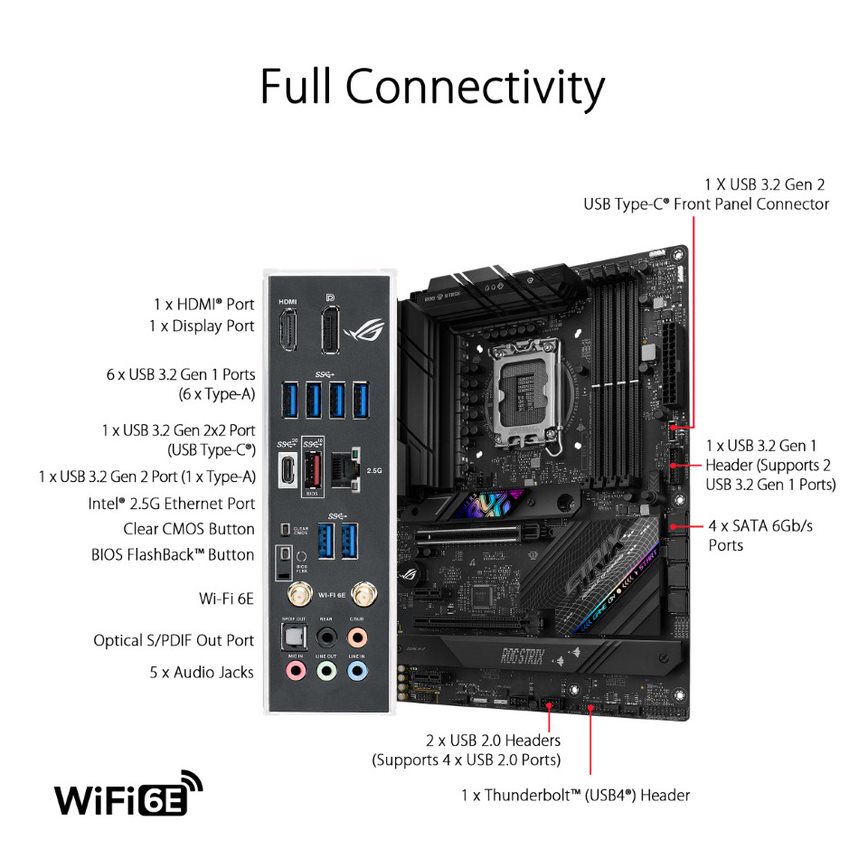

USB

The Strix B760-F comes loaded with multiple high-speed USB options. All of the rear I/O ports are USB 3.2-compliant, with the fastest being a USB 3.2 Gen 2x2 Type-C^® port for data transfers up to 20 Gbps. A chassis port can also receive turbo treatment via the USB Gen 3.2 Gen 2 front-panel connector.

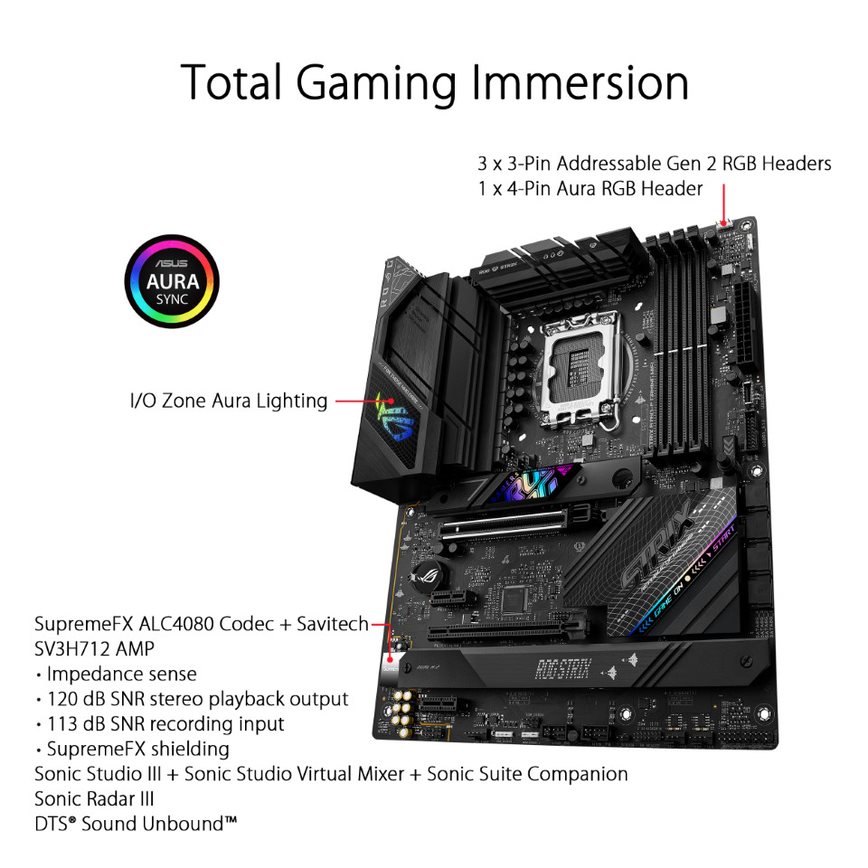

SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-F implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

UNDENIABLY ROG STRIX

Keeping true to its roots, the Strix B760-F is proudly decorated with allusions to games of yesteryear. Scattered decals create a techno-retro fusion backdrop that is punctuated with vibrant highlights and a signature illuminated ROG logo on the I/O shroud.
