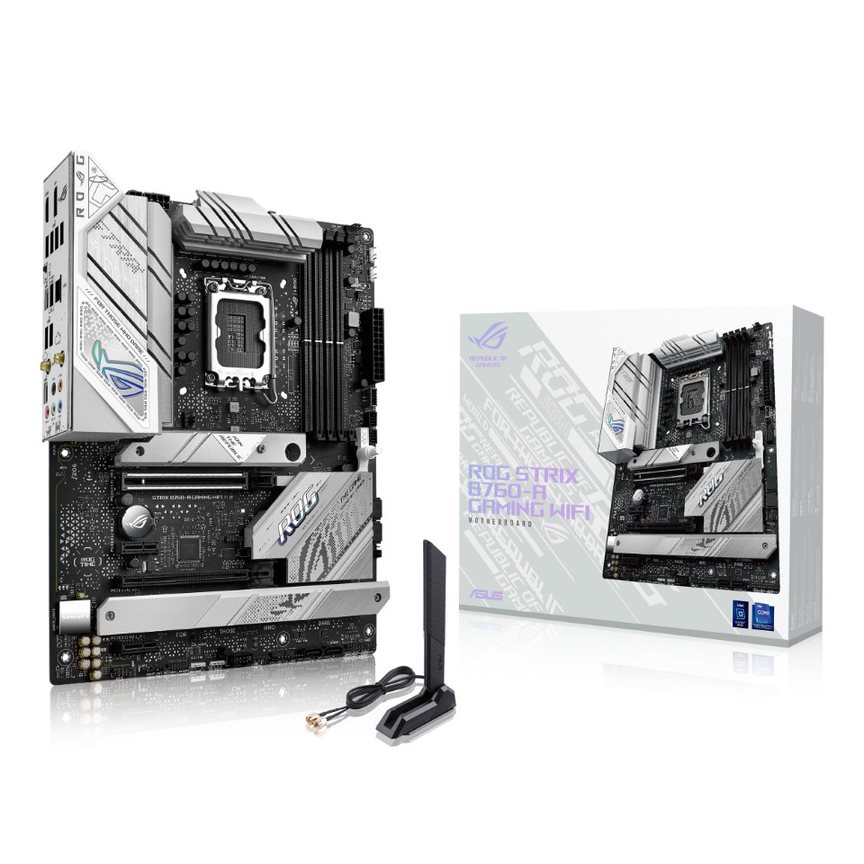

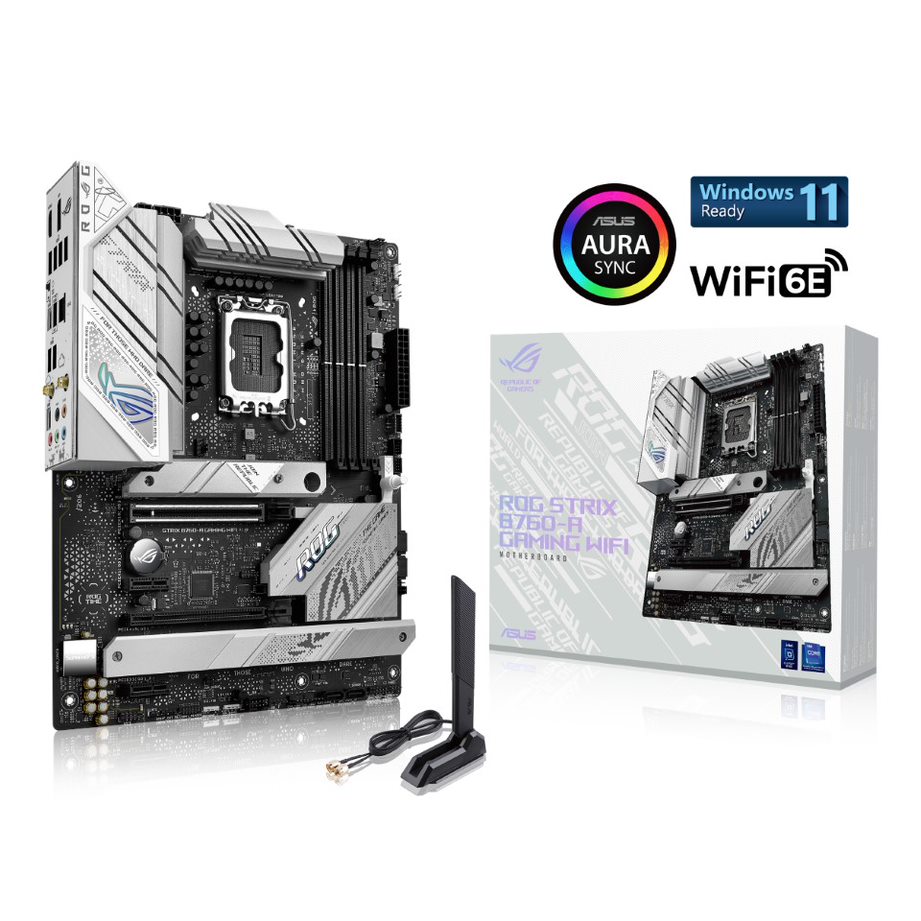

ASUS ROG STRIX B760-A GAMING WIFI D4 white ATX Motherboard

DIY FRIENDLY

•

  PCIE^® SLOT Q-RELEASE

  A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

•

  M.2 Q-LATCH

  The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

•

  BIOS FLASHBACK™ BUTTON

  BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

•

  Q-LED

  Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.

POWER DESIGN

• POWER ARCHITECTURE

  12 + 1 power stages deliver ample current to drive the most powerful Intel 13^th Gen processors through any workload with ease.​

• ALLOY CHOKES AND DURABLE CAPACITORS

  High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

• SIX-LAYER PCB

  A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.​

OPTIMEM II

OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

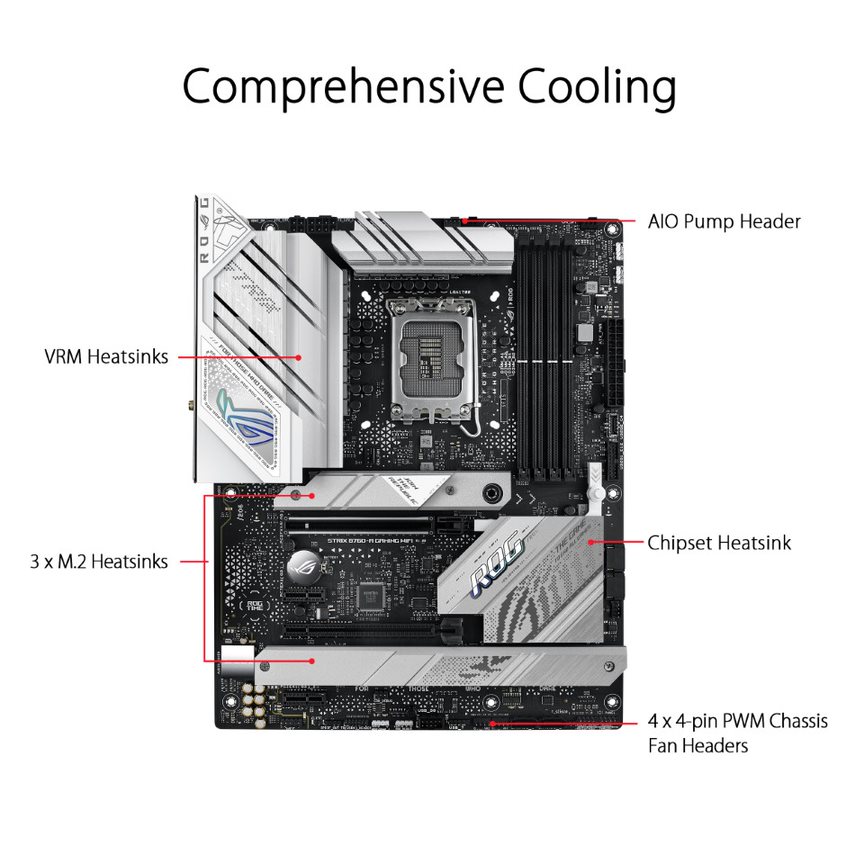

COOLING

• VRM HEATSINK ARRAY

  Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13^th Gen processors.

• M.2 HEATSINKS

  Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

• CPU FAN HEADERS​

  Positioned near the top of the motherboard, a pair of PWM/DC fan headers give easy access for CPU coolers.​

• AIO PUMP FAN HEADER

  A dedicated PWM/DC header connects self-contained water-cooling setups.​

• 4-PIN FAN HEADERS​

  Each header supports auto-detection of PWM or DC fans.​

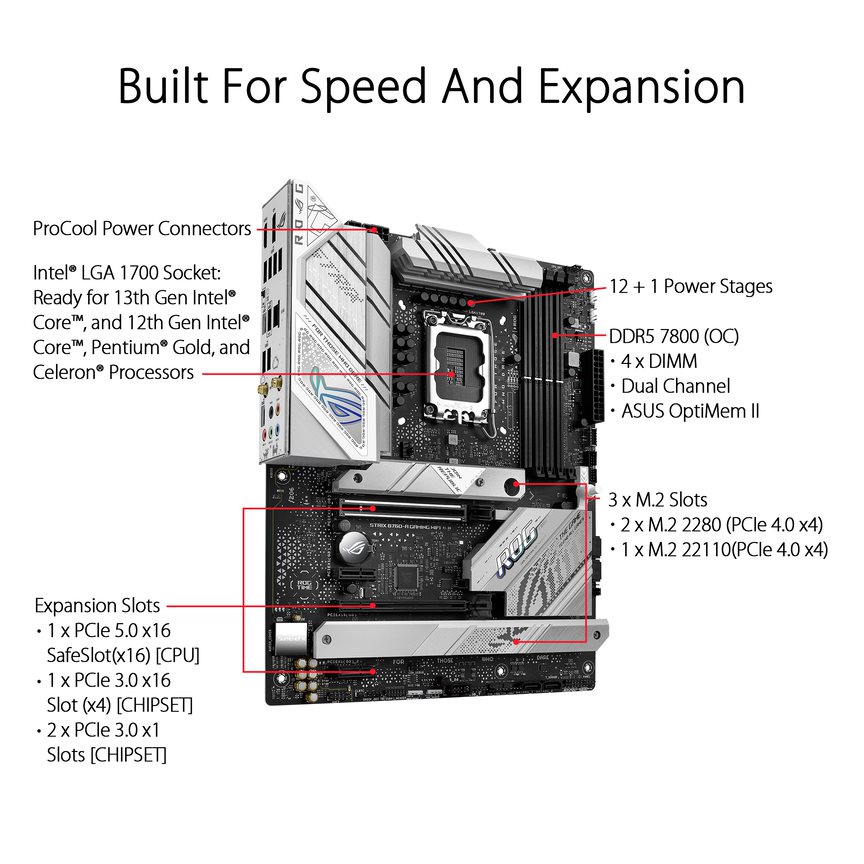

PCIE PERFORMANCE

The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.

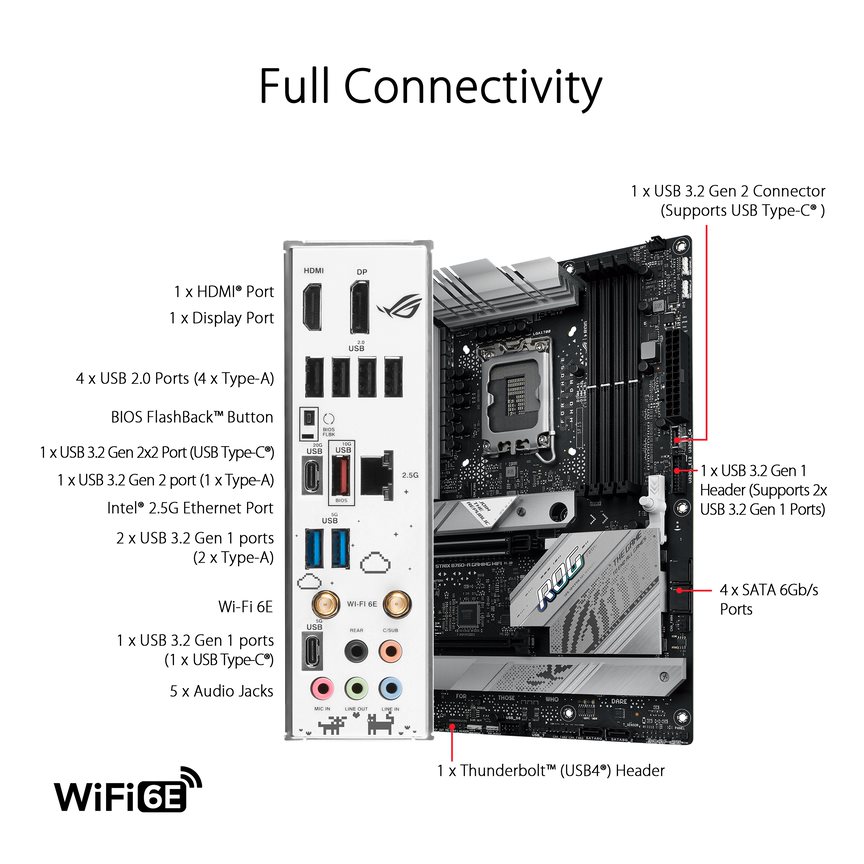

NETWORKING

• WIFI 6E

  Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

  *WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. Learn more about ASUS WiFi 6E

• Intel 2.5G Ethernet

  Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel^® 2.5 Gbps Ethernet.

USB 3.2 GEN 2X2

A USB 3.2 Gen 2x2 Type-C^® port offers speedy data transfers up to 20 Gbps.

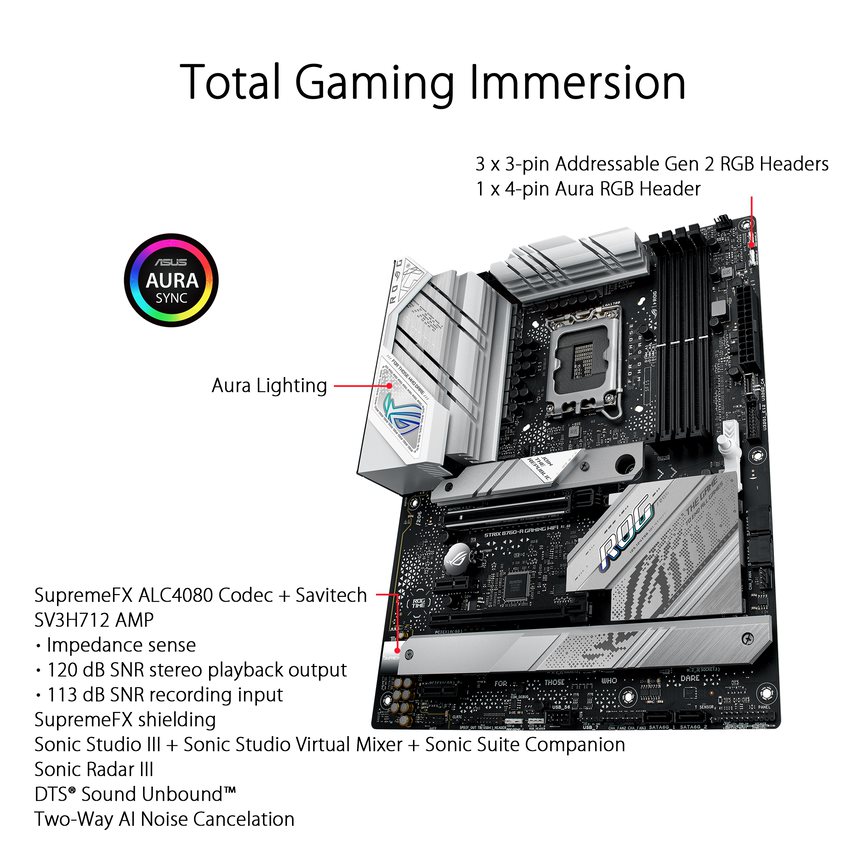

SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-A D4 implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
