- Brand: ASUS
- Model: ROG MAXIMUS Z890 EXTREME
- UPC: 197105754164
- EAN: 4711387754160
- MPN: 90MB1IA0-M0UAY0
- Supports Intel® 14th Gen Processors: Build a powerhouse gaming system with the latest CPUs.
- PCIe 5.0 & DDR5 Memory: Unleash unparalleled speed and responsiveness.
- WiFi 7 & Dual Ethernet Ports: Ensure low-latency connectivity for competitive gaming.
- Advanced Cooling Solutions: Integrated liquid cooling and premium VRM heatsinks.
- ROG Aura Sync: Customize RGB lighting for a dynamic gaming atmosphere.
- Thunderbolt 4: Expand your setup with high-speed data transfer and display connectivity.
Ask a Question About This Product

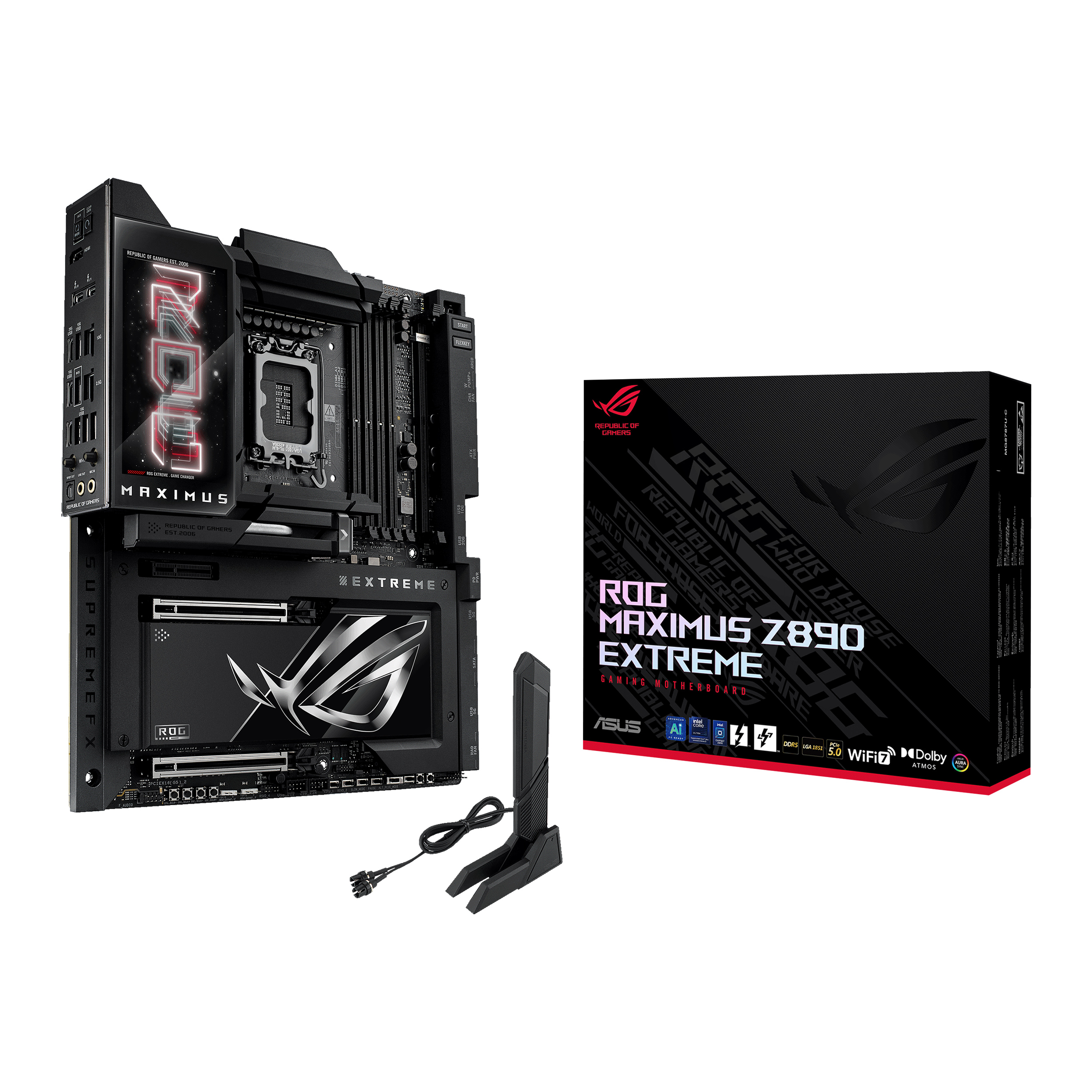

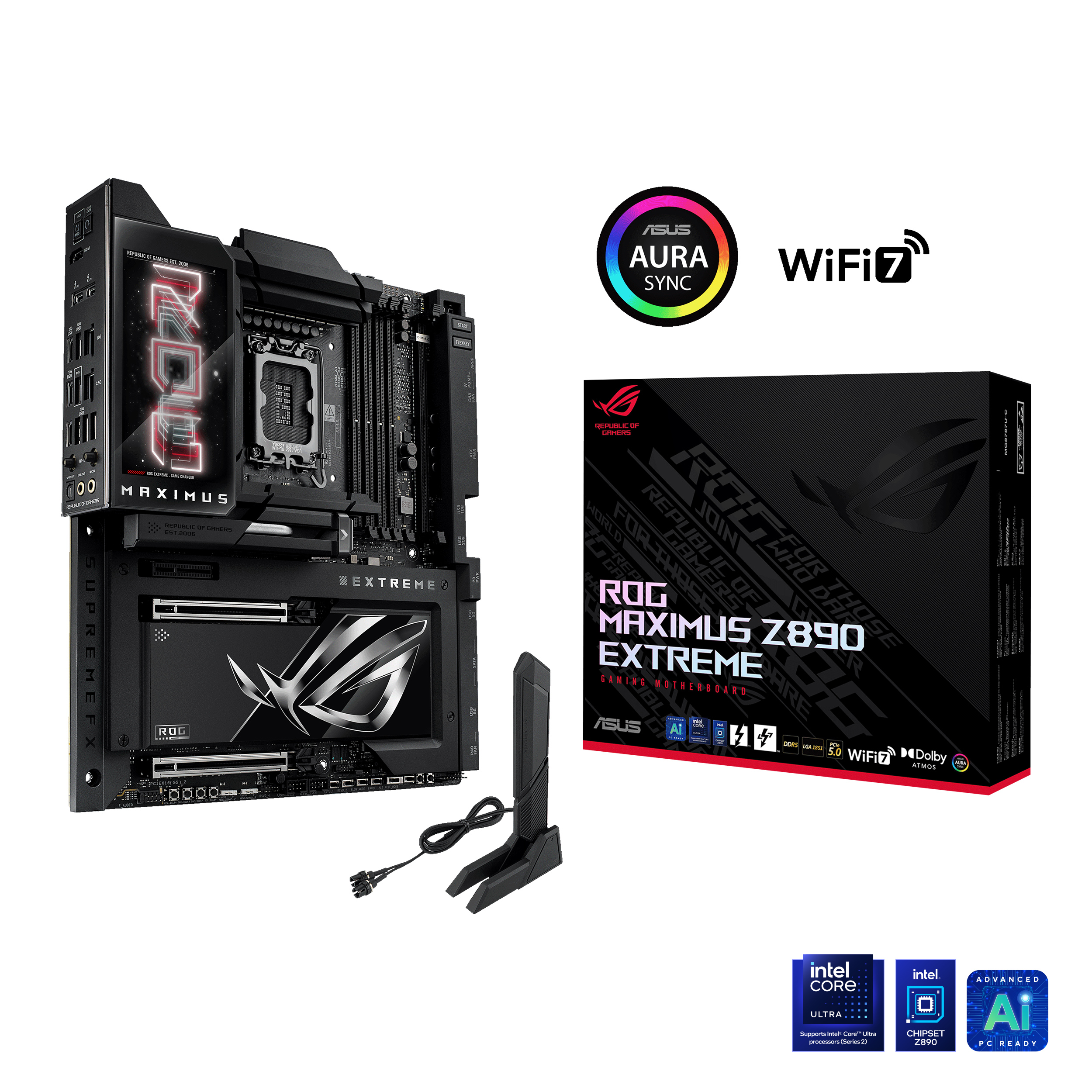

ROG Maximus Z890Extreme
The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.
Click to check our Z890 Motherboard Guide
- DUAL PROCOOL II POWERCONNECTORS
- 24(110A)+1(90A)+2(90A)+2(80A)POWER STAGES
- EXPANSION SLOTS
・ 2 x PCIe 5.0 x16 Slots
- Intel® Socket LGA1851
for Intel® Core™ Ultra Processors
- DDR5, 4 X DIMM
・ Max. 192GB
・ Dual Channel
- ROG Q-Dimm.2 Card
・ 2 x M.2 22110 (PCIe 4.0 x4)
- 4 X M.2 SLOTS
・ 2 x M.2 22110 (PCIe 5.0 x4)
・ 1 x M.2 2280 (PCIe 5.0 x4)
・ 1 x M.2 2280 (PCIe 4.0 x4)
ASUS AIINTELLIGENCE
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
*Features may vary by model.
ai OVERCLOCKING
Tuning is now faster and smarter than ever before.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
* Availability of ASUS AI Advisor may vary by region.
PerformanceOVERCLOCKING
NPU BOOST
The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
* The overclocking performance may vary depending on the CPU series and motherboard used.
** Testing was conducted with an Intel® Core™ Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX™ 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G).
DIFFERENTIAL SENSING
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z890 Extreme features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.
Overclocker's Toolkit
PerformanceMEMORY
DDR5 DOMINATION
Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Maximus Z890 Extreme*.
*Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.
NitroPath DRAM Technology
Frequency up to 400 MT/s higher
Slot retention force enhanced by 57%
DIMM FIT
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
DIMM FLEX
DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.
* Results may vary according to the capabilities of your CPU, graphics card, motherboard, and memory modules.
** The comparison chart is based on a test with an Intel® Core™ Ultra 5 245K processor, ROG MAXIMUS Z890 EXTREME motherboard, ROG Strix GeForce RTX™ 4090 OC Edition 24GB graphics card, and G.SKILL DDR5 memory modules (model F5-8800C4255H24GX2-TZ5CK).AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

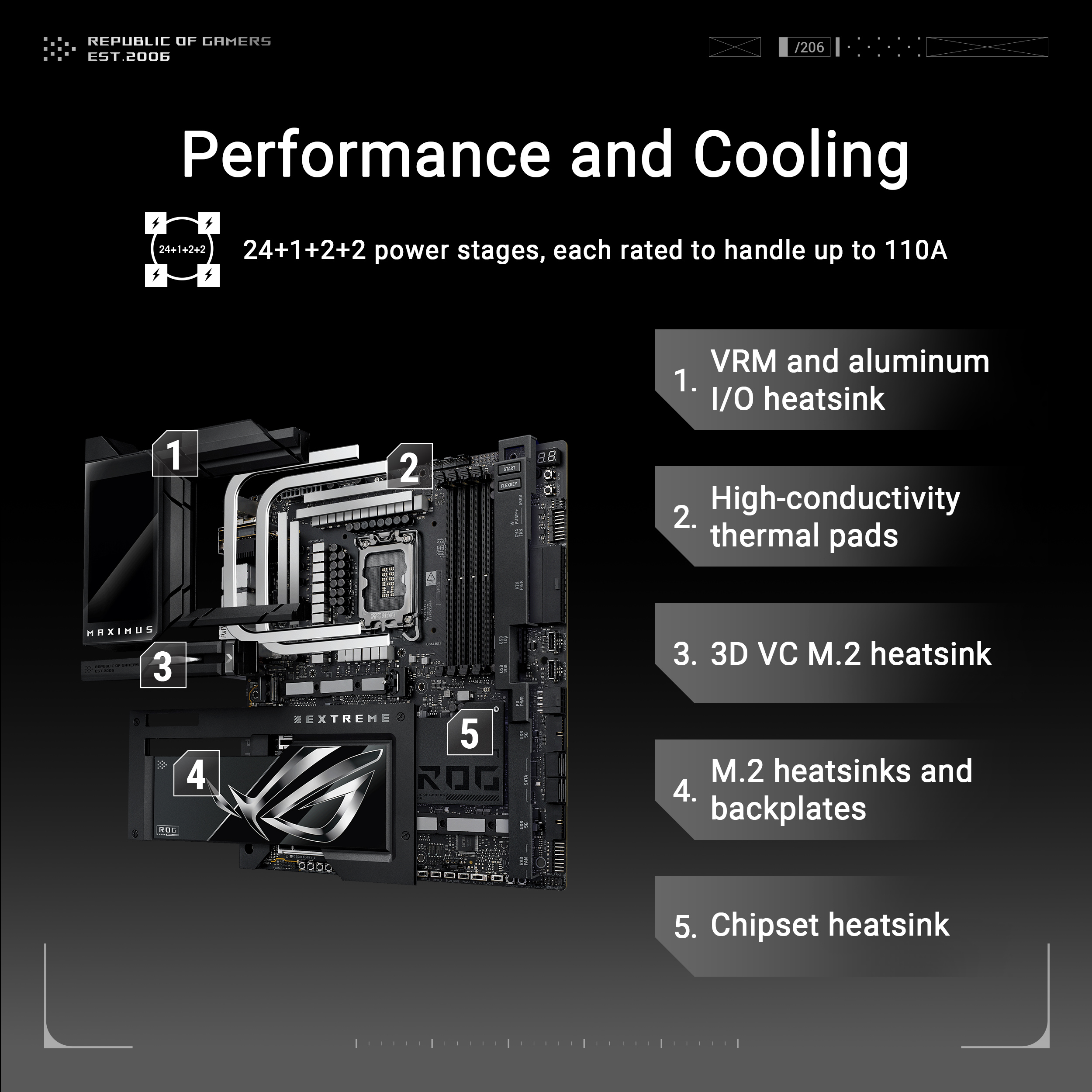

ROG Ultimate Power Solution24(110A)+1(90A)+2(90A)+2(80A) Power Stages
The explosion photo of ROG Maximus Z890 Extreme - 3D VC M.2 Heatsink
The 3D vapor chamber M.2 heatsink offers a larger heat dissipation area, connected to extended heat pipes through a temperature equalization plate to form a vacuum chamber, significantly improving cooling for PCIe 5.0 M.2 SSDs.
Thermal Management
- Multiple temperature sources
- 4-pin fan headers
Cooler Compatibility
CONNECTIVITY
M.2 Slots with ROG M.2 PowerBoost
The ROG Maximus Z890 Extreme features four onboard M.2 slots, all of which support ROG M.2 PowerBoost to help ensure that every onboard M.2 device can operate simultaneously at optimal performance.
PCIE 5.0
Fully embracing the new standard, the ROG Maximus Z890 Extreme offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
USB Ports
Two Thunderbolt™ 5 Type-C® Ports
front panel 20Gbps
USB Type-C® Panel Connectorwifi7
- 320MHz
- 6GHzband
- 4096QAM
- up to 4.8Xultra-fast WiFi speeds
2.5Gb ETHERNET
10Gb ETHERNET
Gaming Audio
ROG SupremeFX
Dolby Atmos
EZ PC DIY
M.2 Q-Release
M.2 Q-Slide
New M.2 Q-LATCH
PCIE® SLOT Q-RELEASE SLIM
Q-Antenna
START BUTTON
Q-CODE
CLEAR CMOS& BIOS FLASHBACK™
Q-LED
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
- BIOS Q-DASHBOARD
- Advanced Mode
BIOS Q-DASHBOARD
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
SOFTWARE
- ASUS DriverHub
- TURBOV CORE
- Thunderbolt Share
- Dolby ATMOS
- ASUS GLIDEX
- HWiNFO
- AIDA64 EXTREME
- Armoury Crate
ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.
PERSONALIZATION
Boundless creativity, endless style.
The ROG Maximus Z890 Extreme features a full-color 5-inch LCD screen that can show exclusive ROG animations, system information and even personalized services* through Armoury Crate, empowering gamers to define their unique style on a vibrant display.
*The custom image feature will be available soon.
Dare to Be Green
We at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.
Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.
