ASUS ProArt X670E-CREATOR WIFI, AMD X670 (Ryzen AM5) ATX motherboard, 16+2 power stages, PCIe 5.0 ready, DDR5 support, USB4, 10 Gb & 2.5 Gb LAN, WiFi 6E, four M.2 slots

All you need for maximum productivity

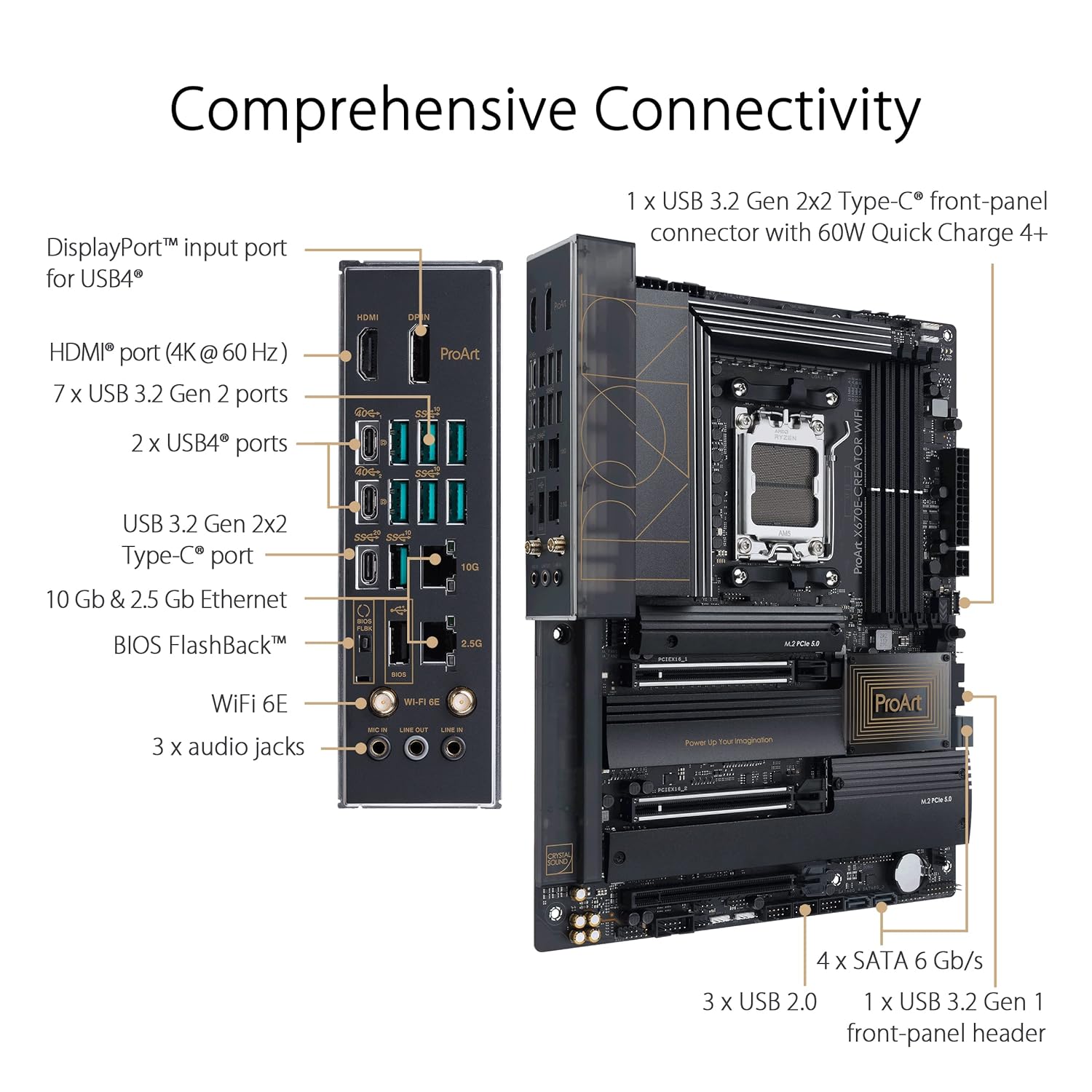

Dual USB4® connectivity

Get immersed in your creations with two USB4® ports connect to all your content creation gadgets and enable up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the USB4® port.

• 40Gbps




  Bi-directional bandwidth

• DisplayPort 1.4




  Support one 8K or dual 4K displays

• Daisy-chain




  Up to five devices

• 15W




  Charging

Ultrafast networking

• WiFi 6E

  Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.

• 10 Gb & 2.5 Gb Ethernet

  Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

*WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi. www.asus.com/content/WiFi6/#WIFI-6E

PCIe 5.0 support

Fully embracing the new standard, the ProArt X670E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Four onboard M.2 slots

The ProArt X670E-Creator WiFi features four onboard M.2 slots, two of which are PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.

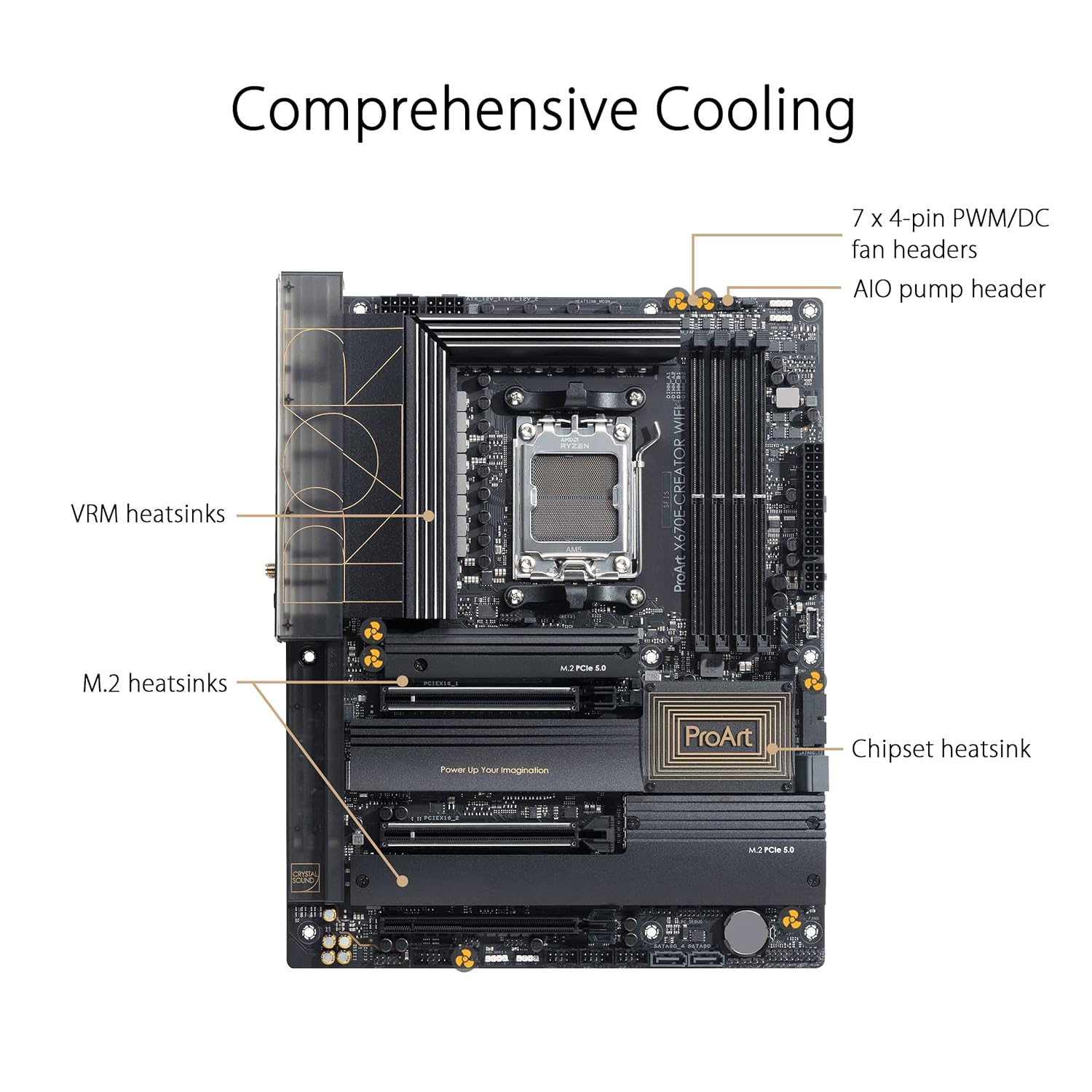

M.2 slot heatsinks and backplate

An integrated M.2 backplate helps ensure that high-performance PCIe 5.0 drives deliver peak performance, even when airflow is restricted.

PCIe 5.0 expansion slots

Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.

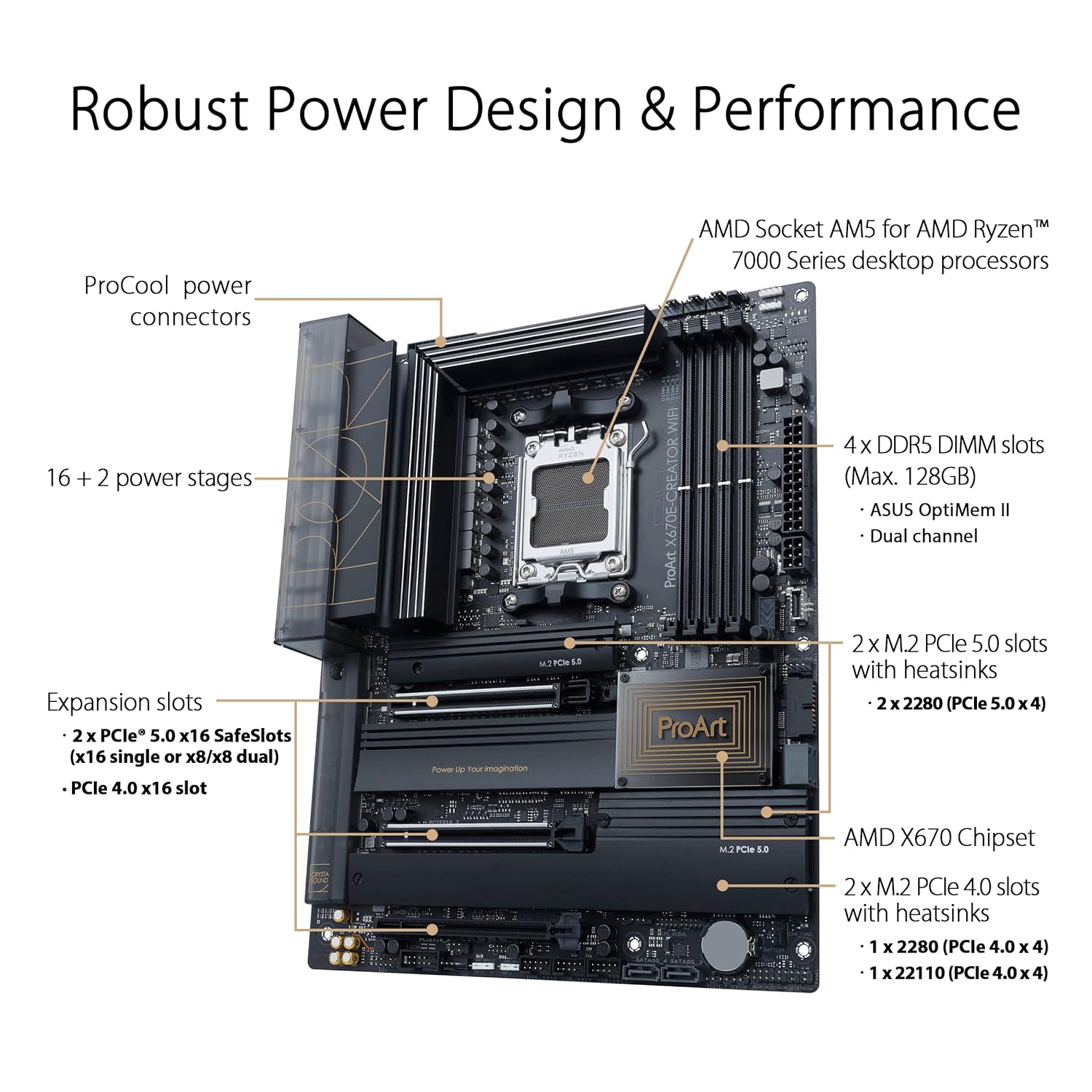

The core of your powerful workstation

• 16+2 teamed power stages

  Rated for 70 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the latest AMD Ryzen 7000 series processors.

• Digi+ power control

  The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

• ProCool power connectors

  Built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

• Chokes & capacitors

  Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Performance boost

AI Overclocking

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

Dynamic OC Switcher

Lightly-threaded tasks get fantastic uplift using AMD Precision Boost Overdrive (PBO), but all-core frequencies can be pushed higher via traditional overclocking. The Dynamic OC Switcher lets you have the best of both worlds by engaging the better system for each job based on the CPU current or temperature.

DDR5 Memory

The ProArt X670E-Creator WiFi enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you’re dealing with high-speed or entry-level memory modules.

DDR5 Strength

For those who want to fly past stock DDR5 speeds, the ProArt X670E-Creator WiFi is ready for enthusiast-grade kits, courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

ASUS Enhanced Memory Profile

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

Self-adaptive fan tuning

AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

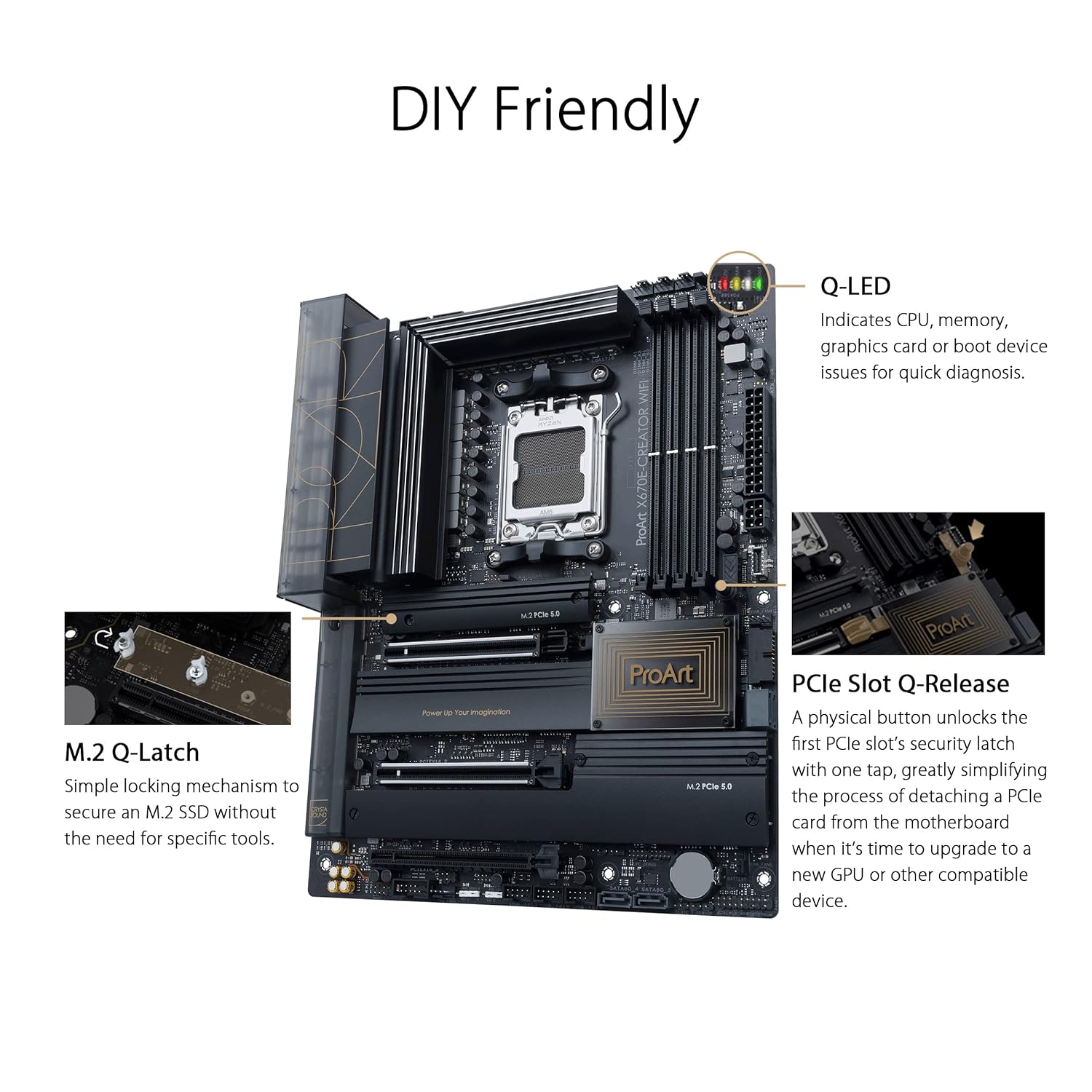

DIY is easier than ever

• 8-pin power plug LED

  Indicates if the 8-pin power plug is not connected.

• SafeSlot

  Provides stronger PCIe device retention and greater shearing resistance.

• Q-DIMM

  One-sided clips for simple and secure handling of memory modules.

• Q-LED

  Indicates CPU, memory, graphics card or boot device issues for quick diagnosis.

• SafeDIMM

  A fortified metal divider for added support and damage prevention.

• Q-Connector

  Sorts all front-panel cables for a neater setup.

•

  M.2 Q-Latch

  Simple locking mechanism to secure an M.2 SSD without the need for specific tools.
•

  PCIe Slot Q-Release

  A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
