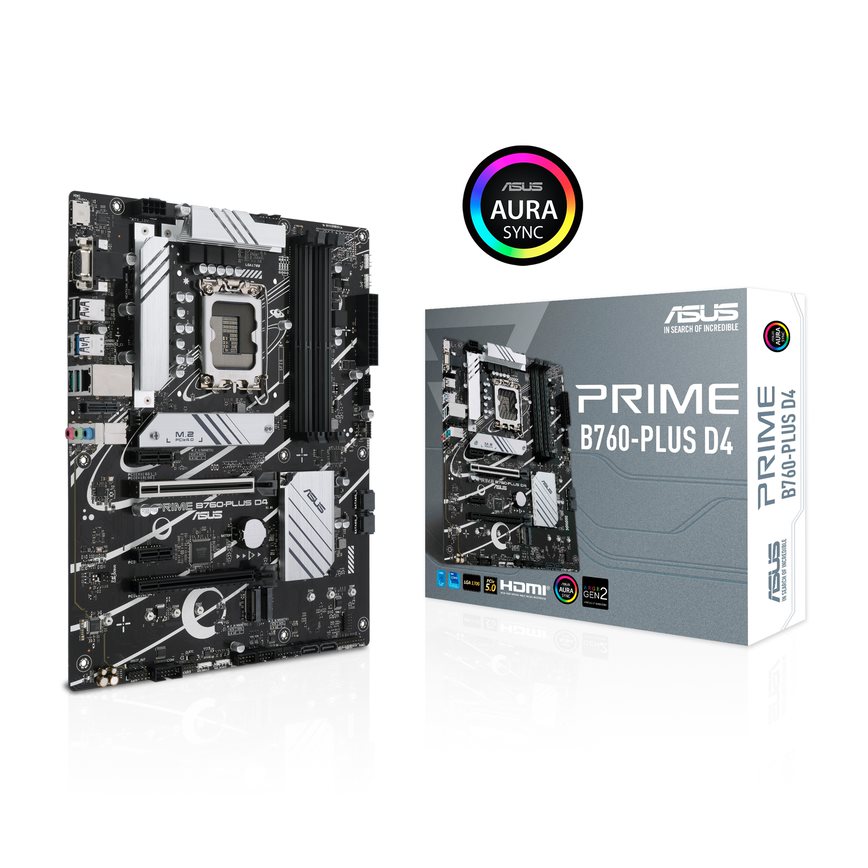

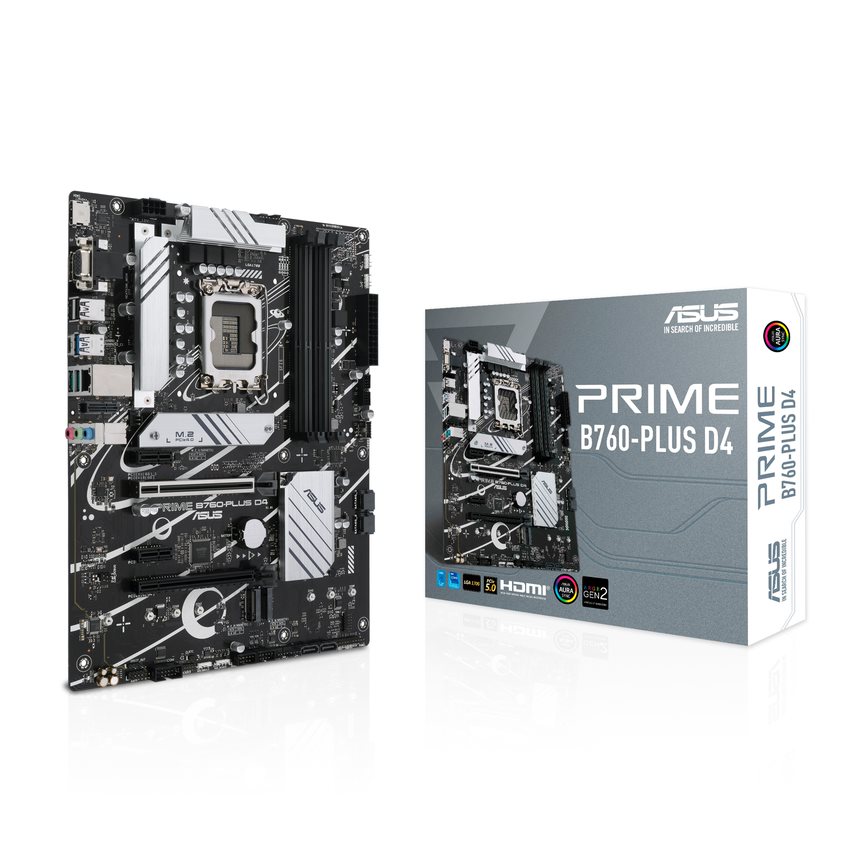

ASUS PRIME B760-PLUS D4 LGA 1700 ATX motherboard

1 / 7
ASUSBrand: ASUS
No reviews yetWrite a review
Model
PRIME B760-PLUS D4
MPN
90MB1CW0-M0IAY0
EAN
4711081970316
UPC
195553970310
ā‚¹16,390
ā‚¹13,889.83 + GST (18%) Ā· GST invoice available

Key features

  • IntelĀ® LGA 1700 Socket: Ready for 13th and 12th Gen IntelĀ® processors

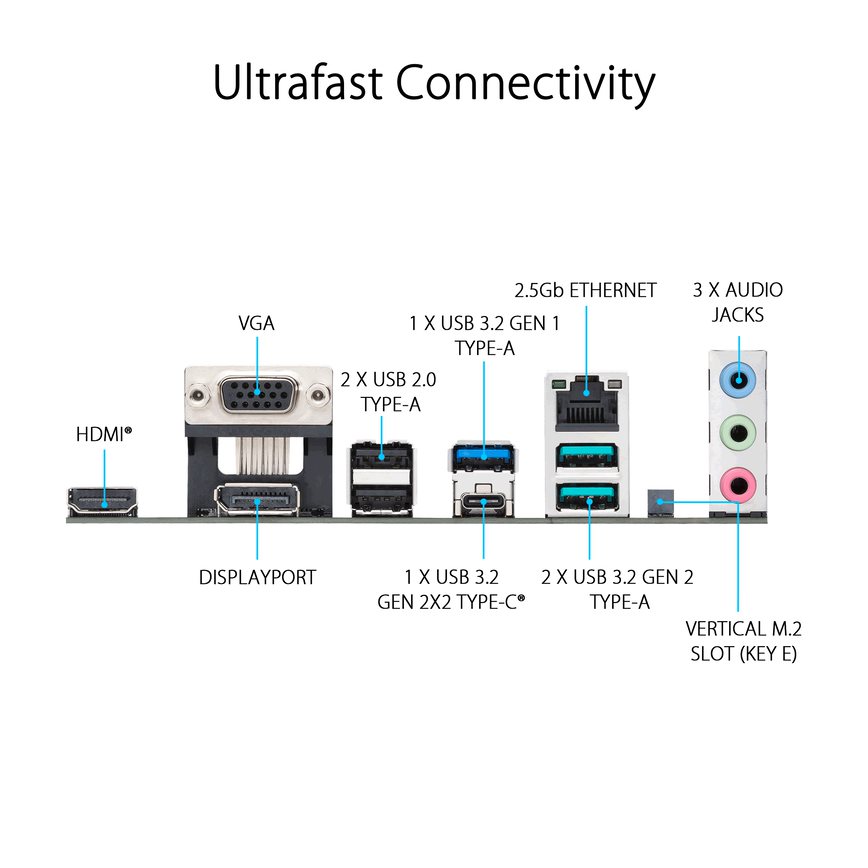

  • Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-CĀ®, front USB 3.2 Gen 1 Type-CĀ® and Thunderboltā„¢ (USB4Ā®) header support
  • Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability

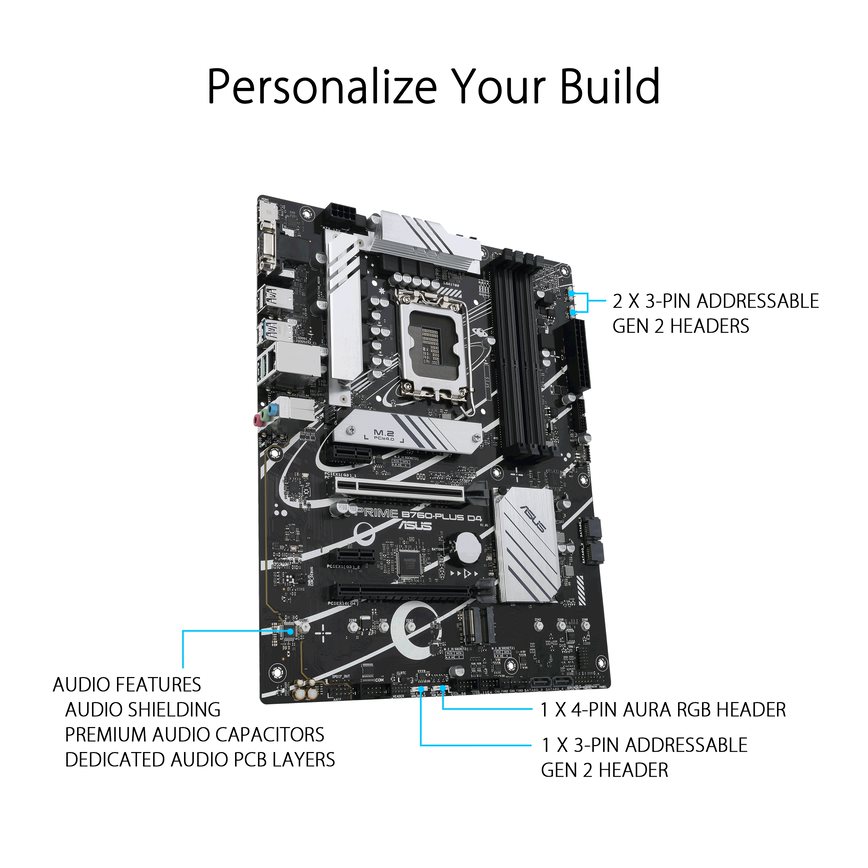

  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
All specifications

PRIME B760-PLUS D4

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen IntelĀ® Coreā„¢ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

  • IntelĀ® LGA 1700 Socket: Ready for 12th and 13th Gen IntelĀ® processors
  • Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-CĀ®, front USB 3.2 Gen 1 Type-CĀ® and Thunderboltā„¢ (USB4Ā®) header support
  • Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

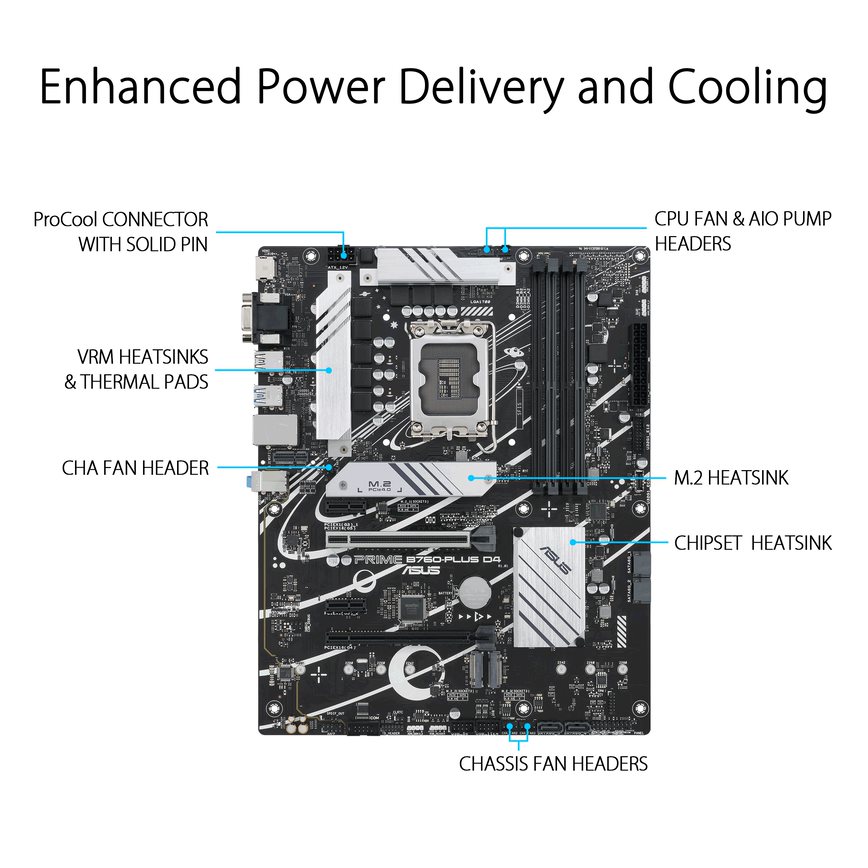

COOLING

PRIME B760-PLUS D4 motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

M.2 Heatsinks

M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.

VRM Heatsinks and Thermal Pads

VRM heatsinks and thermal pads improve heat transfer from the MOSFETs for better cooling performance.

ProCool Connector

Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

DDR4 Support

Improvements to trace routing design provide the latest IntelĀ® processors with enhanced access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

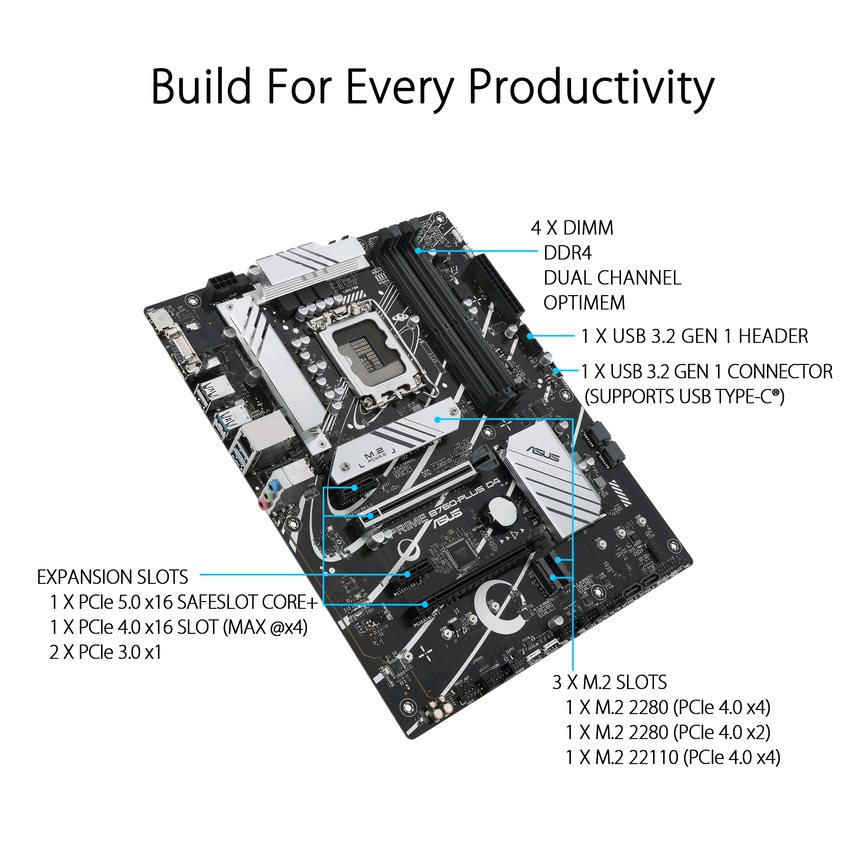

Storage

Three M.2 Slots (up to 64 Gbps)

PRIME B760-PLUS D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

*Actual transmission speeds will be lower than the theoretical maximum speed.
*The M.2_1 and M.2_2 support PCIe 4.0 x4 mode, M.2_3 supports PCIe 4.0 x2 mode.

PCIe 5.0 Slot

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express.

USB 3.2 Gen 2x2 Type-CĀ®

A batch of USB ports support high-end rigs loaded with peripherals, including the rear USB Type-CĀ® connector with ultrafast USB 3.2 Gen 2x2 for transmission speeds of up to 20 Gbps.

Thunderboltā„¢ 4 (USB4Ā® compliant)

PRIME B760-PLUS D4 motherboard features USB4Ā® support via a Thunderboltā„¢ (USB4Ā®) header. With an ASUS add-on card*, PRIME motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.

*ASUS add-on card is sold separately.

Realtek 2.5 Gb Ethernet

Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

LANGuard

ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

SafeSlot Core+

PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot Core+, to ensure the highest data speeds. SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed.
