ASUS Micro-ATX Pro H610M-C-CSM business motherboard with enhanced security, reliability, manageability and serviceability Intel H610 Chipset 2 x DIMM, Max. 64GB, DDR5 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture
- Stock: 5
- Model: H610M-C-CSM
- Brand - ASUS
- Model - H610M-C-CSM
- Memory Technology - DDR5
-

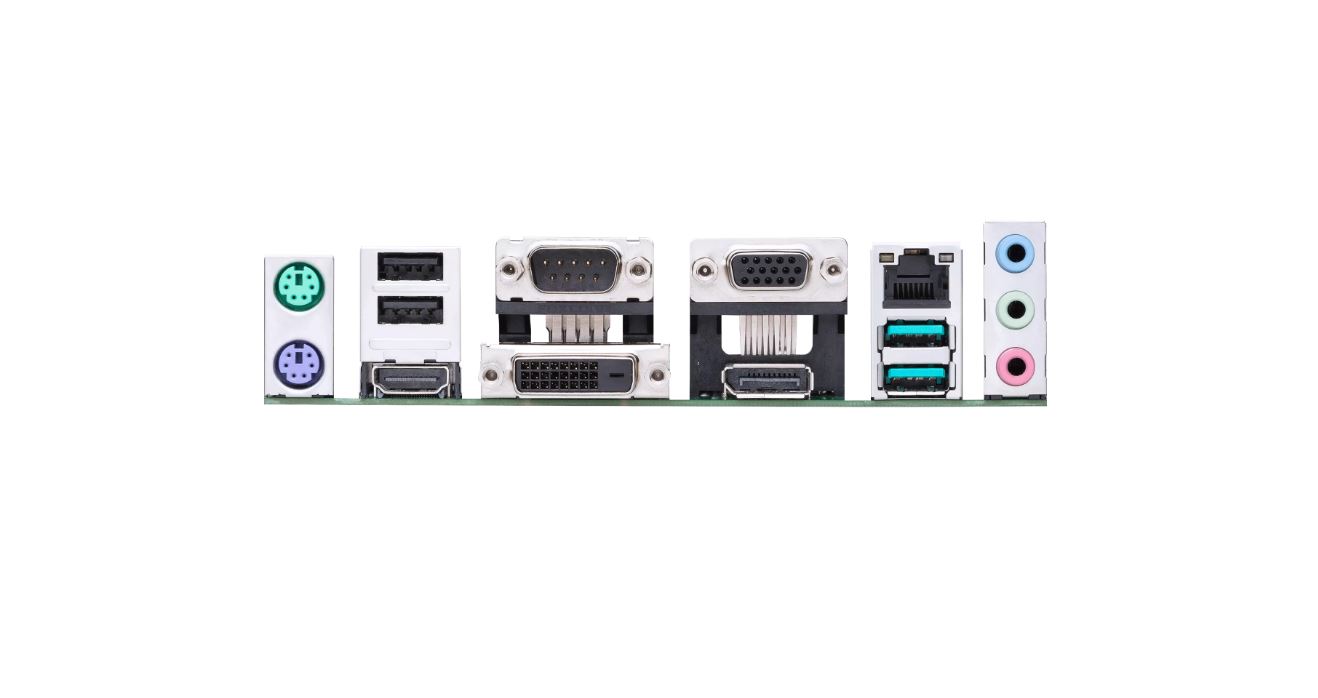

PS/2 mouse
-
PS/2 keyboard
-
HDMI
-
USB 2.0
-
DVI-D
-
COM
-
DP
-
D-Sub
-
USB 3.2 Gen2
-
Ethernet
-
Audio
-
PCIe 5.0 x16 slot
-
2 x PCIe 3.0 x1 slots
-
Mono-out header
-
PCI slot
-
SMBUS header
-
COM header
-
LPT
-
DDR5
-
Intel® Socket LGA1700 for 12th
Gen Intel® Core™, Pentium®
Gold and Celeron® Processors -
1 x Front USB 3.2 Gen 1 header
-
M.2 2280(PCIe 3.0 x4 mode)
-
Intel® H610 Chipset
-
TPM header
-
COM Debug header
-
4 x SATA 6Gb/s
ASUS Corporate Stable Model
Learn more about ASUS Corporate Stable Model
ASUS Control Center Express
Learn more about ASUS Control Center Express
- Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
- Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
- Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
* ASUS Control Center Express is only available for CSM motherboards. Please consult your local sales representative for more information
Internationally Certified Business Motherboard
-
ASUS Shield
Enhances system security from bottom to top
-
ASUS Reliant
Ensures consistent performance with the finest components and rigorous reliability testing
-
Management Suite
Makes customization and management more efficient
-
ASUS Serviceability
Facilitate the assembly process and enable efficient troubleshooting
DDR5 Support
PCIe 5.0 slot
ASUS SHIELD
Enhances system security from bottom to top
-
ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.LEARN MORE -
Trusted Platform Module(TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity. -
Certified NIST SP 800-147
ASUS Business motherboard is certified by the national computer security standards. -
ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.
ASUS Self-recovering BIOS
With ASUS Self-recovering BIOS
-
Ensures safe BIOS updates
-
Reduces maintenance frequency and costs
-
Requires no extra software
-
Provides automatic update failure detection and recovery
Standard process for BIOS update crash recovery
ASUS RELIANT
Ensures consistent performance with the finest components and rigorous reliability testing
-
Anti-moisture coating
-
Anti-sulfur resistors
-
Stanless-steel Back I/O
Anti-moisture Coating
Protection against moisture and corrosion
ASUS MANAGEMENT SUITE
Make IT work more efficiency!
Event Log
- BIOS updates
Update status, latest version and update time
- AC power loss
Abnormal power loss events
- RTC reset
Time of real-time-clock (RTC) reset
- Chassis intrusion
Record of when chassis is opened
- Hardware changes
Modifications to CPU, memory or HDDs
- Hardware status
USB over current, CPU over temperature, and CPU over voltage events
ASUS Commercial BIOS Kit
BIOS Value Edit Tool Customize the BIOS options
BIOS Boot Logo Tool Brand your builds with a customized boot logo
OEM Activation (OA) Tools Add or remove the OEM Activation key
Desktop Management Interface (DMI) Easily add customer information, such as company name, to the BIOS
Intel® Management Engine (Intel® ME) Driver Update the Management Engine without flashing the whole BIOS
* Please contact with local FAE for commercial BIOS kit.
Remote IT Management
* ASUS DASH LAN card sold separately. For more information, please contact your local ASUS sales representative.
ASUS SERVICEABILITY
Facilitate the assembly process and enable efficient troubleshooting
-
Q-LED
-
COM Debug header
-
Box headers
-
Fix-position connectors
Q-LED Core
No DRAM Detected
Fast blinking
4 Hz (0.25s)
No VGA Detected
Slow blinking
1/2 Hz (2s)
No Boot Device Detected
Very slow blinking
1/8 Hz (8s)
Installation Completed
