ASRock A620M-HDV/M.2+ DDR5 Motherboard

1 / 5
ASRockBrand: ASRock
No reviews yetWrite a review
Model
A620M-HDV/M.2+
₹9,900
₹8,389.83 + GST (18%) · GST invoice available

Key features

  • Supports AMD Socket AM5 Ryzenâ„¢ 8000 and 7000 Series Processors
  • 6+1+1 Power Phase, Dr.MOS
  • 2 x DDR5 DIMMs Supports Dual Channel, up to 7200+ (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Integrated AMD RDNAâ„¢ 2 Graphics*
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
  • 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer, BIOS Flashback

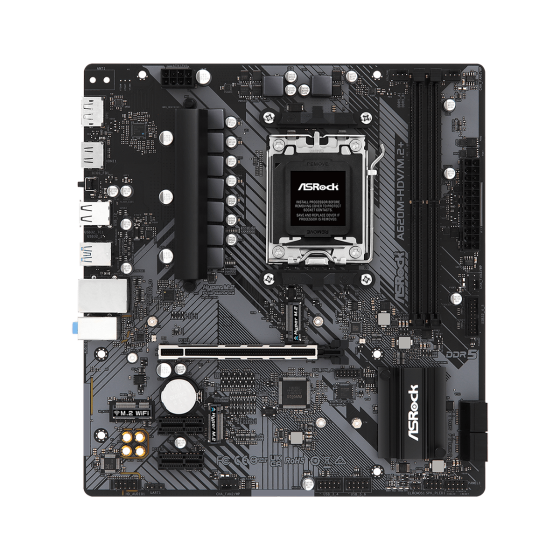

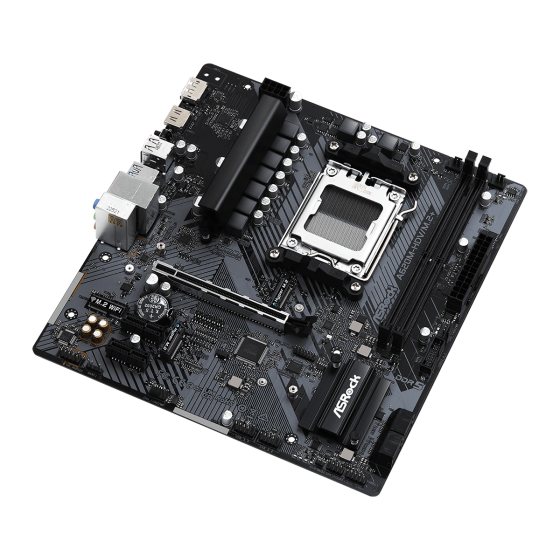

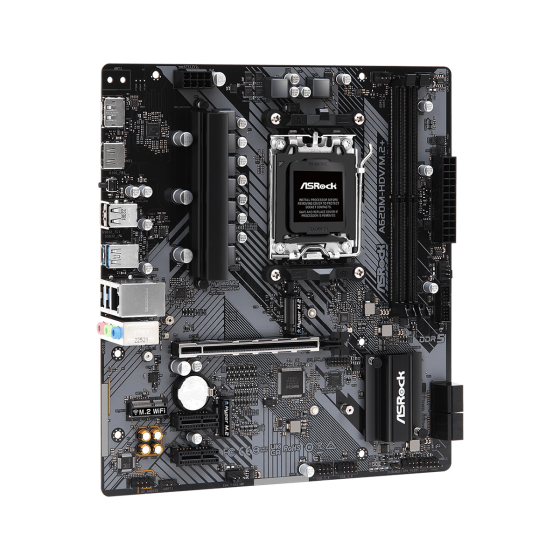

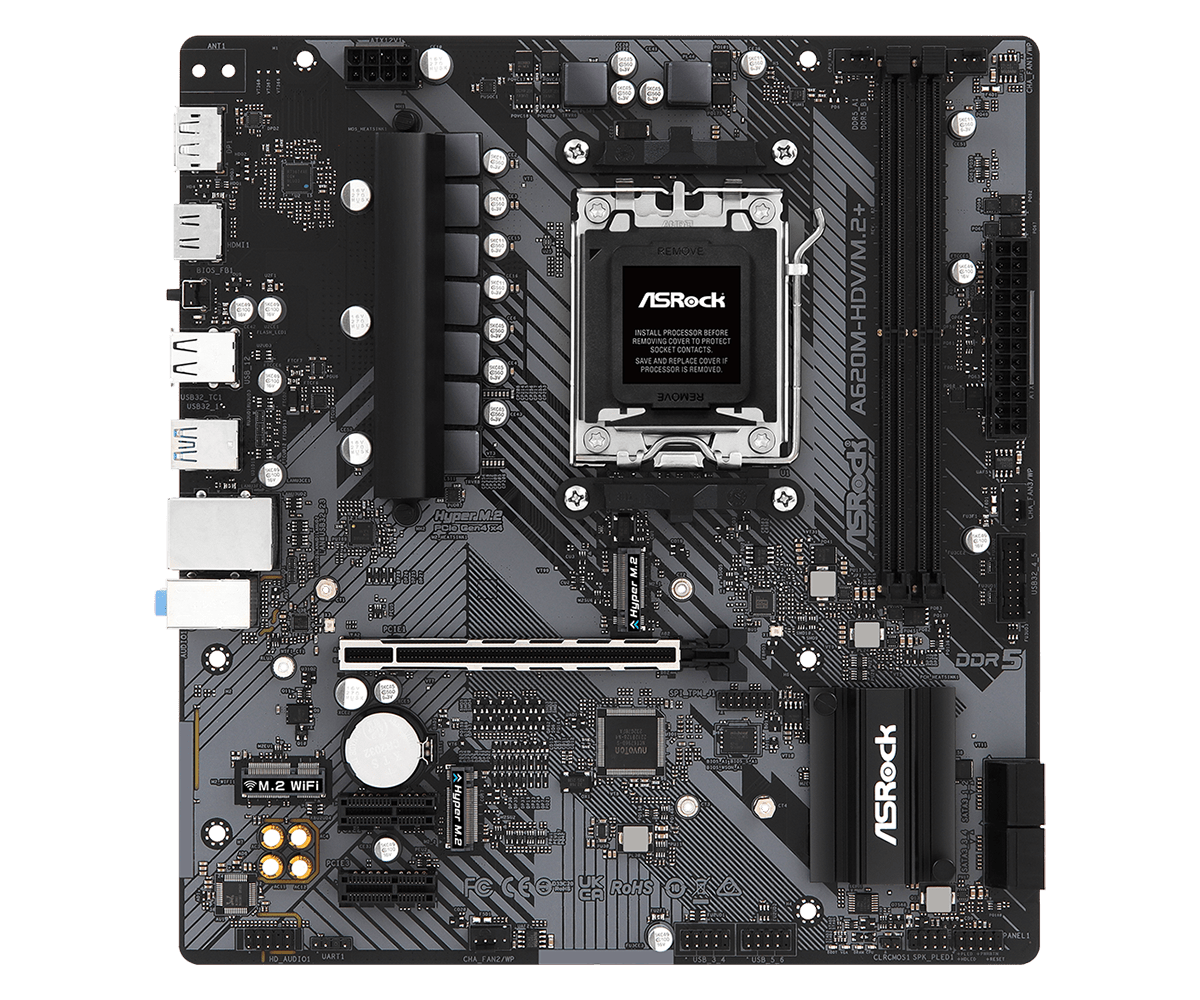

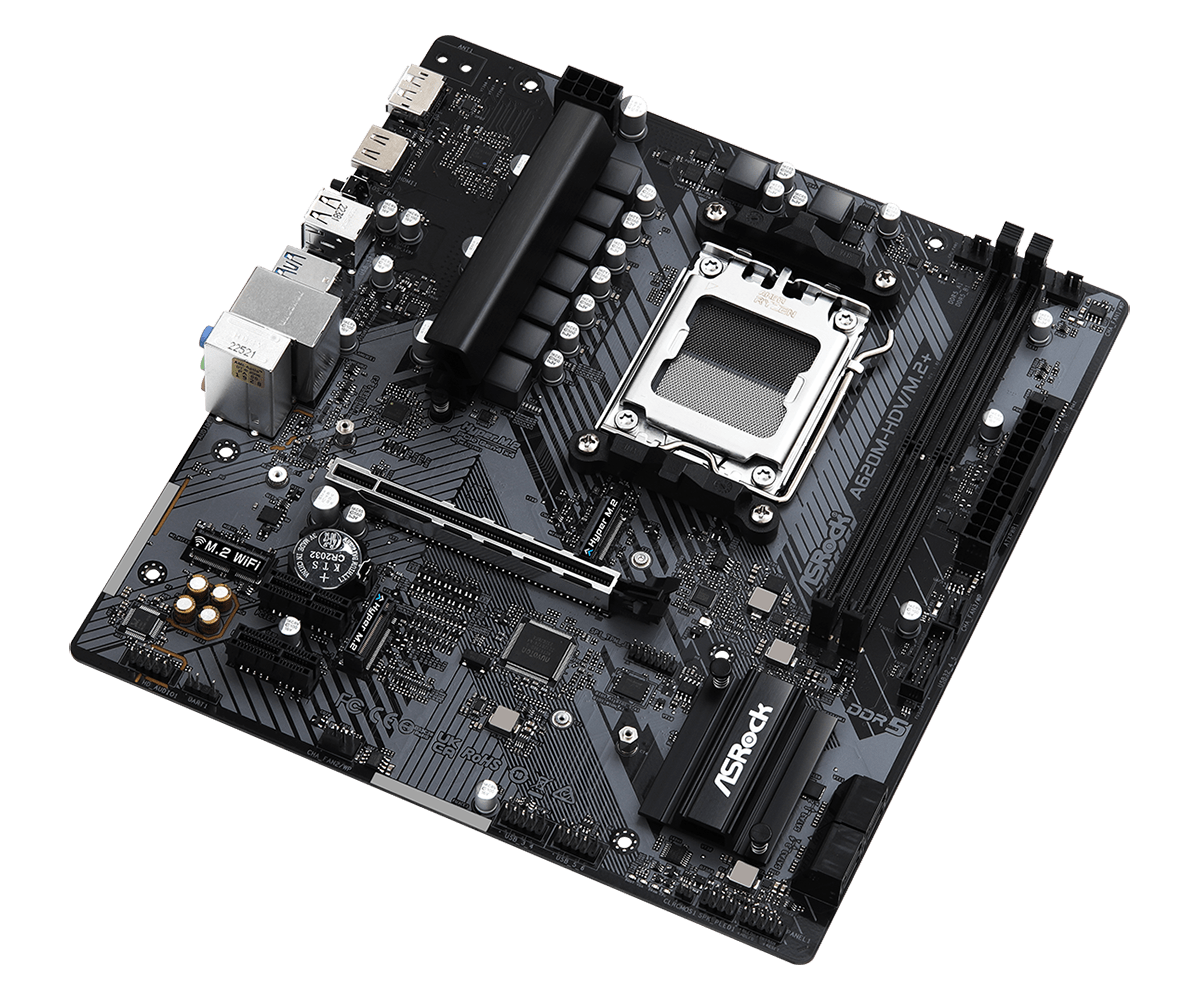

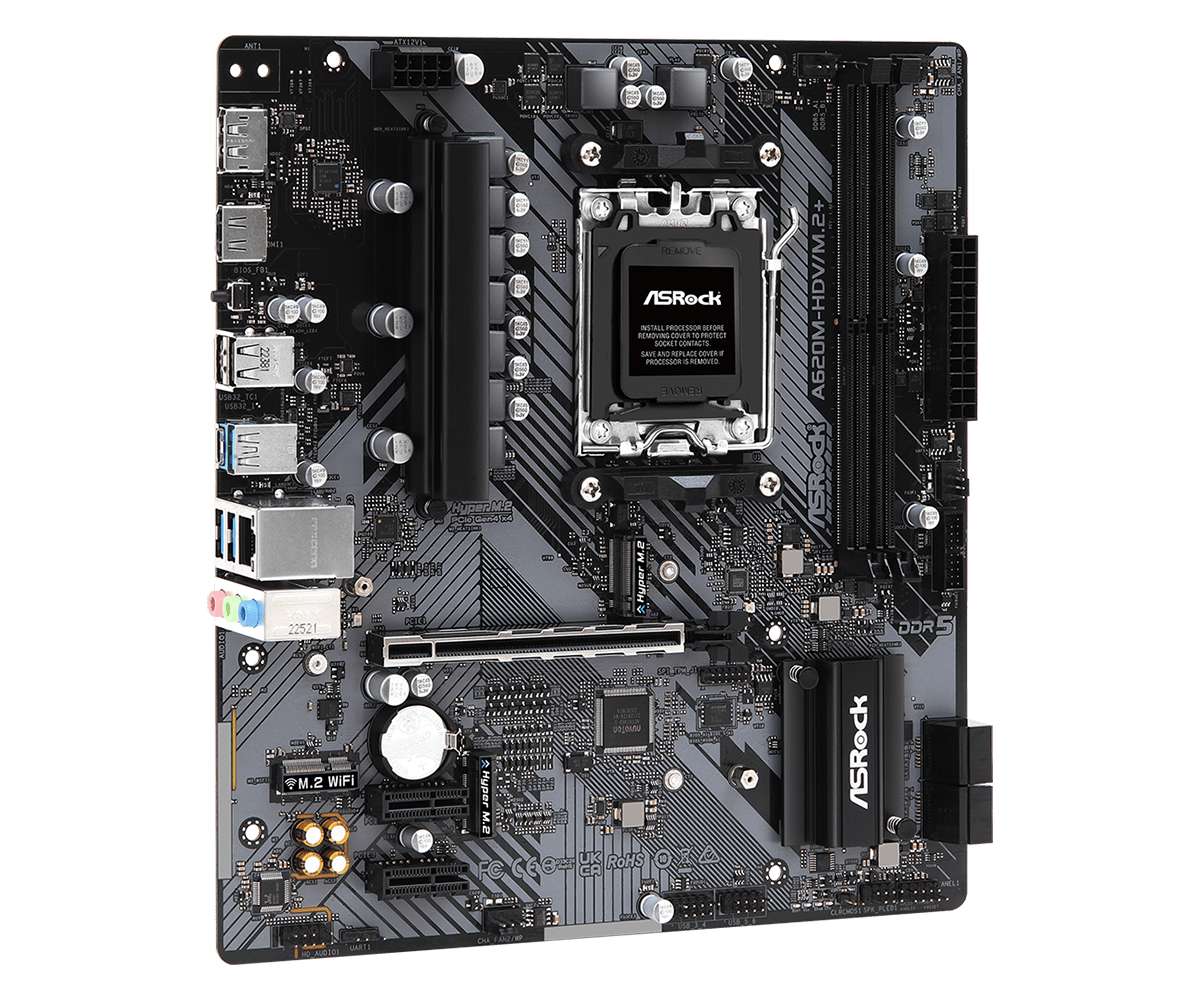

  • Product Photo

    A620M-HDV/M.2+

    • Supports AMD Socket AM5 Ryzenâ„¢ 8000 and 7000 Series Processors
    • 6+1+1 Power Phase, Dr.MOS
    • 2 x DDR5 DIMMs
      Supports Dual Channel, up to 7200+ (OC)
    • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
    • Integrated AMD RDNAâ„¢ 2 Graphics*
    • Graphics Output Options: HDMI, DisplayPort
    • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
    • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
    • 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
    • Realtek Gigabit LAN
    • Supports ASRock Auto Driver Installer, BIOS Flashback
      *Actual support may vary by CPU
    This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

  • Build for The Most Advanced PC

    Build for The Most Advanced PC

    Optimized VRM Design

    Featuring sturdy components optimized for AMD Ryzenâ„¢ 7000X3D series processors, offering enhanced performance for gamers.
    Optimized VRM Design

    6 Layer PCB

    The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, giving a stable and reliable system.
    6 Layer PCB

    Reinforced Steel Slot
    [PCIe 4.0 Version]

    The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
    ✔ Extra anchor points
    ✔ Stronger latch
    ✔ Ensure signal stability
    ✔ Make sure heavy graphics cards to be well-installed.
    Reinforced Steel Slot [PCIe 4.0 Version]

    Nahimic Audio

    Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
    Nahimic Audio

    High Speed M.2 Solution

    This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
    PCIe 4.0 High Speed M.2 Solution

    USB 3.2 Gen1 Type-C

    USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
    USB 3.2 Gen1 Type-C

    M.2 (KEY E) For WiFi

    Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
    *Wi-Fi module is not included.
    M.2 (KEY E) For WiFi

    EZ Setting

    Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
    Step1: Install Auto Driver Installer
    Step2: ADI will automatically download and install all necessary drivers.
    Step3: Done!
    Auto Driver Installer
₹9,900
