- Brand: ASUS
- Model: PA27USD
- UPC: 019929131424
- EAN: 4711636229470
- MPN: 90LM04N0-B01371
ASUS ProArt Display OLED PA27USD Professional Monitor – 27-inch (26.5-inch viewable), 4K UHD (3840 x 2160), QD-OLED, 240Hz, 0.1ms GTG, 99% DCI-P3, ΔE < 1, 12G-SDI, Motorized Colorimeter, Thunderbolt 4 PD 96W, Dolby Vision
- 26.5-inch 4K UHD (3840 x 2160) QD-OLED panel optimized for on-set and studio filmmaking workflows
- 1000 nits peak brightness with VESA DisplayHDR True Black 400 – perfect for viewing HDR footage on-set
- Industry-leading ΔE < 1 color accuracy with 99% DCI-P3, 99.9% sRGB and 97% Adobe RGB coverage
- Built-in motorized flip colorimeter for auto and self-calibration – maintains professional-grade accuracy
- 12G-SDI input for uncompressed 4K@60Hz video playback without compression for real-time color review
- 240Hz refresh rate enables smooth playback and performance-driven game development on one display
- Metal carry handle and dual stand options – portable on-set form factor for production environments
- Dual Thunderbolt 4 ports (96W PD), HDMI 2.1, and DisplayPort 2.1 for comprehensive connectivity
- Support for multiple HDR formats – HDR-10, HLG, and Dolby Vision for flexible content creation
- Calman Ready with ColourSpace CMS integration and optional Panaro MAX rugged case edition for maximum portability
Ask a Question About This Product

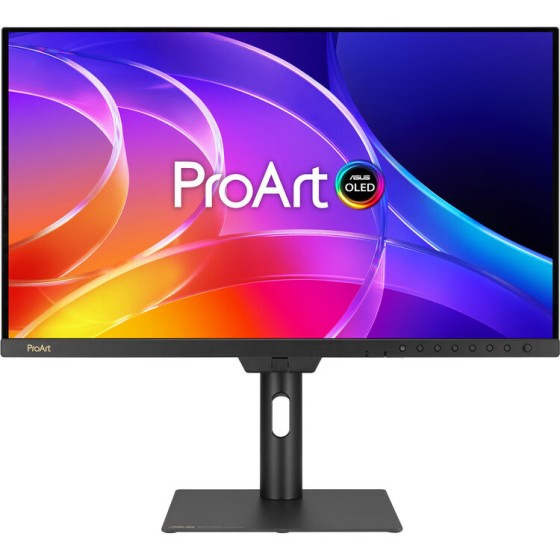

ASUS ProArt Display OLED PA27USD
Professional 4K QD-OLED Monitor for Production, Color and Post
ASUS ProArt Display OLED PA27USD is a professional 26.5-inch 4K UHD QD-OLED monitor designed for creators, colorists, video editors, DIT workflows, game developers and production studios. It combines 3840 x 2160 resolution, up to 240Hz refresh rate, 0.1ms GTG response time, 99% DCI-P3, Delta E < 1 accuracy, built-in self and auto calibration, 12G-SDI, Thunderbolt 4, HDMI 2.1, DisplayPort 2.1 and USB hub connectivity in one creator-focused display.
Key Highlights
Creator-Class OLED Performance in One Display
4K HDR26.5-inch 3840 x 2160 OLED clarity
QD-OLEDTrue black contrast and rich detail
1000 nitsHDR peak brightness for highlights
240HzFast refresh for motion and preview
99%DCI-P3 color gamut- 100%sRGB coverage
Delta E < 1Professional color accuracy
10-bit1.07 billion display colors
Self CalibrationBuilt-in motorized flip colorimeter
12G-SDIUncompressed 4K60 production input- TB4 96WThunderbolt 4 with laptop charging
OLED CarePanel protection and burn-in reduction
3 YearWarranty including panel burn-in
Made for Professionals
Empowering Content Creators
PA27USD is built for demanding creative jobs where resolution, motion clarity, HDR, wide color, calibration and flexible input support all matter at the same time.
Filmmakers and Video Editors
High-resolution 4K visuals, wide color gamut, true black OLED performance and HDR support help editors work confidently with detailed production content.
Colorists
Factory calibration, Delta E < 1 accuracy and a built-in colorimeter help maintain consistent professional color across SDR and HDR workflows.
Digital Imaging Technician
12G-SDI support, monitor hood and mini stand make PA27USD suitable for on-set preview, camera monitoring and location-based review.
Game Developers
4K resolution, 240Hz refresh rate and wide gamut color allow developers to review artwork, motion and in-game visuals from one monitor.
3D and VFX Artists
Fast refresh, crisp 4K clarity and OLED contrast make complex animation, rendering and motion review feel smoother and more detailed.
Designers and Photographers
Accurate color, 100% sRGB coverage and 99% DCI-P3 coverage help preserve creative detail from capture to edit, proofing and final delivery.

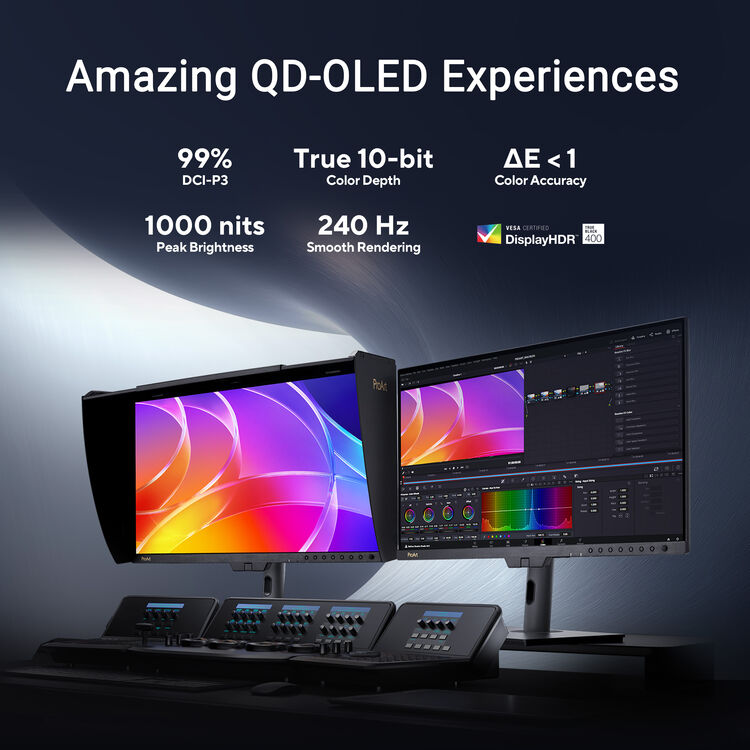

Performance Snapshot
4K QD-OLED with Speed, Contrast and Precision
QD-OLED Experience
Professional-Grade Color with Deep Black Contrast
Professional-Grade Colors
Studio-grade 99% DCI-P3 gamut helps deliver rich, vivid color for color-intensive projects and creative workflows.
Ultra-Accurate Color
Every display is factory calibrated to support smooth gradation and trusted creative color reproduction.
Deeper Blacks
QD-OLED contrast helps separate shadows, highlights and fine tonal details with impressive visual depth.
Advanced Panel Design
A graphene film behind the panel helps reduce operating temperature and supports efficient heat dissipation.
Game Development and Video Editing
Smooth 4K 240Hz Preview for Fast-Moving Visuals
The 240Hz refresh rate and VRR support allow creators to work on fast-rendering visuals and quality checks in one display. HDMI 2.1, DisplayPort 2.1 and Thunderbolt 4 provide 4K at 240Hz support for fluid motion and detailed preview.
Calibration Workflow
Intuitive and Intelligent Color Control

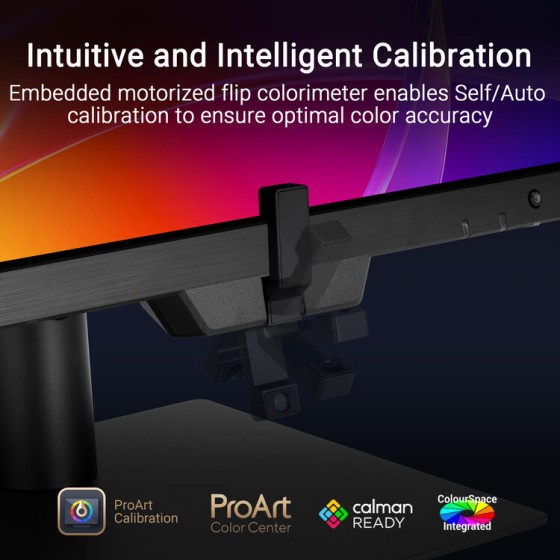

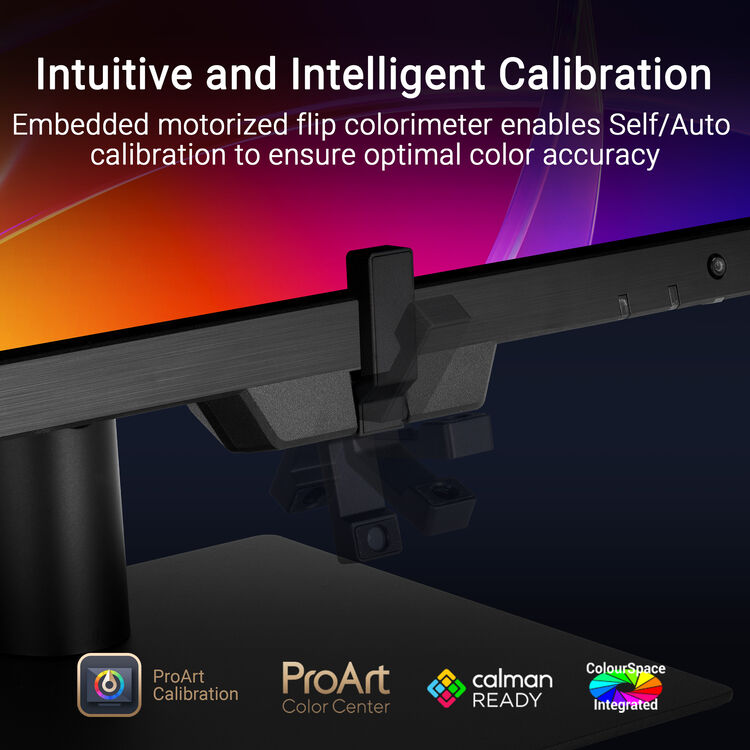

Self Calibration
The built-in motorized flip colorimeter allows standalone calibration through the monitor without requiring extra calibration software.
ProArt Hardware Calibration
Color profiles can be saved directly to the monitor's internal scaler IC instead of depending only on PC-side settings.
ProArt Color Center
Administrators can manage calibration timing and color consistency across multiple ProArt displays in different locations.

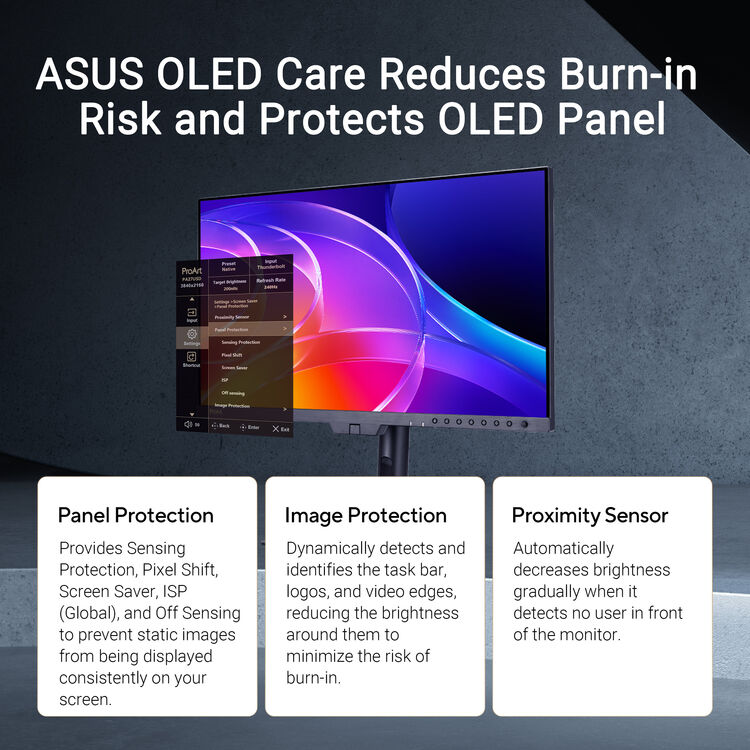

OLED Protection
ASUS OLED Care for Long-Term Confidence
ASUS OLED Care features are designed to help reduce the likelihood of image burn-in during long creative sessions and static interface use.
Panel Protection
Includes sensing protection, pixel shift, screen saver, ISP global and off sensing to help prevent static image retention.
Image Protection
Dynamically detects taskbars, logos and video edges, reducing brightness around static elements to lower burn-in risk.
Proximity Sensor
Automatically decreases brightness gradually when no user is detected in front of the monitor.
HDR Creation
Dolby Vision, HLG and HDR10 Support
ASUS Smart HDR technology supports multiple HDR formats for professional image production, color grading, mastering, broadcast review and HDR-enabled entertainment. Multiple HDR10 PQ curves and HDR Preview help creators simulate the final output more accurately.
Production Connectivity
12G-SDI and Flexible Modern I/O

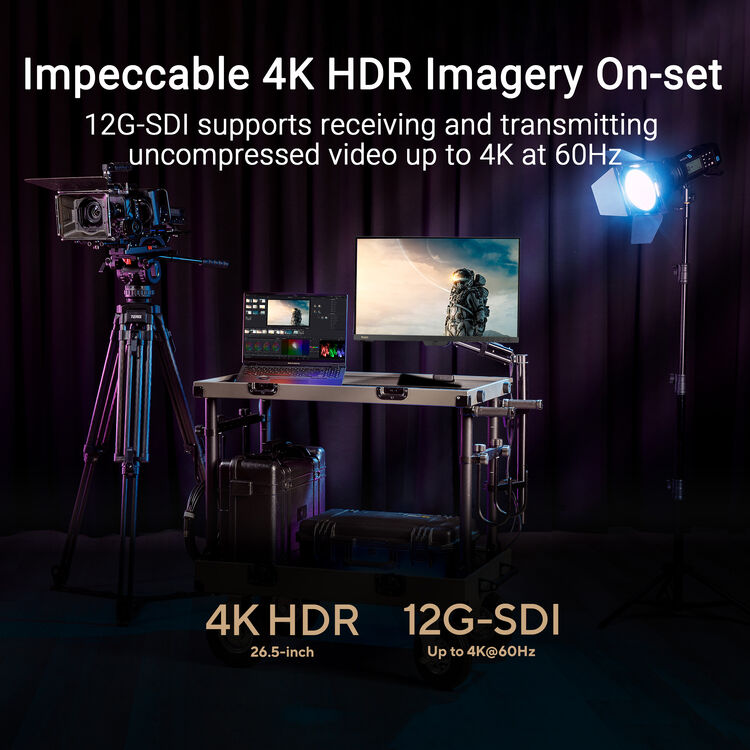

12G-SDI for Uncompressed 4K60
SDI is widely used in production workflows for reliable long-distance video transmission. Compared with standard 3G-SDI, 12G-SDI offers up to four times the bandwidth and enables uncompressed video up to 4K at 60Hz directly from camera devices.

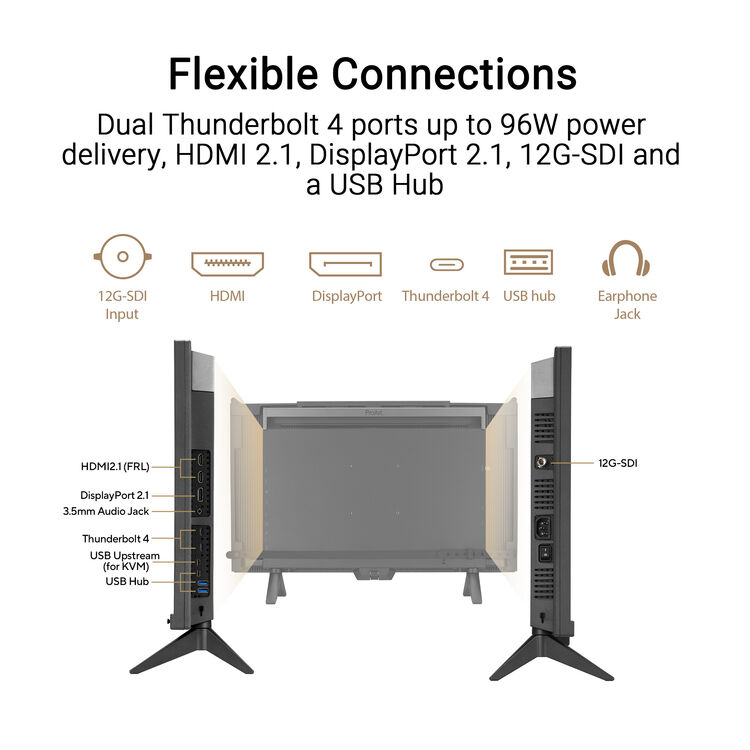

Thunderbolt 4, HDMI 2.1 and DisplayPort 2.1
Dual Thunderbolt 4 ports support daisy-chaining and up to 96W USB-C Power Delivery. HDMI 2.1, DisplayPort 2.1, USB 3.2 hub, 3.5mm audio jack and 12G-SDI make the display ready for studio and desktop setups.
Viewing and Preview Tools
PbP, PiP, QuickFit Plus and On-Set Framing
Picture-by-Picture
View content from up to four input sources and compare different color engines such as sRGB, Adobe RGB, P3, BT.2020 and CAL modes.
Picture-in-Picture
Preview a second input source inside a smaller window placed in a corner of the display.
QuickFit Plus
Use on-screen framing aids such as central marker, safety area, ruler and customization tools for accurate real-time preview.
Design and Ergonomics
Flexible Stand Options for Studio and Location Work

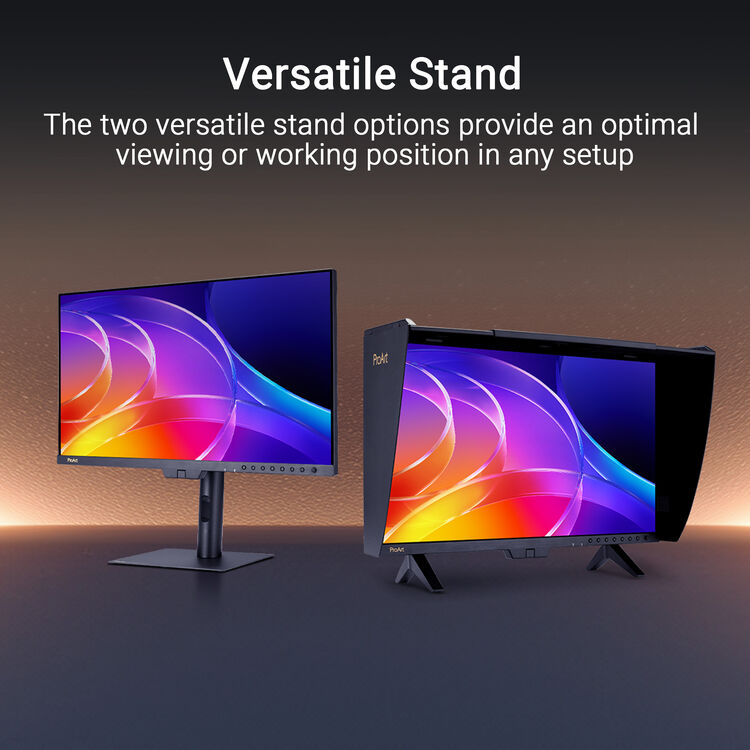

Two-Way Stands
Includes ergonomic stand and mini stand to adapt to desk, studio and on-location environments.
Monitor Hood
Detachable hood helps reduce reflections and supports confident color work in bright environments.
Metal Handle
Elegant handle design makes the display easier to move between production setups.

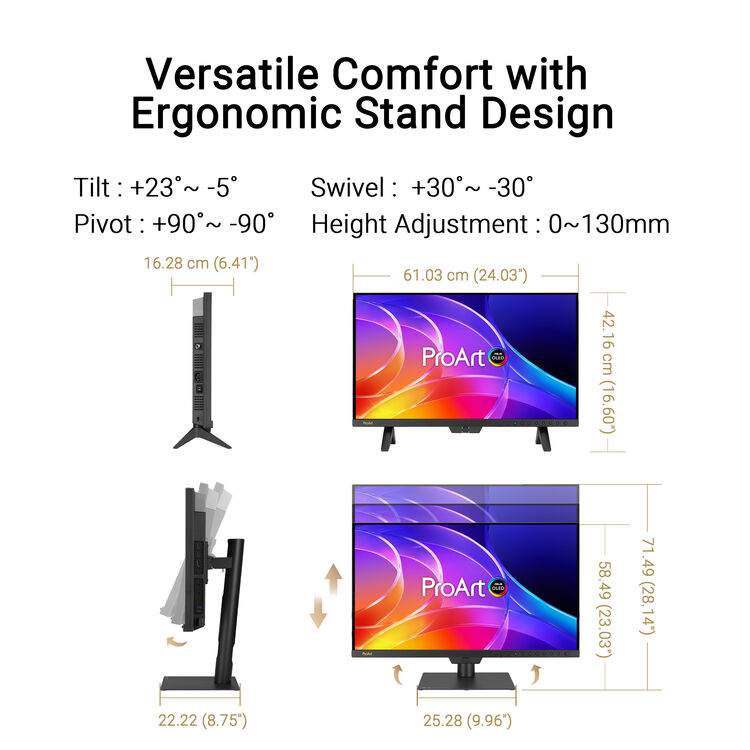

Ergonomic Adjustments
Supports tilt, swivel, pivot, height adjustment and VESA 100 x 100mm wall mounting.
Mac and Multi-Display Workflow
Made for Modern Creator Setups
PA27USD combines professional-grade performance with Mac-tested compatibility. ASUS DisplayWidget Center for Windows and macOS helps adjust brightness, contrast, color temperature and other monitor settings from software. ColorSync helps synchronize display settings across monitors of the same model for multi-display consistency.
Technical Specifications
ASUS ProArt Display OLED PA27USD Specs
| Model | ProArt Display OLED PA27USD |
|---|---|
| Panel | 26.5-inch QD-OLED, anti-reflection surface, 16:9 aspect ratio |
| Resolution | 3840 x 2160 4K UHD |
| Color | 100% sRGB, 99% DCI-P3, 10-bit color, 1073.7 million colors |
| Brightness and Contrast | 1000 cd/m2 HDR peak brightness, 250 cd/m2 typical brightness, 1,500,000:1 contrast ratio |
| Speed | Up to 240Hz refresh rate, 0.1ms GTG response time, Adaptive-Sync VRR support |
| HDR | Dolby Vision, HLG and HDR10 support |
| Calibration | Delta E < 1 color accuracy, ASUS ProArt Hardware Calibration, built-in self and auto calibration colorimeter |
| I/O Ports | 12G-SDI x 1, Thunderbolt 4 x 2, DisplayPort 2.1 x 1, HDMI 2.1 x 2, USB 3.2 Gen 2 Type-C x 1, USB 3.2 Gen 2 Type-A x 2, earphone jack |
| USB-C Power Delivery | Up to 96W |
| Audio | Built-in 2W x 2 speakers |
| Ergonomics | Tilt -5 deg to +23 deg, swivel -30 deg to +30 deg, pivot -90 deg to +90 deg, height adjustment 0 to 130mm, VESA 100 x 100mm |
| Dimensions and Weight | With stand: 61.03 x 58.49 x 23.97 cm. Net weight: 7.50 kg. Without stand: 4.96 kg. |
| Accessories | Warranty card, USB-C to A cable, USB-C cable, Thunderbolt 4 cable, power cord, monitor hood, mini stand, HDMI cable, ergonomic stand, DisplayPort 2.1 cable, calibration report and cable clip |
| Warranty | 3 years including panel burn-in |
FAQ
Frequently Asked Questions
Who should buy the ASUS ProArt Display OLED PA27USD?
It is best suited for video editors, colorists, DIT teams, photographers, designers, 3D artists, VFX artists, game developers and creators who need 4K OLED contrast, strong color accuracy, high refresh rate and professional connectivity.
Does PA27USD support 12G-SDI?
Yes. The monitor includes a 12G-SDI input and supports uncompressed video up to 4K at 60Hz, making it suitable for professional production and camera workflows.
Can the Thunderbolt 4 port charge a laptop?
Yes. One Thunderbolt 4 port supports up to 96W Power Delivery for compatible MacBook or Windows laptops while also carrying video, audio and data.
Does it include built-in calibration?
Yes. PA27USD includes a built-in motorized flip colorimeter for self and auto calibration, and it also supports ASUS ProArt Hardware Calibration.
Is it good for Mac users?
Yes. The monitor is positioned for Mac-tested compatibility and supports Thunderbolt 4 connectivity, high pixel density, wide color gamut, DisplayWidget Center for macOS and smooth refresh rate support.
How does ASUS OLED Care help?
ASUS OLED Care includes panel protection, image protection and proximity sensor features to help reduce the risk of image burn-in during long creative sessions.
What is included in the box?
Accessories may vary by region, but ASUS lists items such as monitor hood, mini stand, ergonomic stand, Thunderbolt 4 cable, HDMI cable, USB-C cables, DisplayPort 2.1 cable, power cord, calibration report and cable clip.
Specifications and accessories can vary by region. Please verify final package contents and local warranty terms before purchase.
