ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0

ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
Out Of Stock
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD  Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0
ASUS ExpertCenter mini PC PN64 Ultracompact Barebone with Intel 12th Gen Core i3 1220P processor (10 Cores 12 Threads 4.40GHz 12MB Cache Intel UHD Graphics), up to 32GB DDR5 RAM, PCIe Gen 4 M.2 NVMe SSD, Intel 2.5 GbE LAN, WiFi 6 and Bluetooth 5.0

PN64 unboxing and review

from
₹29,650.00
Ex Tax: ₹25,127.12
  • Stock: Out Of Stock
  • Brand: ASUS
  • Model: PN64 i3 1220P Barebone
  • UPC: 195553982832
  • EAN: 4711081982838
  • MPN: 90MR00U2-M002L0

  • Intel 12th Gen Core i3 1220P Processor
  • 10 Cores | 12 Threads | 4.40 GHz | 12MB Smart Cache
  • Intel UHD Graphics
  • 2 x HDMI 2.0 | 1 x Configurable Port (VGA)
  • 2.5G LAN | WiFi 6 | Bluetooth 5.0
  • 1 x USB 3.2 Type-C (DP 1.4 and Power Delivery input)
  • No RAM | No SSD | No OS
  • 2 x DDR5 4800MHz SODIMM RAM Slots
  • 1 x 2.5-inch SATA | 1 x M.2 2280 PCIe 4.0
  • Windows 10/11 & Linux OS Compatible
  • 3 Years warranty

ASUS ExpertCenter PN64 Mini PC
inter core

New Processor
Architecture Design

ASUS ExpertCenter PN64 is powered by the latest Intel® 12th & 13th Gen Intel® Core™ CPU featuring a new hybrid processor design. It includes performance-cores (P-cores) dedicated to processing heavy loads and prioritized tasks, as well as efficient-cores (E-cores) catering to background tasks such as web browsing and PowerPoint presentations. This new core design enables PN64 to process multiple tasks simultaneously in the most efficient way possible.

Superior Computing Performance

ASUS ExpertCenter PN64 is powered by the latest 13th Generation Intel® Processors which deliver superior performance for you to save you time and increase your ability to do the things you want. Comparing to previous generation, PN64 has 23% increase on overall system performance, and over 2 times increase for daily multitask computing. With such great improvement, it helps you process intensive business operations more efficiently.

  • *Testing configuration: PN64|Intel® i7-13700H Processor|2*16G DDR5 4800MHz |M.2 512G G4 SSD PCIE | Windows 11 Pro-64bit
  • *Testing configuration: PN63-S1| Intel® i7-11370H Processor|2*16G DDR4 3200MHz |M.2 512G G4 SSD PCIE | Windows 11 Pro-64bit
**Actual performance may vary depending on objective environmental changes.

Faster and better DDR5 RAM

ASUS ExpertCenter PN64 is powered by13th Gen Intel® Core™ CPU supporting the next gen memory - DDR5. Supporting DDR5 allows you to transfer data faster than DDR4. Comparing to DDR4, DDR5 memory modules bring a higher level of bandwidth and speed, it improves 34% faster on memory read and 37% on write. DDR5 helps you to drive greater performance and productivity.

  • *Testing configuration: PN64 | 2*16G DDR5 4800MHz
  • *Testing configuration: PN63-S1 | 2*16G DDR4 3200MHz
  • *Actual performance may vary depending on objective environmental changes.

Ultrafast PCIe® 4.0 SSD

ASUS ExpertCenter PN64 supports one PCIe® Gen 4 X4 SSD to deliver low-latency data transfers at speeds of up to 8 GB/s, that’s twice the data transfer speeds of PCIe 3.0.

  • *Test model: SAMSUNG GXA7301Q / SAMSUNG EXD7201
  • *Actual performance may vary depending on objective environmental changes.

Superfast 2.5 Gbps Ethernet

ASUS ExpertCenter PN64 features next-generation 2.5GBASE-T technology for superfast 2.5 Gbps networking speeds, enabling it to make light work of the most data-intensive tasks.

2.5x up to faster than gigabit port
2.5G Port
  • *Minimum Category 5e network cables (within 30m range) required for 2.5Gbps operation according to ASUS testing result.
  • *Actual performance may vary depending on objective environmental changes.

Modern, Space-saving Design

Compact and stylish, ASUS ExpertCenter PN64 has a contemporary look that suits any home or office

Modern, Space-saving Design
  • Ultra-realistic 8K Visuals

    ASUS ExpertCenter PN64 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that’s 4X greater than 4K, or 16X that of traditional FHD output.

    Hyper-realistic 8K Support

    *Test model: SAMSUNG GXA7301Q / SAMSUNG EXD7201
    *Actual performance may vary depending on objective environmental changes.

  • USB Power Delivery Input

    ASUS ExpertCenter PN64 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.

    Power Delivery Input

    *Devices need to support at least 20V/4.5A power delivery

  • 4K Resolution & Quad Display Support

    ASUS ExpertCenter PN64 can support up to four 4K displays via two HDMI® ports, two DisplayPort™ over USB-C® or other user-configurable ports, without any limitation on the combination used.

    4K Resolution & Quad Display Support

    • *Configurable ports are confirmed SKU before configuring.
    • *Configurable - VGA ports can not support 4K due to transfer speed limit.
    • **High resolution/multi displays requires sufficient memory bandwidth

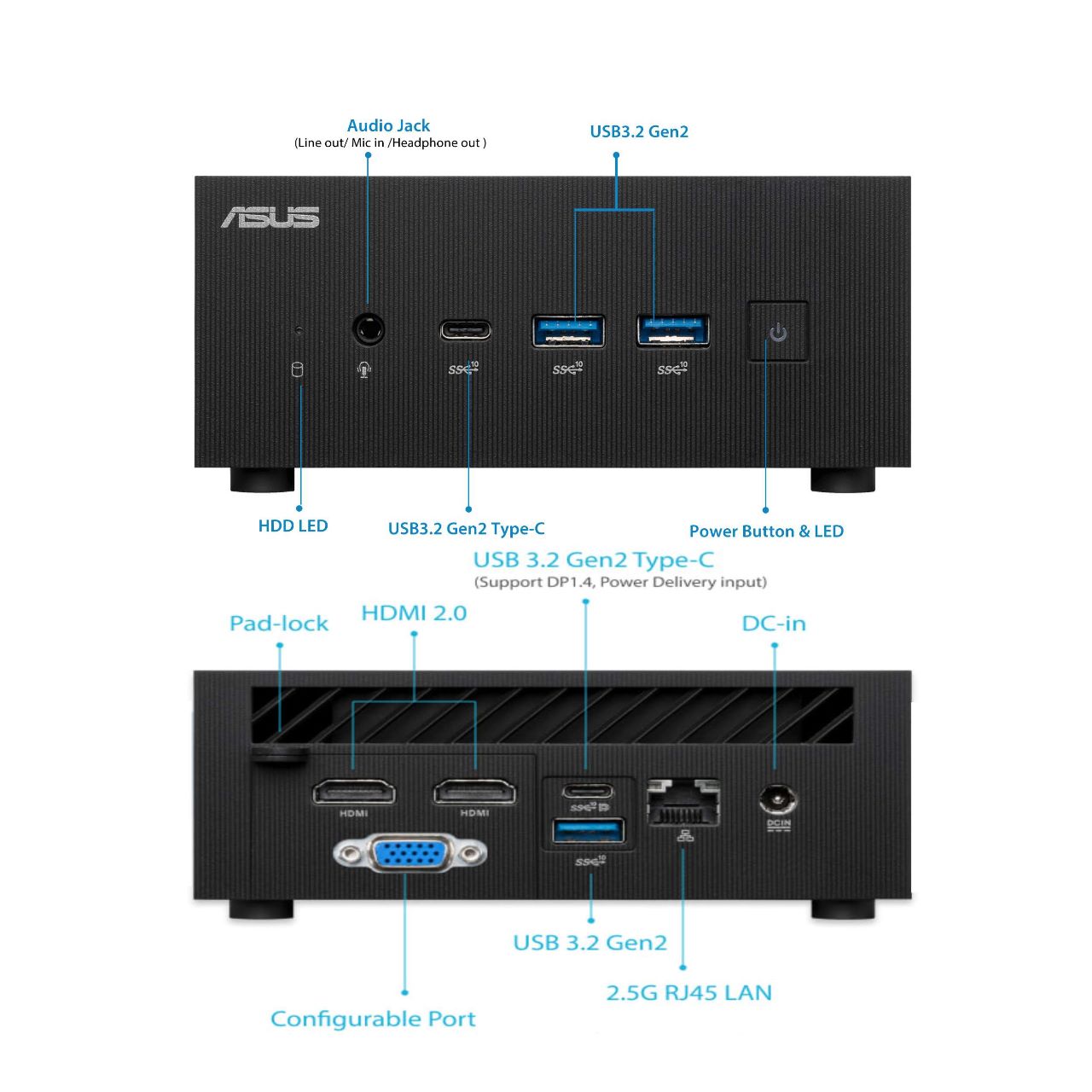

Overview

Front
back

Configurable Port

ASUS ExpertCenter PN64 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5 Gb LAN, for monitors or legacy devices such as barcode scanners and receipt printers.

Ports
external

*Configurable ports are confirmed SKU before configuring.

Padlock Ring for Security

The chassis of ASUS ExpertCenter PN64 can be secured with a standard padlock to prevent access to internal components.

New Lockable VESA Mount Design

Lockable design for better security solution. Whole new lockable design avoids the device from stolen, and device can be mounted on the VESA plate with solidity.

New Lockable VESA Mount Design

Military Standard Tests

To ensure maximum reliability and durability, ASUS MiniPC PN64 has been tested through military standard 810H.

  • High Temperature Test

    High Temperature Test

  • Low Temperature Test

    Low Temperature Test

  • Altitude Test

    Altitude Test

MILITARY GTADE
  • Humidity Test

    Humidity Test

  • Drop Test

    Drop Test

  • Vibration Test

    Vibration Test

*MIL-STD-810H standard tests are held in rigorous conditions, the test results cannot ensure the performance under these test conditions or for military use.

Enhanced Software - MyASUS

  • AI Noise Cancelation

    • Two-Way AI Noise Cancelation Filters unwanted noise from the microphone and incoming audio for crystal-clear voice communication.
    AI Noise Cancelation
  • System Diagnosis

    • Hardware diagnostic
    • Scenario check-up Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.
    System Diagnosis
  • Smart Fan Control

    • Performance & Quiet modes Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.
    Smart Fan Control
  • Other Functions

    • WiFi SmartConnect Optimizes the wireless connection
    • TaskFirst Allocate networking bandwidth to specific tasks.
    • Link to MyASUS Allows users to connect the computer to a mobile device.
    Other Functions
CPU
Product Line Core i3 12th Gen
CPU Cores 8 Cores
CPU Threads 12 Threads
CPU Intel Core i3-1220P
General
Color Black
Manufacturer Warranty 3 Years
Product Family PN64
LAN Port 1 x 2.5GbE LAN
Operating System Windows 11
Memory
Memory Type DDR5-SODIMM
Memory Capacity 32GB RAM
Memory Speed 4800 MHz
RAM No RAM
Motherboard
Chipset Manufacturer INTEL
MOB Memory Slots 2 X DDR5
Storage
Storage Form Factor M.2 & 2.5"
SSD No Storage
GPU
Graphics Engine Intel UHD
Interface
HDMI Output 2 x HDMI 2.1 Port
VGA Output 1 X VGA Port
Thunderbolt 4 Port 1 x USB Type-C
USB Type-C Port 2 x USB Type-C
Networking
Wireless Lan Wi-Fi 6E
Bluetooth Bluetooth 5.2
