- Brand: MSI
- Model: MAG CORELIQUID C240
- UPC: 824142258996
- EAN: 4719072851279
- MPN: 306-7ZW2R11-813
- TIMELESS RELIABILITY - The motor ceramic bearing has been designed to stand up to 100,000 hours of life expectancy.
- TOTAL RGB FAN CONTROL The included ARGB fans support custom speed with a PWM fan and customizable lighting through software.
- RADIATOR PUMP DESIGN - The pump has been integrated into the radiator for sound dampening and noise reduction.
- LGA 1700 READY - The C Series comes with out-of-the-box support for upcoming Z690 motherboards. The new LGA 1700 bracket is included,
- Compatible Socket & CPU:Â Intel LGA1150/1151/1155/1156/1200/1700 LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2
Ask a Question About This Product
From the manufacturer
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction.
LGA 1700 COMPATIBLE
The MAG CORELIQUID C Series liquid cooler provides out of box support for LGA 1700.
EXTENSIVE COMPATIBILITY
Intel Socket LGA 1150/1151/1155/1156/1200/1700 LGA 1366/2011/2011-3/2066
AMD Socket AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
Features:
REBELLIOUS AND DISTINCT
The MAG CORELIQUID C Series liquid coolers' water block features a large surfaced ARGB lighting that is sure to dazzle your build. It is split into four pieces of unique diamond-cut areas, with three capable of lighting up and the last one featuring our proud MSI logo emblem.
LGA 1700 Compatible
The MAG CORELIQUID C Series liquid cooler provides out of box support for LGA 1700.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
Pump Motor
Resonance Elimination
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
EXTENSIVE COMPATIBILITY
Stylish yet built for flexibility, the MAG CORELIQUID C Series has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
Intel Socket
LGA 1150/1151/1155/1156/1200/1700
LGA 1366/2011/2011-3/2066
AMD Socket
AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
REBELLIOUS AND DISTINCT
- The MAG CORELIQUID C Series liquid cooler provides out of box support for LGA 1700.
- The pump has been integrated into the radiator for sound dampening and noise reduction.
- A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
- A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
Specification:
| Number of Fans | 2 |
| Fan Dimensions | 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches |
| Fan Speed | 500 ~ 2000 RPM |
| Fan Power Consumption | 1.8 W |
| Fan Rated Current | 0.15 A |
| Fan Rated Voltage | 12V DC |
| Fan Life Expectancy | 70,000 hours |
| Fan Bearing | Two Ball Bearing |
| Fan Air Pressure | 2.39 mm-H2O |
| Fan Noise Level | 14.3 ~ 34.3 dBA |
| Fan Air Flow | 78.73 CFM |
| Fan Lighting | ARGB |
| Fan ARGB Cable Connector | Pin + Socket |
| PWM Mode | Yes |
| Fan Cable Length (5V ARGB / PWM cable) | 550 / 350mm; 21.65 / 13.78 inches |
| Radiator Material | Aluminum |
| Radiator Dimensions | 276 x 120 x 27mm / 10.87 x 4.7 x 1.06 inches |
| Radiator Water Cooling Pipe Length | 400mm / 15.75 inches |
| Block Dimensions | 70.5 x 70.5 x 52mm / 2.78 x 2.78 x 2.05 inches |
| Block Lighting | ARGB |
| Block ARGB 5V Cable Length | 400mm / 15.75 inches |
| Block ARGB Cable Connector | Pin + Socket |
| Pump Life Expectancy | 100,000 hours |
| Pump Noise Level | 18 dBA |
| Pump Load Current | 0.34 A |
| Pump Speed | 4200±10%RPM |
| Pump Power Consumption | 4.08W |
| Intel Socket | LGA 1150/1151/1155/1156/1200/1700 LGA 1366/2011/2011-3/2066 |
| AMD Socket | AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 |
| Accessories | 1 to 2 Fan PWM cable x 1 PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x 1 |
| Warranty | 3 Years |

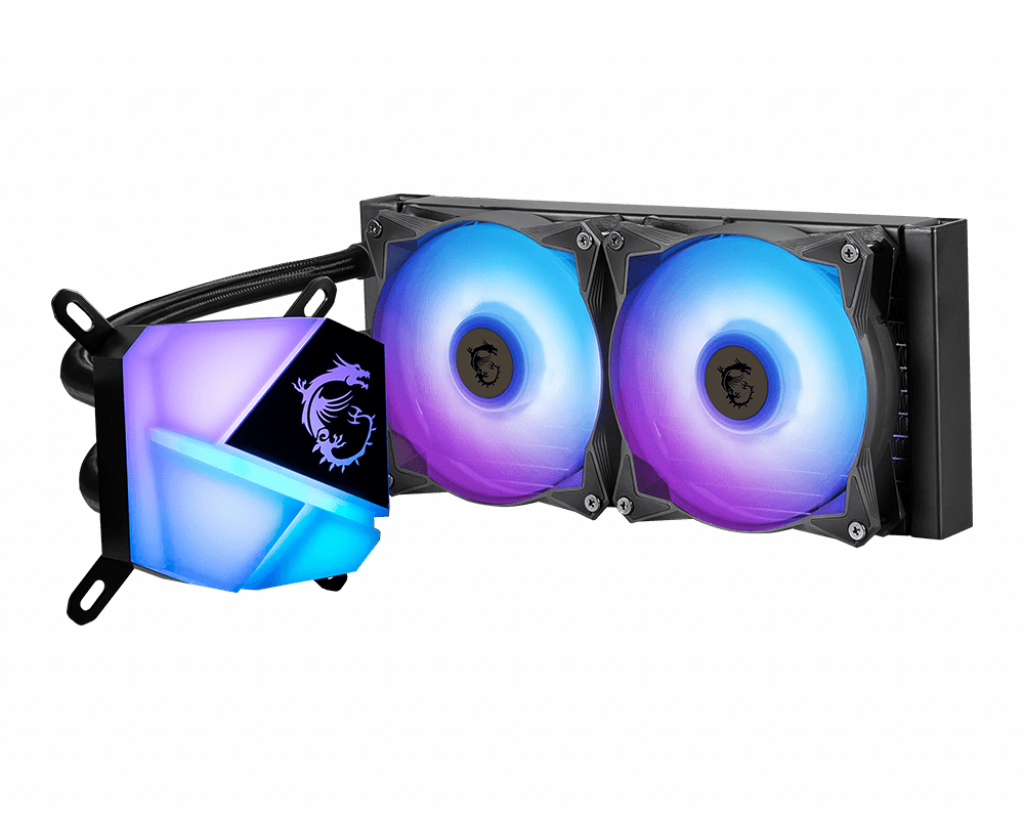

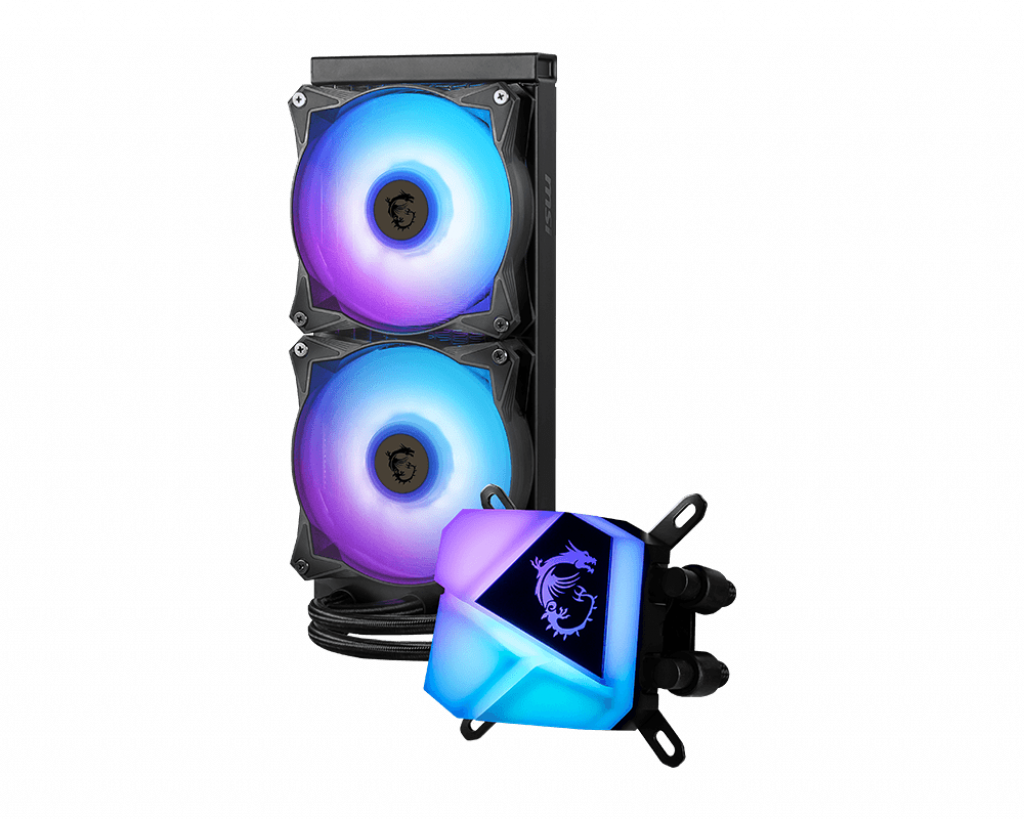

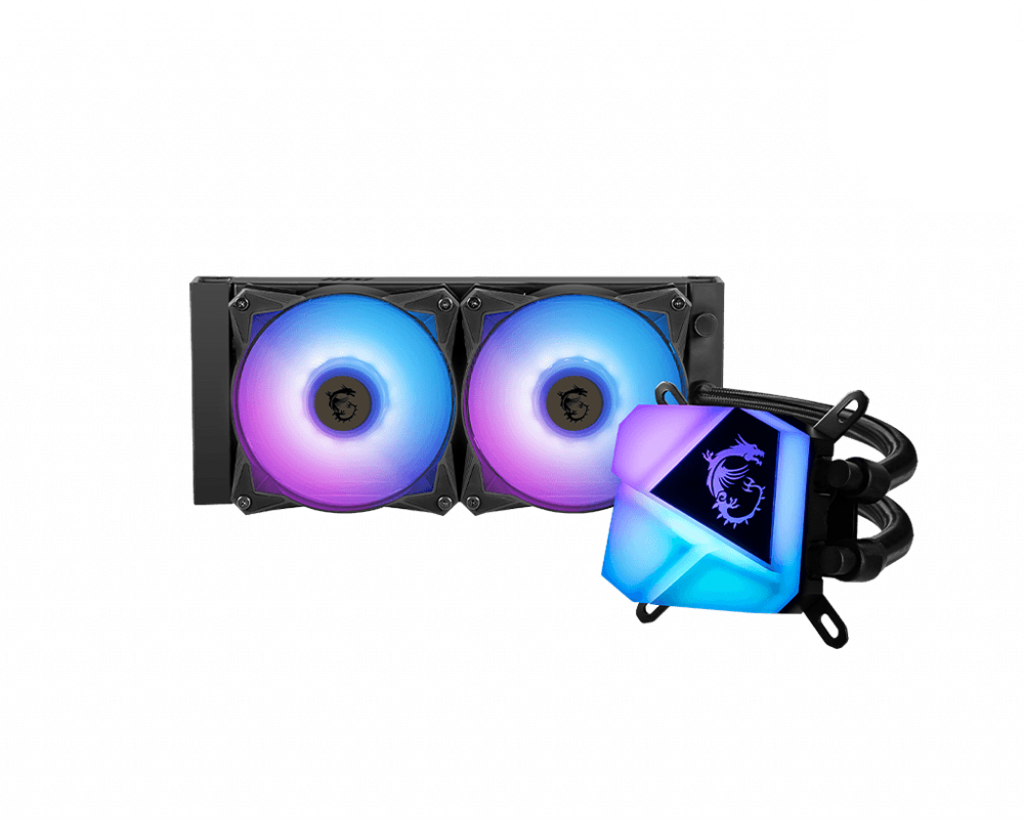

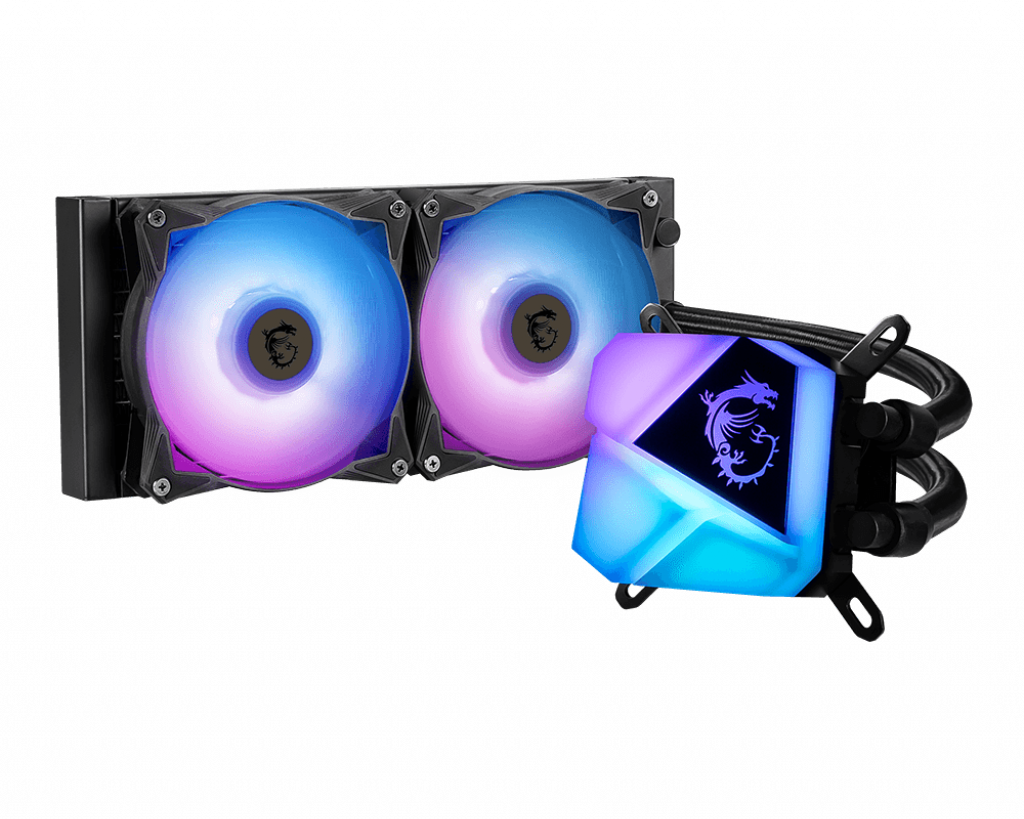

MSI MAG CORELIQUID C240 RGB 240MM ALL IN ONE LIQUID CPU COOLER
MSI MAG Core Liquid C240 AIO Liquid CPU Cooler
Unleash the full potential of your high-end processors while keeping the system running cool and stable. The MSI MAG CORELIQUID C240 AIO cooler is built for excellent liquid CPU cooling. From premium materials that provide reliable durability to heat dissipation technologies that are extremely effective, every single component of the MSI MAG CORELIQUID C240 Series is designed with the ultimate goal in mind: to provide effective cooling without any compromise.
REBELLIOUS AND distinct
The MSI MAG CORELIQUID C240 Series water block features a large ARGB surface that can be customized to make your build shine. It is split into four diamond-cut sections, with three capable of lighting up and the last one featuring our MSI logo emblem.
LGA 1700 Compatible
The MSI MAG CORELIQUID C240 Series liquid cooler provides out-of-box support for LGA 1700.
RADIATOR PUMP DESIGN
The MSI MAG CORELIQUID C240 pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump’s life expectancy by moving it away from the heat source.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
Pump Motor Resonance Elimination
A durable three-phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
EVAPORATION PROOF TUBING
Three layers of netted plastic tubing and a reinforced mesh exterior prevent evaporation and increase the longevity of the cooler.
