From the manufacturer
Intel: LGA 1150, 1151, 1155, 1156, LGA1200, LGA 1700, LGA1366, LGA2011, LGA2011-3, LGA2066
AMD: AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, sTR4, sTRX4, SP3

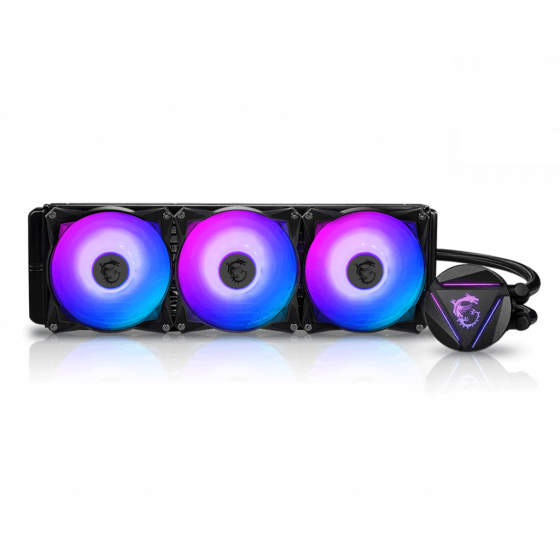

MAG CORELIQUID 360R Technical Specifications
|Number of Fans / Fan Dimension||3 / 120 x 120 x 25mm|
|Fan Speed||500 - 2000 RPM|
|Fan Power / Current / Voltage||1.8 W / 0.15 A / 12V DC|
|Fan Bearing||Two Ball Bearing|
|Fan Air Pressure||0.23 - 2.39 mmH2O|
|Fan Noise Level||14.3 - 34.3 dBA|
|Fan Air Flow||21.63 - 78.73 CFM|
|Fan Cables Lengths||350 mm / 13.78 inches (4-pin PWM), 550 mm / 21.65 inches (5V ARGB)|
|Radiator Dimensions||394 x 120 x 27 mm / 15.5 x 4.7 x 1.06 inches|
|Radiator Tubing Length||400 mm / 15.75 inches|
|Pump Block Dimensions||80.57x 66.82 x 48.58 mm / 3.17 x 2.63 x 1.91 inches|
|Block ARGB 5V Cable Length||400 mm / 15.75 inches|
|Pump Power / Current / Voltage||4.08 W / 0.34 A / 12V DC|
|Accessories||1 to 3 Fan PWM cable; PSU Molex 4-Pin to 4-Pin (2 Pin Wired) Fan cable; Noise reducer cable|
|Intel Socket Compatibility||LGA 1150 / 1151 / 1155 / 1156 / 1200, 1700 , LGA 1366 / 2011 / 2011-3 / 2066|
|AMD Socket Compatibility||AM4 / FM2+ / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2, sTR4 / sTRX4 / SP3|
Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
LGA 1700 Compatible
The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.
Pump Motor Resonance Elimination
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
High Thermal Dissipation
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
Evaporation Proof Tubing
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
DIY 2.0 â€“ INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
MORE SILENCE THAN EXPECTED
MAG CORELIQUID 360R V2's noise level is significantly lower than that of competitor's by 10%.
Cooling You Can't Hear
For those who prefer a quieter environment, a bundled noise reducer cable changes the fansâ€™ speed to produce less sound while still providing good airflow.
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
SocketTR4 / sTRX4/ SP3
|Dimensions||394 x 120 x27mm /15.5 X4.7X 1.26 inch|
|Water Cooling Pipe Length||400mm|
|Fan Dimensions||120 x 120 x 25 mm / 4.7 x 4.7 x 0.98 inches|
|Fan Speed||500 ~ 2000 RPM|
|Fan Air Flow||21.63 ~ 78.73 CFM|
|Fan Noise Level||14.3 ~ 34.3 dBA|
|Fan Bearing Type||Two Ball Bearing|
|Fan Connector||4-Pin (PWM)|
|Fan Rated Voltage||12V DC|
|Fan Rated Current||0.15 A|
|Fan Power Consumption||1.8 W|
|Pump Bearing Type||Ceramic Bearing|
|Pump Speed||4200 Â±10%RPM|
|Pump Noise Level||18 dBA|
|Pump Rated Voltage||12V DC|
|Pump Load Current||0.34 A|
|Pump Power Consumption||4.08 W|
