MSI MAG Core Liquid 240R V2 - AIO RGB CPU Liquid Cooler - Rotating Cap Design - 240mm Radiator - Dual 120mm RGB PWN Fans - Intel 1151/1200/2066/1700 - AMD AM4/AM3/AM2/FM2 - Intel 11th Gen and 12 Gen also supported

MSI MAG Coreliquid 240R V2 ARGB CPU Liquid Cooler
MSI MAG Coreliquid 240R V2 ARGB CPU Liquid Cooler
MSI MAG Coreliquid 240R V2 ARGB CPU Liquid Cooler
New
MSI MAG Coreliquid 240R V2 ARGB CPU Liquid Cooler
MSI MAG Coreliquid 240R V2 ARGB CPU Liquid Cooler
MSI MAG Coreliquid 240R V2 ARGB CPU Liquid Cooler
MSI MAG Core Liquid 240R V2 - AIO RGB CPU Liquid Cooler - Rotating Cap Design - 240mm Radiator - Dual 120mm RGB PWN Fans - Intel 1151/1200/2066/1700 - AMD AM4/AM3/AM2/FM2 - Intel 11th Gen and 12 Gen also supported
  • Model: MAG-Coreliquid-240R-V2
  • UPC: 824142262917
  • EAN: 4719072901004
₹ 7,999
Ex Tax: ₹ 6,779

  • Compatible Socket & CPU: Intel LGA1150/1151/1155/1156/1200/1700, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2
  • Intel 11th Gen and 12th Gen also supported.
  • TIMELESS RELIABILITY - The motor ceramic bearing has been designed to stand up to 100,000 hours of life expectancy.
  • TOTAL RGB FAN CONTROL The included RGB fans support custom speed with a PWM fan and customizable lighting through software.
  • ROTATABLE CAP - Mount the cold plate in any orientation, and turn the cap up to 270 degrees to keep it upright.
  • RADIATOR PUMP DESIGN - The pump has been integrated into the radiator for sound dampening and noise reduction.

MSI MAG Core Liquid 240R V2 - AIO RGB CPU Liquid Cooler - Rotating Cap Design - 240mm Radiator - Dual 120mm RGB PWN Fans - Intel 1151/1200/2066/1700 - AMD AM4/AM3/AM2/FM2 - Intel 11th Gen and 12 Gen also supported

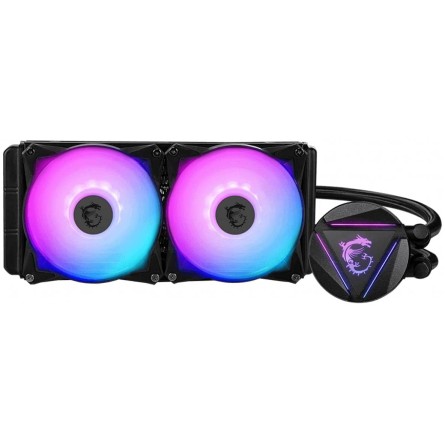

MAG CoreLiquid 240R V2 liquid CPU cooler, from MSI

With out-of-the-box support for Intel LGA 1700, this All-in-One liquid cooler combines high-efficiency pump, advanced liquid flow path, and evaporation-proof tubing to deliver durable and unstoppable cooling performance even under extreme operating conditions. This cooler is also aesthetically superior, with 270-degree rotating blockhead inlaid with an MSI Dragon logo and ARGB lighting. The MAG CoreLiquid R Series V2 has been designed and engineered to painstaking depths to look cool and stay cool without compromise.

ROTATABLE BLOCKHEAD

Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.




RADIATOR PUMP DESIGN

The pump has been integrated into the radiator for sound dampening and noise reduction.




LGA 1700 COMPATIBLE

The MAG CORELIQUID 240R V2 liquid cooler provides out of box support for LGA 1700.




PUMP MOTOR RESONANCE ELIMINATION

A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.




HIGH THERMAL DISSIPATION

A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.




EVAPORATION PROOF TUBING

Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

MORE SILENCE THAN EXPECTED

MAG CORELIQUID 240R V2's noise level is significantly lower than that of competitor's by 10%.




* The latest result is tested with TTV method.

  -Test Method: TTV

  -CPU Power Setting: 215W

  -Fan speed is 2000 RPM

* Test results are based on the actual product testing.

EXTENSIVE COMPATIBILITY

Robust yet built for flexibility, MAG CORELIQUID 240R V2 has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.




MSI MAG CORELIQUID 240R RGB AIO 240MM CPU LIQUID COOLER WITH LGA 1700 SUPPORT

Conquer the Battlefield

The MSI MAG CORELIQUID 240R V2 series CPU cooler was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers.

MAG CORELIQUID SERIES

The newly introduced MSI MAG CORELIQUID 240R V2 Series has everything you’re looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MSI MAG CORELIQUID 240R V2 Series is designed with the end goal in mind: to provide effective cooling without any compromise.

Rotatable Blockhead

Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

RADIATOR PUMP DESIGN

The MSI MAG CORELIQUID 240R V2 pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump’s life expectancy by moving it away from the heat source.

Pump Motor Resonance Elimination

A durable three-phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

High Thermal Dissipation

A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.

Evaporation Proof Tubing

Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI MAG CORELIQUID 240R V2 coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

MORE SILENCE THAN EXPECTED

MSI MAG CORELIQUID 240R V2 noise level is significantly lower than that of competitors by 10%.

EXTENSIVE COMPATIBILITY

Robust yet built for flexibility, MSI MAG CORELIQUID 240R V2 Series has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.


Features:

MAG CORELIQUID 240R V2

  • Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
  • The pump has been integrated into the radiator for sound dampening and noise reduction
  • Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
  • A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop
  • Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, 1700, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2

Conquer the Battlefield

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.

Rotatable Blockhead

Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

RADIATOR PUMP DESIGN

The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.

LGA 1700 Compatible

The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.

Pump Motor Resonance Elimination

A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

High Thermal Dissipation

A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.

Evaporation Proof Tubing

Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.


Specification:

Number of Fans2
Fan Dimensions120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches
Fan Speed500 ~ 2000 RPM
Fan Power Consumption1.8 W
Fan Rated Current0.15 A
Fan Rated Voltage12V DC
Fan BearingTwo Ball Bearing
Fan Air Pressure0.23 ~ 2.39 mmH2O
Fan Noise Level14.3 ~ 34.3 dBA
Fan Air Flow21.63 ~ 78.73 CFM
Fan LightingARGB
Fan ARGB Cable ConnectorPin + Socket
PWM ModeYes
Fan Cable Length (5V ARGB / PWM cable)550 / 350mm; 21.65 / 13.78 inches
Radiator MaterialAluminum
Radiator Dimensions274 x 120 x 27mm / 10.79 x 4.7 x 1.06 inches
Radiator Water Cooling Pipe Length400mm / 15.75 inches
Block Dimensions80.57x 66.82 x 48.58mm / 3.17 x 2.63 x 1.91 inches
Block LightingARGB
Block ARGB 5V Cable Length400mm / 15.75 inches
Block ARGB Cable ConnectorPin + Socket
Pump Load Current0.34 A
Pump Rated Voltage12V DC
Pump Speed4200 RPM
Pump Power Consumption4.08W
Intel Socket

LGA 1150/1151/1155/1156/1200/1700

LGA 1366/2011/2011-3/2066

AMD SocketAM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
Accessories1 to 2 Fan PWM cable x 1 PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Fan cable x 1
Warranty3 Years
