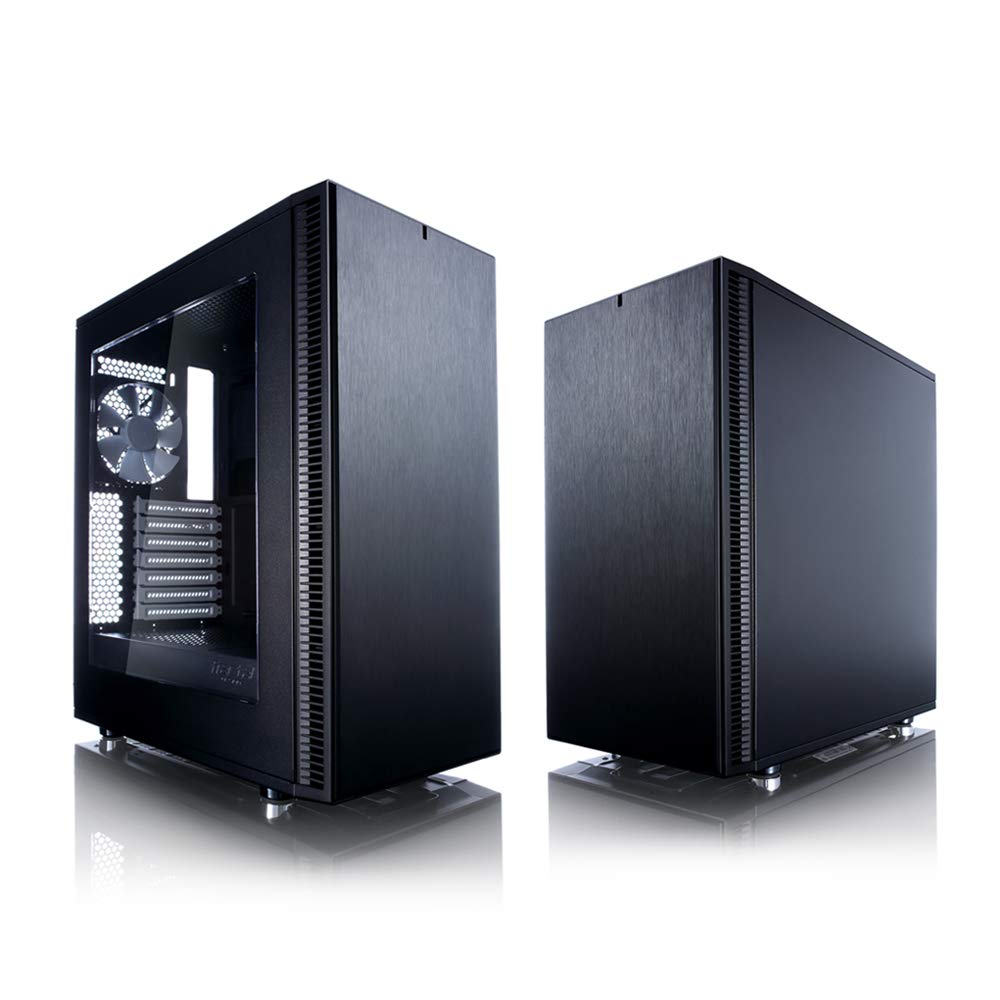

Fractal Design Define C ATX Mid-Tower Gaming Cabinet Case
The perfect balance of capacity and efficiency
Smaller than the usual ATX case, the Define C and its optimized interior provides the perfect base for users of all kinds. The open air design offers unobstructed airflow across your core components with high performance and silent computing in mind at every step.
Key features
Define Series sound dampening with ModuVentâ„¢ technology for silent operation in a compact micro ATX form factor
Optimized for high airflow and silent computing
Side and front panels are lined with industrial-grade sound dampening material
Flexible storage options with room for up to five drives
Comes with two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans optimized to deliver maximum airflow while still maintaining a low noise level

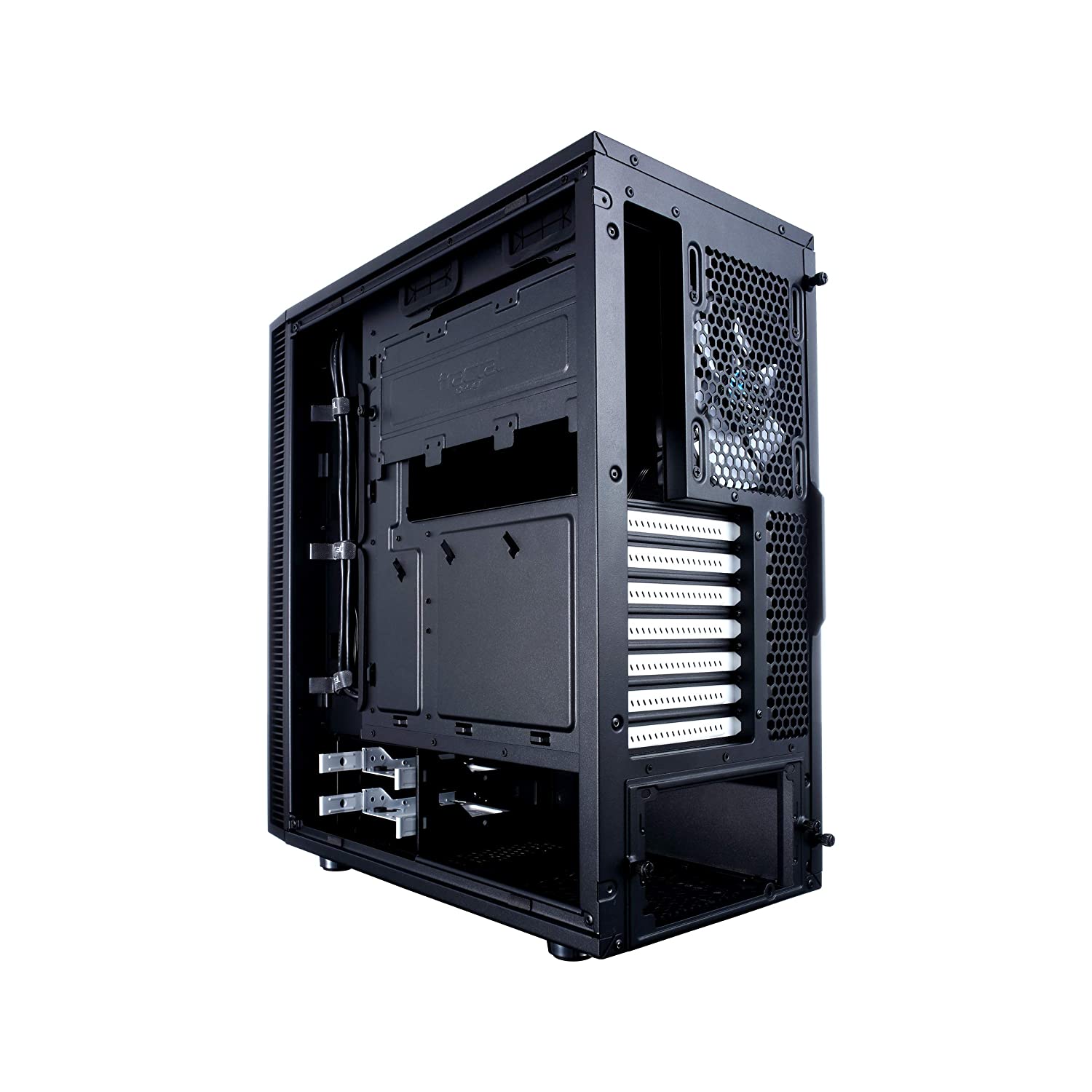

Open air designed interior creates an unobstructed airflow path from the front intake to the rear exhaust
Hide the mess

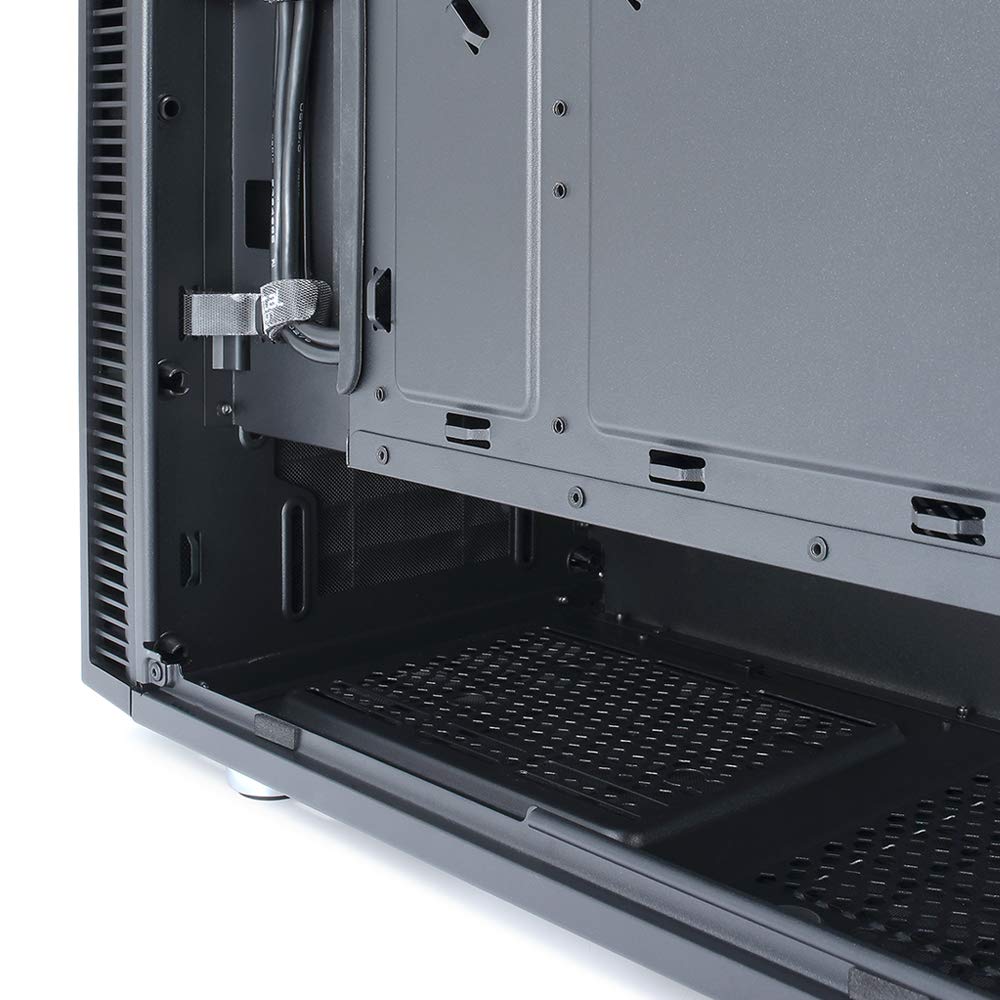

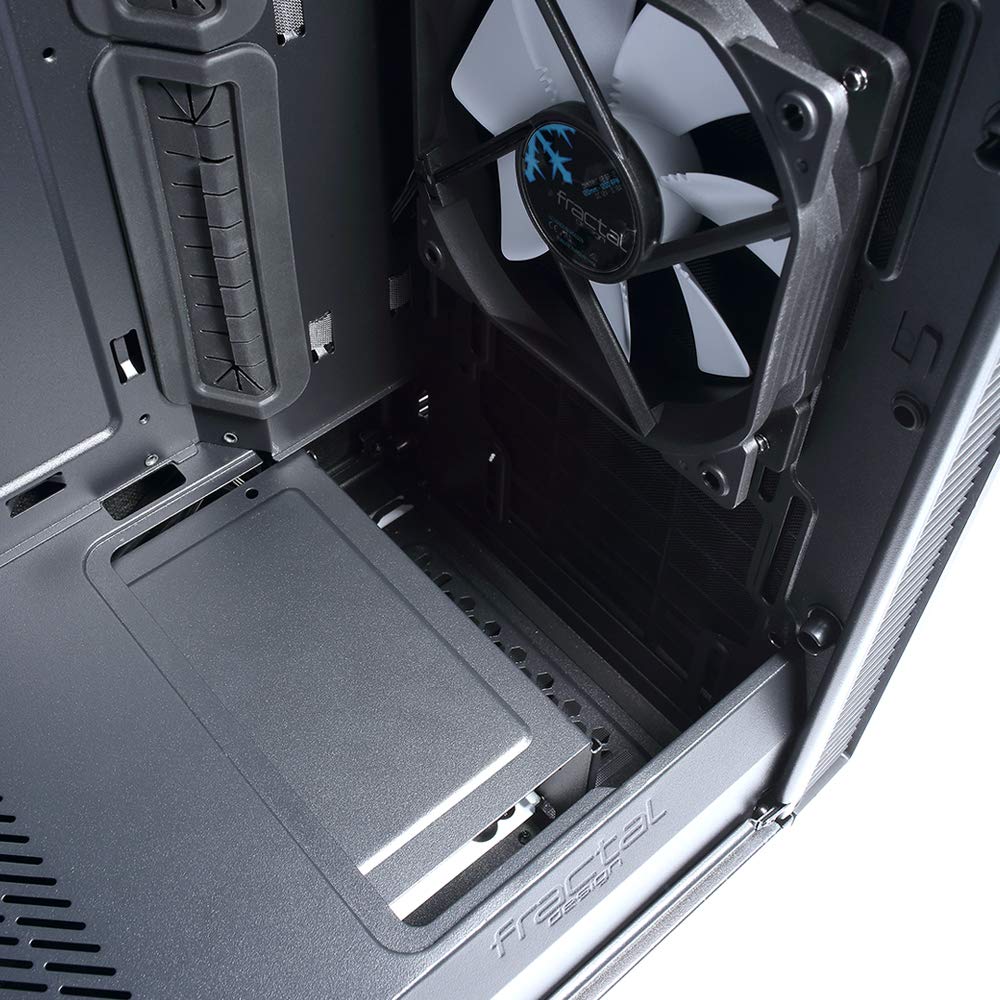

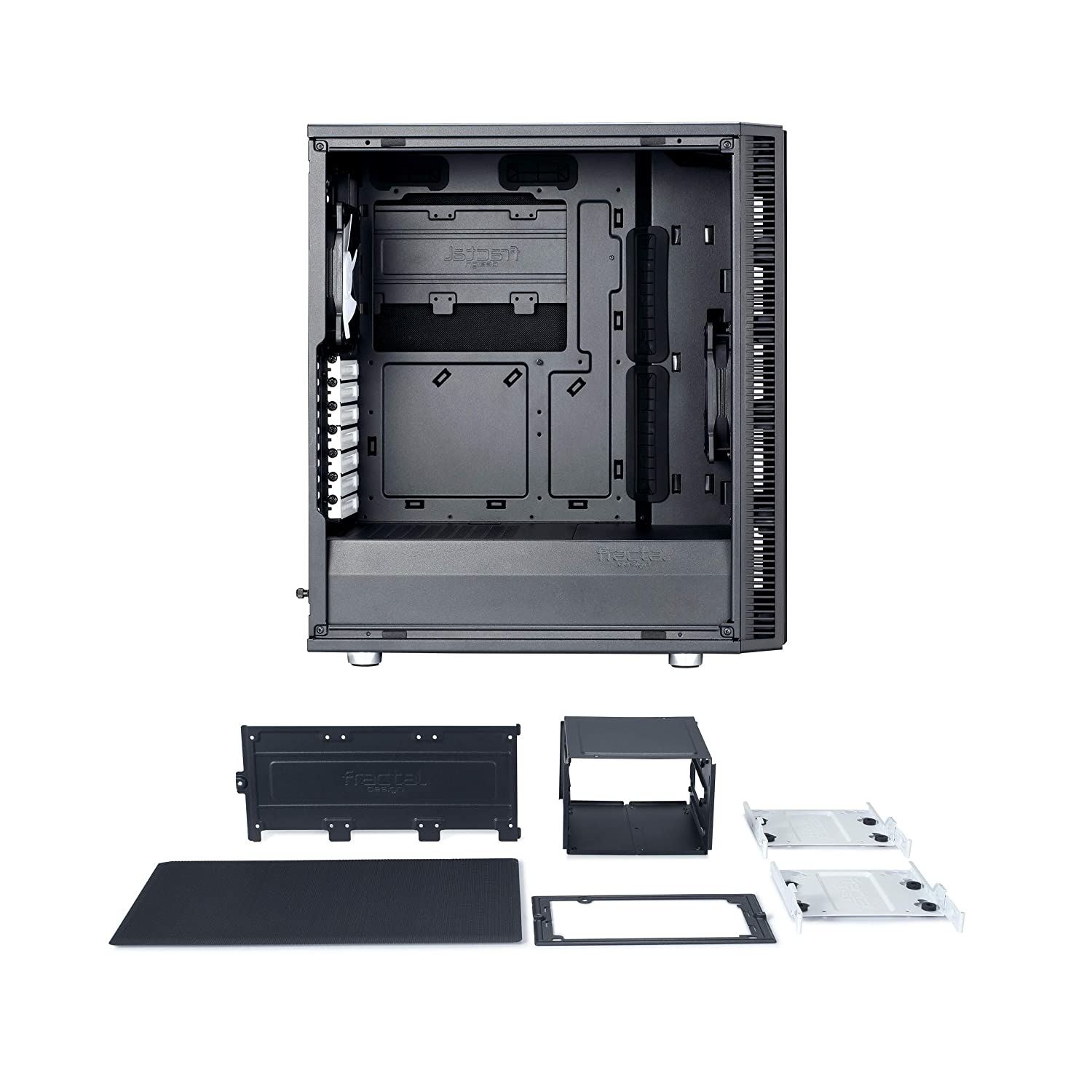

Power supply shroud conceals drive cage and excess cabling for an even quieter and cleaner looking interior free of airflow obstructions 
Optional filter included
Includes optional top filter to prevent dust buildup when ModuVent is removed for additional fan slots
Easy-to-clean filters

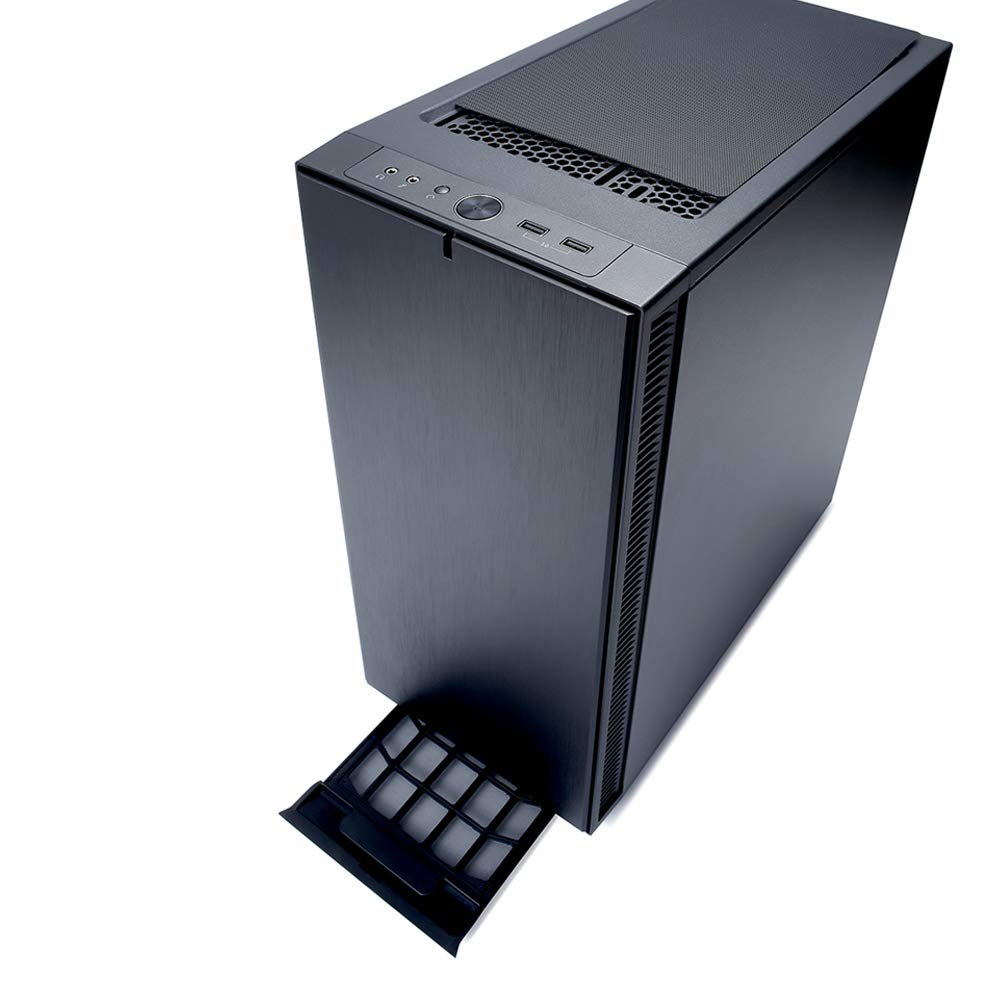

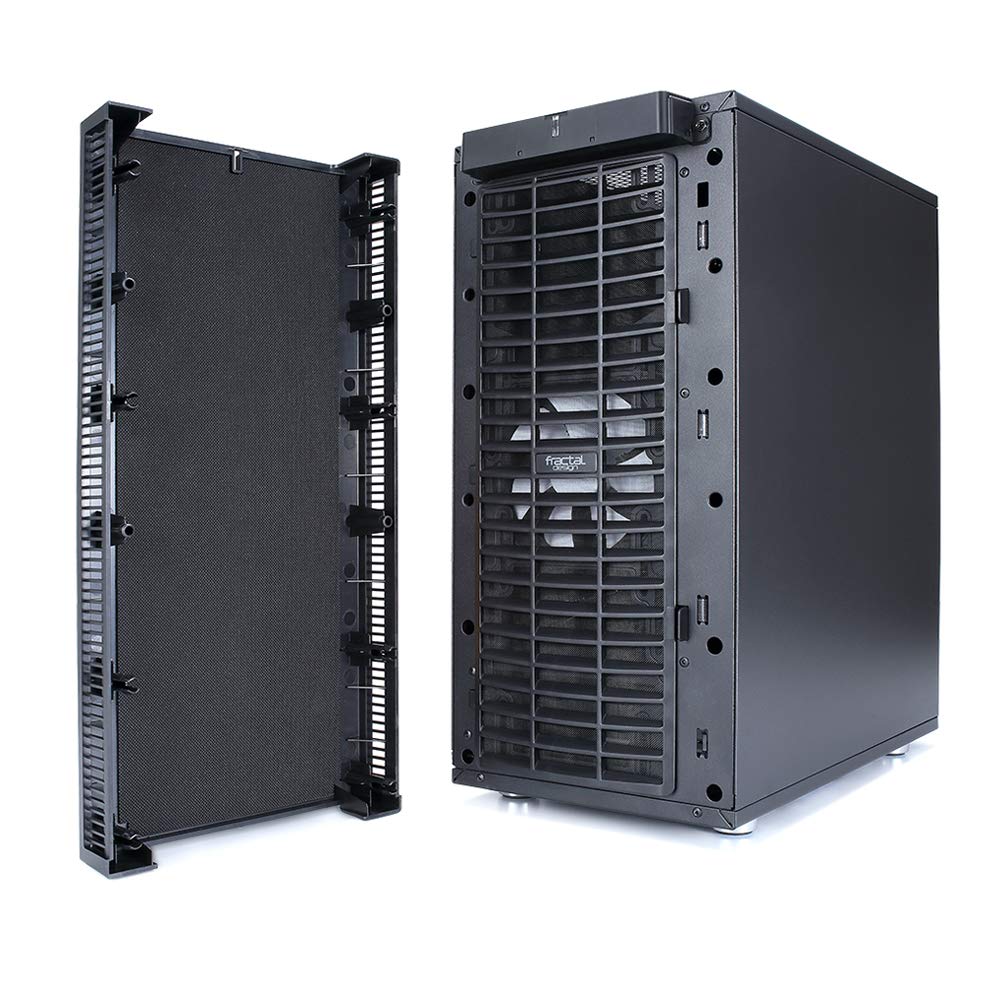

Easy-to-clean high airflow nylon filters on the front and base with full PSU coverage and front access for convenience
“The new design is tidy and, as our results show, efficient from an air-cooling perspective. It's a good choice for a new micro-ATX build”
“Sound-dampening materials, a top ModuVent, versatile radiator compatibility, a hidden PSU compartment and a design free of unnecessary frills.
Define C ticks all those boxes and serves as a smaller, more affordable alternative to the trendsetting Define R5.”
“All told, Fractal's latest delivers every bit of the clean styling, quiet manners, modular touches, and solid performance we've come to expect from the company's other cases”
Specifications
3.5" or 2.5" drive capacity
2
Dedicated 2.5" drive capacity
3 (maximum 2.5" drive thickness is 10 mm)
Expansion slots
7
Front ports

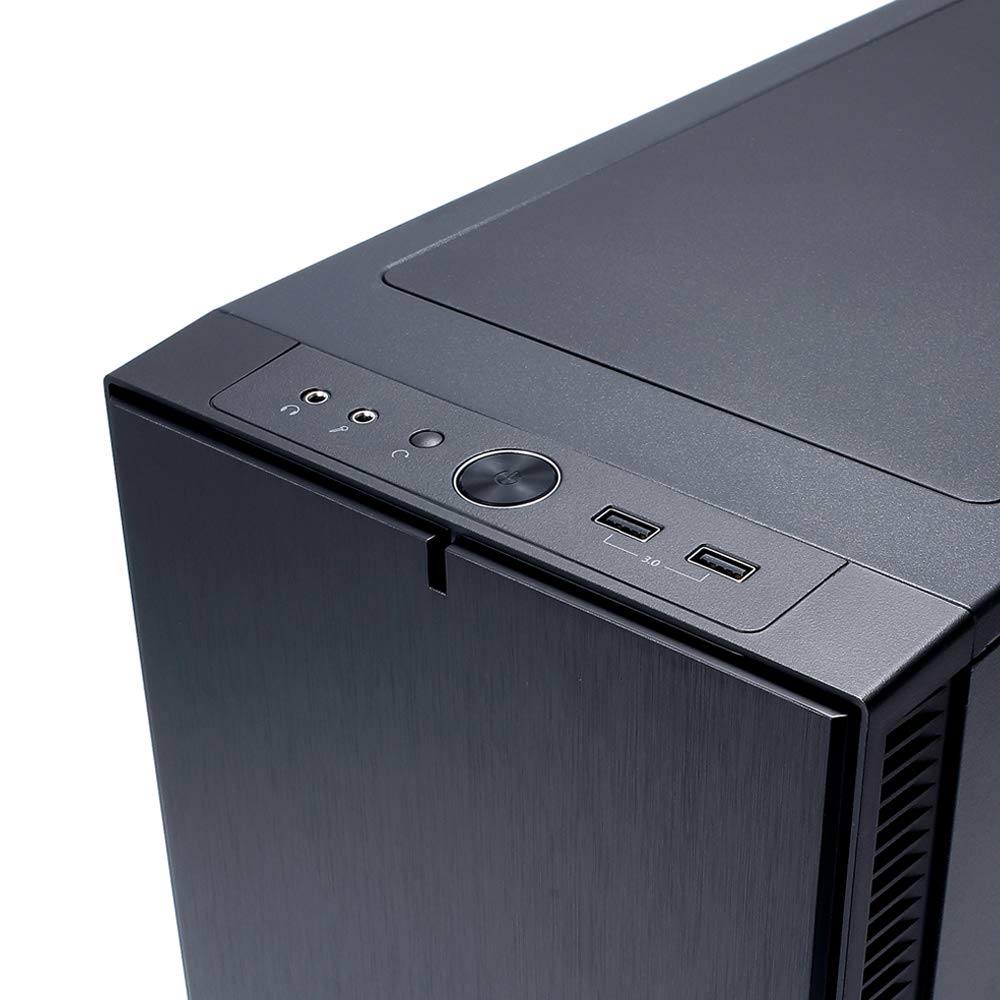

2x USB 3.0, Audio in/out, Power button with LED, HDD activity LED, Reset button
Total fan mounts
7
Front fan
3x 120 or 2x 140 mm (1 x Dynamic X2 GP-12 included)
Top fan
2x 120/140 mm
Rear fan
1x 120 mm (1 x Dynamic X2 GP-12 included)
Bottom fan
1x 120 mm
Dust filters
Bottom fan + PSU, Front fans, Top fans (optional)
Cable routing grommets
Yes
Fixed Velcro straps
Yes
Captive thumbscrews
Right side panel, SSD brackets
Left side panel
Industrial sound-dampened steel
Right side panel
Industrial sound-dampened steel
Compatibility
Power supply type
ATX
Motherboard compatibility
ATX, mATX, ITX
Front radiator
120/240/360 mm or 140/280 mm (max 144 mm width)
Top radiator
120/240 mm (max 40 mm motherboard component height)
Rear radiator
120 mm (max 125 mm width)
PSU max length
175 mm
GPU max length
Max 315 mm with front fan mounted
CPU cooler max height
172 mm
Cable routing space
15-35 mm

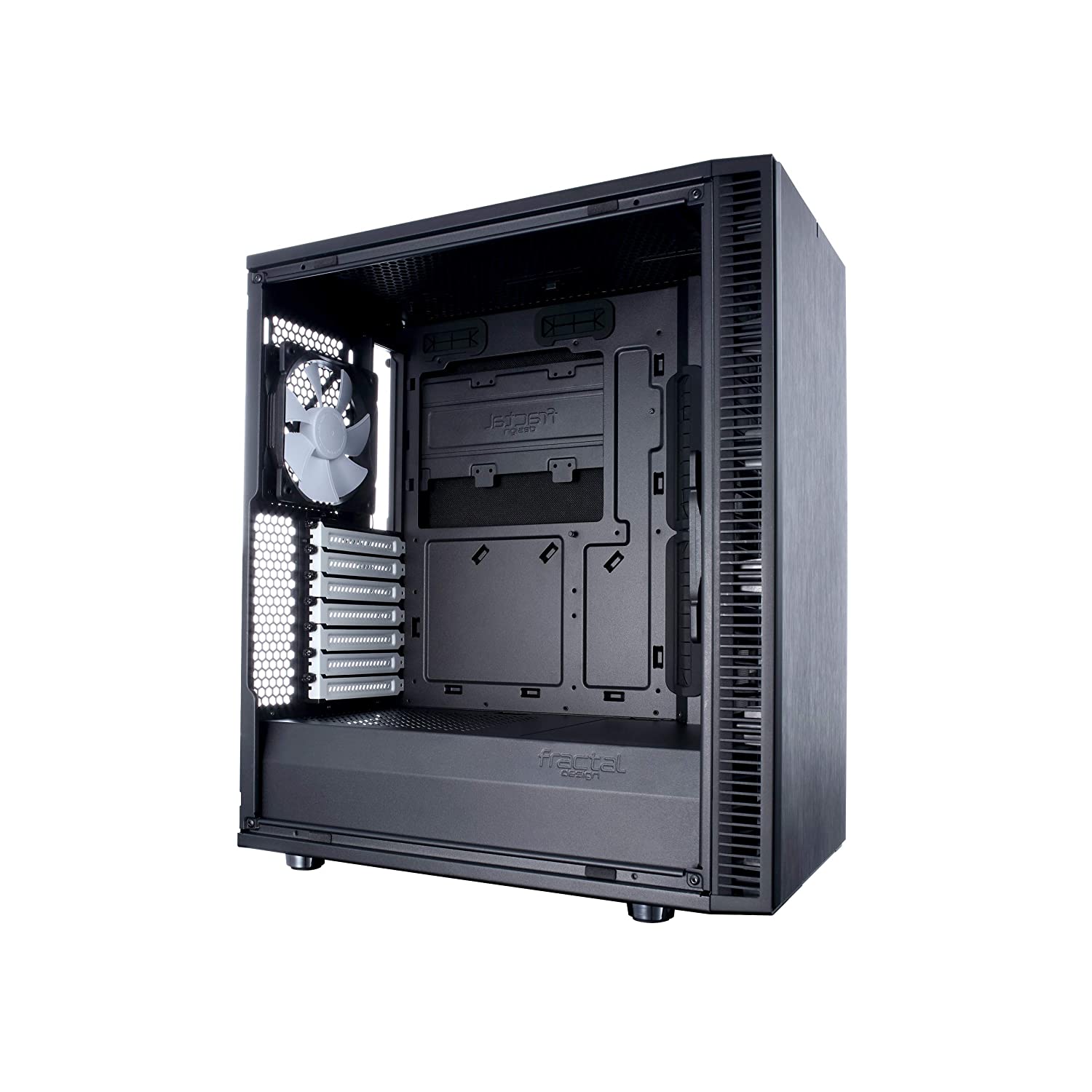

Fractal Design Define C Black Solid Mid Tower Cabinet
So many cases on the market today are made to be all things to all people. However, for many this results in a chassis full of empty bays, unused mounts and excess bulk. Created for those who demand a flexible platform for a powerful Micro ATX build that wastes no space, the Define Mini C is the perfect solution to satisfy this balance of capacity and efficiency.
Smaller than the usual Micro ATX case, the Define Mini C and its optimized interior provides the perfect base for users. The open air design offers unobstructed airflow across your core components with high performance and silent computing in mind at every step.
Extensive cooling support via both air and water are offered to make sure even the most powerful systems can be cooled effectively. Carrying signature Define series traits, the Define Mini C brings with it that iconic front panel design, dense sound dampening material throughout and ModuVent technology in the top panel. Those wanting to remove the ModuVent to add more fans or a radiator can install in its place the new magnetic dust filter and a built in power supply shroud helps offer an unmatched level of cable management.
Our team of engineers in Sweden made sure performance without restrictions was paramount. With innovative design, the Define Mini C brings your system together in a truly exquisite way, reminding us why we choose Fractal Design.
Key features
- Define Series sound dampening with ModuVentâ„¢ technology for silent operation in a compact micro ATX form factor
- Optimized for high airflow and silent computing
- Side and front panels are lined with industrial-grade sound dampening material
- Flexible storage options with room for up to 5 drives
- Comes with two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans optimized to deliver maximum airflow while still maintaining a low noise level
- Equipped with 5 PCI expansion slots for powerful dual GPU setups.
- Open air designed interior creates an unobstructed airflow path from the front intake to the rear exhaust
- Easy-to-clean high airflow nylon filters on the front and base with full PSU coverage and front access for convenience.
- Includes optional top filter to prevent dust buildup when ModuVent is removed for additional fan slots.
- Power supply shroud conceals drive cage and excess cabling for an even quieter and cleaner looking interior free of airflow obstructions
Specifications
| Product Code | FD-CA-DEF-C-BK |
| 3.5″ or 2.5″ Drive capacity | 2 |
| Dedicated 2.5″ drive capacity | 3 (maximum 2.5″ drive thickness is 10 mm) |
| Expansion slots | 7 |
| Front ports | 2x USB 3.0, Audio in/out, Power button with LED, HDD activity LED, Reset button |
| Total fan mounts | 7 |
| Front fan | 3x 120 mm or 2x 140 mm (1x Dynamic X2 GP-12 included) |
| Top fan | 2x 120/140 mm |
| Rear fan | 1x 120 mm (1x Dynamic X2 GP-12 included) |
| Bottom fan | 1x 120 mm |
| Dust filters | Bottom fan + PSU, Front fans, Top fans (optional) |
| Cable routing grommets | Yes |
| Fixed velcro straps | Yes |
| Captive thumbscrews | Right side panel, SSD brackets |
| Left side panel | Industrial sound-dampened steel |
| Right side panel | Industrial sound-dampened steel |
| Compatibility |
| Power supply type | ATX |
| Motherboard compatibility | ATX, mATX, ITX |
| Front radiator | 120/240/360 mm or 140/280 mm (max 144 mm width) |
| Top radiator | 120/240 mm (max 40 mm motherboard component height) |
| Rear radiator | 120 mm (max width 125 mm) |
| PSU max length | 175 mm |
| GPU max length | 315 mm with front fan mounted |
| CPU cooler max height | 172 mm |
| Cable routing space | 15-35 mm |
| Dimensions |
| Case dimensions (LxWxH) | 399 x 210 x 440 mm |
| Case dimensions w feet/protrusions/screws | 413 x 210 x 453 mm |
| Net weight | 7.4 kg |
| Package dimensions (LxWxH) | 542 x 305 x 493 mm |
| Package weight | 7.81 kg |
| Volume | 36.9 liters |
| Warranty | 2 Years |
