ASUS ROG Z11 Mini-ITX/DTX Gaming Case

1 / 7

ASUS ROG Z11 Mini-ITX/DTX Gaming Case – Patented 11° Tilt Design, 4mm Dual Tempered Glass Panels, ATX PSU Support, 3-Slot Graphics, 240mm Radiator, Front USB 3.2 Gen 2 Type-C, Aura Sync

ASUSBrand: ASUS
No reviews yetWrite a review
Model
ROG Z11
MPN
90DC00B0-B30000
EAN
4718017759519
UPC
192876607817
Price on request

Key features

  • Compact Mini-ITX/DTX gaming case – small-footprint chassis with a bold, distinctive look
  • Patented 11° tilt design – optimizes airflow around the GPU and CPU while showcasing the build at an angle
  • Dual 4mm tempered glass panels – premium, durable showcase of internal components

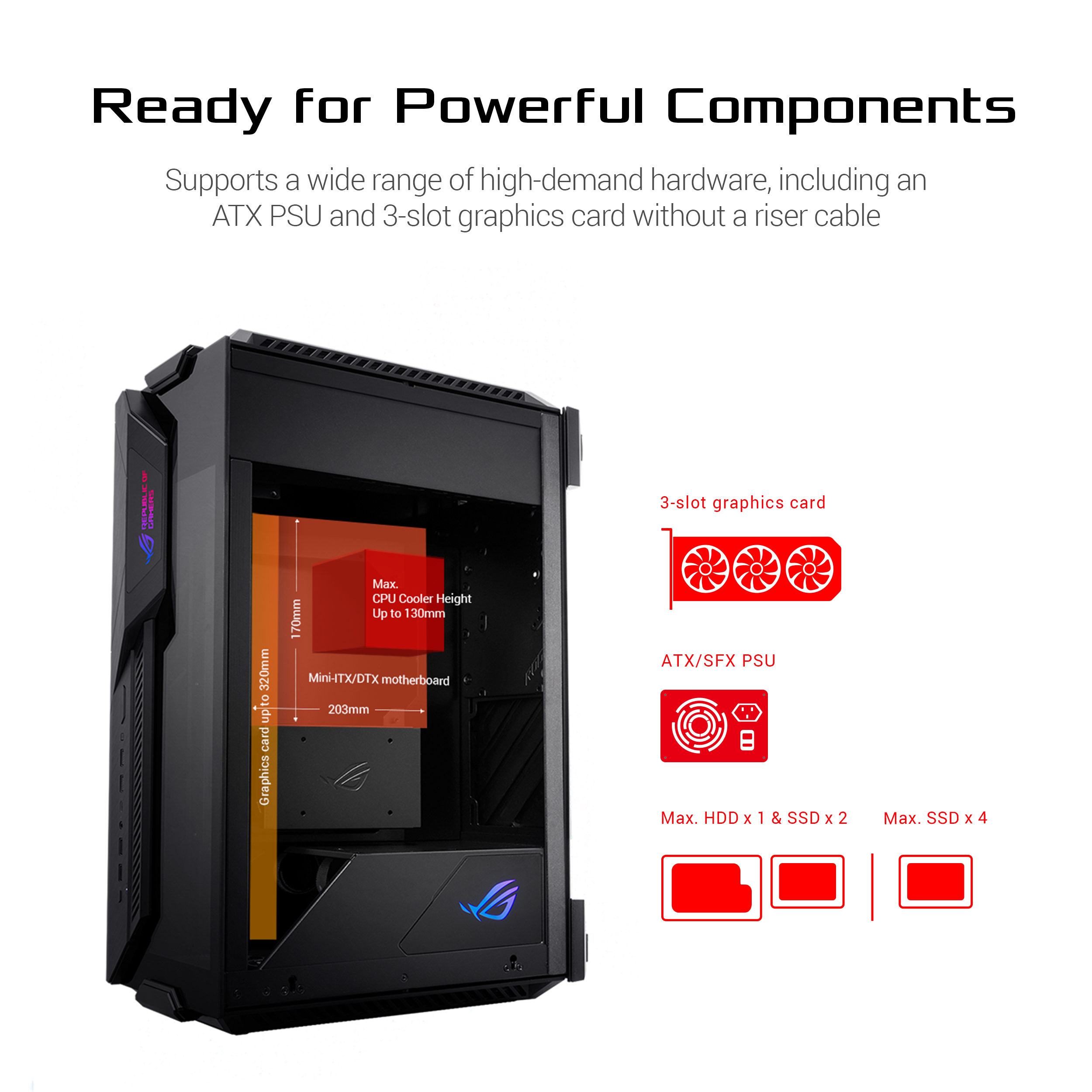

  • ATX power supply support – full-size PSU compatibility despite the compact form factor
  • 3-slot graphics card support – room for high-end GPUs in a small-form-factor build
  • 240mm radiator support – capable liquid cooling for a compact chassis

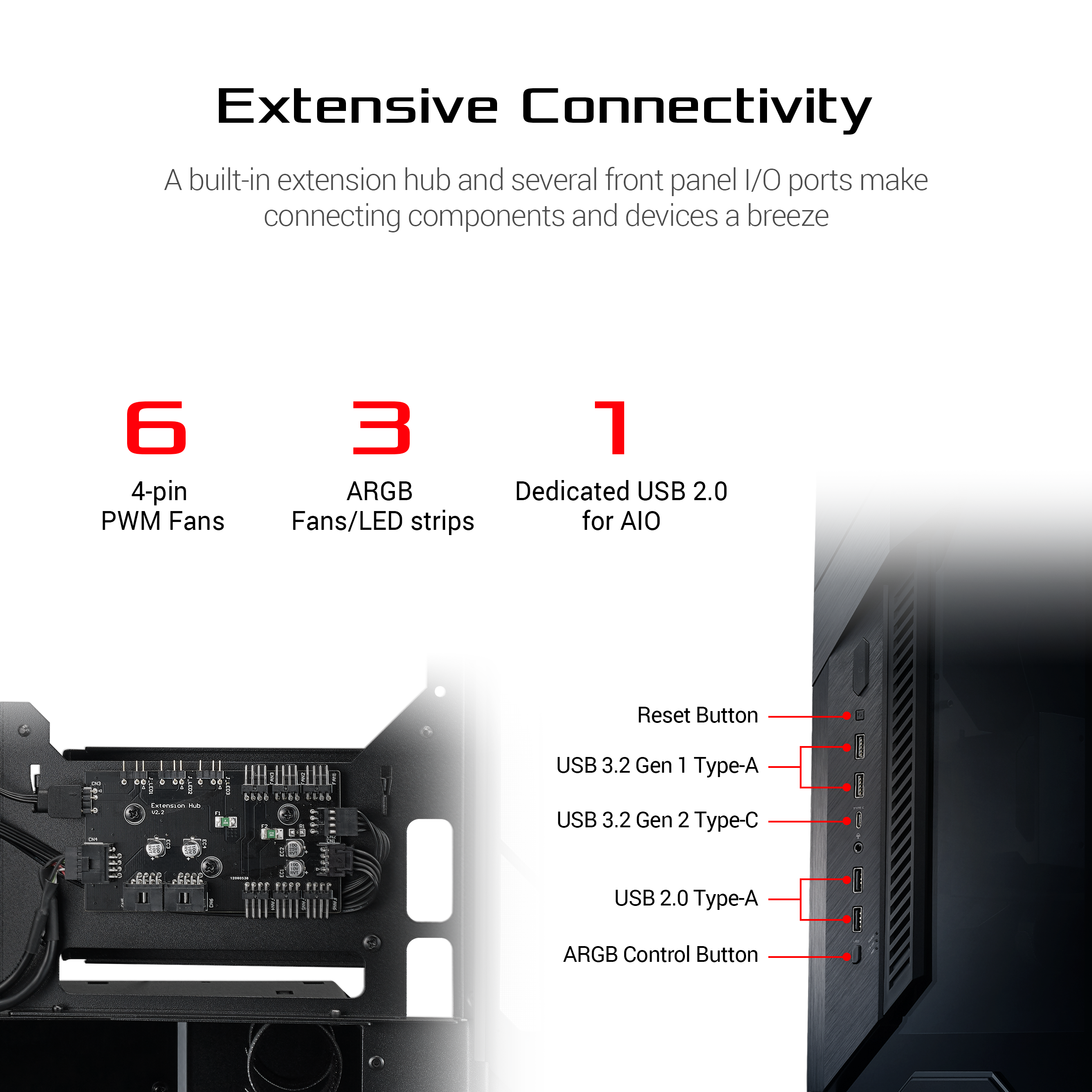

  • Rich front I/O – USB 3.2 Gen 2 Type-C, dual USB 3.2 Gen 1 Type-A and an ARGB control button
  • Aura Sync lighting – synchronized RGB across compatible ASUS components
  • Practical cable routing with dust filters – clean builds and easier maintenance
  • Optimized thermal performance – angled layout improves cooling efficiency in a small space
All specifications

Watch: ROG Z11 review

Thermal Performance

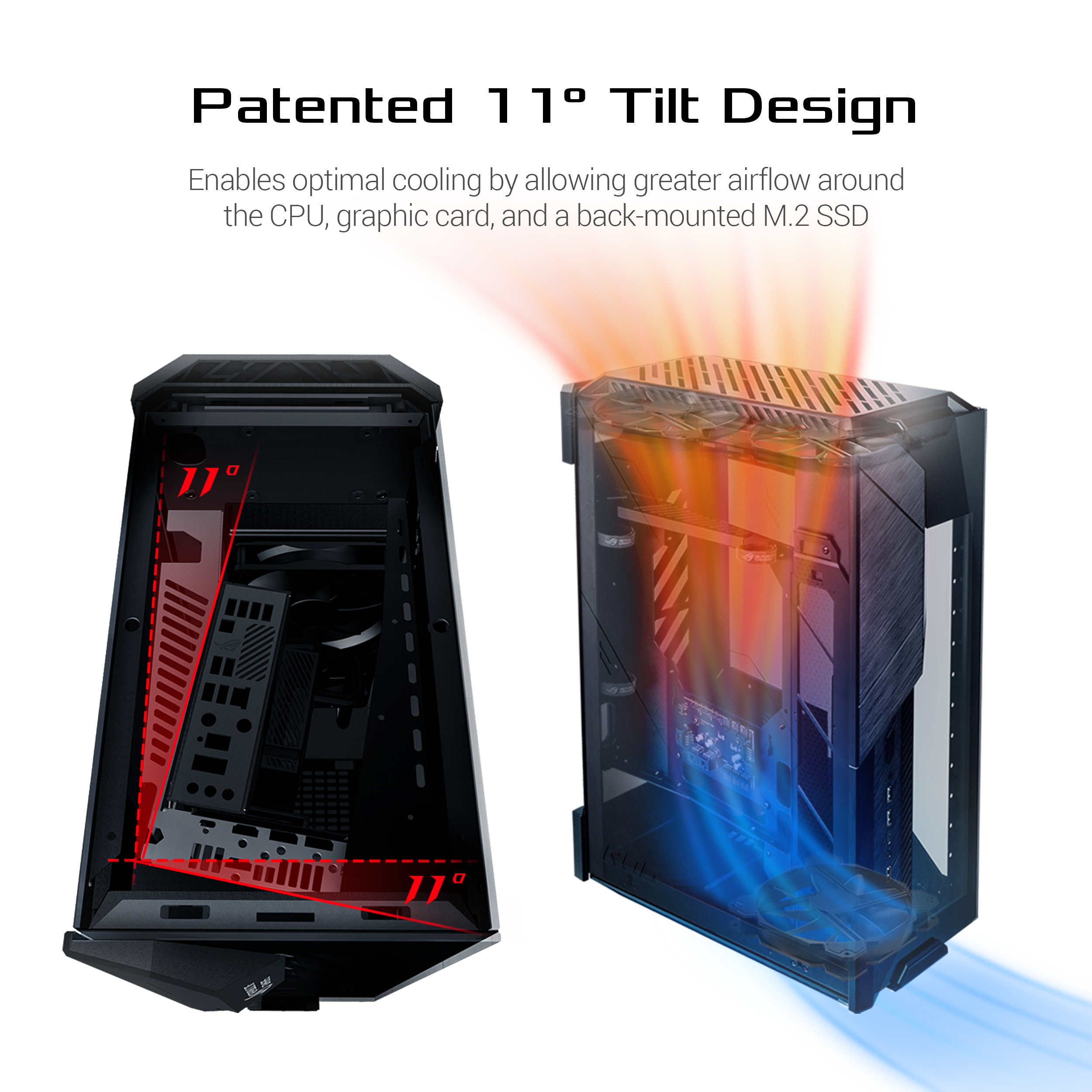

Patented 11° Tilt Design

Optimized airflow and superior thermal performance are critical in high-powered systems with compact form factors, and ROG Z11 delivers this with a patented interior layout that tilts the motherboard tray at an 11° angle, providing an additional 40 mm of space at the back of the motherboard. This additional space enhances heat dissipation around the CPU and graphics card, as well as the M.2 SSD that can be installed on the back of the motherboard. The layout also enables compatibility with a 3-slot graphics card without a riser cable and creates a striking visual display of components.

Optimal Airflow

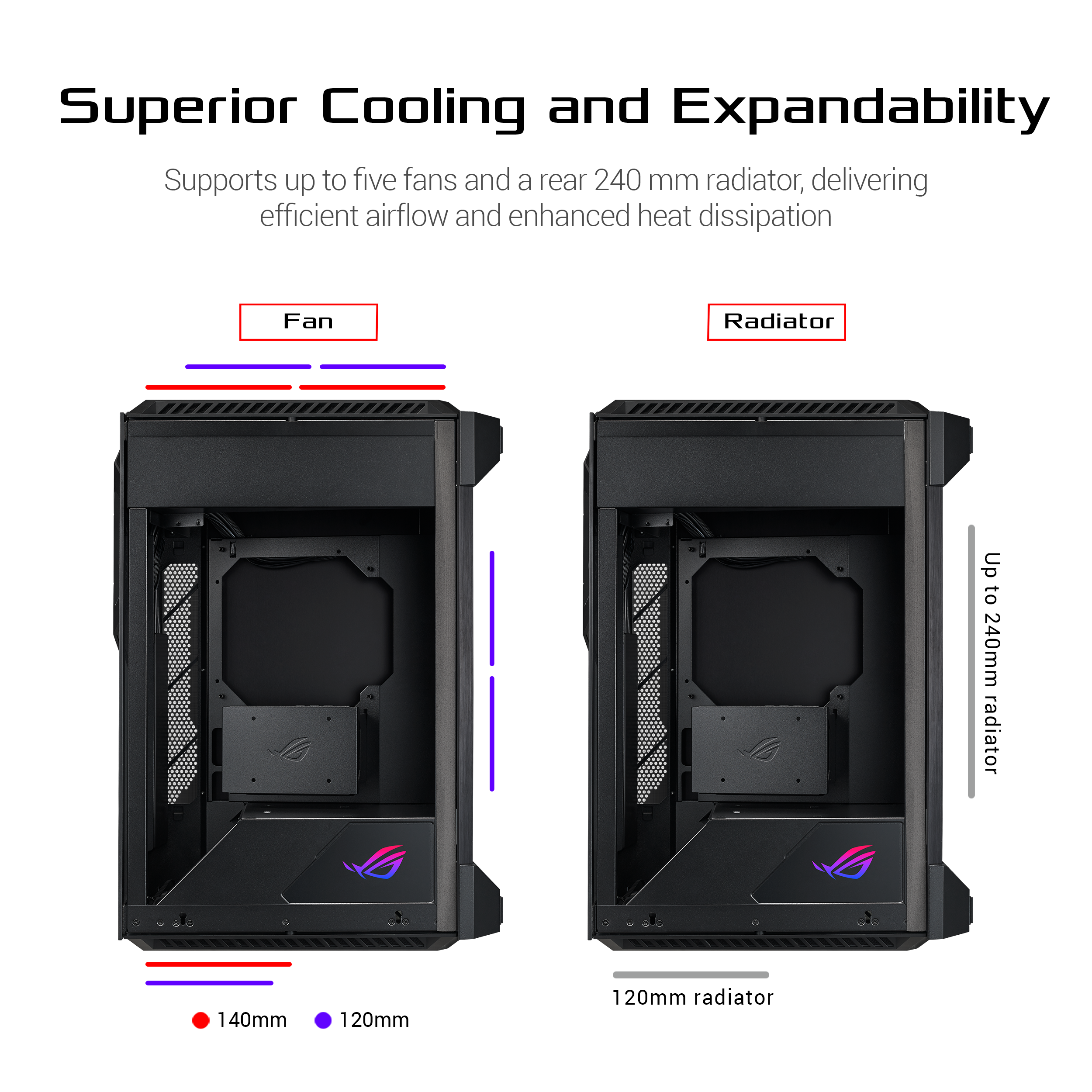

ROG Z11 is built for optimized cooling performance. The entire design is conducive to efficient heat discharge from the case via the chimney effect and negative air pressure, which is generated by the fans expelling hot air at a faster rate than intake. With the choice of up to five 120 mm fans, or three 140 mm plus two 120 mm fans, users can maximize airflow and have the flexibility to customize.

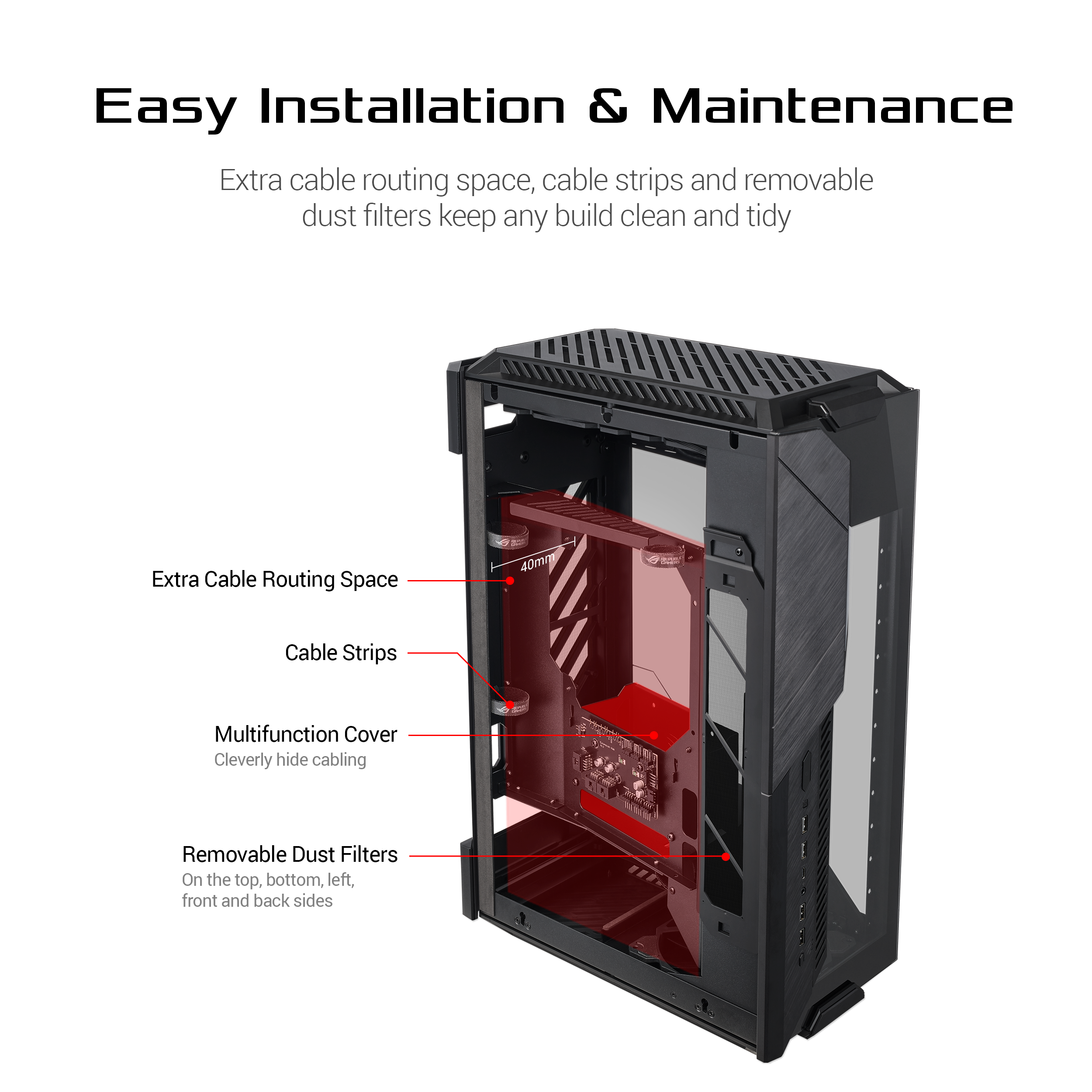

Easy Installation & Maintenance
1 Extra Cable Routing Space

The motherboard tray’s 11° tilt creates a maximum of 40 mm of extra space for easy cable management.
2 Multifunction Cover

The multifunction cover cleverly hides cabling and allows for an SSD or ROG Aura Terminal to be mounted for display.
3 ROG Cable Strips

Handy cable strips enable convenient bundling of cables.
4 Two-Piece PSU Shroud

The PSU shroud offers two pieces, and the removable second piece provides greater cable management space and greater airflow directed towards the graphics card.
5 Removable Dust Filters

Removable dust filters on the top, bottom, left, front and back sides provide complete protection from dust, and make short work of cleaning and maintenance.

Personalization

Aura Sync RGB Lighting

Integrated addressable RGB LEDs in the front and side panels can be customized using a dedicated control button or with Aura Sync lighting software. These allow ROG Z11 to flash with millions of colors and a range of effects, which can be synchronized with a vast ecosystem of Aura Sync-compatible components for ultimate personalization.


Learn more about Aura Sync

Custom Liquid Cooling

ROG Z11 offers an expansive setup for liquid cooling. The case reserves space for a water-cooling pump and reservoir above the power supply unit shroud, providing mini-ITX/DTX enthusiasts with the flexibility to customize their liquid-cooling loop solution.

Dimension Details
