- Brand: ASUS
- Model: ProArt PA602 Wood Edition Modern
- UPC: 197105977525
- EAN: 4711387977521
- MPN: 90DC00J0-B00030
-
Premium creator PC case with FSC-certified walnut wood design and tempered glass side panel.
-
High-airflow open front grille with dual 200mm front fans and 140mm rear fan for strong cooling.
-
Supports large graphics cards up to 440mm and 420mm radiator cooling for powerful workstation builds.
-
Creator-friendly front I/O with 20Gbps USB-C, USB 3.0, USB 2.0, fan control and power lock latch.
-
Built-in dust detection, PWM fan hub, tool-free GPU slot clamp and wheels for easier setup and maintenance.
-
Flexible storage support with up to four 3.5-inch HDDs or up to eight 2.5-inch SATA SSDs.
Ask a Question About This Product

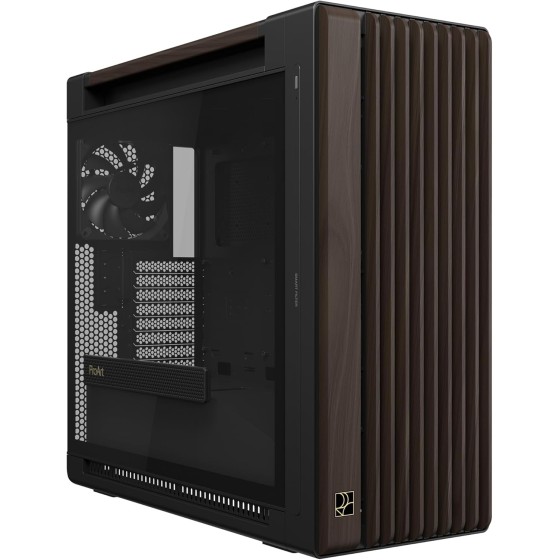

ASUS ProArt PA602 Wood Edition Modern Black - Tempered Glass Panel
Superb Cooling, Timeless Wood Craftsmanship
The ASUS ProArt PA602 Wood Edition Modern Black is a premium creator-focused mid-tower case designed for powerful workstation builds, clean aesthetics and high-airflow performance. Featuring FSC-certified walnut wood, a tempered glass side panel, open front grille, dual 200mm front fans, 140mm rear fan, 420mm radiator support, 440mm GPU clearance and creator-friendly front I/O, it delivers a refined balance of natural design, cooling capability and professional PC expandability.
Key Highlights
A premium ProArt chassis built for creators, workstation users and performance PC builders who need airflow, space, storage and refined design.
Walnut Wood Design
FSC-certified walnut wood front styling for a premium natural finish.
Open Grille Airflow
High-porosity front grille designed for maximum air intake.
Dual 200mm Fans
Pre-installed 2 x 200mm front fans for strong cooling performance.
420mm Radiator
Supports up to 420mm radiator on top for powerful liquid cooling builds.
GPU Clearance
Supports graphics cards up to 440mm in horizontal mounting.
20Gbps USB-C
Front USB 3.2 Gen 2x2 Type-C port for fast creator workflow access.
Tempered Glass
Left-side tempered glass panel shows your premium internal build.
Storage Ready
Supports up to 4 HDDs or up to 8 SATA SSDs for creator storage needs.

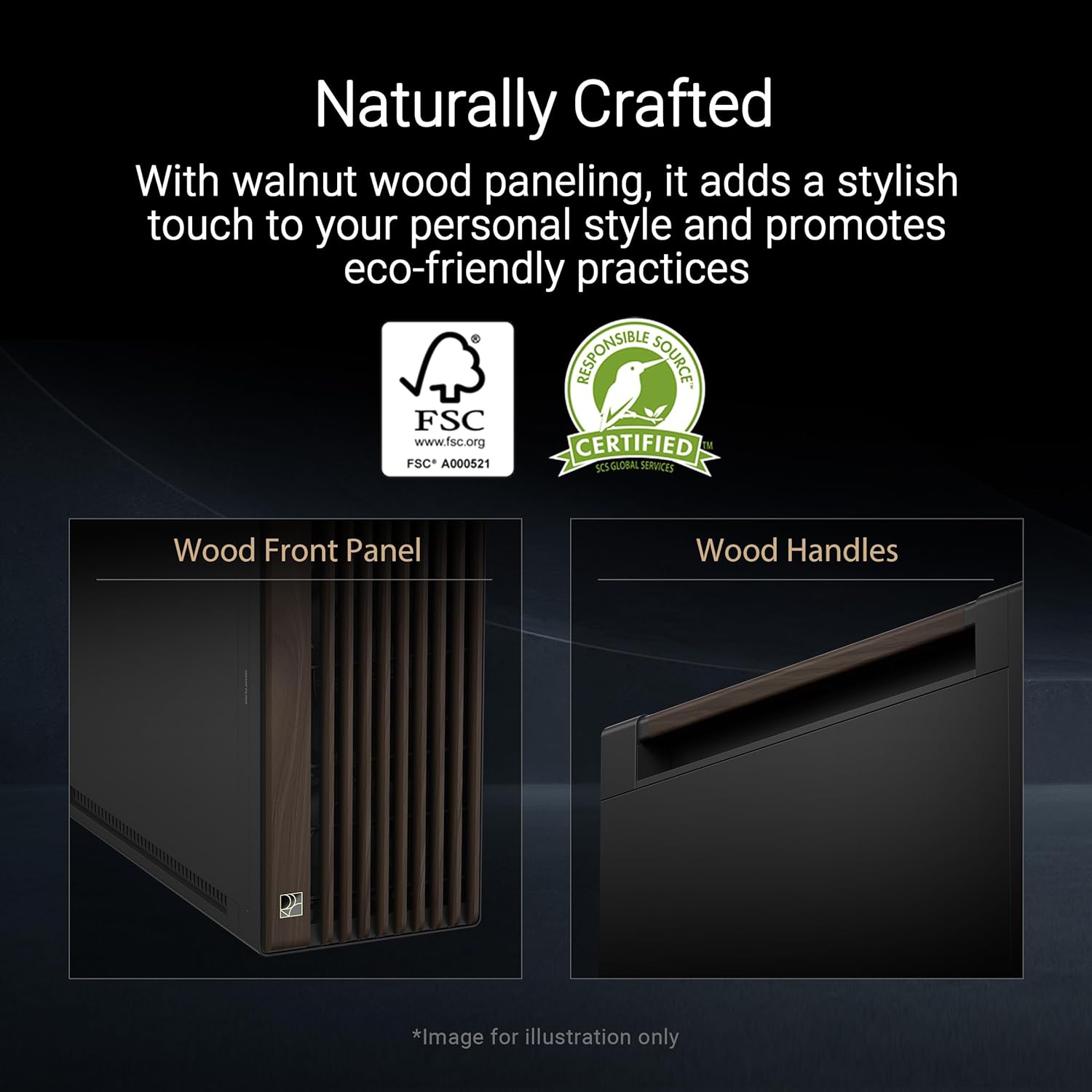

Naturally Crafted Wood Edition Design
The ProArt PA602 Wood Edition Modern Black combines high-performance PC hardware design with a natural wood finish. ASUS uses walnut wood selected for its premium grain texture, with a special design process that includes thermowood treatment, shaping, grinding and coating to enhance durability and appearance.
FSC-Certified Walnut Wood Front Panel
The wood front panel brings a warmer and more refined aesthetic to professional creator desks, while the FSC certification supports responsible material sourcing.
Premium Modern Black Finish
The Modern Black edition blends a dark professional chassis with rich walnut wood accents, making it suitable for creator studios, editing workstations and premium custom PC builds.
Tempered Glass Side Panel
The tempered glass version lets you showcase ProArt components, high-end graphics cards, custom cooling and clean cable management inside the case.

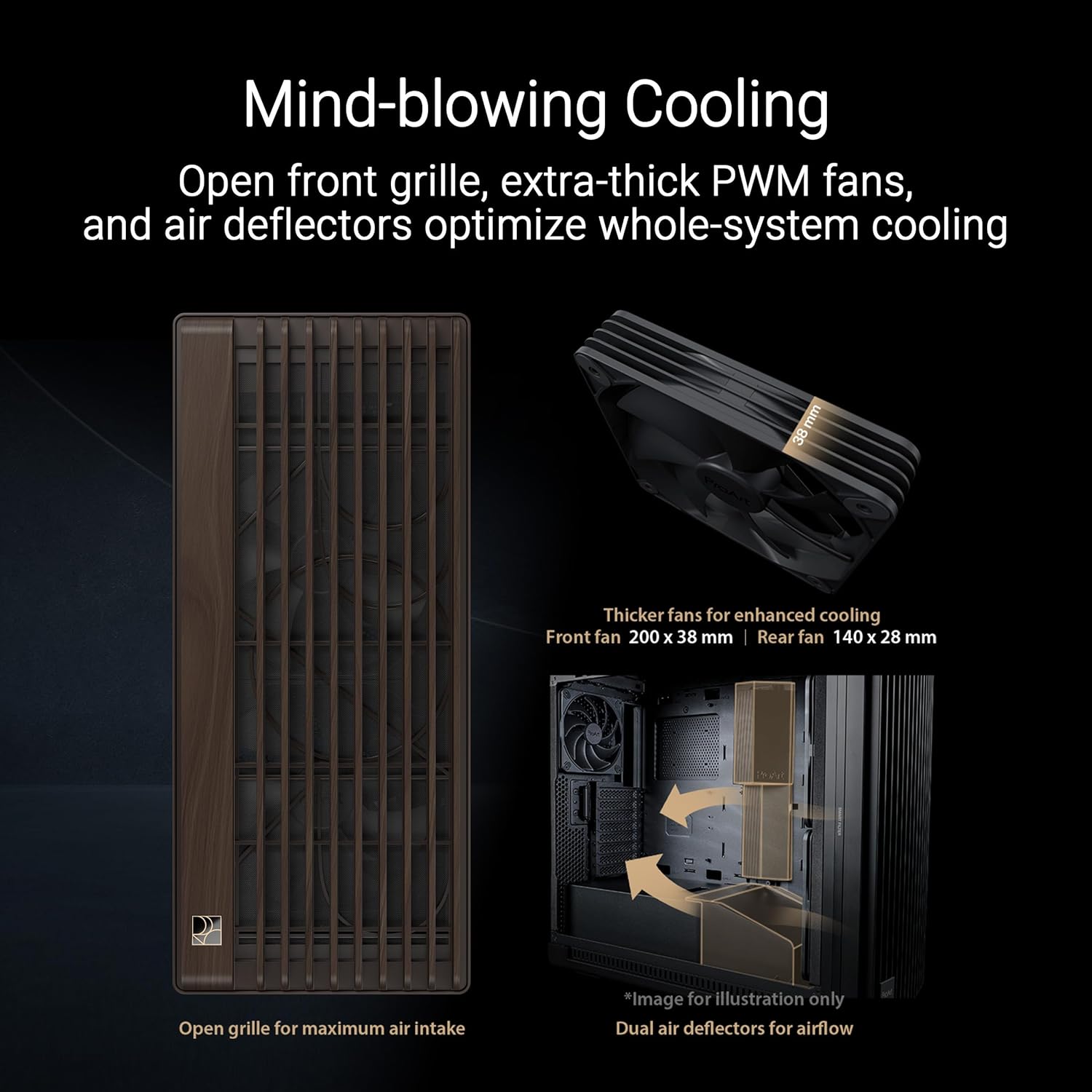

Air Superiority for High-Performance Builds
Cooling is a core focus of the PA602 Wood Edition. The open front grille improves air intake, while thick pre-installed fans and dual air deflectors help guide cool air toward critical components including the graphics card and CPU cooler.
Open Grille for Maximum Air Intake
The front panel uses a high-airflow grille design to maximize ventilation and help powerful creator workstation components stay cooler under sustained workloads.
Pre-Installed Thick Cooling Fans
The case includes two 200mm front fans and one 140mm rear fan. ASUS highlights thicker fan construction for strong airflow and controlled acoustic performance.
200mm Front Fans
Large front intake fans help deliver strong airflow into the chassis.
140mm Rear Fan
Pre-installed rear exhaust fan helps remove hot air from the system.
Fan Control
Integrated PWM control helps switch cooling behavior by workload.
Dual Deflectors
Air deflectors help centralize cool air for GPU and CPU intake zones.
Built for Powerful Creator Components
The ProArt PA602 Wood Edition Modern Black provides generous component clearance for modern creator and workstation PCs. It supports EATX motherboards, large graphics cards, high-performance cooling and extensive storage, making it ideal for video editing, rendering, design, 3D, AI development and professional productivity builds.

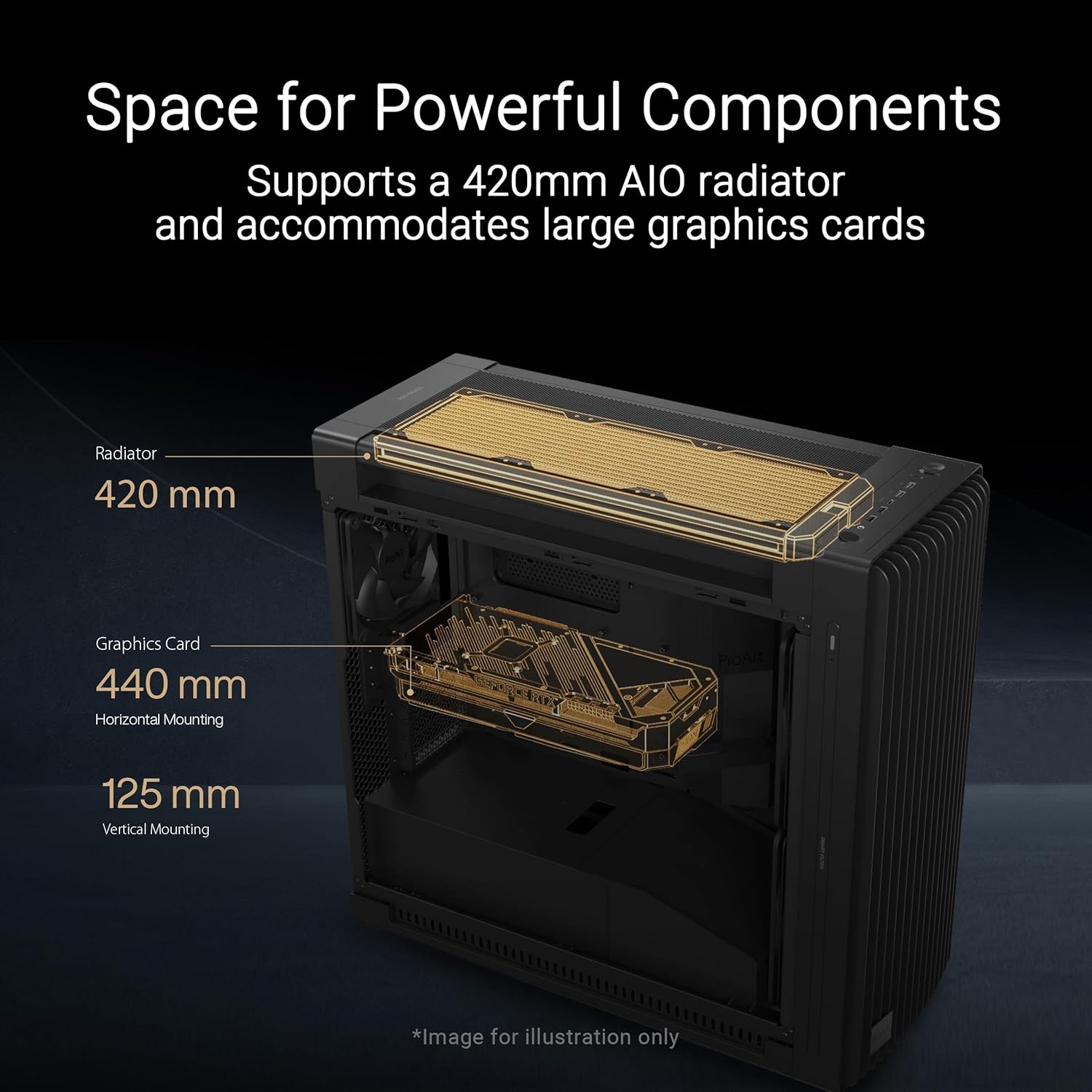

Space for Large GPUs and Advanced Cooling
The chassis supports GPUs up to 440mm in horizontal mounting and up to 420mm radiator support for AIO or custom liquid-cooling builds.
Motherboard Support
Supports Mini-ITX, Micro-ATX, ATX and EATX motherboards.
440mm GPU
Large graphics card clearance for professional GPU builds.
CPU Cooler Height
Supports CPU air coolers up to 185mm height.
PSU Clearance
Supports power supplies up to 190mm length.
Creator-Friendly Building Experience
ASUS designed the PA602 Wood Edition with practical features that simplify PC assembly, everyday usage and long-term maintenance. Tool-free graphics card slot clamp, front-panel dust detection, built-in wheels, cable management space and PWM fan hub support make it more convenient for professional system builders and creators.
One-Stop PWM Fan Hub
The integrated PWM fan hub supports up to 6 PWM fans, helping builders manage cooling control more easily from one place.

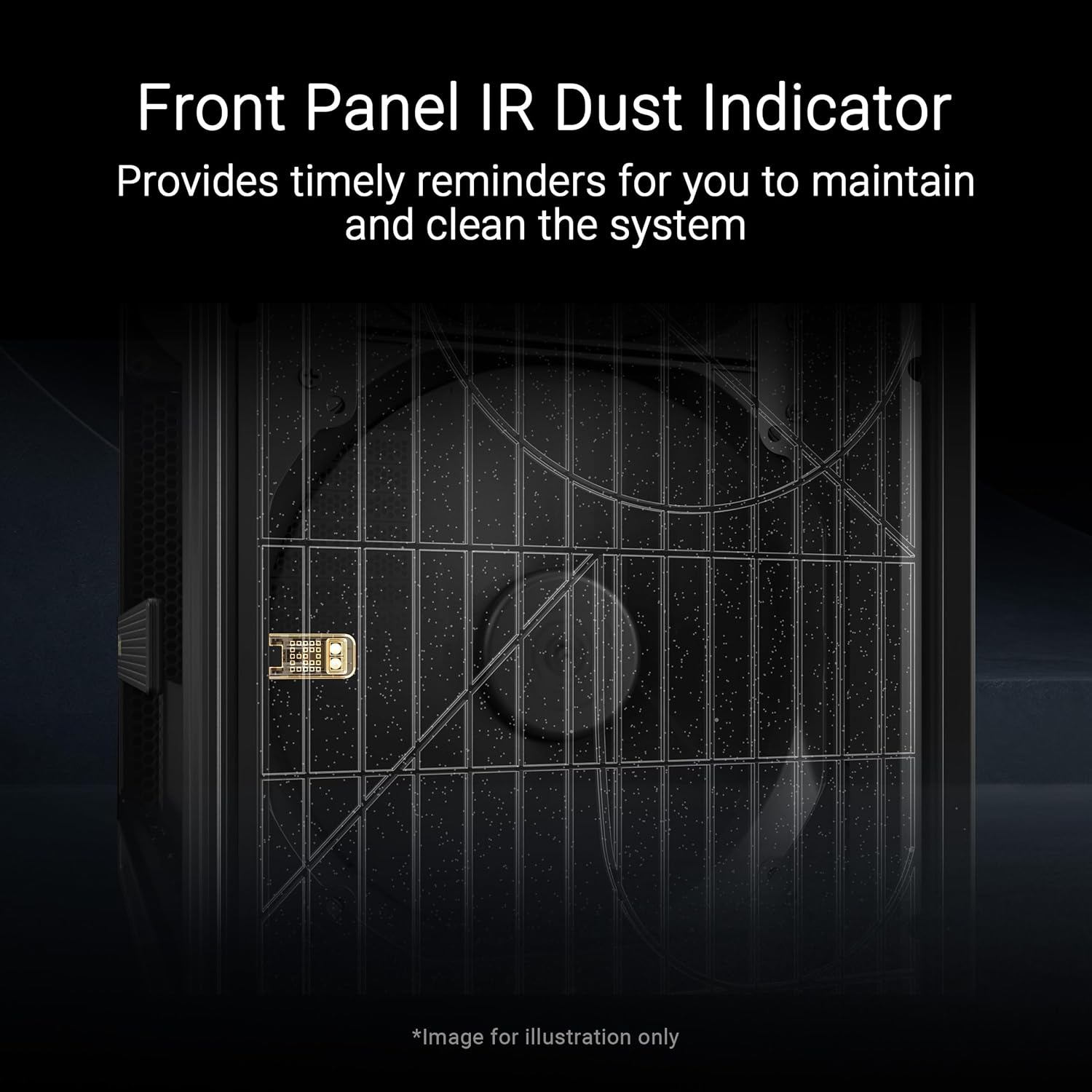

Dust Detection and Built-In Wheels
Front panel dust detection helps remind users when cleaning is needed, while two built-in wheels make the large chassis easier to move during setup or maintenance.

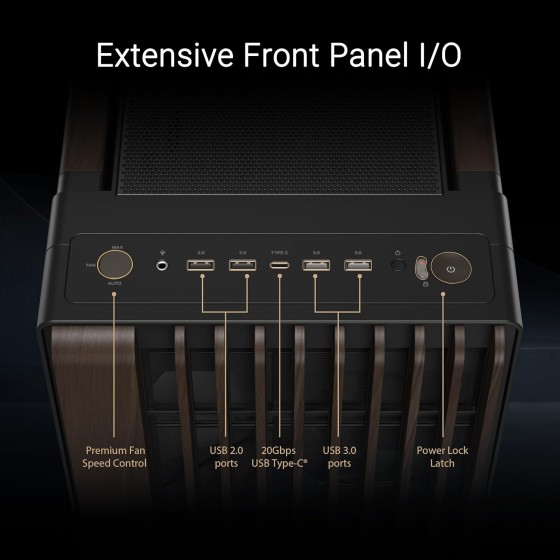

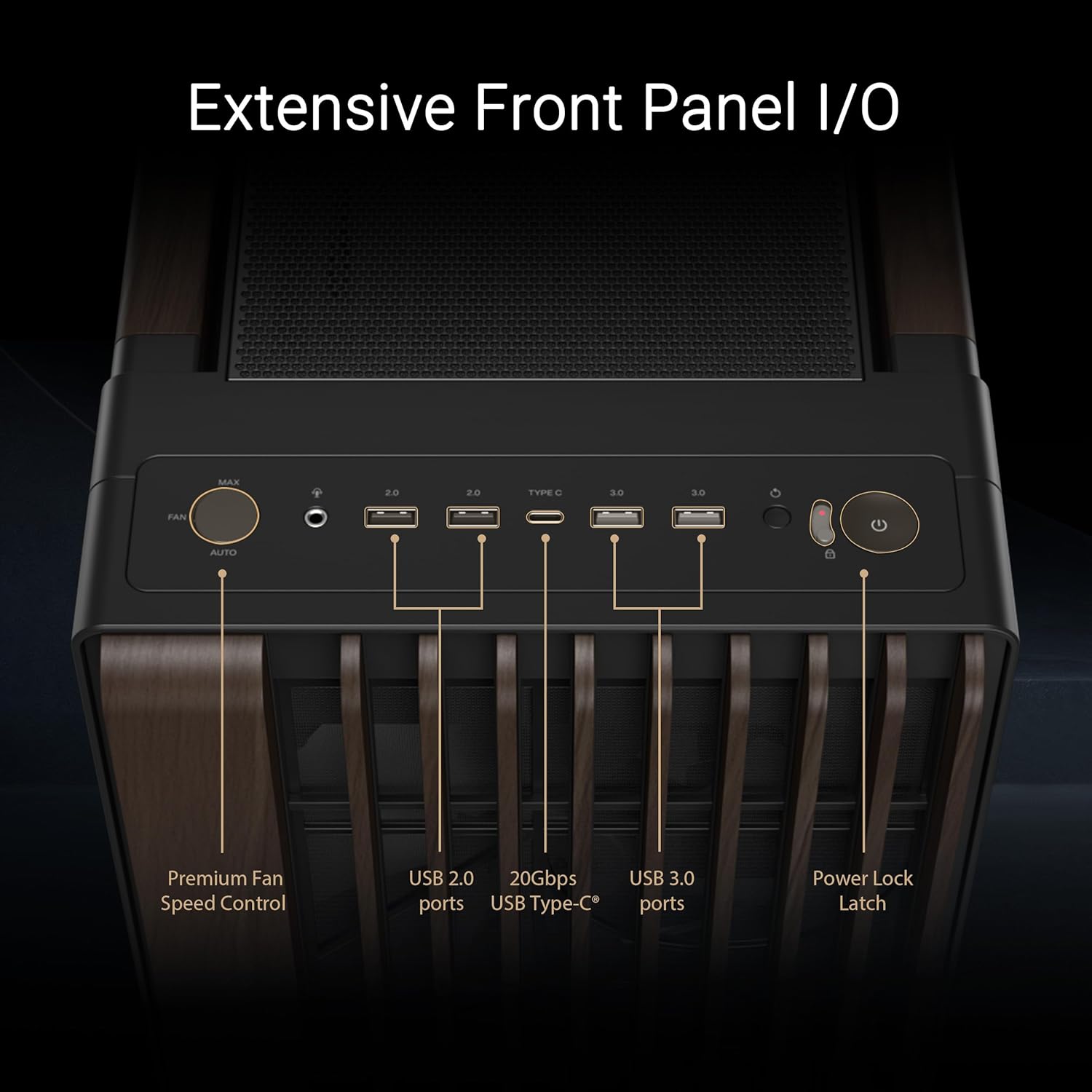

Front I/O Optimized for Creators
The front I/O panel is built for fast access and smoother creator workflow. It includes one 20Gbps USB Type-C port, two USB 3.2 Gen 1 ports, two USB 2.0 ports, reset button and fan control button. A power lock latch helps prevent accidental shutdown during important work sessions.
Fast Access for Daily Creator Workflow
The front panel provides high-speed USB-C, USB-A ports, fan control and a physical power lock latch for professional workstation convenience.
USB-C 20Gbps
Fast USB 3.2 Gen 2x2 Type-C port for modern external devices.
2 x USB 3.2 Gen 1
Quick access for drives, readers and creator peripherals.
2 x USB 2.0
Useful for keyboards, mice, dongles and everyday accessories.
Power Lock Latch
Helps reduce accidental power button presses during work sessions.
Superior Storage Expandability
Creative professionals often work with large project files, video libraries, design assets and backups. The PA602 Wood Edition supports up to four 3.5-inch HDDs or up to eight 2.5-inch SATA SSDs, providing strong storage flexibility for workstation users.
Flexible HDD and SSD Support
Build a high-capacity workstation with multiple HDDs for storage or multiple SATA SSDs for fast project access and organized file handling.
Up to 4 HDDs
Supports up to four 2.5-inch / 3.5-inch combo bays.
Up to 8 SSDs
Supports up to eight 2.5-inch SATA SSDs.
30mm Cable Space
Maximum cable management space helps keep the build clean.
Dust Filters
Removable dust filters are available at front, top and bottom.
Ideal Use Cases
ASUS ProArt PA602 Wood Edition Modern Black is built for users who want a premium creator PC chassis with strong airflow, workstation compatibility and a refined natural design.
Video Editing PCs
Spacious layout for high-end GPU, storage and cooling-heavy editing builds.
3D Workstations
Supports powerful components for rendering, animation and design workflows.
AI Development
Useful for GPU-focused local AI and data science workstation builds.
Creator Studios
Wood styling and tempered glass give premium visual appeal for studios.
Storage Builds
Multiple HDD and SSD support for large project file libraries.
Liquid Cooling
420mm radiator support for powerful cooling configurations.
Large GPU Builds
Supports graphics cards up to 440mm in length.
Professional PCs
Designed for clean, powerful and reliable workstation systems.
Specification Overview
| Product Name | ASUS ProArt PA602 Wood Edition Modern Black - Tempered Glass Panel |
|---|---|
| Product Type | Creator-focused Mid Tower PC Case |
| Case Size | Mid Tower |
| Side Panel | Left Side Tempered Glass |
| Wood Material | FSC-certified walnut wood front design |
| Motherboard Support | Mini-DTX, DTX, Mini-ITX, Micro-ATX, ATX, EATX up to 12" x 10.9" |
| Drive Bays | 4 x 2.5" / 3.5" Combo Bay, 4 x 2.5" Bay |
| Expansion Slots | 8 + 2 additional vertical slots |
| Front I/O | Reset Button, Fan Control Button, 2 x USB 2.0, 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 1 |

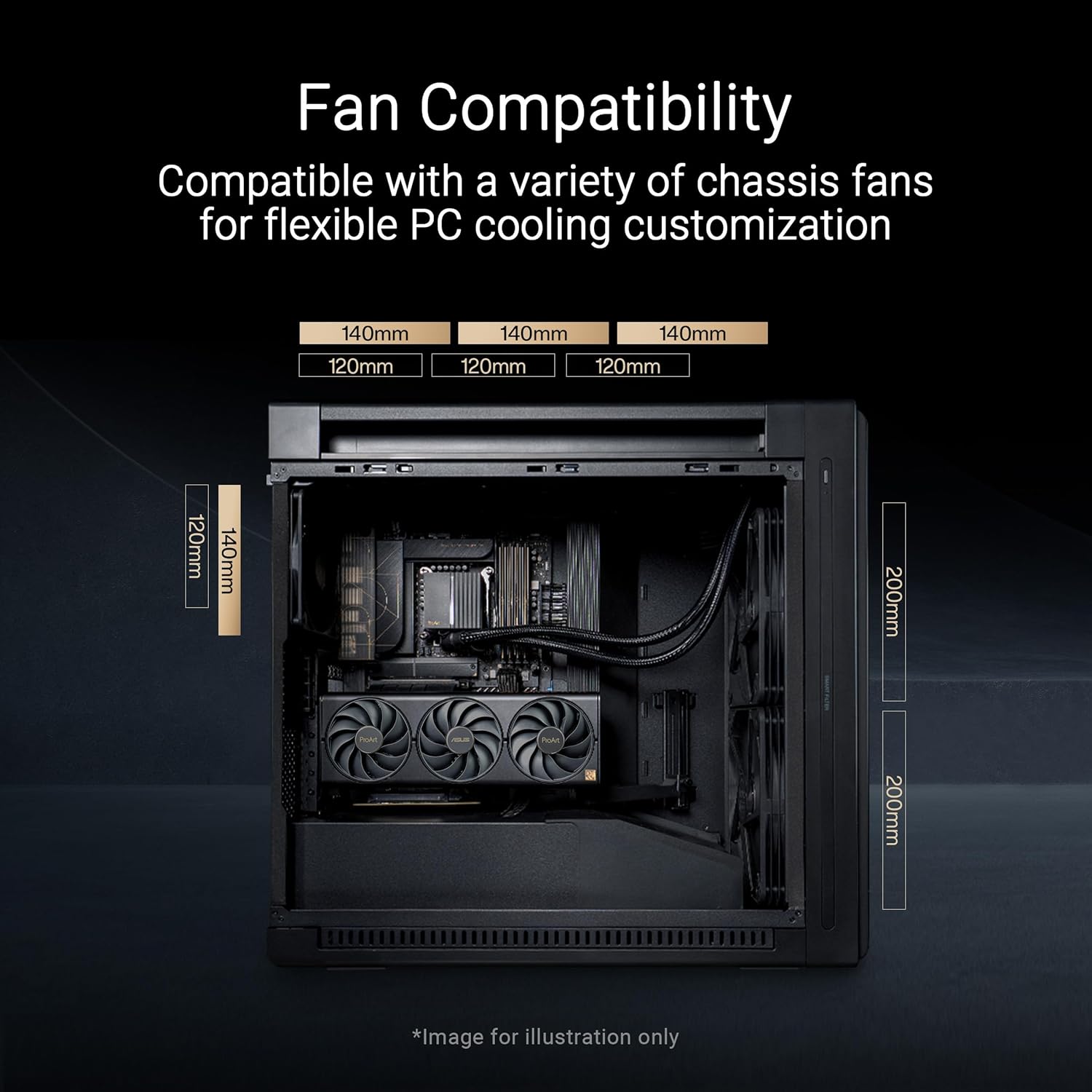

| Radiator Support - Top | 420mm, 360mm, 280mm, 240mm, 140mm, 120mm |
| Cooling Support - Front | 2 x 200mm |
| Cooling Support - Top | 3 x 140mm or 3 x 120mm |
| Cooling Support - Rear | 1 x 140mm or 1 x 120mm |
| Pre-installed Front Fans | 2 x 200mm |
| Pre-installed Rear Fan | 1 x 140mm |
| Maximum CPU Cooler Height | 185mm |
| Maximum GPU Length | 440mm |
| Maximum PSU Length | 190mm |
| Removable Dust Filters | Bottom, Top, Front |
| Maximum Cable Management Space | 30mm |
| Special Features | Front panel dust detection, power lock latch, PWM fan control, built-in wheels, Wi-Fi antenna compartment |
| Dimensions | 593 x 560 x 245 mm |
| Weight | 15.8 kg |
| Best For | Creator workstations, video editing PCs, rendering systems, high-end GPU builds, storage-heavy PCs and premium custom builds |
FAQ
Is the ASUS ProArt PA602 Wood Edition Modern Black good for creator workstation builds?
Yes. It offers strong airflow, large GPU clearance, EATX motherboard support, 420mm radiator support and flexible storage options, making it suitable for creator and workstation PCs.
Does this model include a tempered glass panel?
Yes. This specific model is the Tempered Glass Panel version with a left-side tempered glass panel.
What type of wood is used in this case?
ASUS lists FSC-certified walnut wood for this Wood Edition Modern Black case.
How many fans are pre-installed?
The case includes 2 x 200mm front fans and 1 x 140mm rear fan.
Does it support large graphics cards?
Yes. The official specification lists maximum GPU length support up to 440mm.
Does it support liquid cooling?
Yes. It supports top radiator sizes up to 420mm, making it suitable for AIO or custom liquid-cooling builds.
How much storage can it support?
The chassis supports up to four 3.5-inch HDDs or up to eight 2.5-inch SATA SSDs, depending on the configuration.
Build a Premium Creator Workstation with ProArt PA602 Wood Edition
Choose the ASUS ProArt PA602 Wood Edition Modern Black for a high-airflow, spacious and premium creator PC case with walnut wood styling, tempered glass, powerful cooling support and workstation-ready expandability.
