ASRock Jupiter H610 (65W) Barebone Minipc

Name: ASRock Jupiter H610 (65W) Barebone Minipc
Brand: ASRock
SKU: ASRock-Jupiter-H610-65W-Barebone
Price: 24999 INR
Availability: OutOfStock

1 / 4

Brand: ASRock· More from ASRock ›

No reviews yetWrite a review

Model: Jupiter H610 (65W) Barebone

₹24,999

₹21,185.59 + GST (18%) · GST invoice available

Key features

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700), up to 65W
Dual DDR4-3200MHz SO-DIMMs, up to 64GB
Integrated thermal solution
Multi Video Outputs：2 x DisplayPort (co-lay D-Sub), HDMI
2 x USB 3.2 Gen1 Type-C, 5 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Support RS232 (COM) port
2 x M.2 (2280) slot (1 x PCIe Gen4 x4) and 1 x SATA 6Gb 2.5-inch for SSD
M.2 (2230) slot for Wi-Fi
Optional 2W Speaker
Optional TPM 2.0 IC
179 x 178 x 34mm / 1.07L
1 Years warranty

All specifications

Jupiter H610

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700), up to 65W
Dual DDR4-3200MHz SO-DIMMs, up to 64GB
Integrated thermal solution
Multi Video Outputs：2 x DisplayPort (co-lay D-Sub), HDMI
2 x USB 3.2 Gen1 Type-C, 5 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Support RS232 (COM) port
2 x M.2 (2280) slot for SSD (1 x PCIe Gen4 x4)
M.2 (2230) slot for Wi-Fi
Optional 2W Speaker
Optional TPM 2.0 IC
179 x 178 x 34mm / 1.07L

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

Tiny but Awesome

Jupiter 600 series features the flexibility and expandability in a compact size suited to a wide range of applications such as office, retail, healthcare, transportation and industry. With support for 13th Gen Intel® Core™ processors up to 65 watts, dual DDR4 3200MHz memory, and comprehensive connectivity, Jupiter 600 series provides powerful performance to meet user’s needs.

Jupiter 600 Series Platform

Intel® LGA1700 Socket CPU

Supports 13th Gen & 12th Gen Intel® Core™ Processors, up to 65W

High Speed DDR4 Memory

Dual DDR4-3200MHz, up to 64GB

Proprietary Thermal Solution

Copper based heatsink
High efficiency blower

Three-storage Design

Three-storage design for fast data transfer speed and high storage capacity.*
- 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
- 1 x Hyper M.2 (2280) – PCIe Gen4 x4
- 1 x Ultra M.2 (2280) –PCIe Gen3 x4

*JPT 600 series could not support 2.5” HDD and 2 x M.2 SSD at the same time. If you want to install 2 x M.2 SSD, please remove HDD bracket and use fanless Heatsink (optional accessory).

Optional Wi-Fi Module

Jupiter H610 supports optional Intel® M.2 Wi-Fi & Bluetooth Module:
Intel® AX-210
Intel® AC-3168

Rich Connectivity

Comprehensive connectivity with nine USB ports including a USB 3.2 Gen1 Type-C on each front and rear panel, three displays and a COM port means Jupiter 600 series is ideal for use to business, POS and digital signage.

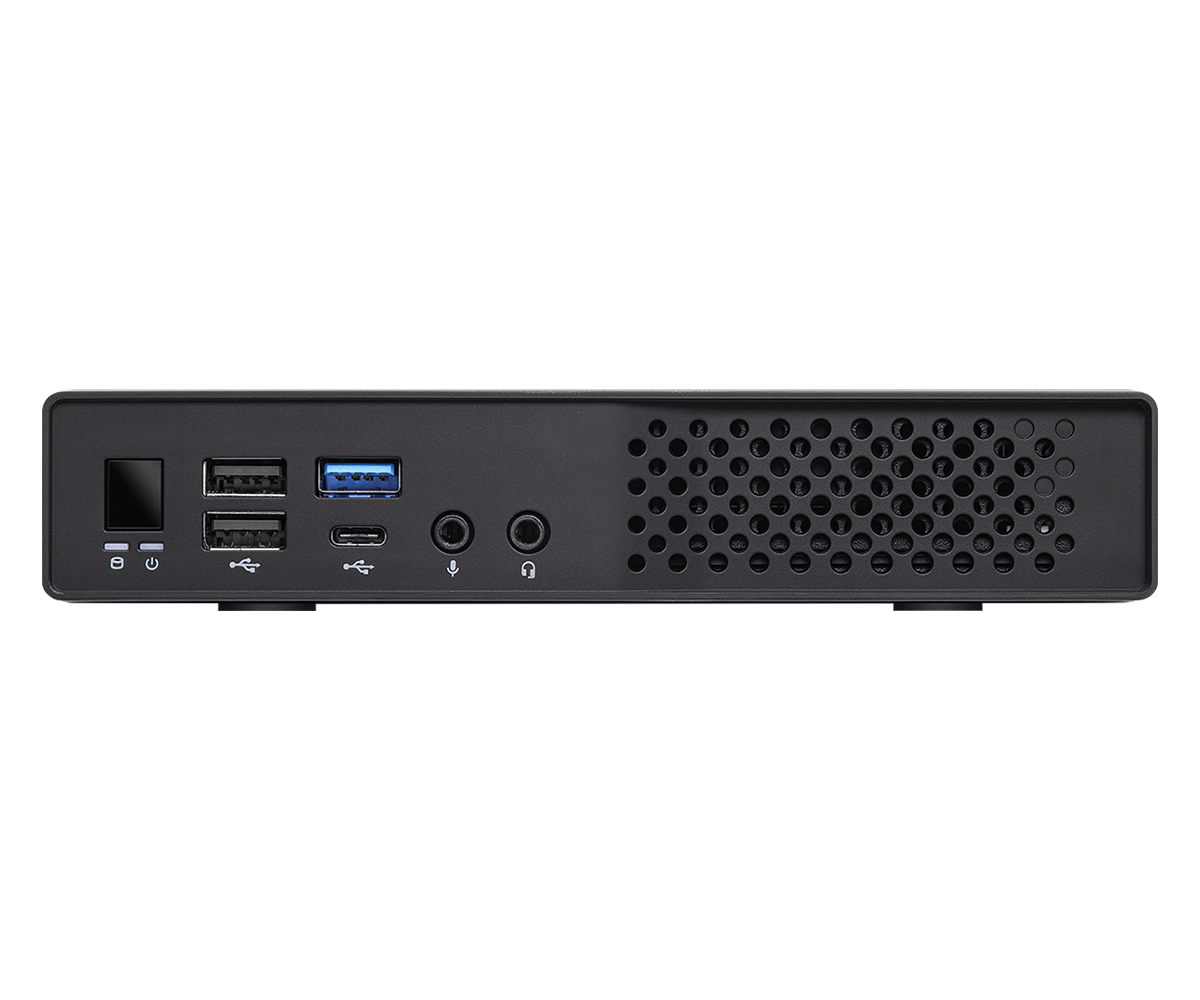

Front Side

1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1 Type-A
2 x USB 2.0

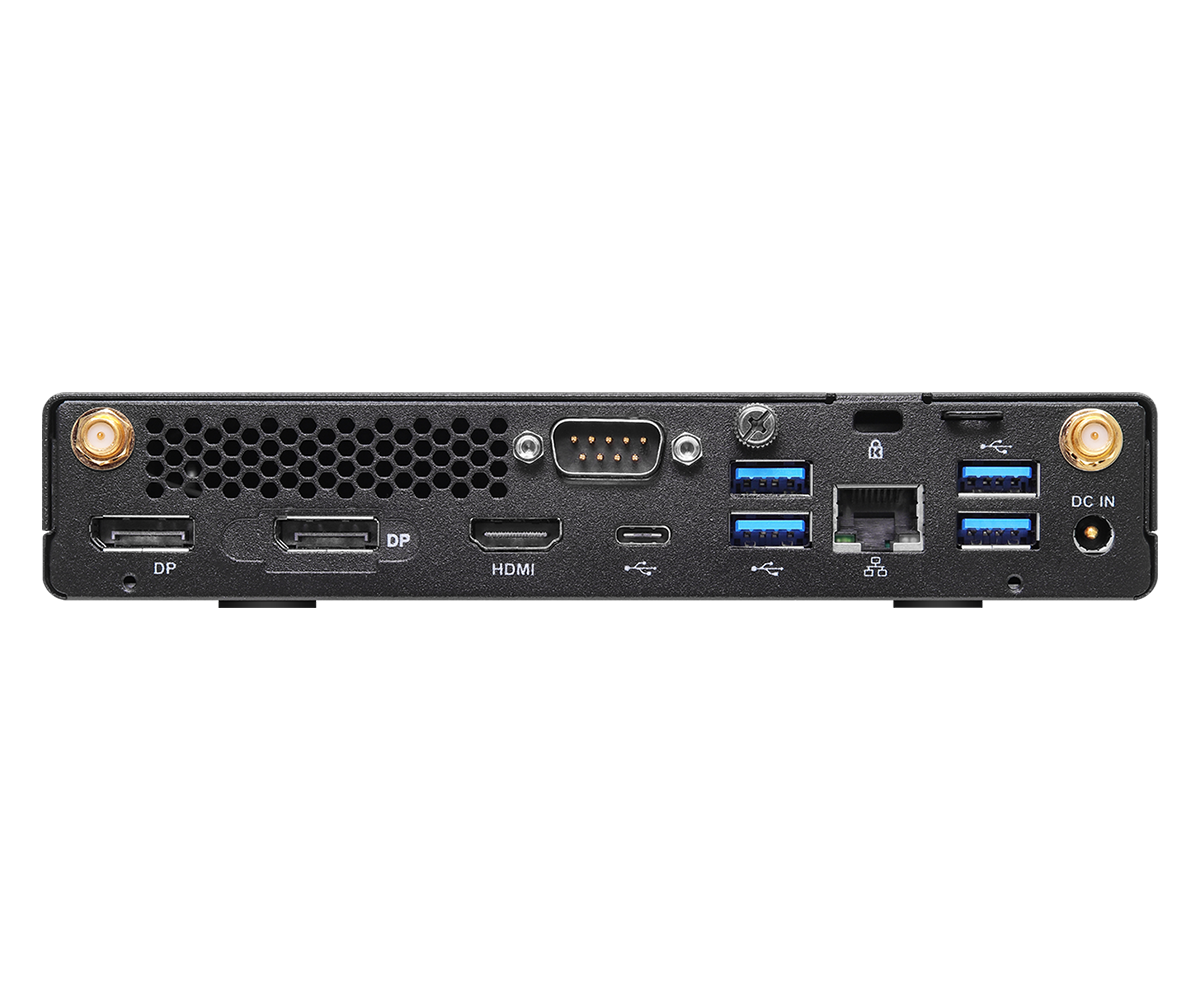

Rear Side

1 x USB 3.2 Gen1 Type-C
4 x USB 3.2 Gen1 Type-A

Enhanced Productivity

With support for two DisplayPort and one HDMI connectors at the same time, Jupiter 600 series lets you increase your productivity at work.

3 Video Outputs

HDMI	4K@60Hz
DisplayPort 1.2(DP2)*	4K@60Hz
DisplayPort 1.4(DP1)	8K@60Hz

*DisplayPort 1.2 co-lay D-Sub

Security Solutions

Chassis Intrusion

Get alert if Jupiter’s chassis has been opened.

Kensington Lock Slot

Protect Jupiter from theft.

TPM 2.0 (optional)

Jupiter series supports TPM 2.0 to provide the enhanced network, data security down to the hardware level.

Space-saving Design

VESA Mount

Let you mount Jupiter behind the monitor easily.

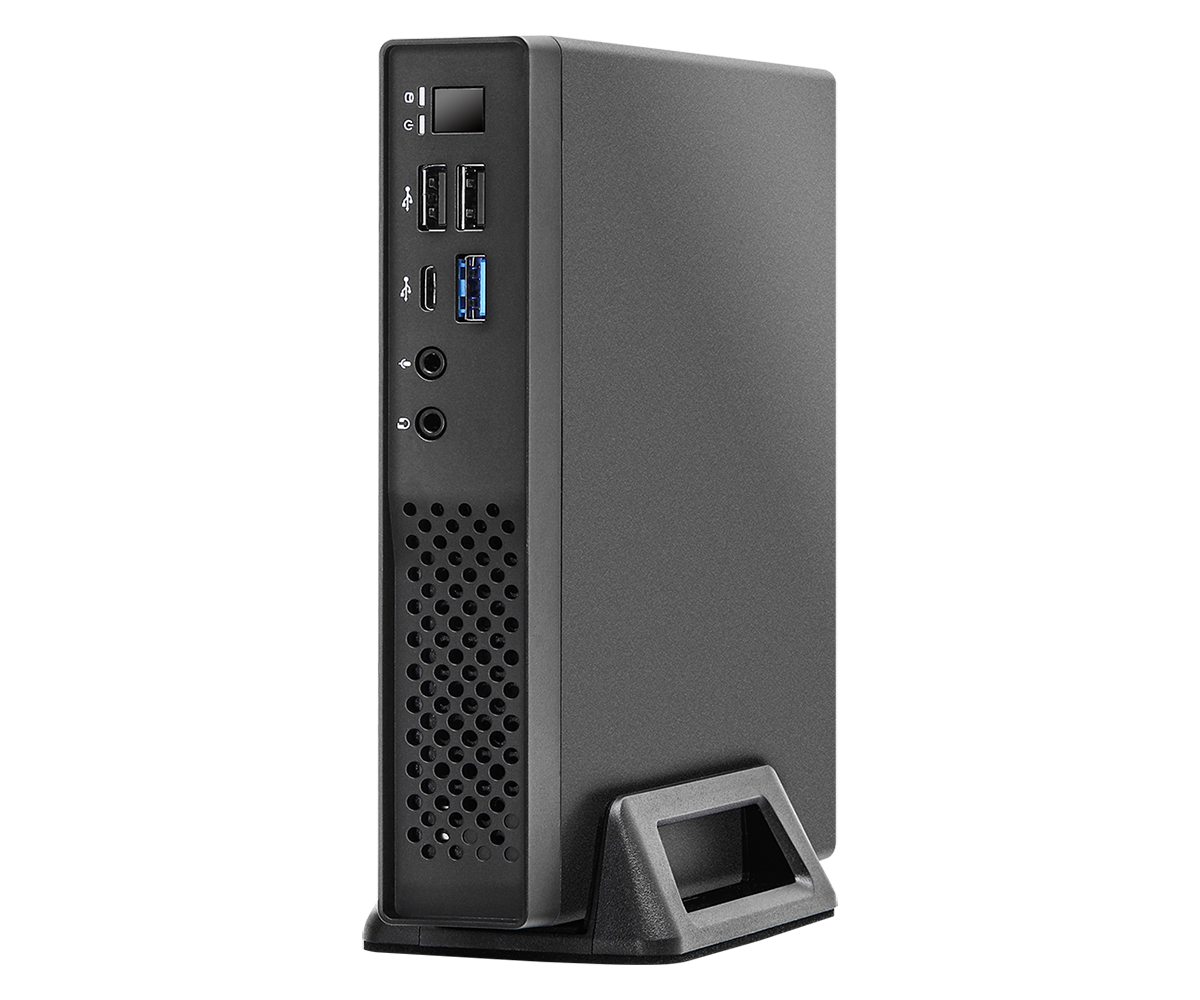

STAND (Optional)

Jupiter can stand vertically to save desk space.

*The availability of accessories may vary by region.

Ready for Various Scenario

General

Color	Black
Manufacturer Warranty	1 Year
Product Type	Barebone
Product Family	Jupiter
Operating System	No OS

Memory

RAM Type	SODIMM DDR4-3200
RAM Capacity	No RAM
Max RAM Capacity	64GB

Motherboard

Chipset Manufacturer	Intel
Memory Slots	2 x DDR4

Storage

Storage Capacity	No Storage
Storage Form Factor	M.2 & 2.5"

Connectivity

LAN Speed	2.5 Gigabit LAN
WiFi Standard	Wi-Fi 6E

Ports & Interfaces

HDMI Ports	1 x HDMI 2.1
DisplayPort	2 x DisplayPort 1.4
USB Type-C	USB Type-C

₹24,999
