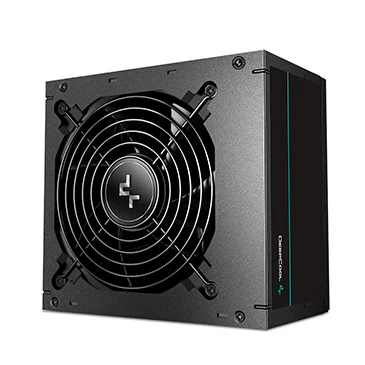

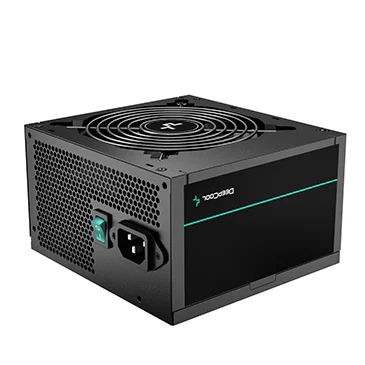

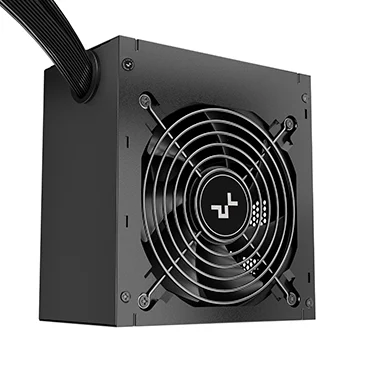

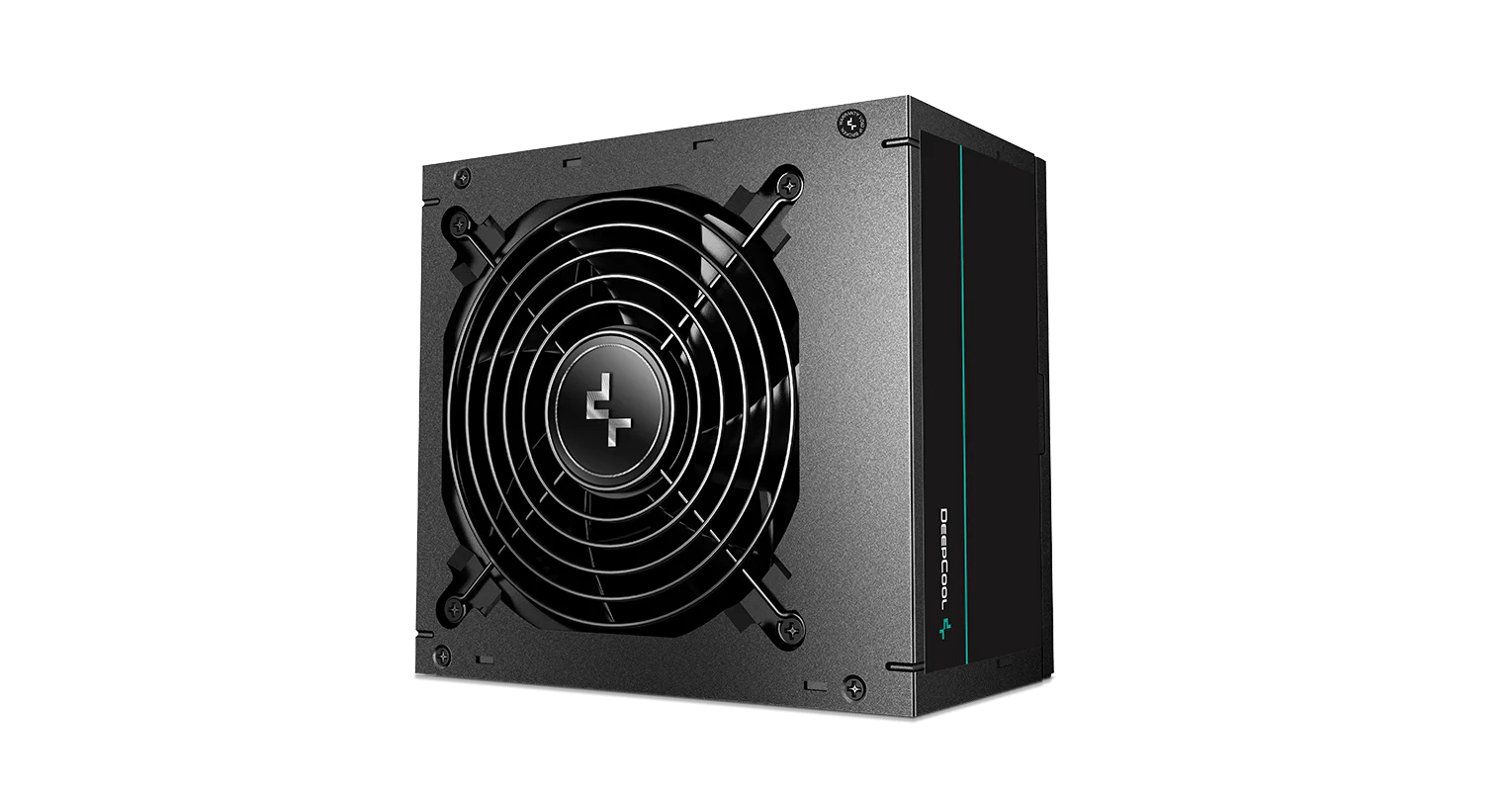

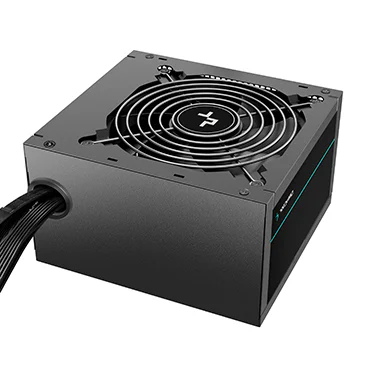

Deepcool PM750D 750 Watt 80 Plus Gold Certified Power Supply (Black)

Deepcool PM750D 750 Watt 80 Plus Gold Certified Power Supply (Black)

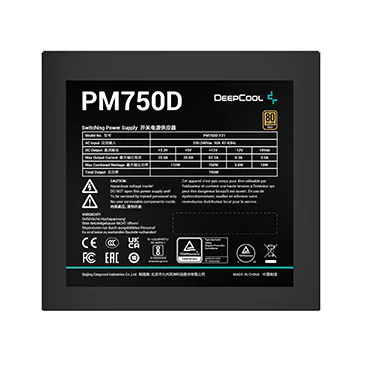

PM750D
DeepCool PM750D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.

COLOR

black
MODEL



PM750D
Reliable 80 PLUS Gold Efficiency

DeepCool PM750D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.

80 PLUS GOLD CERTIFIED
Guarantees a minimum efficiency of 90% or higher under typical loads for reliable power delivery with little waste.

QUALITY TOPOLOGY

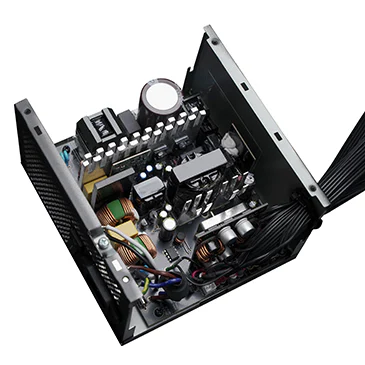

For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability.

BUILT TO SPEC
Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.

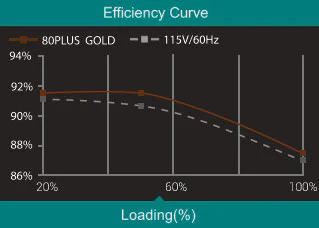

80 PLUS® Gold
80 PLUS® Gold certified - Up to 87~90% efficient (20~100% Loading)

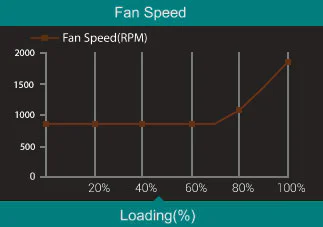

Silent and High Performance Fan
120mm silent fan has temperature control function to keep low noise

ENOUGH POWER TO GO AROUND
The PM750D features three independent PCIe outputs and two EPS connectors for continuous high quality power that supports the latest high-end graphics cards and motherboards for gaming excellence.

EFFICIENCY THROUGHOUT
The PM-D series power supplies are compliant with the 2014 ErP regulations on energy savings and also the IEC 62368-1 for safety standards.

PEACE OF MIND
Safeguard your power source with well-round circuit protection including OPP/OVP/SCP/OTP/OCP/UVP.
Over Power Protection
Over Voltage Protection
Short Circuit Protection

Over Temp Protection
Over Current Protection
Under Voltage Protection

Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 2
X1
PCI-E(6+2)Pin x 1
X3
SATA x 3
X2
4Pin Peripheral x 3
X1



Technical Spec
TypeATX12V V2.4
Product Dimensions150×140×86mm (W x L x H)
80PLUS CertificationsGOLD
Fan Size120mm
Fan BearingHypro Bearing
TopologyActive PFC + Full Bridge SRC LLC + DC to DC
CapacitorsJapanese Bulk Capacitor
Power Good Signal100-150ms
Hold Up Time≥16ms(75% Load)
Efficiency≥90% Under Typical Load(50% Loading)
ProtectionOPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature0-40°C
RegulatoryTUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS
Erp RegulationErP(2014)
MTBF100,000 Hours
EAN  P/N6933412709497  R-PM750D-FA0B-AU
6933412709503  R-PM750D-FA0B-CN
6933412709510  R-PM750D-FA0B-EU
6933412709527  R-PM750D-FA0B-JP
6933412709534  R-PM750D-FA0B-UK
6933412709541  R-PM750D-FA0B-US
6933412709558  R-PM750D-FA0B-WO
6933412711155  R-PM750D-FA0B-AR
6933412711162  R-PM750D-FA0B-BR
6933412711179  R-PM750D-FA0B-BU
